Servo positioning screen printing machine for bottles or jars

3 week ago

1 0 

9 year

Product details

Servo Cylinder screen printing machine

Many cylindrical products do not have positioning marks in the circumferential direction, and the starting printing position cannot be controlled by making a fixture. The starting printing position must be controlled by color mark positioning. When printing the second color, the color mark sensor on the screen printer will identify the set color block and send a signal to the central processor, and then drive the servo motor to rotate until the color mark enters the conductor again. The color mark positioning screen printer is the lowest cost way for semi-automatic screen printers to perform color printing, and is favored by many small and medium-sized printing companies.

S-100SL Screen printing Machine //Parameters

The max printing thickness: 200 MM;
Air consumption: 95 Lit/Min;
Outline size: 1080×850×1280MM;
The max printing area : 200×250MM;
Dimension of working table: 250mm×300mm;
Max printing speed: 1300Pc/H;
Max frame dimension: 410×350mm;
Stroke of Squeegee: 350mm;
Stroke of Table cylinder: 100mm;
Max Diameter of Products:100mm;
Max length of Products: 300m

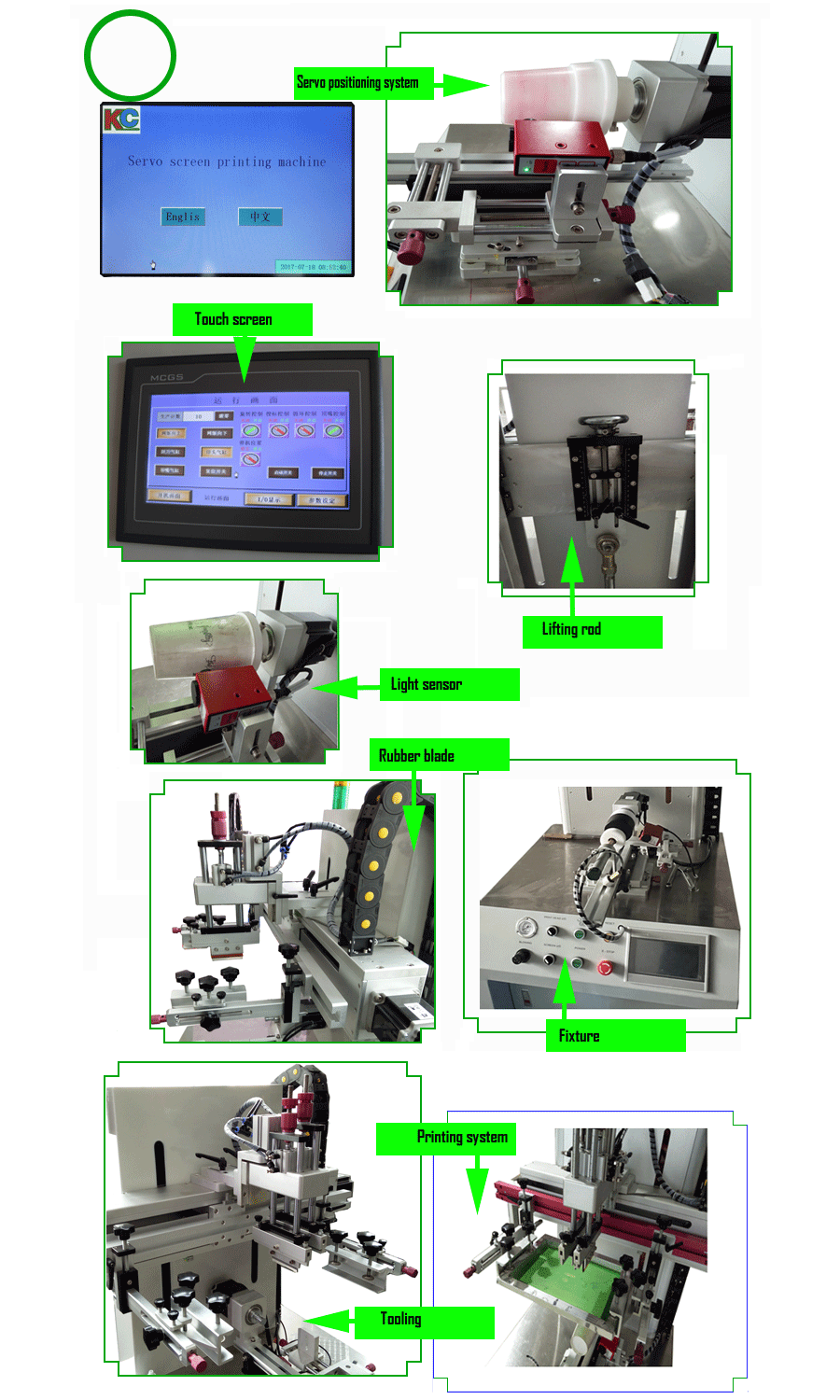

Details description-advantage

Choose clamp-type Workbench can be inflatable, or may not be blowing, can be placed all types of round, oval-shaped substrates;
Contact with the substrate , up and down of screen plate, to facilitate the placement of the substrates and removed;
High Precision axis control. Working table up and down, smooth running, accuracy up to 0.07mm;
High Precision axis control movement. Screen printing pressure is uniform and reliable, the accuracy up to 0.07mm;
Self-balance scraper technology and back blade, to ensure uniformity of ink, ink formation;
Microcomputer control program operations, set up a variety of modes;
Four counts digital LED count, high degree of automation;
Printed Stroke mechanical adjustments, adjust the speed of integrated circuit digital.
Around the screen frame, up and down the emblem of the tune, overlay accuracy, tuning and quick

What is color mark positioning?

Color mark positioning is a technology that realizes accurate position detection or positioning color registration by identifying color blocks on the surface of an object.

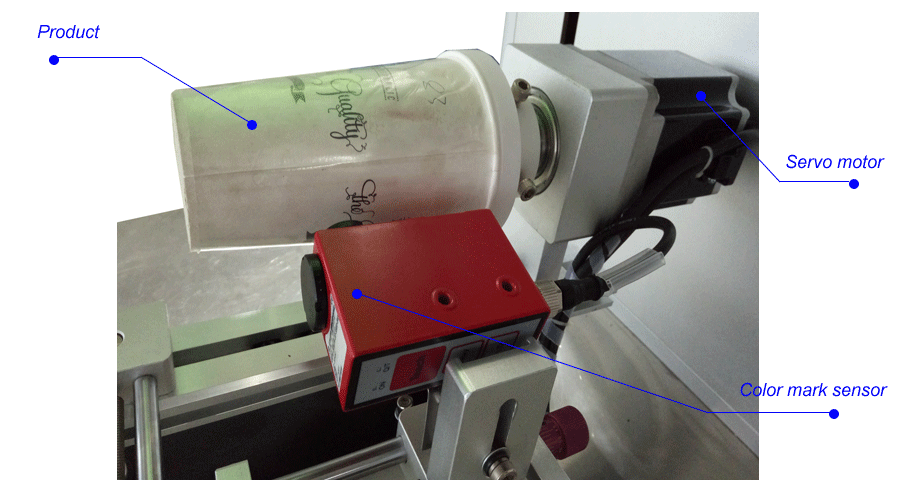

On the cylindrical product that has been printed with the first color, there are patterns or color blocks with obvious color differences (such as black, red, etc.). Generally, a relatively independent area is selected to improve the recognition sensitivity of the sensor. A photoelectric sensor (color mark sensor) is used to detect the color contrast between the color mark and the surrounding background and capture the position information of the color mark. The PLC controller drives the servo motor to rotate and drive the fixture and the cylindrical product to rotate to the preset area according to the deviation between the color mark position and the preset target position.

Color mark positioning is widely used in self-adhesive trademark printing machines, plastic film roll-to-roll screen printing machines, and automatic ribbon screen printing machines.

Servo color mark alignment screen printer

It is a screen printing equipment that combines servo drive system, color mark recognition technology and screen printing process. Through "color mark positioning + servo precision drive", it can achieve high-precision alignment between the printed pattern and the workpiece, and realize multi-color screen printing. It is used in semi-automatic curved screen printers and zone automatic curved screen printers:

Composition

Color mark recognition system: It is composed of color mark sensors used by ordinary positioning screen printers, industrial cameras and image processing modules used by horizontal turntable multi-color screen printers to capture the color mark position on the surface of the workpiece.

Servo drive system: It includes servo motors, encoders, and controllers, which are responsible for driving the movement/rotation of workpieces or screen printing screens to achieve precise positioning.

Workflow

1. Color mark preset and recognition

Plastic bottles, cups and other surfaces are pre-printed or set with color marks (usually high-contrast color blocks/patterns) as the "reference point" for printing positioning. The color mark recognition system shoots or scans the workpiece in real time, identifies the current position of the color mark through image processing, and converts it into a coordinate signal. The PLC controller compares the actual position identified by the color mark with the preset "target printing position" and calculates the rotation angle deviation between the two.

2. Servo precision alignment

The PLC controller sends instructions to the servo system based on the deviation value, drives the servo motor to rotate the fixture and product, compensates for the angle deviation, and after rotating to the specified position, drives the screen lifting mechanism to descend and start printing.
