Glass screen printing hot stamping system

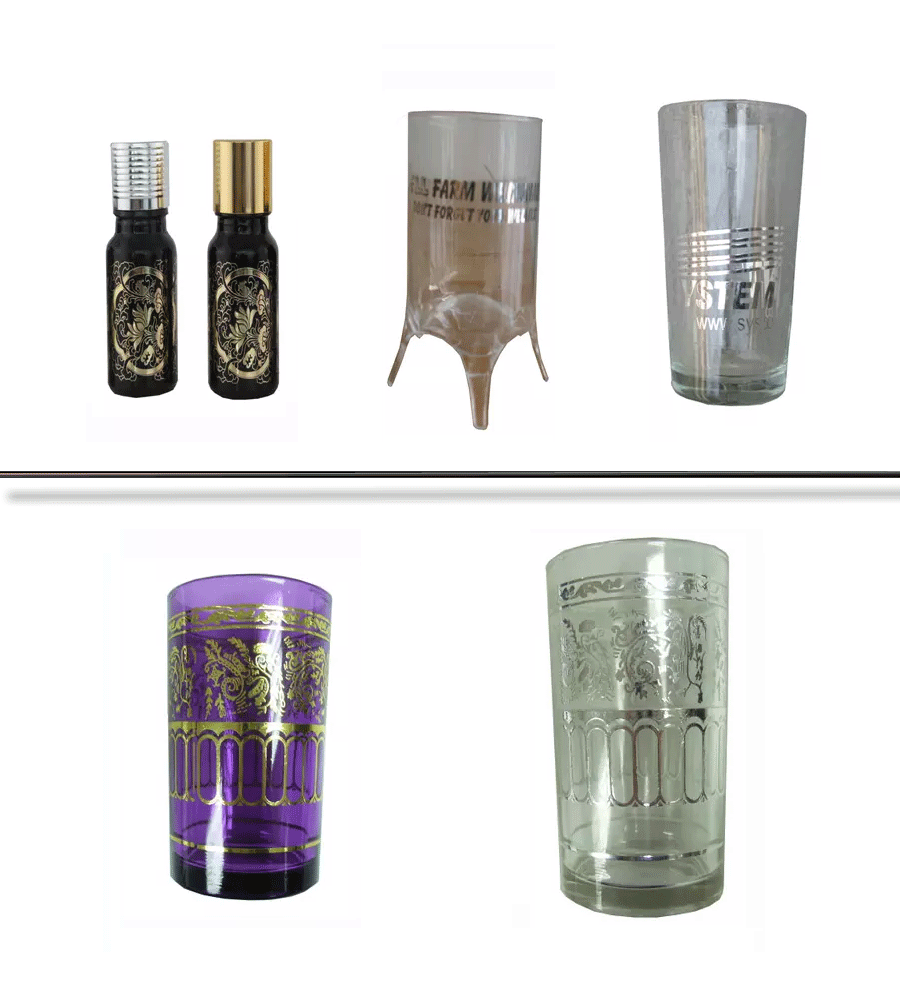

Samples

     Non -absorbing materials such as glass, ceramics, and metals cannot be directly scalded. Generally, it will be printed with a layer of varnish and then bronzed. This is the cold hot scalding process. The cold -hot -coating process is suitable for flat products and is suitable for round products. It can be used for semi -automatic screen printing machine or Automatic Screen Printing Machine. The automatic machine is the automated printing equipment that integrates silk printing, UV solidification and UVLED , save labor costs.

       The automatic glass cup screen printing and hot stamping combination production line integrates three major systems: screen printing, drying, and hot foil stamping, which can complete the entire hot stamping process of glass cups.

Screen printing: screen printing a layer of glass varnish or glass ink on the surface of a glass cup or bottle, which is to establish a coating on the glass surface that can be bonded with the hot stamping foil.

Drying: After screen printing, the ink needs to be dried and cured, such as a UV curing device or an IR curing device to cure the UV ink on the surface of the glass cup.

Hot stamping: The hot stamping device is installed with a flat hot stamping plate or a silicone roller, which can transfer the hot stamping foil to the coated area on the glass surface, and the uncoated area will not retain the hot stamping foil.

         The automatic glass cup hot stamping printing production line automates the entire process from cup loading, screen printing, drying, hot stamping to unloading, reducing manual operation time, high printing accuracy, clear patterns, and uniform colors; the Hot Stamping Equipment is accurately positioned, the hot stamping is firm, and the glossiness is good. The exquisite screen printing and hot stamping effects can enhance the beauty and grade of the glass cup and increase the added value of the product.

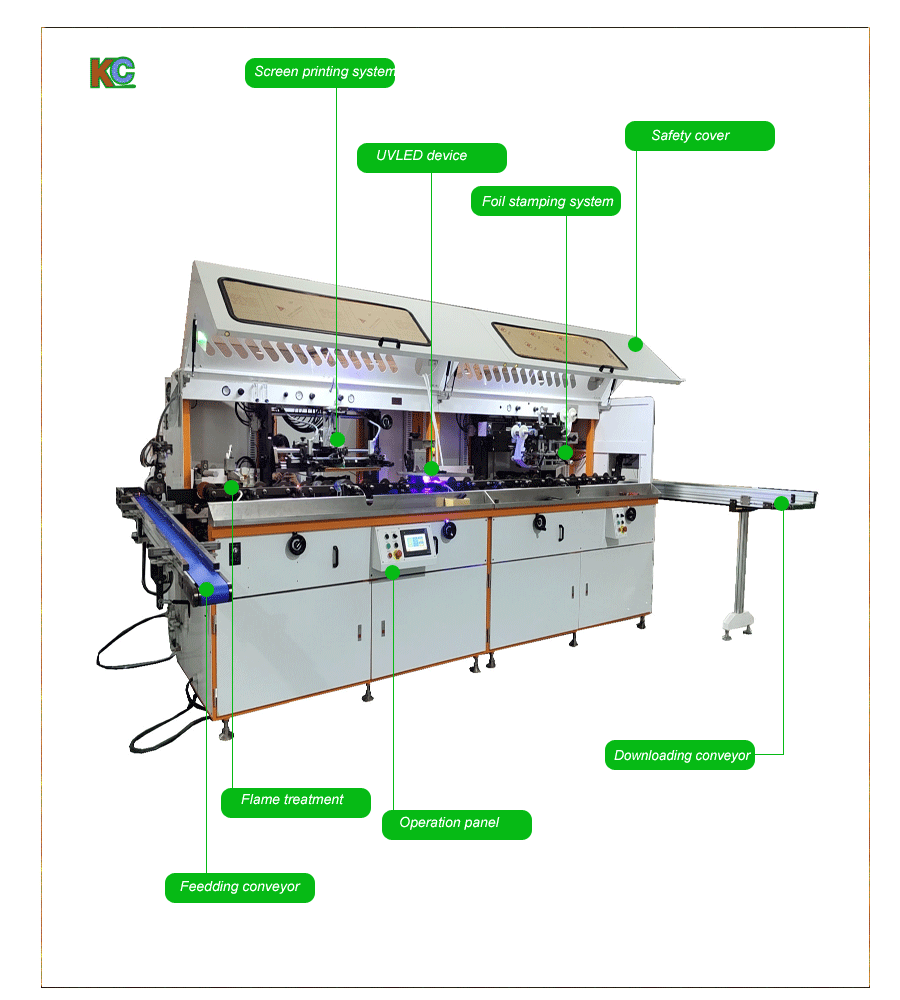

       This linear automatic screen printing machine replaces the second station with a flat hot stamping unit. The first station prints glass ink or paint onto the bottle surface, followed by UV curing. The second station transfers the hot stamping foil to the area where the paint was printed. This screen printing and hot stamping production line is suitable for bottles made of glass, metal, ceramics, or other materials that cannot be directly hot stamped. Users place the bottles on the conveyor belt of the screen printing machine, and the robotic arm loads them, performing screen printing, UV curing, and hot stamping sequentially. By integrating screen printing and hot stamping into one machine, the automation level is high, significantly reducing manual intervention and increasing productivity.

• PLC and Touch Screen Operation Panel - Human-Machine Interface, simple and convenient parameter setting and adjustment;
• Servo Precision Curved Surface Screen Printing System - Synchronous clamp rotation device, servo drive for the screen;
• High-Efficiency UV LED Curing System - Imported UV LED energy-saving curing system;
• Servo Precision Hot Stamping System - Flat hot stamping plate and curved surface synchronous clamp rotation device;
• Branded Electrical and Pneumatic Components - Globally renowned brand pneumatic and electronic components.
