Double-cavity Hard Rock Crusher

Double Cavity Hard Rock Crusher For Granite River Pebble High Capacity Mining Crushing Equipment

Equipment Overview

Double Cavity Hard Rock Crusher For Granite River Pebble High Capacity Mining Crushing Equipment from Zhongyu Dingli is a heavy-duty crushing solution engineered to solve two critical pain points in hard rock processing: severe equipment wear and poor particle shape. As an experienced mining crusher manufacturer, we developed this dual-chamber impact crusher specifically for high-hardness materials including granite, cobblestone, basalt, and river pebbles. The symmetrical twin-cavity design dramatically increases material holding capacity and throughput compared to single-chamber designs, while multiple life-extending innovations reduce downtime and maintenance costs.

Key Highlights:

• Dual-Chamber Symmetrical Design — Two crushing chambers hold more material simultaneously, boosting throughput to 250–450 t/h. Motor drives high-speed rotating hammer heads; materials gain kinetic energy and collide with impact plates for secondary crushing, then self-crush through particle-to-particle collisions before discharge

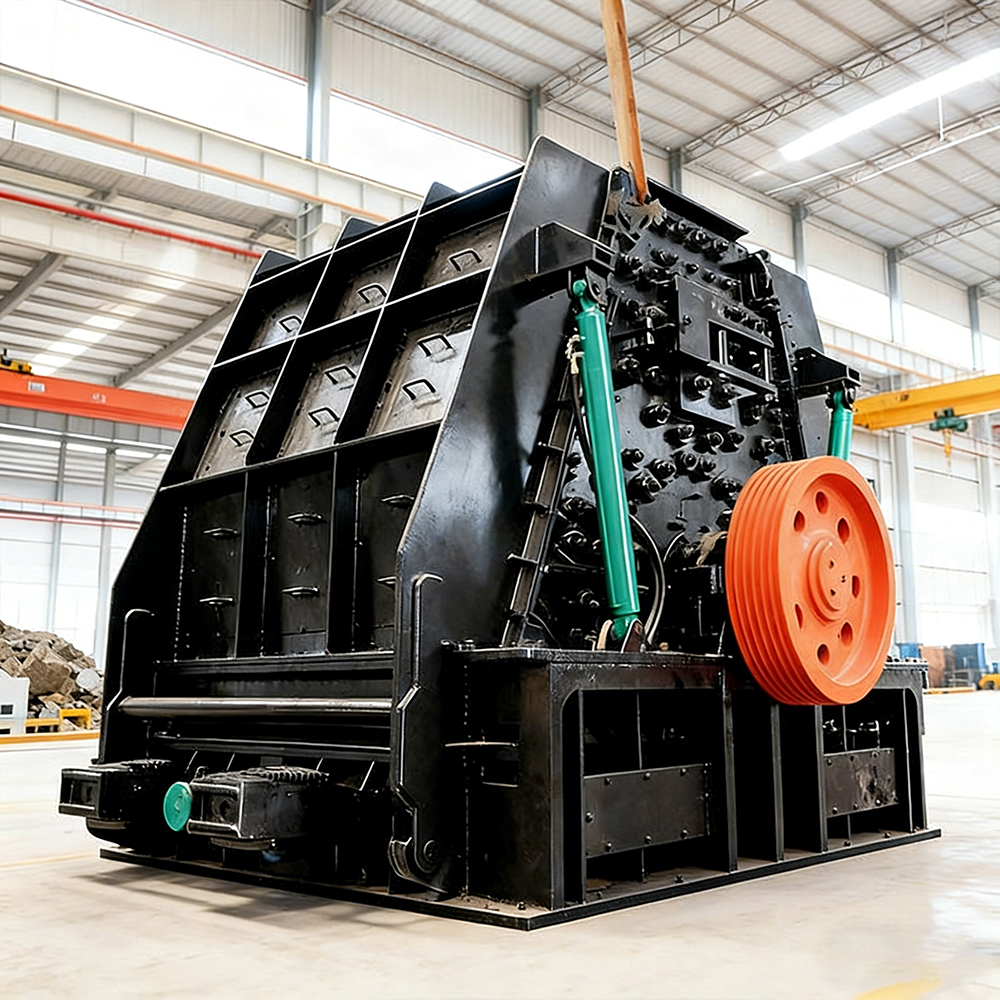

• Hydraulic Cavity Opening & Remote Adjustment — Hydraulic cylinders drive the casing to move left/right relative to the rotor; gap between hammer heads and main liner adjusted online without shutdown via remote control, replacing traditional manual liner adjustment
• Reversible Rotor — Supports 360° forward and reverse rotation, eliminating the need for manual hammer head turning; evenly distributes wear and extends hammer life
• Enhanced Wear Components — Thicker main liner + deepened impact liner corrugations; thermally clad bimetallic high-chromium alloy hammer heads with lengthened alloy section; narrowed adjacent hammer gap prevents side wear; hammer disc protective sleeves prevent disc body impact damage
• Bolt Retention System — Nuts installed on back of main liner prevent bolts from bearing shear force; double nuts with butterfly spring washers prevent loosening; raised positioning blocks fix liner position so bolts only clamp
• Dust Sealing — Sealing structure at rotor-casing joint prevents dust emission and diffusion, protecting bearings and improving working environment

Application Scenarios: Hard rock crusher for mining (granite, basalt, iron ore crushing in quarries and open-pit mines), granite crusher machine for aggregate production (high-quality shaped aggregates for concrete and asphalt), river pebble crushing equipment for sand and gravel plants, and as secondary/tertiary crusher in multi-stage crushing lines.

Process Flow

Typical Three-Stage Hard Rock Crushing Line:

Vibrating Feeder → Jaw Crusher (Primary) → DLKPC Double Cavity Hard Rock Crusher (Secondary/Fine) → Vibrating Screen → Finished Aggregate
                                                                                          ↘ Return Belt → Recrushing

Integrated with Upstream/Downstream Equipment:

• Works seamlessly with mining feeder for steady, uniform feeding (prevents overload and clogging)
• Pairs with jaw crusher, cone crusher, and hammer impact crusher to form flexible multi-stage crushing systems
• Supports both wet and dry processing configurations

Crushing Principle:

Feed → High-Speed Hammer Impact → Kinetic Energy Gain → Impact Plate Collision (Secondary Crushing)
                                           ↓
                              Particle-to-Particle Self-Crushing → Multiple Impact & Grinding
                                           ↓
                              Qualified Particles → Discharge Opening → Finished Product

Service Content

Product Parameters

General Specs: Capacity 250–450 t/h | Max Feed ≤180mm | Dual-chamber symmetrical design | 360° reversible rotor | Hydraulic online gap adjustment | Dust-sealed casing

Project Cases

Case 1 — Granite Aggregate Plant (Southeast Asia)

• Configuration: DLKPC1316 as secondary crusher in 3-stage line with jaw crusher + cone crusher
• Material: Granite (hardness grade 6-7), feed size ≤180mm
• Output: 420 t/h of shaped aggregate (0-5mm, 5-10mm, 10-20mm, 20-31.5mm)
• Result: Dual-chamber design increased throughput 22% vs. previous single-chamber impact crusher; reversible rotor eliminated 2-hour manual hammer-turning downtime per week; cubic particle shape exceeded national construction material standards

Case 2 — River Pebble Sand & Gravel Project (China)

• Configuration: DLKPC1313 + vibrating screen
• Material: River pebbles with high silica content and rounded shape
• Output: 320 t/h crushed gravel for concrete aggregate
• Result: Two-row hammer head design positioned pebbles at optimal crushing zone; bimetallic hammers lasted 35% longer than standard high-manganese hammers on abrasive river stone; hydraulic remote adjustment allowed real-time gap tuning as pebble size varied seasonally

Case 3 — Basalt Quarry Expansion (Middle East)

• Configuration: Full multi-stage line with DLKPC1316 as fine crusher
• Material: Basalt for road construction aggregate
• Output: 380 t/h of 0-31.5mm graded basalt aggregate
• Result: Thickened liners and deepened corrugations withstood basalt's extreme abrasiveness; liner replacement interval extended from 6 weeks to 10 weeks; dust sealing system reduced bearing contamination incidents to zero over 12 months

FAQ

Q1: How does this double cavity hard rock crusher solve the problems of severe wear and poor particle shape that are common when crushing granite and river pebbles?

A: Our double cavity hard rock crusher attacks both problems through structural and material innovations. For wear resistance: the dual-chamber symmetrical casing holds more material at once, reducing per-particle impact stress on liners; thermally clad bimetallic high-chromium alloy hammer heads feature a lengthened alloy section and narrowed adjacent gaps that eliminate side wear; hammer disc protective sleeves prevent disc body damage; and the main liner is thickened with deepened corrugations. For particle shape: the two-row hammer head design positions material at the optimal crushing zone, and the multi-stage crushing process — hammer impact → impact plate collision → particle self-crushing — produces well-formed cubic particles that meet national construction material specifications. The 360° reversible rotor evenly distributes wear across all hammer faces, extending service life without manual turning.

Q2: What maintenance advantages does this hard rock crusher for mining offer compared to traditional impact crushers?

A: Traditional impact crushers require manual liner adjustment and manual hammer head turning — labor-intensive tasks that demand shutdowns and multiple workers. Our high capacity stone crusher eliminates both: (1) hydraulic cylinders drive the casing to move left/right relative to the rotor, with remote-controlled online gap adjustment between hammers and liners without stopping the machine; (2) the rotor supports forward and reverse rotation, automatically evening out hammer wear and eliminating the need for manual turning; (3) an inspection door on the upper casing allows quick internal checks without full disassembly; (4) raised positioning blocks fix the liner in place so bolts only clamp rather than bearing shear forces, and double nuts with butterfly spring washers prevent loosening. Combined with mining spare parts availability and sealed bearing protection, total maintenance downtime is reduced by approximately 40% compared to conventional units.

Q3: Can this granite crusher machine integrate with existing crushing lines, and what support does the mining crusher manufacturer provide for overseas installations?

A: Yes, the DLKPC series is designed for seamless integration with upstream mining feeders, jaw crushers (primary crushing), cone crushers, and hammer impact crushers to form complete multi-stage crushing systems. The feed opening (1400×600mm or 1700×600mm) and ≤180mm max feed size are compatible with standard jaw crusher discharge. As a leading mining crusher manufacturer with 30+ years and 5,000+ global projects, we provide: on-site installation and commissioning by experienced engineers; operator training on remote control systems and hydraulic adjustment; 12-month warranty on all major components; preventive maintenance programs tailored to your material abrasiveness; and a 24/7 technical support hotline with remote diagnostic capability. All wear parts (hammers, liners, bearings, seals) are standardized and available through our global logistics network with air-freight delivery typically within 7 days.
