Integrated Machine forFine Sand Recovery and Dewatering

Device Overview

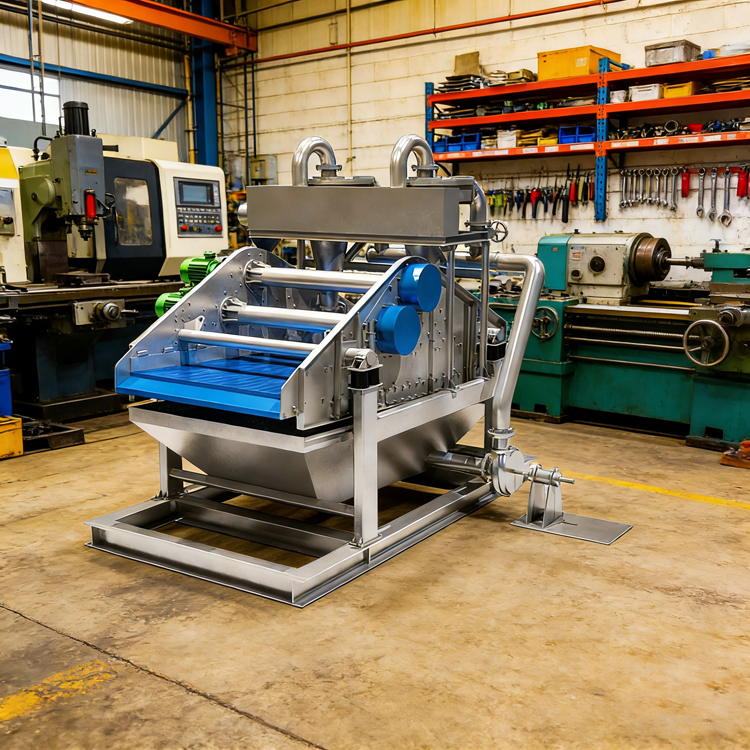

Integrated Machine for Fine Sand Recovery and Dewatering — The Ultimate Sand Washing and Recovery Unit

The ZYDL Integrated Machine for Fine Sand Recovery and Dewatering is a cutting-edge Sand Washing and Recovery Unit engineered specifically for artificial sand production lines, aggregate washing operations, and mining tailings treatment. Combining advanced hydrocyclone separation technology with high-frequency vibrating dewatering screening into one compact frame, this Integrated Sand Processing Machine delivers exceptional fine sand recovery performance, efficient water removal, and improved final product quality — all while significantly reducing operational footprint and environmental impact.

As an all-in-one solution that integrates sand recovery, dewatering, desliming, and grading into a single space-saving unit, this equipment eliminates the need for separate machines such as standalone hydrocyclones, dewatering screens, or traditional Bucket Wheel Sand Washer setups. It is designed for heavy-duty industrial use across a wide range of applications where fine sand loss and material moisture content are critical concerns.

Key Highlights

Feature	Specification	Benefit
Fine Sand Recovery Rate	Up to 95% of particles ≥ 0.075mm	Maximizes yield and profitability
Final Moisture Content	As low as 8–12%	Ready for immediate stockpiling or concrete production
Weight Concentration Output	70–85% solids concentration	Reduces transportation costs
Vibration Frequency	3000–3600 RPM high-frequency dewatering	Superior dehydration efficiency
Footprint Reduction	40% smaller than separate systems	Saves installation space and foundation costs
Power Consumption	7.5–45 kW depending on model	Low operational energy cost
Noise Reduction	15–20% quieter vs conventional systems	Compliant workplace environment

Core Advantages

1. Superior Sand Recovery Performance: Captures up to 95% of fine sand particles down to 0.075mm that would otherwise be lost during washing processes. The optimized vortex design of the hydrocyclone ensures precision classification, producing uniformly graded fine sand with consistent particle size distribution.

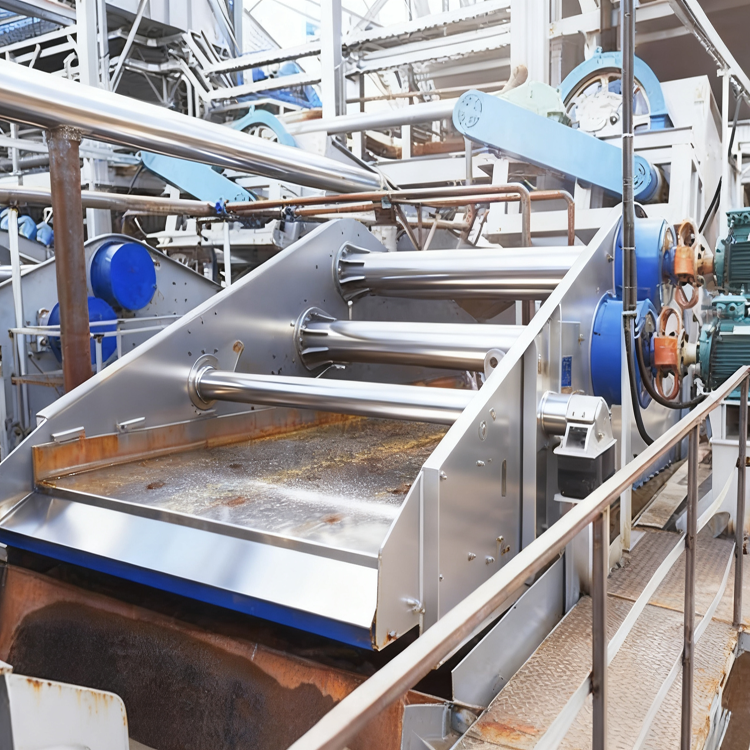

2. Efficient High-Frequency Dewatering: Multi-layer polyurethane screen panels with specialized aperture sizes reduce finished sand moisture to 8–12%, enabling direct transfer to market or immediate use in concrete mixing plants. The system also reduces natural stacking time of fine materials.

3. Robust & Durable Construction: Built with reinforced Q345B steel frame and anti-corrosion coating, featuring ceramic inner liners on cyclones, high-chrome alloy pump impellers, and wear-resistant polyurethane screen panels. Maintenance-free exciter bearings with lifetime lubrication extend service intervals.

4. Eco-Conscious & Cost-Effective: Significantly reduces sedimentation tank workload by up to 85%, lowers sludge disposal fees, minimizes water discharge and fine sand runoff, supporting compliance with strict environmental regulations.

5. User-Friendly Operation: Plug-and-play design requires minimal on-site setup. Centralized operator panel provides real-time monitoring of key performance indicators. Quick-release screen panels and external pump controls enable fast maintenance without full disassembly.

Application Scenarios

This versatile Sand Washing and Recovery Unit excels in the following industrial applications:

• Artificial Sand Production: Recovers fine sand lost during washing processes in manufactured sand operations, effectively solving problems of high fineness modulus and low stone powder content in finished sand.
• Natural Sand Processing: Enhances quality of river sand and pit sand by removing excess water, silt, and clay contaminants.
• Aggregate Washing & Desliming: Dewaters and classifies crushed stone, gravel, and recycled concrete aggregates for premium concrete and asphalt mixtures.
• Mining Tailings Treatment: Processes tailings from mineral extraction, recovering valuable fine particles while reducing water consumption and waste disposal costs.
• Construction Waste Recycling: Treats slurry from concrete and asphalt recycling facilities, recovering reusable sand and reducing landfill requirements.

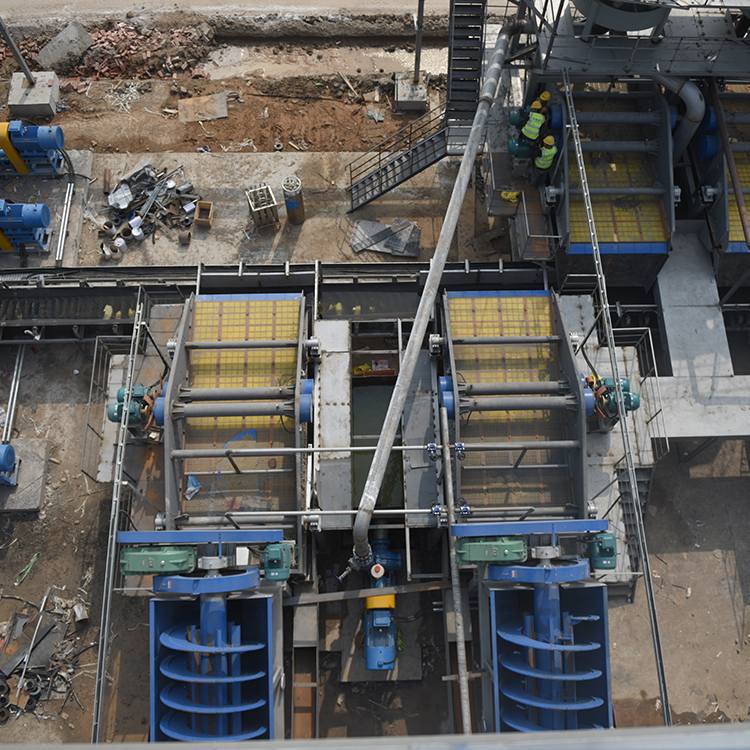

Process Flow

Customized Process Solution for Artificial Sand Aggregate Production Lines

Process Description:

1. Slurry Intake: Wastewater containing lost fine sand from the sand washing machine (or traditional Bucket Wheel Sand Washer) is pumped into the hydrocyclone group via a heavy-duty slurry pump.

2. Cyclonic Separation: The hydrocyclones with ceramic-lined interiors concentrate fine particles through centrifugal force, separating sand from water and slime. Underflow (sand-rich slurry) is discharged to the dewatering screen; overflow (clean water) returns to the circulation tank.

3. High-Frequency Dewatering: The concentrated sand slurry is evenly distributed onto the multi-layer polyurethane screen surface, where high-frequency vibration at 3000–3600 RPM rapidly removes surface moisture, achieving 8–12% final water content.

Service Content

At ZYDL (Zhongyu Dingli), we deliver comprehensive end-to-end support for every Sand Washing and Recovery Unit project.

Scheme Design & Customization

• Complete process flow design tailored to your raw material type, output requirements, and site conditions
• 3D plant layout planning with civil engineering guidance
• Equipment selection optimization across our full product range (crushing, sand making, screening, feeding, conveying, mobile crushing)
• Integration compatibility analysis with existing Bucket Wheel Sand Washer or other upstream/downstream equipment

Equipment Manufacturing

• ISO-certified fabrication using premium Q345B structural steel and wear-resistant components
• Each Integrated Sand Processing Machine undergoes factory load testing before shipment
• Customizable configurations: cyclone quantity, screen panel aperture, pump power rating
• Modular bolted design for easy transport and on-site assembly

Installation & Commissioning

• Professional engineer dispatch to guide on-site installation (plug-and-play design minimizes setup time)
• Full-system commissioning, calibration, and trial-run supervision
• Operator training covering daily operation, parameter adjustment, troubleshooting, and safety protocols
• Performance verification against guaranteed recovery rate and moisture content targets

Product Parameters

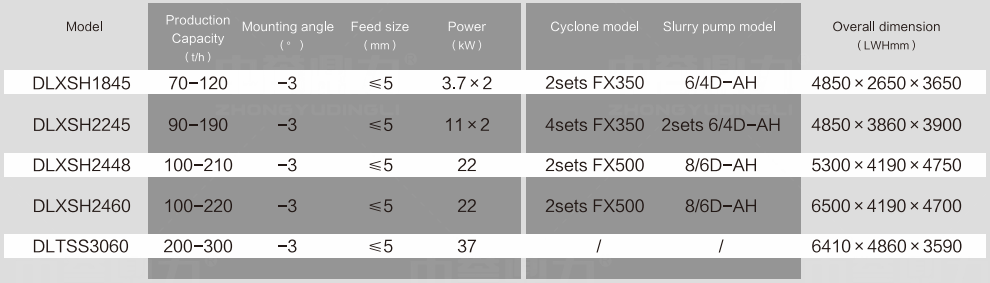

Technical Specifications — Fine Sand Recovery and Dewatering Machine Series

Model	Capacity (t/h)	Max Feed (mm)
DLXSH1845	70 – 120	≤ 5
DLXSH2245	90 – 190	≤ 5
DLXSH2448	100 – 210	≤ 5

---

Project Cases / Data

Case 1 — 200 T/H Artificial Sand Production Line (Vietnam)

Item	Detail
Equipment	1 × DLXSH2448 + complete crushing & sand making line
Raw Material	River pebble + limestone blend
Result	Recovery rate 93%, annual fine sand loss reduced by ~18,000 tons, payback period 8 months, moisture content 10–12%
Customer Feedback	"The ZYDL integrated machine replaced our old bucket wheel washer plus separate cyclone setup. Installation took only 3 days." — Plant Manager, Vietnam Aggregates Co.

Case 2 — 150 T/H Mining Tailings Treatment (Kazakhstan)

Item	Detail
Equipment	1 × DLXSH2245
Application	Gold mine tailings fine particle recovery
Result	85% fines recovered; water recirculation rate improved from 60% to 88%
Customer Feedback	"Environmental compliance was our biggest concern. This unit helped us meet discharge standards while turning waste into a sellable by-product." — Ops Director, Kazakh Mining Ltd.

Case 3 — 120 T/H Construction Waste Recycling (Kenya)

Item	Detail
Equipment	1 × DLXSH2460 (part of C&D waste recycling line)
Application	Concrete slurry dewatering & fine aggregate recovery
Result	92% recovery, 11% average moisture, landfill volume reduced by 35%
Customer Feedback	"Reliable and efficient. Polyurethane screens lasted twice as long as our previous steel mesh." — Tech Lead, Nairobi Recycling Solutions

FAQ

Q1: What is the difference between the ZYDL Integrated Machine for Fine Sand Recovery and Dewatering and a traditional Bucket Wheel Sand Washer?

A: While a Bucket Wheel Sand Washer is primarily designed for coarse-to-medium sand washing and scrubbing action, our Integrated Sand Processing Machine focuses on recovering ultra-fine sand particles (down to 0.075mm) that escape traditional washing systems, while simultaneously dehydrating the recovered material to a dry, stackable state. The key distinction lies in the technology: our unit combines hydrocyclone concentration with high-frequency vibrating dewatering screening, whereas a bucket wheel washer relies on mechanical scooping and gravity drainage alone. For optimal results, many customers deploy both in tandem — the Bucket Wheel Sand Washer handles primary washing and scrubbing of coarse aggregates, while our Sand Washing and Recovery Unit captures and dewaters the fine fraction that would otherwise be lost.

Q2: How do I select the right model of this Sand Washing and Recovery Unit for my production line?

A: Model selection depends primarily on three factors: (1) Required processing capacity (match to your existing sand maker or washing machine output), (2) Material characteristics (feed particle size distribution, slurry density, and desired fineness modulus), and (3) Target recovery rate and moisture content specifications. For example, if your artificial sand line produces 100–180 t/h of washed sand and you need to minimize fine sand loss below 7%, the DLXSH2245 (90–190 t/h range) with its quad-cyclone configuration would typically be recommended. For larger-scale operations exceeding 200 t/h, the DLTSS3060 is purpose-built for high-throughput scenarios. Our engineers provide free consultation and can recommend the optimal configuration based on your specific raw material samples and production targets.

Q3: Can this Integrated Sand Processing Machine be retrofitted into my existing sand production line that already uses other washing equipment?

A: Absolutely. One of the key advantages of our machine is its modular, compact design that allows straightforward integration with both new and existing setups. Whether you currently operate a spiral classifier, a Bucket Wheel Sand Washer, or any other type of sand washing equipment, our Sand Washing and Recovery Unit can be positioned as a downstream recovery stage to capture and dehydrate the fine sand overflow from your current washing process. The plug-and-play design requires minimal civil foundation work, and most retrofit installations can be completed within 3–5 days of equipment arrival on-site, with minimal disruption to ongoing production.
