Jars automatic screen printing machine
7 month ago
Product details

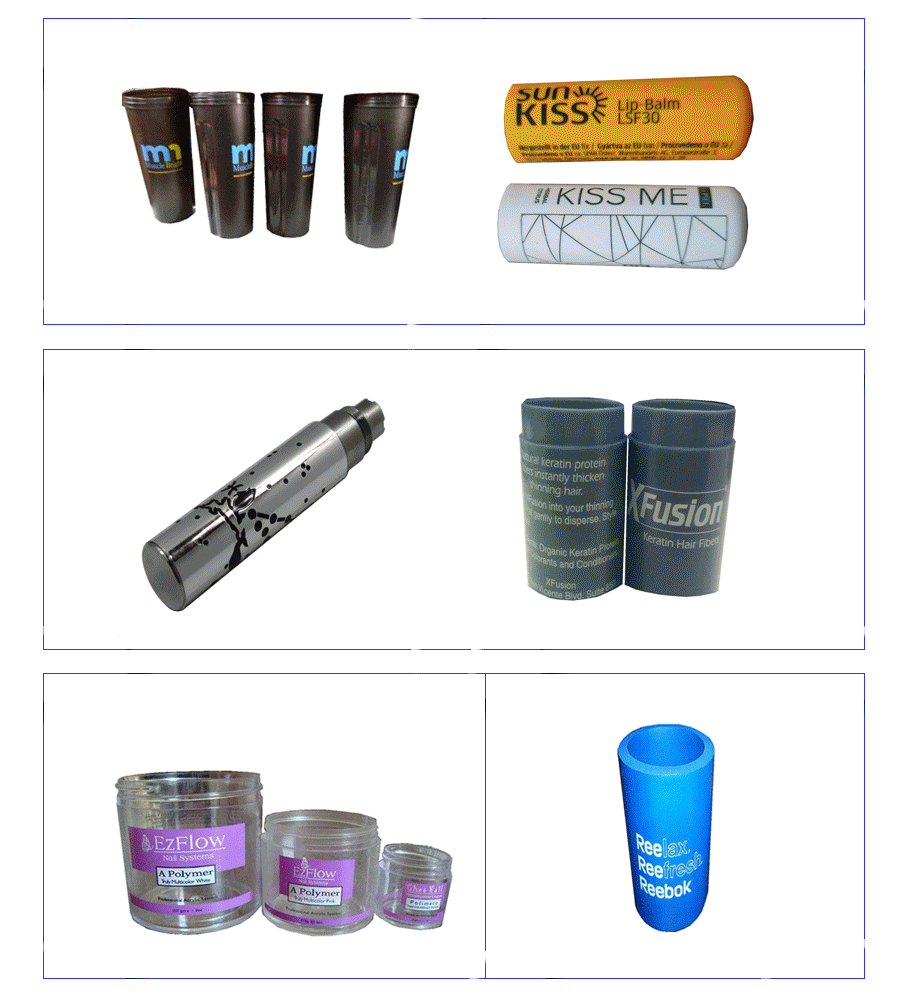

Usage- Printed Samples
The automatic screen printing machine for cylindrical or near-cylindrical products adopts a high-precision vertical rotary turntable structure, designed for stable and efficient mass production. This fully automatic screen printing equipment operates on a counterclockwise rotating turntable system, integrating automatic loading, surface flame treatment, servo-driven positioning, high-accuracy stencil screen printing, precision temperature control, and automatic unloading. The entire workflow realizes a fully automated screen printing production line, covering product feeding, orientation, alignment, printing, and discharge in one seamless process. This high-speed automatic silk screen printing machine is widely used in the packaging and printing industry for cosmetic containers, wine bottle caps, plastic packaging caps, and various cylindrical packaging products. It is especially suitable for high-demand industrial applications requiring consistent print quality, stable registration accuracy, and long-term production reliability. As a core solution in modern automatic screen printing machine systems, this equipment can be integrated with upstream and downstream automation modules, such as automatic feeding system, flame treatment unit, and UV curing conveyor line, forming a complete automated screen printing solution for smart manufacturing factories. By improving printing efficiency and reducing manual labor, this fully automatic screen printing machine significantly enhances production capacity and product consistency, while increasing the added value and market competitiveness of finished products.
Details
• Turntable system: Use a high-precision divider to ensure the accuracy and stability of the turntable rotation and realize the accurate transfer of items between different workstations.
• screen printing system: including stencil , Flame treating system, servo screen printing device, can quickly locate and screen printing products.
• Loading and unloading system: the loading system transports the items to the turntable fixture in an orderly manner through a vibrating plate, conveyor belt, etc.; the unloading system removes the screen printed items from the turntable and transports them out.
• Control system: usually uses PLC programmable controller and touch screen, which can flexibly set parameters such as printing stroke, pressure, speed, turntable speed, etc.
Structure
The vertical turntable automatic screen printer is a classic structure of a monochrome automatic screen printing machine, widely used for cylindrical bottles, hoses, cups, cream bottles, and car filters.

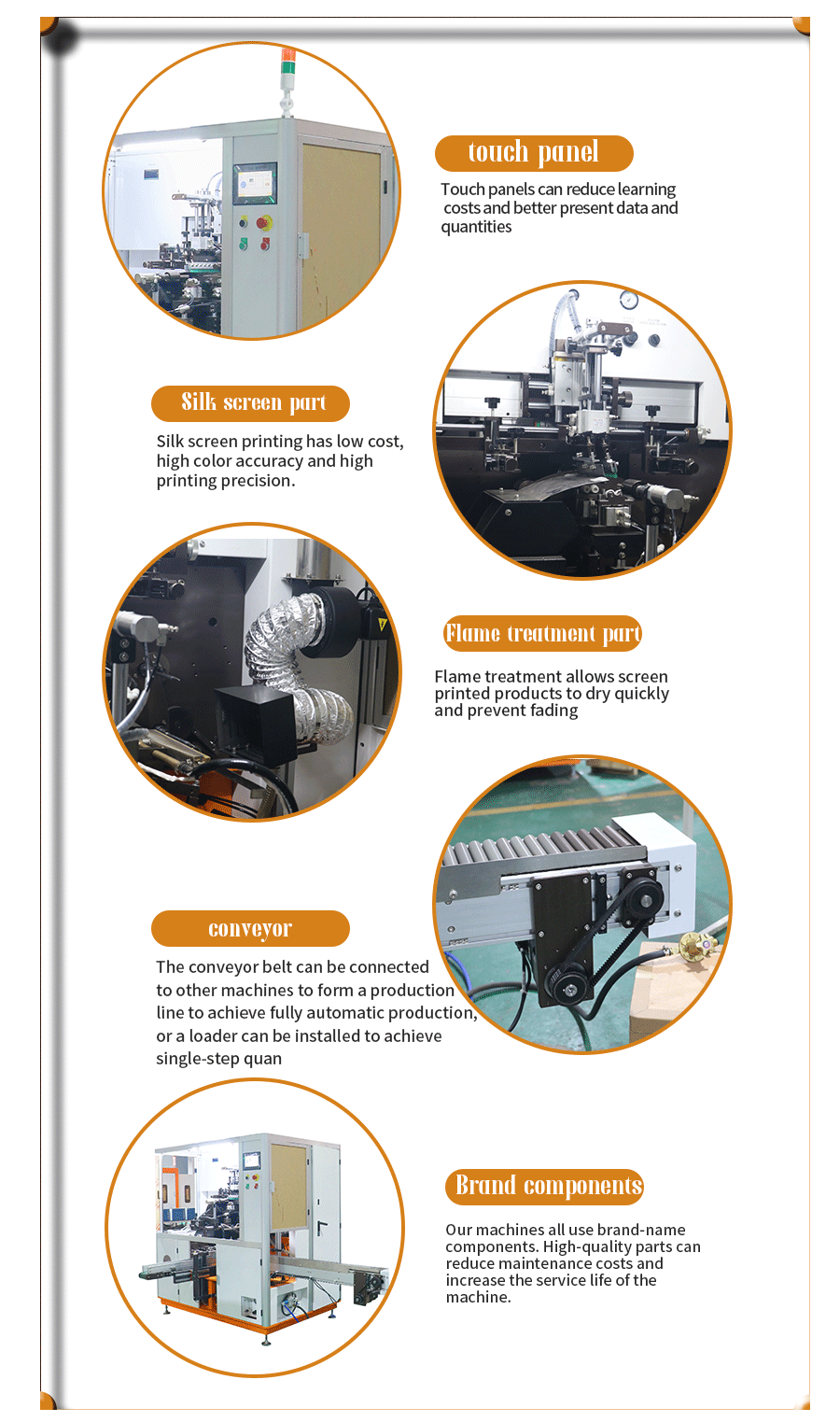

Key Components:
- Feeding Conveyor Belt: Narrow PVC or silicone belts are used, while glass or paper products use stainless steel belts with positioning grooves or anti-slip patterns. A photoelectric sensor ensures precise material detection for accurate robot feeding.
- Feeding Robot: Pneumatic grippers or vacuum suction cups with servo-driven three-axis arms place products on turntable fixtures. Padding materials protect sensitive surfaces.
- Vertical Turntable: 8–20 fixtures (elastic card slots or magnetic positioning) driven by servo motors, with adjustable speed and station sensors for precise printing positioning.
- Flame/Plasma Treatment Device: For polyolefin materials, flame or plasma treatment increases surface roughness and ink adhesion. Plasma treatment is environmentally friendly, flame-free, and ideal for sensitive materials.
- Servo Screen Printing Device: High-precision servo drive controls screen lifting and scraper movement, ensuring consistent ink thickness and texture. Supports monochrome printing, with some models upgradeable to two-color.
- UV/UVLED Curing Unit: Provides uniform irradiation; UVLED units feature air cooling and maintain temperature below 60°C to prevent heat deformation.
- Unloading Manipulator: Similar to the feeding robot, with buffer springs for gentle handling.
- Unloading Conveyor Belt: Equipped with soft surfaces and receiving trays to prevent scratches.
- Operation Panel: PLC-controlled with touch screen interface for easy adjustment of loading, printing, and curing parameters.
