A New Standard for Efficient Crushing of High-Hardness Ore

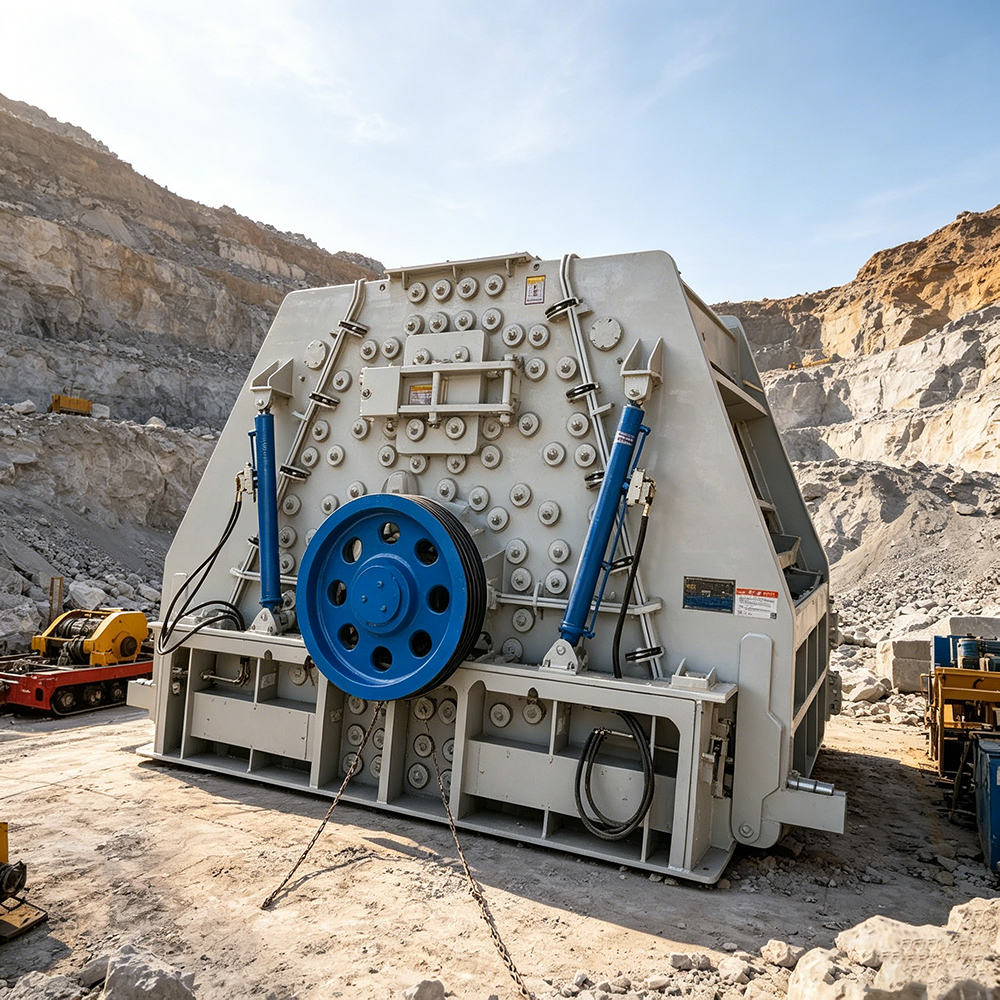

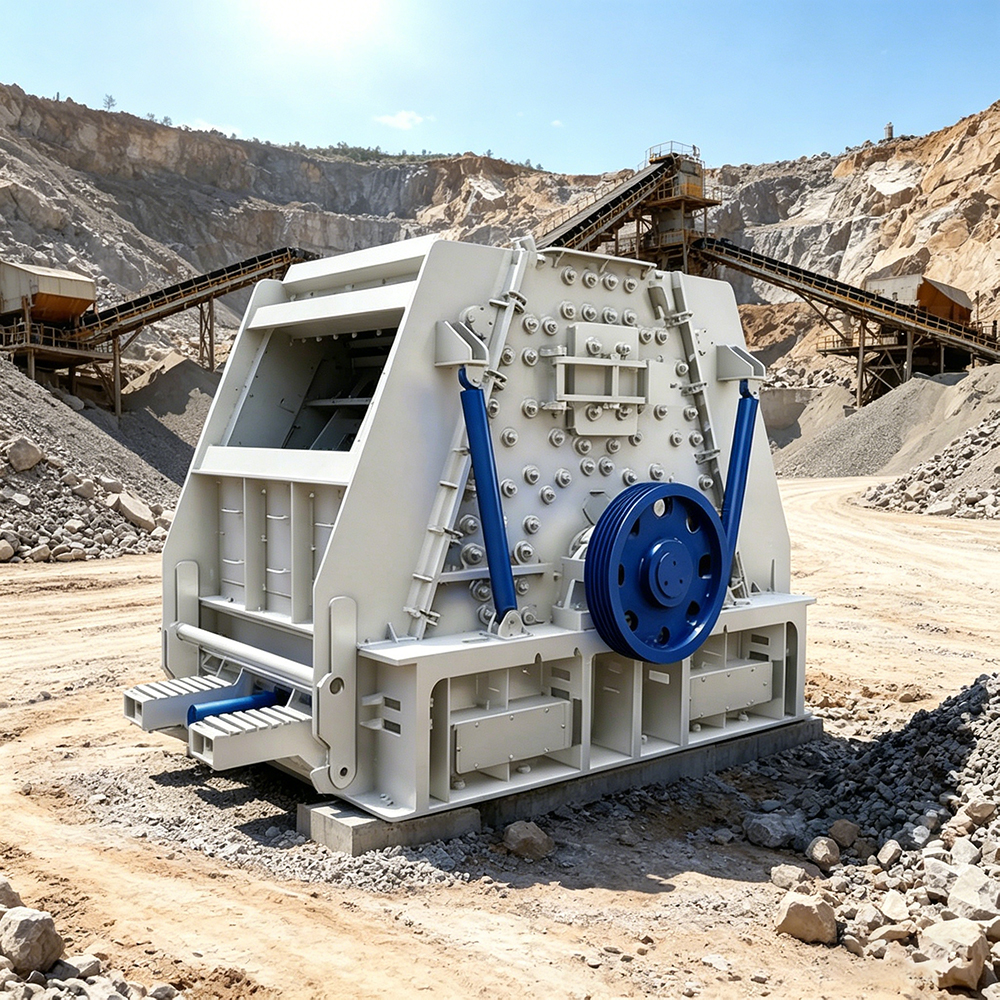

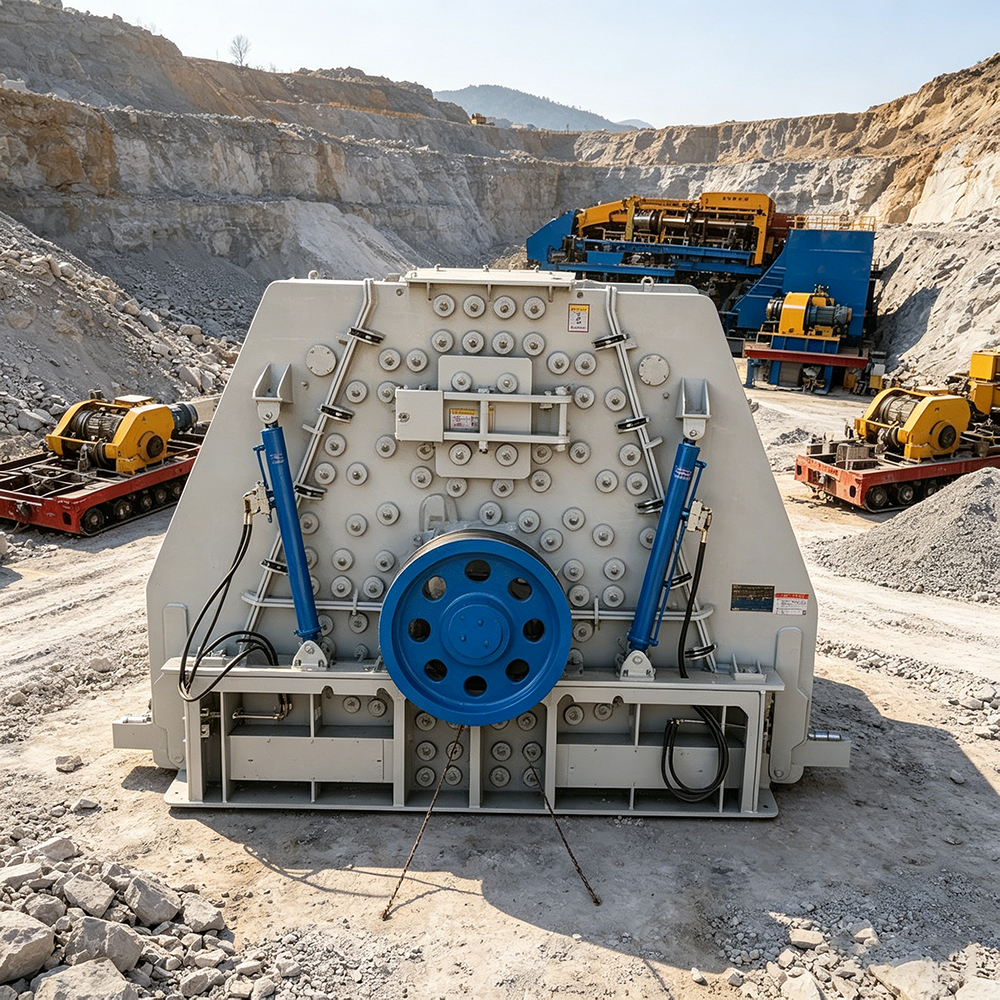

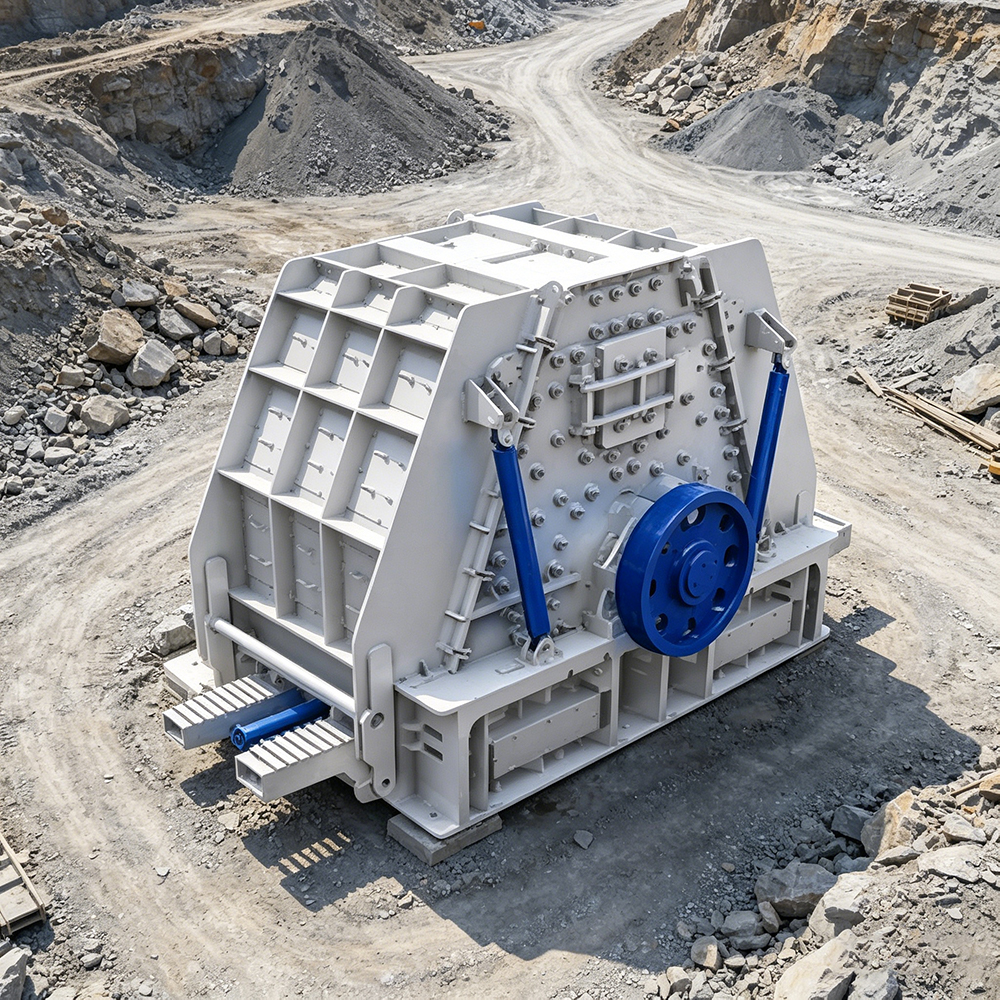

Double Chamber Hard Rock Crusher Equipment Overview

The DLKPC series double-chamber hard rock crusher is specifically designed for high-hardness ores such as fluorite, basalt, and river pebbles. Its symmetrical double-chamber structure increases capacity by 30%, while the hydraulic shell opening system improves maintenance efficiency by 60%. Equipped with two (200kW × 4) motors, it handles feed sizes up to 180 mm and achieves a production capacity of 250–350 t/h (DLKPC1313). The unit is currently operating reliably on a 700 t/h fluorite processing line in Jiujiang, Jiangxi.

Double Chamber Hard Rock Crusher Equipment Highlights

30% Increased Capacity with Dual Chambers: The symmetrical dual-chamber design delivers significantly higher throughput than single-chamber models, efficiently supporting a 700 t/h ore processing line.

Hydraulic Shell Opening Increases Efficiency by 60%: Left and right shell opening directly exposes the rotor hammers, halving maintenance labor and reducing downtime for repairs by 40%.

Reinforced Liners Reduce Costs by 30%: Thicker impact liners + secure positioning blocks + bolt counter-tension to prevent shearing; high-wear-resistant consumables reduce costs by 30%.

High Utilization of Double-Sided Hammers: Hammers can be flipped for use; flip before replacement, making one set last as long as two.

Hydraulic Gap Control Boosts Efficiency by 70%: Remotely adjust the gap between hammers and liners, speeding up gap adjustment by 70% and ensuring precise and stable discharge particle size.

Flexible Configuration Across the Full Series: Models range from DLKPC1210 to DLKPC1316, with feed openings from 600×1040 mm to 600×1700 mm and power ratings of (110–250)×2 kW for flexible matching.

Double Chamber Hard Rock Crusher Application Scenarios

High-Hardness Ore Processing: Medium and fine crushing of fluorite, basalt, and other materials, with a 25% increase in crushing efficiency compared to standard impact crushers.

Mining, Metallurgy, and Mineral Processing: Primary crushing for iron, copper, and gold ores, suitable for high-capacity production lines.

Cement Raw Material Preparation: Continuous and stable feeding; dual-chamber design ensures high output.

Coal Gangue and Industrial Waste: Validated in a 500 t/h project in Hengyang, Hunan; suitable for environments requiring frequent maintenance.

Double Chamber Hard Rock Crusher Customized Process Flow

① Jaw crusher for primary crushing

② Dual-chamber high-efficiency fine crushing (symmetrical dual-chamber synchronous operation + hydraulic gap control)

③ Vibrating screen (oversize material recirculated in closed-circuit)

④ Baghouse dust collector

⑤ Intelligent monitoring

After being coarsely crushed by a jaw crusher to ≤180 mm, the ore enters the dual-chamber crusher. The dual chambers operate synchronously, and real-time hydraulic gap control ensures consistent particle size. During maintenance, a single button opens the housing to expose the rotors, reducing maintenance time from several hours to less than one hour and cutting overall line downtime by 40%.

Service Scope

01 Solution Design: Provide equipment selection and complete line solutions based on ore type, feed size, and target output.

02 Equipment Manufacturing: Strict quality control for critical components such as thickened liners, double-sided hammers, and hydraulic shell opening mechanisms; pre-shipment testing.

03 Installation and Commissioning: Engineers provide on-site guidance for installation and integrated testing, including training on hydraulic operation, liner replacement, and gap adjustment.

04 Operation and Maintenance Management: One-year warranty + lifetime technical support, including replacement schedules, spare parts lists, and remote diagnostics.

Double Chamber Hard Rock Crusher Overseas Project Cases

Peru: Arequipa Copper Mine, commissioned in 2022 | Designed capacity: 400 t/h “The hydraulic shell opening system reduced the maintenance crew from 6 to 3 people, and the dual-chamber processing capacity fully meets the requirements of the front-end mineral processing.” Mine Equipment Manager

Vietnam: Ha Tinh Province Basalt Aggregate Line, Commissioned in 2024 | Capacity: 280 t/h “Crushing efficiency has improved significantly, and the aggregate has excellent particle shape. The double-sided hammers perform as well as two sets, making them very practical.” Quarry Owner

South Africa: Limpopo Province Platinum Mine Tailings | Commissioned in 2023 | Capacity: 350 t/h “Tailings hardness varies significantly. The hydraulic shell-opening system has reduced maintenance time from several hours to less than an hour, significantly improving the production line’s availability.” Mineral Processing Engineer

Double Chamber Hard Rock Crusher Technical parameters:

Model	Processing Capacity (t/h)	Feed Size (mm)
DLKPC1313	250–350	≤180
DLKPC1316	300–450	≤180

Double Chamber Hard Rock Crusher Frequently Asked Questions (FAQ)

Q1: What are the production capacity and wear performance of the double-chamber hard rock crusher used in the mining and metallurgy industry when processing high-hardness materials such as fluorite and basalt?

Designed specifically for high-hardness ores, the DLKPC1313 has a single-unit production capacity of 250–350 t/h and has been successfully deployed in a 700 t/h fluorite mining line. Reinforced dual impact liners + fixed positioning blocks + bolt-tensioned shear protection reduce replacement costs by 30%, increase crushing efficiency by 25% compared to standard impact crushers, and boost throughput by 30% thanks to the double-chamber design. Simply provide the material type and target output to precisely match the model.

Q2: How much do the remote gap control and shell opening systems of the Hydraulic Smart Control Double-Chamber Crusher assist in daily operations and maintenance?

Remote gap control on the Hydraulic Smart Control Double-Chamber Crusher reduces adjustment time by 70% compared to manual adjustment, ensuring high discharge accuracy without requiring shutdown; the hydraulic shell opening system fully exposes the rotor hammers, shortening maintenance cycles by 60%, halving labor requirements, and reducing line downtime by 40%. The 500 t/h coal gangue project in Hengyang, Hunan, has demonstrated its high efficiency in scenarios requiring frequent maintenance. Installation training includes a full operational demonstration and a replacement schedule.

Q3: Can the manufacturer of the high-efficiency dual-chamber hard rock crusher provide turnkey solutions ranging from individual equipment to complete production lines?

The manufacturer of the high-efficiency dual-chamber hard rock crusher offers a comprehensive service package covering solution design, equipment manufacturing, installation and commissioning, as well as O&M management. In addition to the main unit, we can provide a full range of supporting equipment—including jaw crushers, cone crushers, vibrating screens, belt conveyors, and dust collectors—along with a complete line layout diagram. Suitable for mining and metallurgy, cement, construction aggregates, and industrial solid waste treatment sectors, this one-stop model has been adopted in multiple overseas projects, such as fluorite mines in Mongolia, copper mines in Peru, and platinum mines in South Africa. Simply provide material characteristics and production capacity requirements to receive a customized complete line solution.

Get a Selection Guide and Quote for Dual-Chamber Hard Rock Crushers

Please provide the ore type, hardness grade, feed size, and target output. We will provide model recommendations, power calculations, and production line layout plans within 24 hours—direct manufacturer pricing with no middlemen.

One-year warranty on the entire machine | Lifetime technical support | On-site installation and commissioning | Turnkey production line solutions
