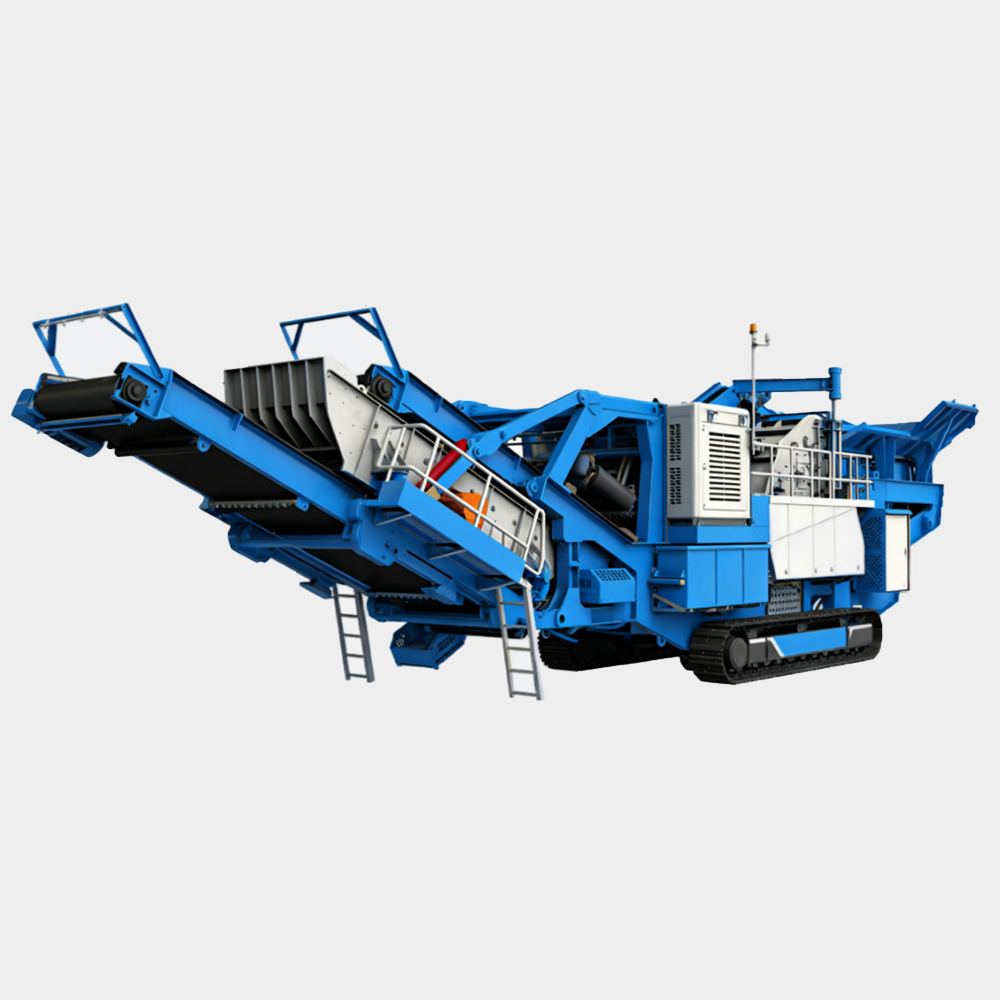

Zhongyu Dingli DL Series Track-Mounted Mobile Jaw Crushing Plant
The Zhongyu Dingli DL Series Track-Mounted Mobile Jaw Crushing Plant is equipped with a European-style C Series jaw crusher, an extra-large folding hopper, and an independent pre-screening system, as well as a magnetic separator and spray system. It is primarily used for primary crushing of materials, featuring a large feed size and a wide discharge range, making it suitable for various types of rock. It offers convenient relocation and high crushing efficiency.
Applications:
Primary or initial crushing of medium to high-hardness materials
• Mining and ore crushing
• Construction waste recycling
• Construction aggregate production
• Highways / Railways
• Road and bridge construction
Key Advantages:
✅ Independent pre-screening: Effectively increases production capacity by 20% and extends the service life of the main crusher
✅ Intelligent feeding system: PLC programmable control, one-button start, intelligent logic interlocks, and automatic shutdown in case of malfunction
✅ Wide-range discharge: Flexible discharge via a side-mounted conveyor belt, suitable for a variety of operational scenarios
Hopper: Extra-large capacity, heavy-duty structure made of Q355B steel plate, high impact resistance, hydraulically foldable for easy operation
Independent Pre-screening: Pre-screens out fine materials to prevent unnecessary crushing, significantly increasing production capacity while extending the service life of the jaw crusher’s wear parts
Crushing Unit: European-style C-series jaw crusher, specifically designed for high-hardness materials, featuring a high crushing ratio and strong processing capacity
Power Module: Equipped with a Weichai engine, offering stable performance and robust power, suitable for complex field conditions
Chassis Module: Tracked chassis with an extra-long wheelbase, paired with high-speed hydraulic motors, easily handles complex terrains such as mountains and muddy areas, and allows for flexible relocation
Magnetic Separator: Features strong magnetic force to effectively separate scrap iron and rebar; supports adjustable distance and angle to protect downstream equipment
Sprinkler System: All-around sprinkler coverage with independent adjustment capabilities effectively reduces dust during operation and improves the working environment
Conveyor Belt: The belt features a tear-resistant interlayer and a highly wear-resistant design. Equipped with comb-type idlers and upper/lower scrapers on the back, it reduces wear and extends service life.
Dust Cover: Fully enclosed dust-proof design minimizes dust leakage and reduces equipment wear.
PLC Programmable Control: Enables one-button startup, intelligent logic interlocks, and automatic shutdown in case of failure, ensuring stable and safe equipment operation.
Summary of Product Highlights:
The Zhongyu Dingli DL Series tracked mobile jaw crushing plant integrates feeding, crushing, screening, and conveying functions into a single unit. With its high level of integration and flexible mobility, it can be quickly put into operation without the need to set up a fixed production line. Whether for crushing ore in mines, recycling construction waste, or producing aggregate for highway, railway, and road-bridge projects, it efficiently handles the primary crushing of medium- to high-hardness materials, making it the ideal equipment for mobile crushing operations.
Zhongyu Dingli Group is a provider of comprehensive mining solutions with over 30 years of industry experience. The company operates two production facilities: the Intelligent Equipment and Supporting Equipment Plant and the Software Technology Plant. The first phase of the Intelligent Equipment Plant covers an area of 32,000 square meters and features 13 major functional zones, forming a complete closed-loop production system that achieves a high degree of integration between large-scale, specialized, and automated manufacturing.
Leveraging core technologies such as 25 invention patents and 104 utility model patents, the company manufactures high-performance equipment including heavy-duty hammer crushers and horizontal gyratory crushers, while implementing strict quality control throughout the entire process via its Physical and Chemical Testing Center. We offer one-stop services ranging from individual machine supply to complete plant construction, with the fastest turnaround time of 58 days to production. Committed to providing customers with full lifecycle support, we are your trusted partner.
