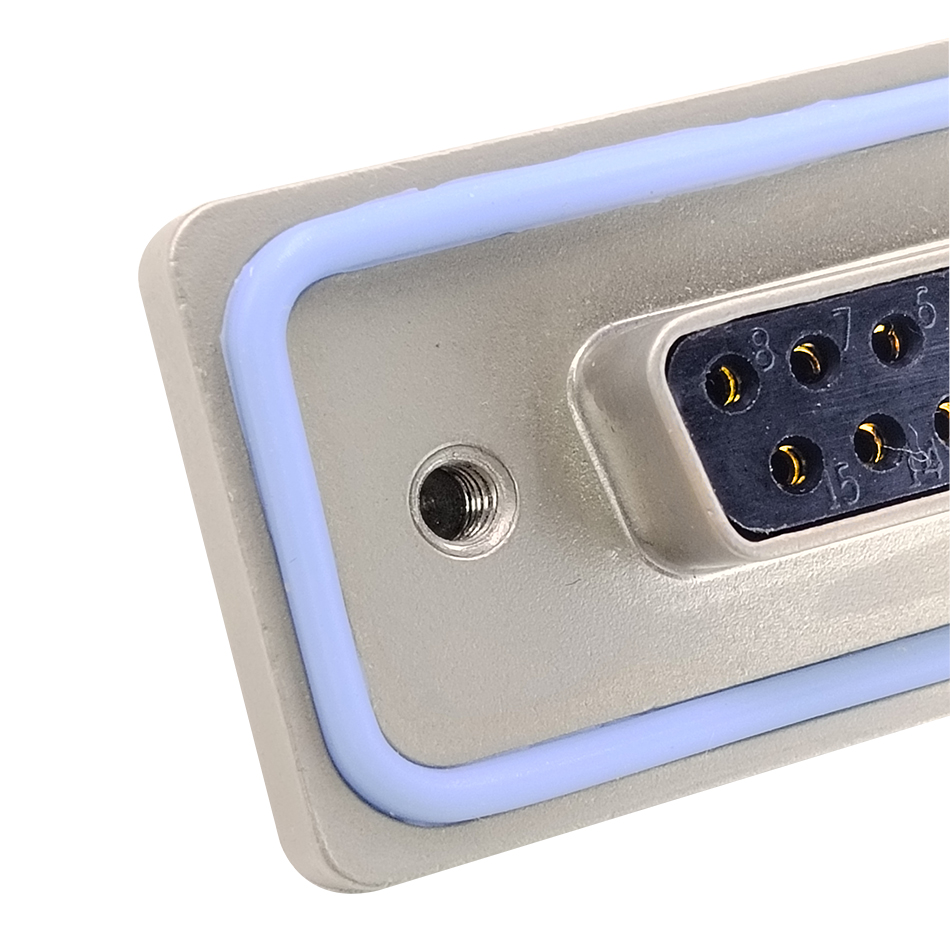

Micro D 15 Pin Connector(ip67):Product Description

Dr15 Metal Waterproof Connector (D-type Connector).IP67 protection rating is the most prominent core feature of the Dr15 metal waterproof d sub connector. IP67 means the d connector has complete dust-tight capability – the metal housing prevents any dust particles from entering the interior, while also allowing immersion in water up to 1 meter depth for 30 minutes without affecting normal operation. It provides a trustworthy connection solution for industrial automation, communication equipment, medical instruments, and outdoor electronic systems. In the electronic connector market, it has consistently earned customer recognition and the favor of engineers.

90° Board Mount Type: The right-angle bent pin design effectively saves internal equipment space, making it suitable for compact layouts. It meets the space-specific requirements of some customers, effectively saving space while maintaining stable transmission performance.

15 pin gold-plated solid-machined contacts provide stable output, strong conductivity, low resistance, and a long service life.Eco-friendly materials comply with EU environmental requirements.

Pan Di Electronic Technology Co., Ltd. in Dongguan is a leader in the development and manufacturing of waterproof connectors. The company has been in operation for 18 years and specializes in the development and production of d sub connectors and related products. Pan Di connector features: stable output, strong conductivity, low resistance, and long lifespan.We ensure the quality of every product and strictly control every stage of the production process.

Product Specifications

Parameters & Description

Connector Type: 15 Pin D Sub Ip67 Male / Socket (Female)

Housing Material: Zinc Alloy (Nickel Plated or Black Oxide Finish)

Protection Grade: IP67 / IP68 (ip67 d sub)

Contact Type: Machined Contacts, Full Gold Plated

Rated Current: 5A Per Contact

Rated Voltage: 250V AC/DC

Contact Resistance: ≤ 10 mΩ

Insulation Resistance: ≥ 1000 MΩ

Operating Temperature: -40℃ ~ +105℃

Locking Method: 4-40 UNC Thread / Wing Screw / Hand Twist Knob

Termination Style: Solder Type / Crimp Type / PCB Type / Overmolded Cable Assembly

d connector dr15 Waterproof ip67 connectors
