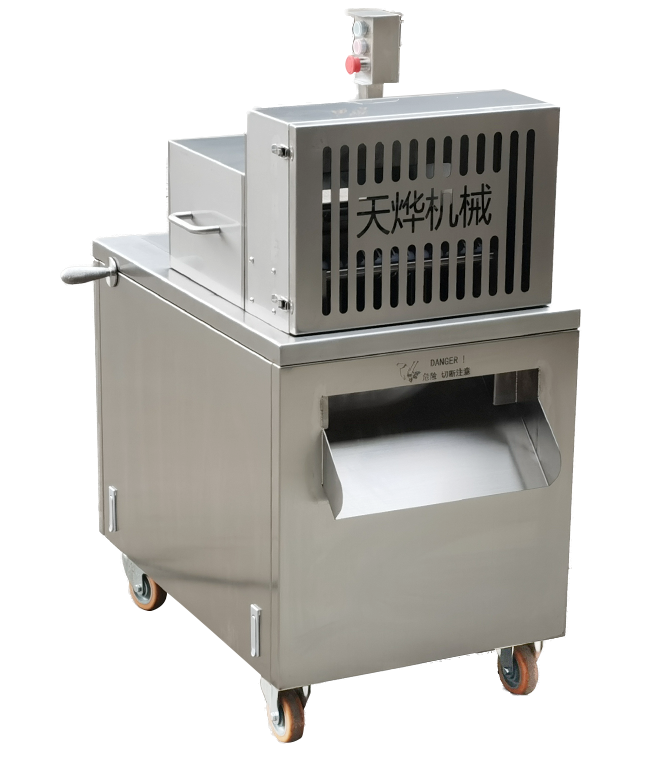

Bone dicing machine

[Equipment Usage]
Suitable for one-time molding of frozen pork rib chunks, frozen pork belly, and frozen half sliced duck and half sliced chicken chunks at -5-0 ℃.


【 Applicable Scenarios 】
Suitable for supermarkets, semi-finished product distribution, agricultural markets and other supermarket agricultural enterprises; Chinese restaurants, Chinese food chains, and reliable breakfast enterprises;


[Advantages and Characteristics]
1. Widely applicable. Ultra wide blade, high stroke, suitable for cutting large meat and bone products, including pork chops, lamb chops, chicken, duck, goose, fish, bone or boneless, frozen (-5 ℃) meat and bone products.
2. The cutting thickness can be adjusted. This machine uses a combination integrated knife to cut blocks with a width of 25mm and a length of 15mm~30mm.
3. Easy to clean. The feeding device of this machine can be quickly disassembled and cleaned. The upper clamping device and gantry cutter for cleaning, as well as the meat and bone fragments and sewage, are discharged from the machine's internal sewage pipe and discharge outlet. Thickened stainless steel square tube frame, high-quality 304 # stainless steel meets food grade requirements, independent feeding mechanism module, can be quickly disassembled and cleaned, with an electrical control box placed underneath.
4. This machine is equipped with stainless steel protective covers for all moving parts to ensure the safety of operators during normal operation. Independent safety protection cover and safety protection induction switch, automatic lubrication system, oil shortage automatic alarm shutdown, motor air inlet duct autonomous circulation heat dissipation, quick side opening door, bottom anti rodent net.
5. Upgraded to the fourth generation product, the upper conveyor belt is a nail press belt to prevent material slippage, and the blade is equipped with a discharge device.
6. Can add front and rear conveyor belts, and connect two machines into an L-shaped small flowing cutting line.

[Technical Parameters]
Machine size： 1050 * 600 * 1160mm (length * width * height)
Finished product shape: cut into blocks or cubes
Cutting size ：width 25mm (non adjustable), length 17-30mm (adjustable)
Output ：350kg/hr
Power supply： 380V three-phase five wire system 50Hz
Power ：3kW
Belt width ：1140 * 299 * 2mm
Machine weight ：300kg
A set of random ：hexagonal wrench accessories, two 5-inch screwdrivers
