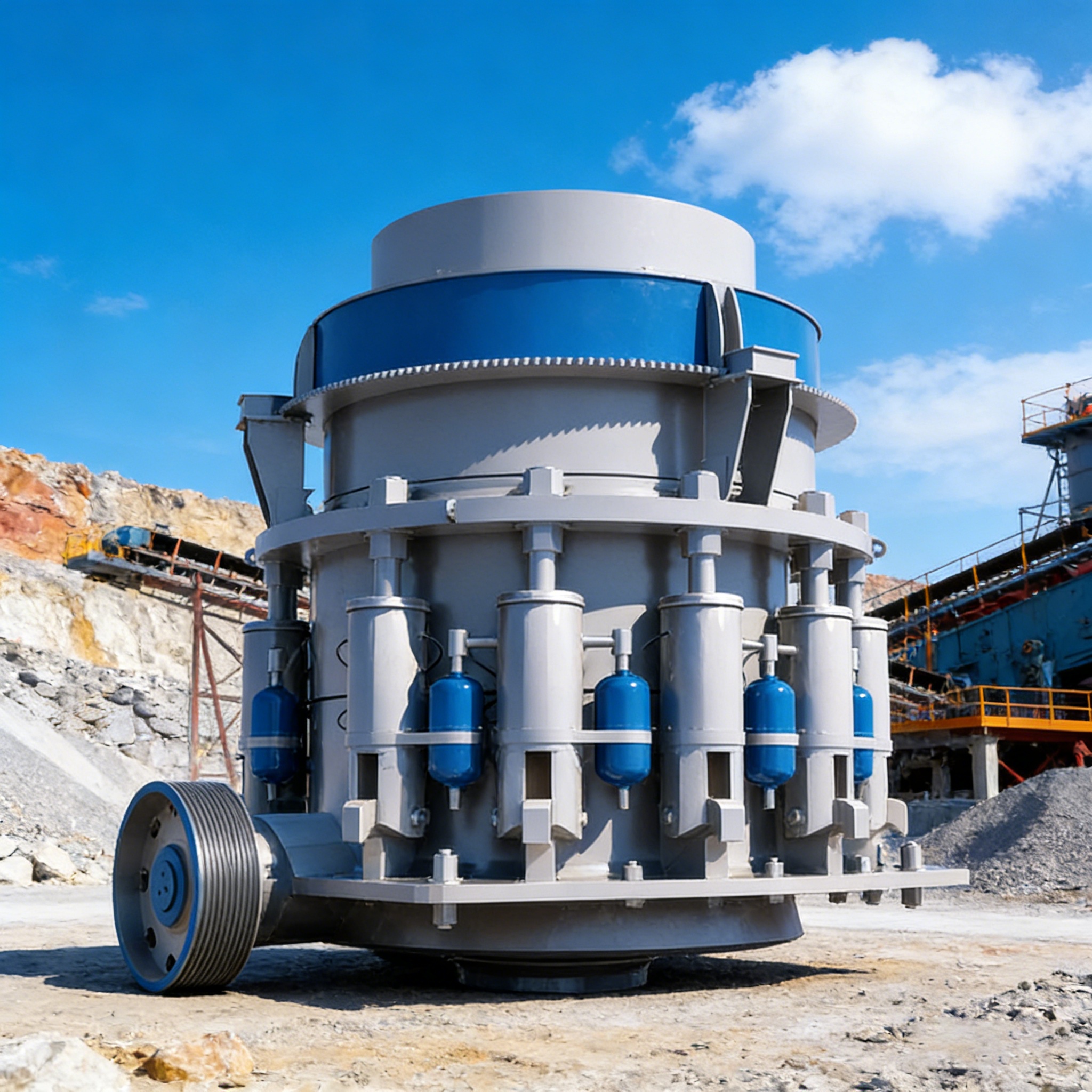

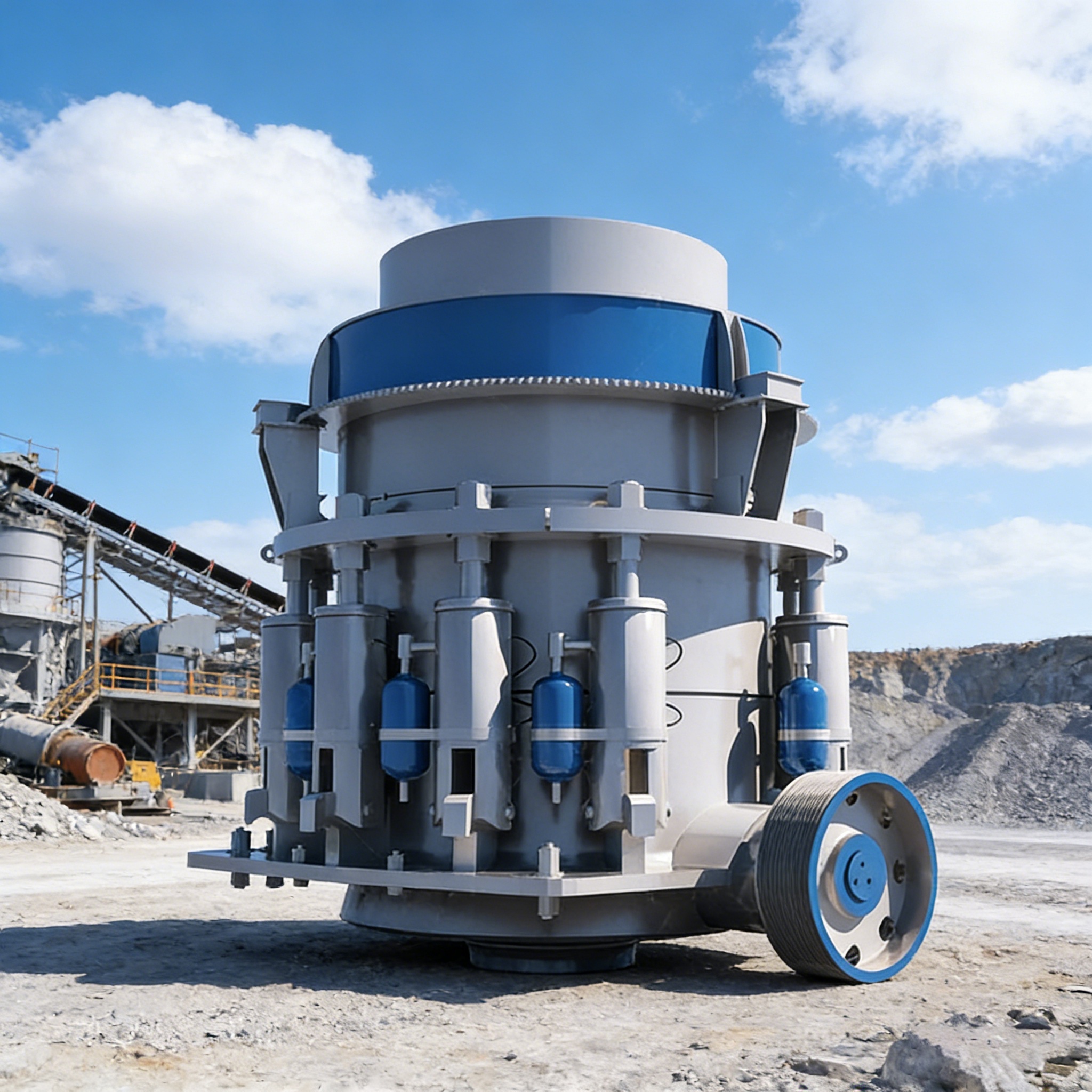

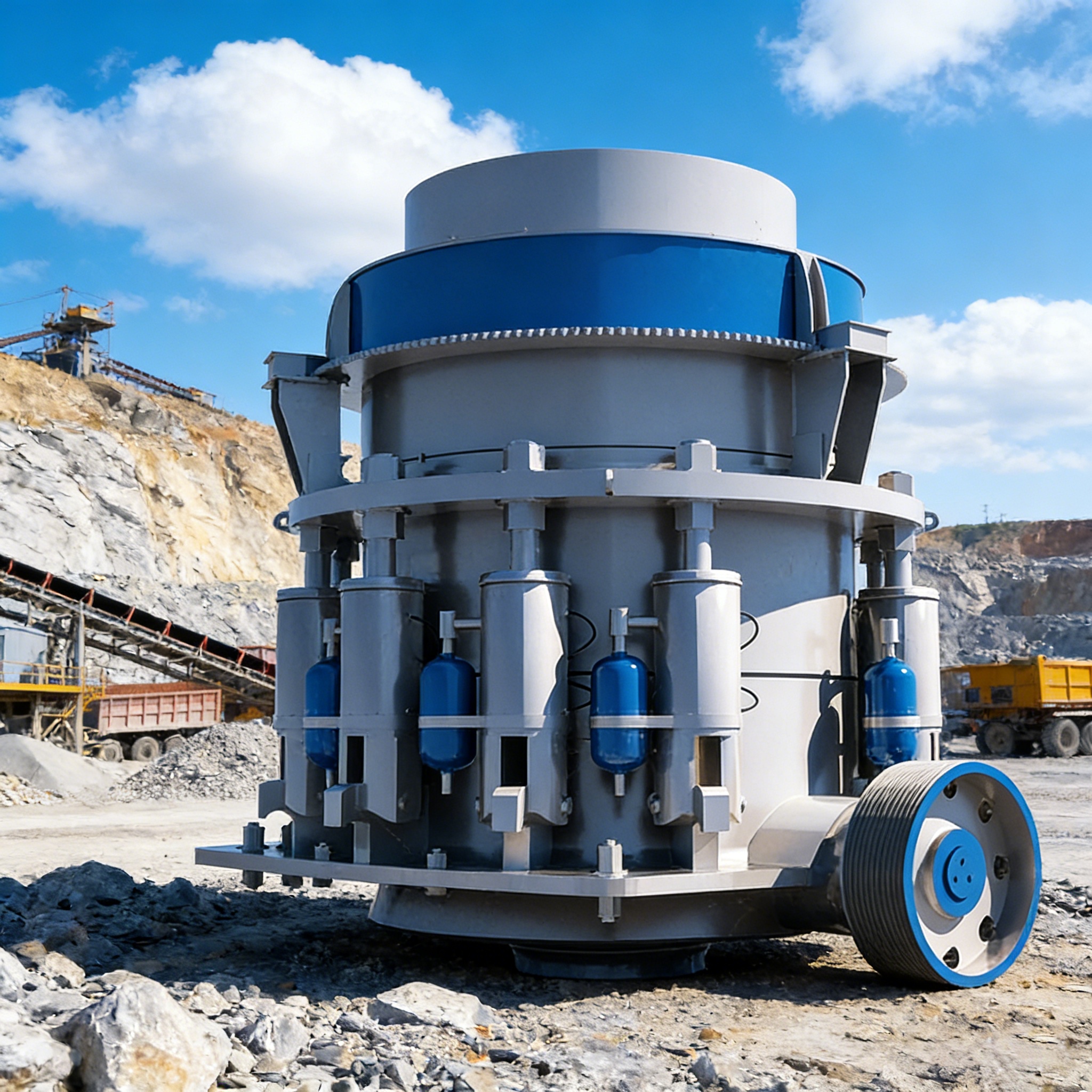

Multi-cylinder Cone Crusher

The multi-cylinder hydraulic cone crusher is commonly used in the medium and fine crushing stages of sand and stone production lines. The DLHPT series multi-cylinder hydraulic cone crusher, developed and produced by Zhongyu Dingli, integrates hydraulic, electrical, and automation technologies. Compared with traditional spring cone crushers, it offers superior advantages:

• Finished products with a cubic shape

• Full-cavity crushing

• High crushing efficiency

• Minimal liner wear

• Low operating costs

• Easy maintenance and adjustment

Design Philosophy:

1. Innovative Structure: Adopts a multi-cylinder hydraulic cone crushing structure with a fixed main shaft and an eccentric sleeve rotating around it.

2. Layered Compression Crushing: The crushing process occurs between materials, significantly improving crushing efficiency.

3. Efficient Particle Size Control: Achieves fine product sizes without relying on a small discharge opening, ensuring both efficiency and product quality.

Performance Features:

Smooth Operation

The safety cylinder uses a large-diameter oil pipe and a large-capacity accumulator, providing excellent buffering performance and a faster response, resulting in more stable equipment operation.

High Production Efficiency

The fixed main shaft offers strong load-bearing capacity. The equipment features a more compact structure and smaller volume, leading to higher production efficiency.

Easy Installation

Equipped with a floating mounting base, installation is simpler and more time-saving. It also has lower requirements for the foundation, reducing investment costs.

Low Maintenance Cost

The cone body wall is thickened, and the original liner fixing method is improved. No grouting is required, making maintenance more convenient and reducing overall costs.
