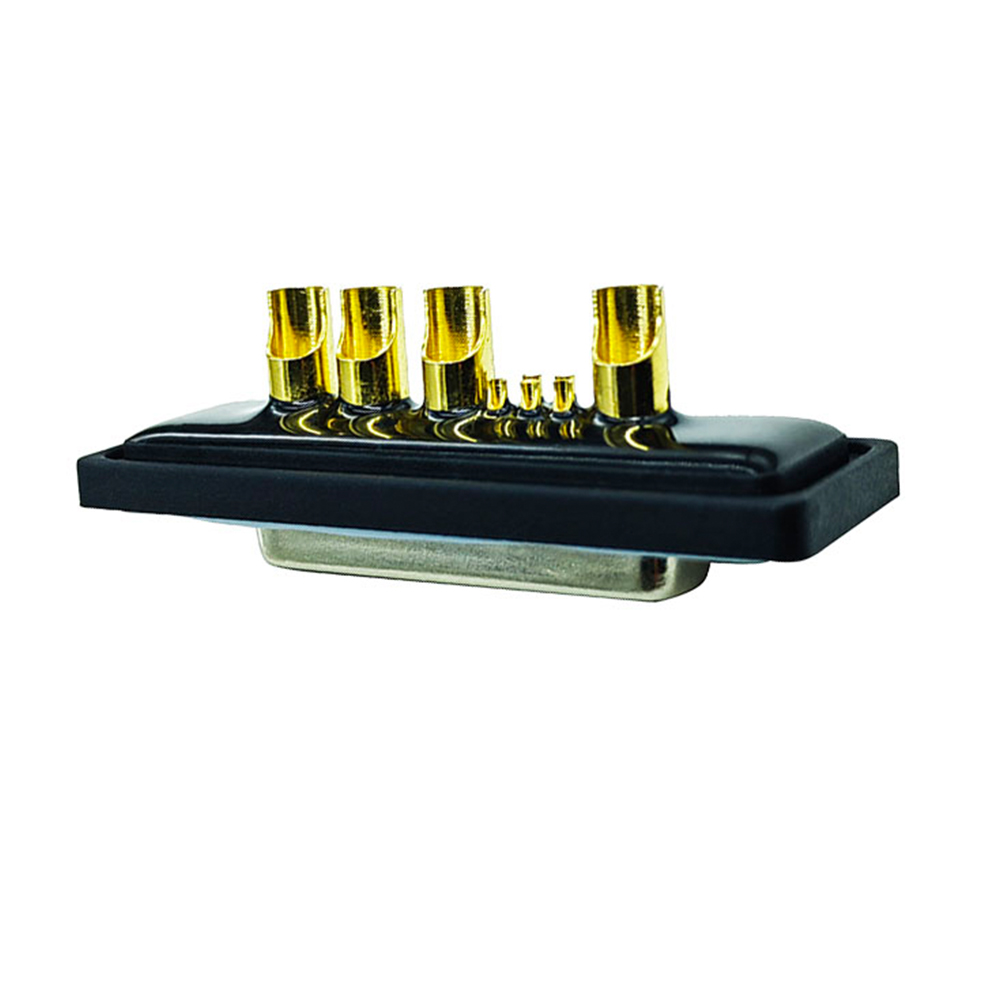

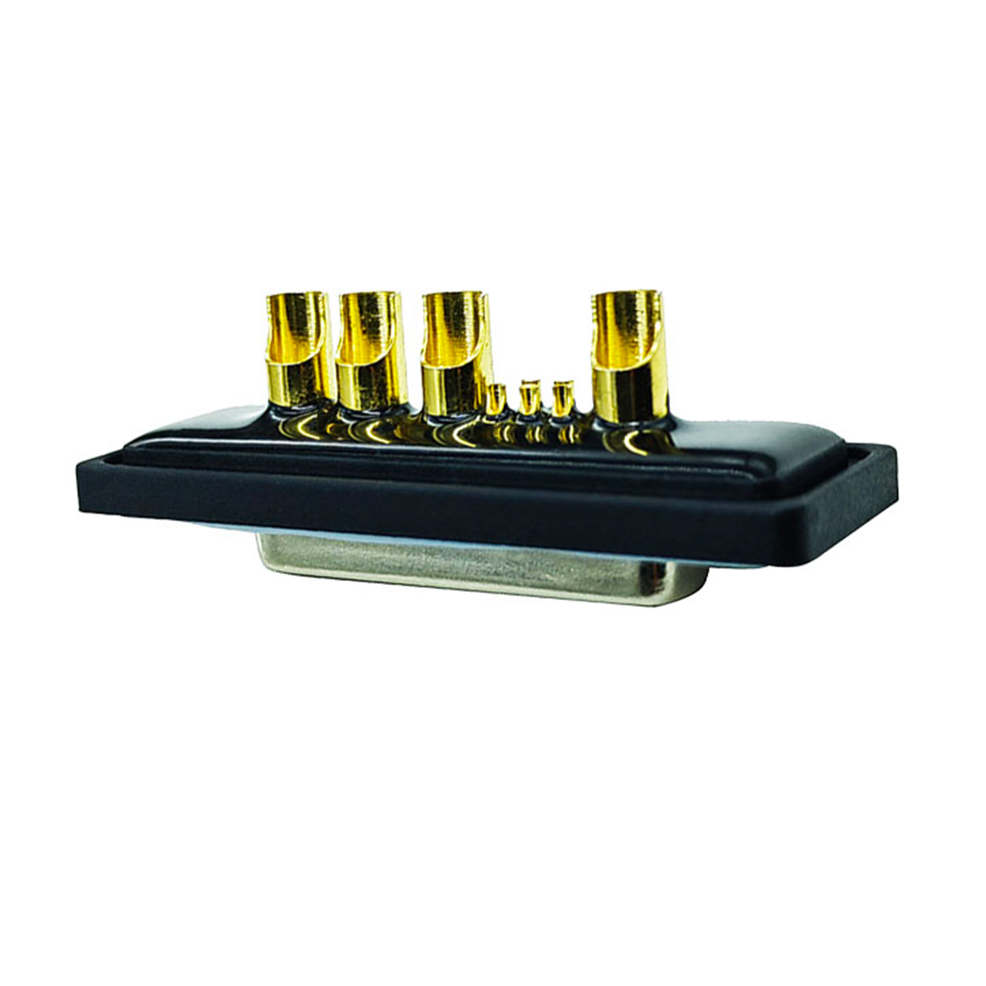

Solder‑Type D Sub 9 Connector Male (IP67): A Tough "Hybrid" That Takes on All Challenges

To all senior engineers, wiring fanatics, and anyone who has been driven mad by poor contact, allow me to proudly introduce the "hexagonal warrior" of the d connector world—the solder‑type 9W4 ip67 waterproof connector. This is no ordinary plug; it is the impenetrable protective shield that keeps your equipment alive in harsh environments.D Sub 9w4 Ip67 Connector is PANDI’s primary product.

First of all, its name is full of meaning: does "9W4" sound like some kind of secret code? Exactly! It means it has 9 signal pins plus 4 high‑current power pins, a real hybrid that handles both "precision work" and "heavy‑duty jobs." It transmits delicate signals while supporting up to 40A high current—like a Michelin‑starred chef who also works as a laborer, and does an amazing job at both.

Now here’s the highlight: IP67 waterproof rating! What does that mean? Simply put, even if you drop it into a fish tank and soak it for half an hour (don’t actually try it), it will still work perfectly after wiping dry. Dust? No problem at all. It is fully sealed and can stand up even to sandstorms. Say goodbye to the frustration of "oh no, water ingress and short circuit again"—your equipment finally has a reliable bodyguard.

Dongguan Pandi Electronic Technology Co., Ltd. is located in the famous modern manufacturing city—Dongguan, China. For 18 years, the company has closely followed market steps and is committed to the R&D and manufacturing of connectors and peripheral products. It is a professional manufacturing company with considerable influence in industrial control medical wire harnesses and D-SUB electronic connectors.

Technical Specifications:

Parameter: Specification

Contact Layout : 9 Pin Female Connector

Protection Rating : IP67(ip67 d sub)

Rated Current : 10A / 20A / 30A / 40A (Customizable)

Rated Voltage: 250V

Contact Resistance: ≤15mΩ

Insulation Resistance: ≥2000MΩ

Dielectric Withstand Voltage： 750V AC / 1min

Operating Temperature： -55°C ~ +105°C

Contact Material： Brass / Pure Copper, Gold Plated

Insulator Material： PBT + 30% Glass Fiber (UL94 V-0)

Shell Material： Aluminum Alloy / Cold Rolled Steel (Nickel Plated)

Mechanical Durability： ≥1000 Mating Cycles

Locking Mechanism： Threaded Locking (Jackscrews)
