Vertical rotary automatic screen printing machine
3 week ago
Product details
Automatic cosmetic caps Screen printing machine//Usage and characters
The automatic vertical rotary screen printing machine is a high-speed automated printing system specially designed for mass production of plastic bottle caps, cosmetic caps, beverage caps and various small circular covers. With a compact vertical rotary structure, this machine achieves fully integrated production including automatic feeding, precise printing, instant UV curing and finished product collection.
Equipped with high-precision servo control and indexing system, the machine ensures stable operation and ultra-accurate color registration performance. It supports 2 to 6 colors printing configuration, which can meet different pattern and logo printing requirements for various bottle cap products. The vertical design greatly saves workshop space and brings more convenience for daily operation and maintenance.
The machine is equipped with automatic vibrating bowl feeding system, which can continuously and stably transport bottle caps without manual assistance, greatly improving production efficiency and reducing labor costs. For PP and PE plastic caps, it can be equipped with flame or corona treatment device to enhance ink adhesion, so that the printing pattern is firm and not easy to fall off.
The UV curing system matches high-speed printing, realizing instant ink drying, effectively avoiding smudge and sticking, and ensuring clear and consistent printing effect. The whole machine uses heavy-duty frame and imported electrical components, with the advantages of low failure rate, long service life and high stability.
The intelligent PLC touch screen control system supports parameter storage, fault detection, production counting and quick product switching. With high automation, high precision and high efficiency, this vertical rotary screen printer is the ideal choice for bottle cap manufacturers in beverage, daily chemical, cosmetic and packaging industries.
Samples show

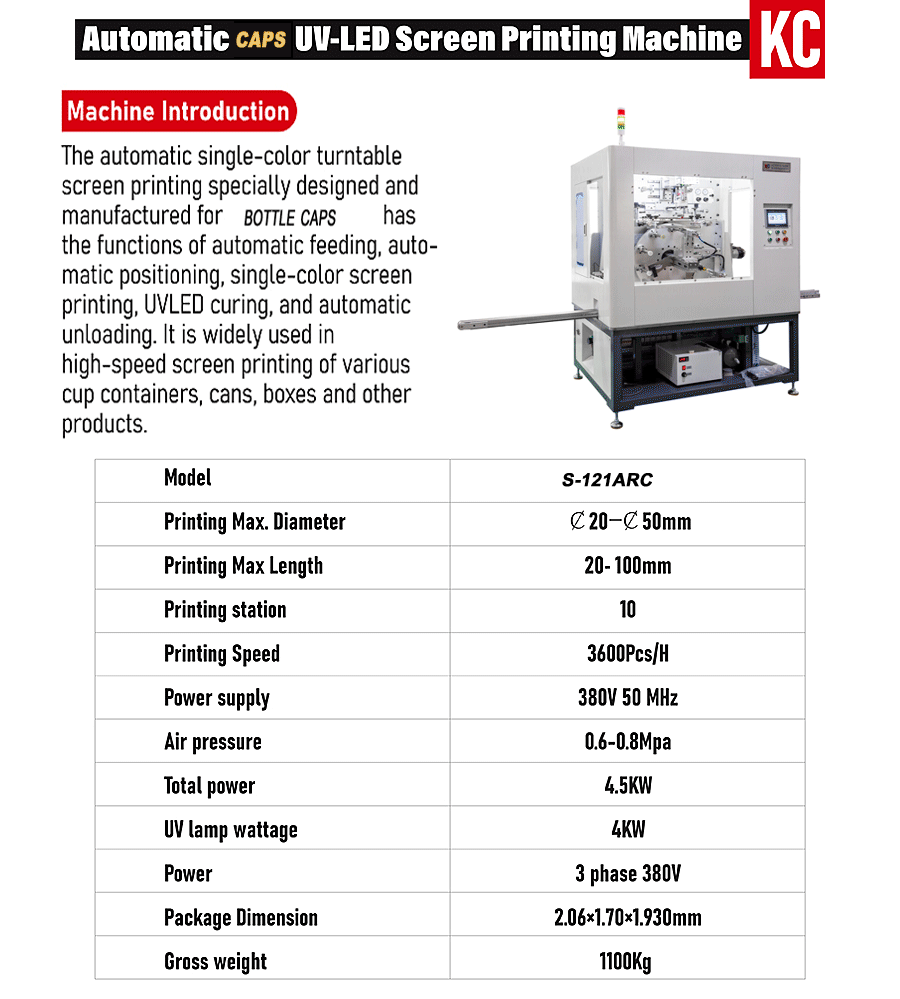

Catalogue of jars automatic screen printing machine

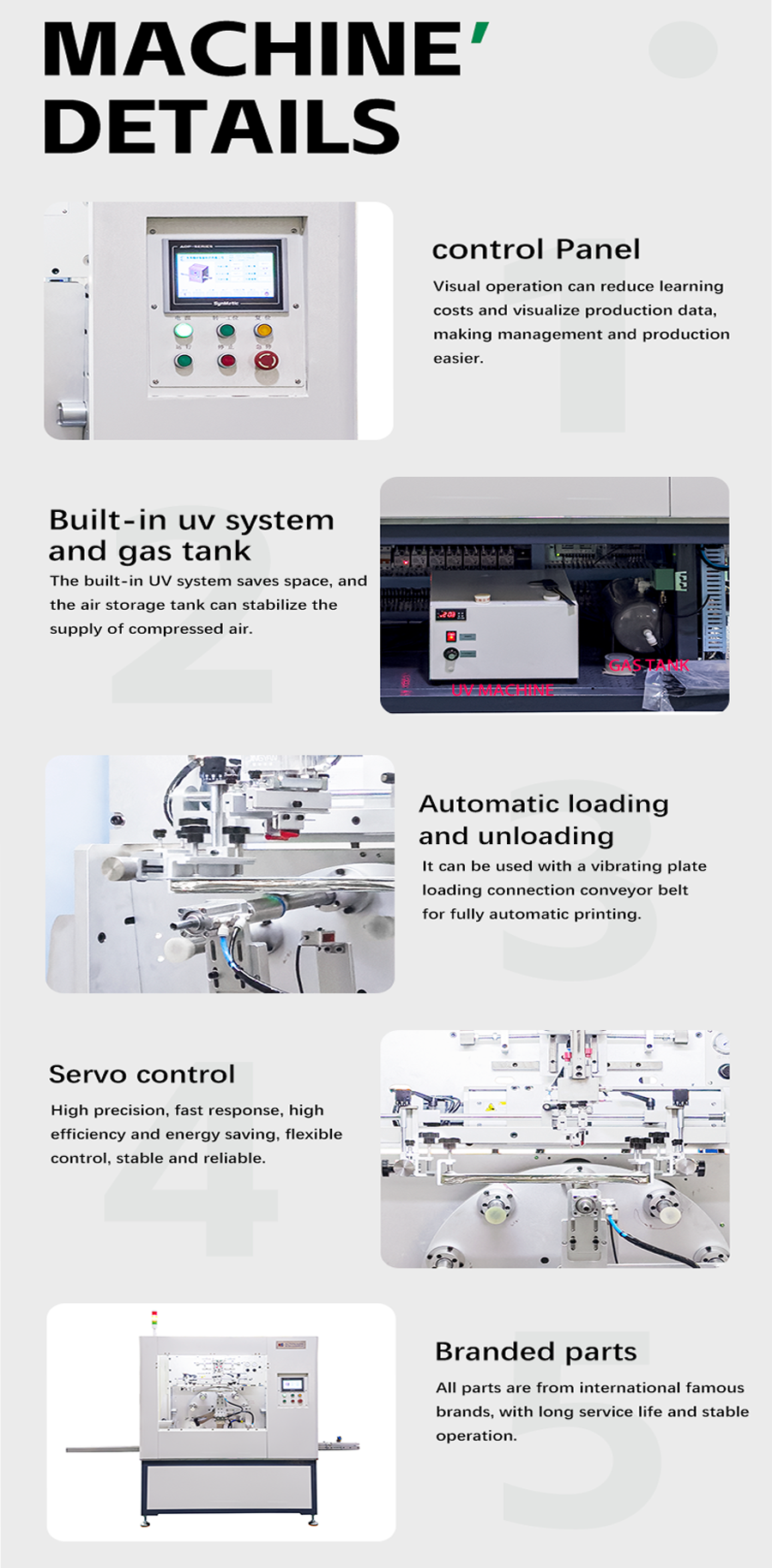

Details photo-Advantage of desktop screen printing machine
The vertical turntable automatic screen printing equipment is a classic structure of a monochrome automatic Screen Printing machine . It is widely used for monochrome screen printing of cylindrical jars, caps bottles, hoses, cups, cream bottles, and car filters.
- Feeding conveyor belt
Narrow PVC or metal conveyor belts are used. Glass paper products will first use stainless steel conveyor belts with equidistant positioning grooves or anti-slip patterns on the surface. The conveyor belt transports the product to the feeding and unloading station, and cooperates with the photoelectric sensor to detect the incoming material position to ensure that the feeding robot accurately grabs it.
- Feeding and unloading robot
Most of them are pneumatic grippers or vacuum suction nozzled , and the three-axis robot arm driven by a servo motor places the product on the fixture of the turntable. The feeding robot should be padded with different materials for different materials to avoid damaging the product surface.
- Vertical turntable-8-10-12 stations
8-10 fixtures are evenly distributed on the vertical turntable, such as elastic card slots or magnetic positioning seats), driven by servo motors, with adjustable speed, and station identification sensors are set on the edge of the turntable to cooperate with the control system to achieve precise positioning of the printing station.
- Flame Treatment device/plasma treatment device
For polyolefin materials, flame treatment or plasma treatment should be carried out; flame treatment generally uses a mixture of combustible gas and compressed air to burn the flame, and sprays it with the outer end of the flame. Plasma treatment uses a high-frequency electric field to generate plasma (such as argon/air), bombarding the surface of the tube body, removing oil stains and increasing surface roughness. It is environmentally friendly and has no open flames, and is suitable for sensitive materials.
- Servo screen printing device
The servo drive device has high precision and is easy to adjust. It has become the standard configuration of high-precision screen Printing Machines. The servo drive for screen lifting and scraper movement can control the thickness of the ink layer and show the texture. Most vertical turntable screen printing machines are monochrome, and some models can be upgraded to two-color.
- UV drying system or UVLED drying system
According to the material of the product, a UV LED ring light source or a UV light source is used to evenly irradiate the product. The UVLED curing device has a built-in air cooling system, and the light source temperature is controlled below 60°C to avoid some sensitive on-the-job heat deformation;
- Unloading manipulator
Similar to the loading manipulator, the gripper has a buffer spring added to it, and it is gently placed on the unloading conveyor belt after grabbing.
- Unloading conveyor belt
The unloading conveyor belt has the same structure as the loading conveyor belt, with a receiving trough or buffer platform at the end, and the conveyor belt surface is covered with soft material to prevent the product from being scratched by collision.
- Operation panel
The vertical automatic turntable screen printer is operated by PLC with a touch screen for human-computer dialogue, and can easily set and adjust specific parameters such as loading, screen printing, and UV curing.
Machine strutucre
- Adjustable feeding system with stepless speed control and manipulator feeding.
- Flame or plasma surface treatment improves ink adhesion on PE cups.
- Stable vertical turntable ensures high-precision operation.
- Automatic screen printing with adjustable fixtures, electronic sensors, and optional photoelectric tracking for multi-color printing.
- High-performance UVLED curing for instant drying, energy-efficient and eco-friendly.
- Touch screen operation with CNC-machined components for stability and up to 2,000 cups/hour.
- German and Japanese electrical components for reliable performance.
