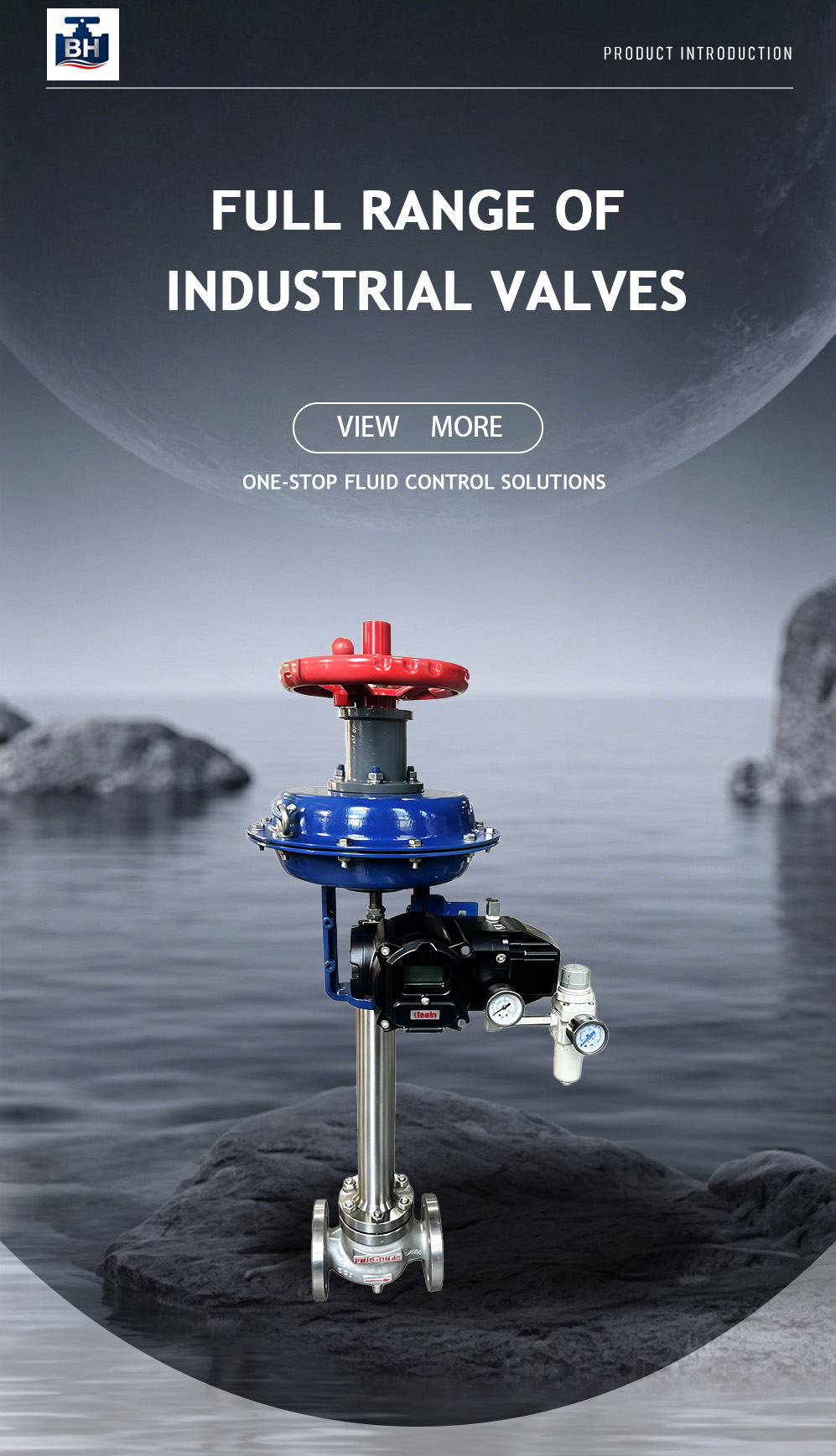

Pneumatic Diaphragm Single Seat Control Valve DN40 – Seat Leakage Testing

4 week ago

3 0 

Hangzhou Baoheng Valve Manufacturing Co., Ltd.

3 month

Product details

The Pneumatic Diaphragm Single Seat Control Valve DN40 (1‑1/2 inch) is designed for higher flow capacities, offering Cv values from 25 to 50, making it suitable for main process lines in food, beverage, and pulp & paper industries. Its full‑port, streamlined body minimizes pressure drop while providing excellent throttling characteristics. The actuator is a heavy‑duty diaphragm unit with oversized springs to handle high shut‑off pressures, ensuring tight sealing even against differentials up to 4.0 MPa. This valve is commonly employed in paper stock approach systems, controlling the flow of thick pulp to the headbox, where it acts as a Flow Control Valve to maintain consistent basis weight. In sugar refineries, it regulates the flow of syrup and molasses, while in breweries it controls wort and chilled water for fermentation temperature management. As a Temperature Regulating Valve, it interfaces with a temperature sensor to modulate heating or cooling media, ensuring precise vessel temperature. The valve’s trim is available with hardened stellited surfaces to resist erosion from slurries and abrasive particles. With a digital positioner, it transforms into a full Intelligent Control Valve capable of diagnostic routines that detect friction changes and valve sticking. In utility applications, it serves as a Pressure Control Valve for plant steam headers, reducing pressure to distribution levels. The packing is of the low‑emission type, with live‑loading to maintain seal compression over the valve’s lifetime. The valve body can be supplied in carbon steel, stainless steel, or duplex alloys, with options for raised‑face or ring‑type joint flanges. We provide a range of seat materials, including PTFE, PEEK, and metal, to match the service temperature and leakage requirements. The valve’s top‑entry design allows quick inspection and part replacement without dismantling the line. All units are pressure‑tested and seat‑tested per API 598. With its balance of capacity, control precision, and durability, this DN40 valve is a reliable choice for demanding continuous processing.
