Product details

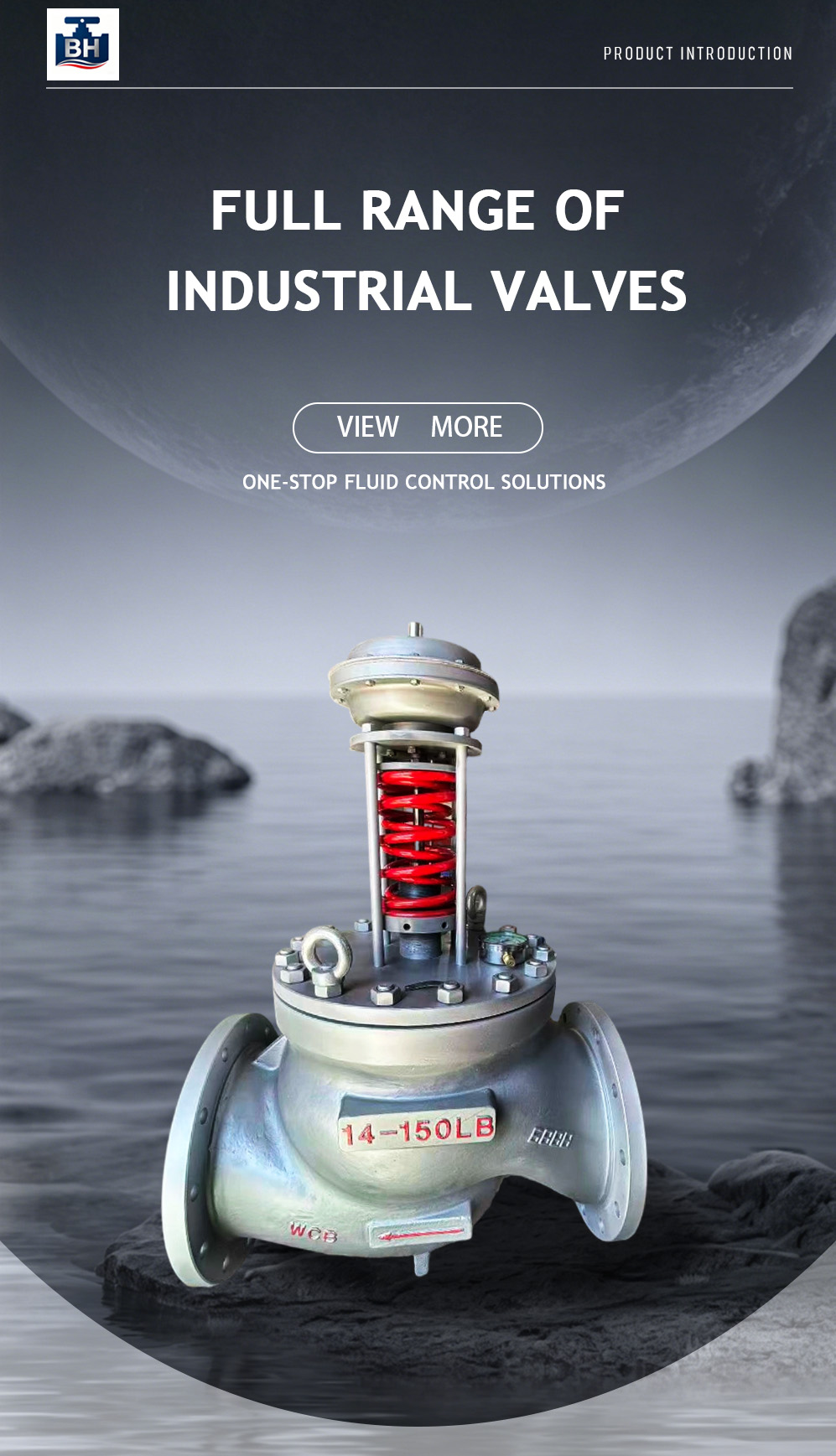

The Self Operated Pressure Regulating Valve is a high‑performance, pilot‑operated or direct‑spring regulator designed for medium‑to‑high pressure control applications in steam, water, air, and non‑corrosive gases. It operates entirely on process energy, eliminating the need for external instrument air or electricity, which makes it ideal for remote locations and hazardous areas. The valve features a rugged, one‑piece cast iron or steel body with an integral strainer and pressure tapping ports. Its sensing element – either a diaphragm or bellows – is selected based on the pressure range and temperature, ensuring accurate and repeatable control. The regulator can handle inlet pressures up to 4.0 MPa and outlet pressure ranges from 0.05 to 2.5 MPa, with an adjustable set‑point via a compression spring. This valve is widely used in steam reducing stations, boiler feedwater recirculation, and compressor by‑pass systems. In petrochemical plants, it serves as a dependable Pressure Control Valve for fractionator overheads, while in chemical fiber production it stabilizes the pressure of drying air. When combined with a Temperature Regulating Valve in a heat exchanger train, it ensures both temperature and pressure are maintained within tight tolerances. As a Self‑operated Valve, it offers exceptional reliability because it has no moving electrical parts or vulnerable transducers. Its self‑cleaning piston design resists clogging from dirty steam or condensate. The valve also provides fail‑safe behavior – if the sensing line breaks, the valve moves to a safe position (either fully open or closed based on the actuator type). For processes requiring variable set‑points, we offer an external pilot valve that allows remote adjustment. This regulator is also compatible with intelligent monitoring when paired with a pressure transmitter, effectively becoming part of an Intelligent Control Valve loop for data logging. Its robust construction ensures minimal maintenance, and the trim parts are easily accessible via the top‑entry bonnet. With a long track record in power generation and refinery services, this valve delivers consistent, accurate pressure reduction under the most demanding conditions.
