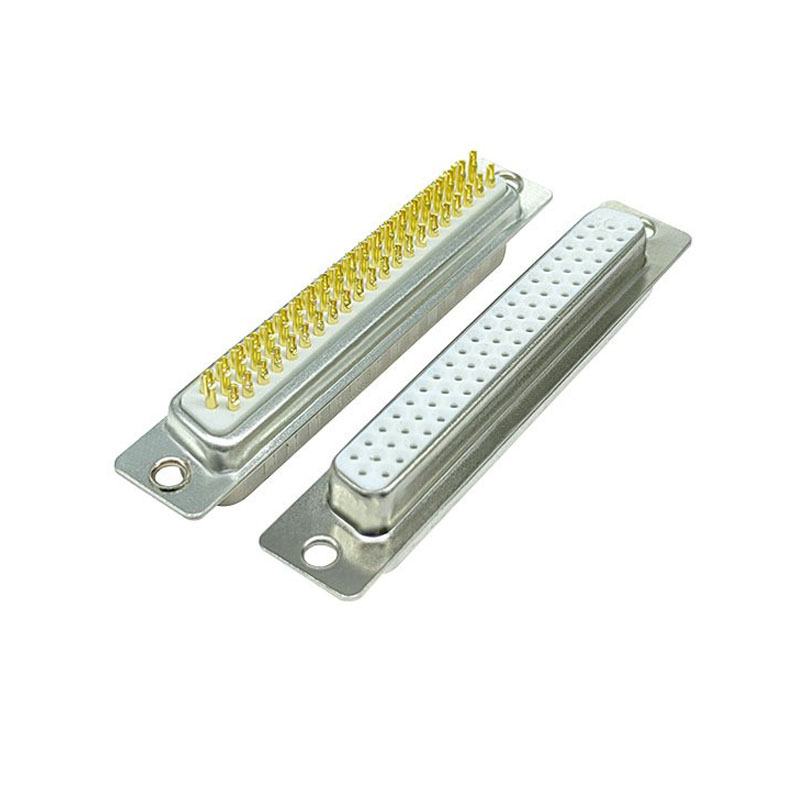

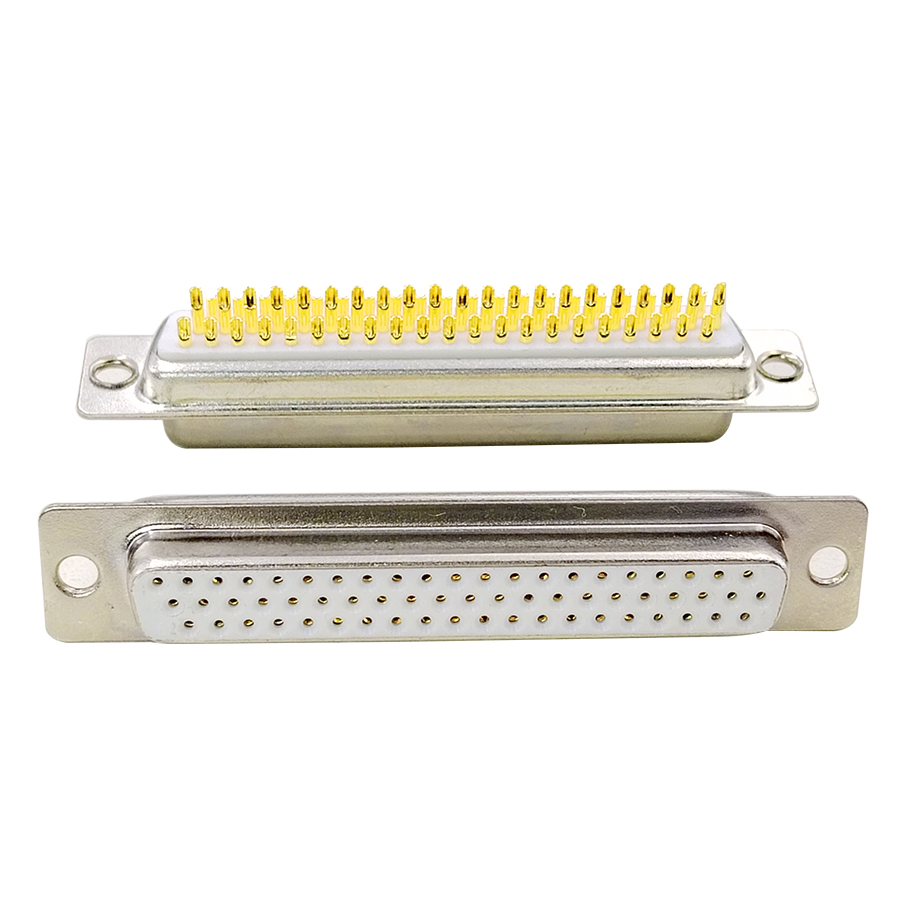

62 Pin D Sub Solder Cup Connector
62-Pin Layout for High-Density Connections
The 62 Pin D Sub Solder Cup Connector gives you 62 contact positions in one D-SUB interface, which is useful when a machine or control system has a lot of signal lines to bring together. Instead of using several smaller connectors, a DB62 D Sub connector can keep more circuits in one place and make the cable layout easier to follow. It fits applications such as industrial controls, test equipment, communication devices, and other electronic systems with multiple signal connections.
| Item | Details |
| Model | HDB62 / HD62 Solder Cup (High Density D-Sub, Size 4) |
| Pin Count | 62 Pins, 3 rows (22+20+20) |
| Connector Gender | Male / Female; HARTING ref: 09 56 400 4704 (Female) |
| Terminal Option | Machined Solid Pin: Full gold plating, 3A, heavy-duty |
| Punch Pin: Partial gold plating, 2A, cost-effective | |
| Termination | Solder Cup (direct wire soldering, cable end only, no PCB pins) |
| Rated Current | 2A (Punch Pin); 3A (Machined Solid Pin) |
| Rated Voltage | 40 V AC |
| Insulation Resistance | ≥1000 MΩ @ 500VDC |
| Contact Resistance | ≤30 mΩ |
| Operating Temperature | -55℃ ~ +105℃ |
| Insulator Material | PBT UL94-V0 |
| Shield Shell | Nickel-plated iron shell, EMI shielding |
| Locking Type | 4-40 UNC screw locking, anti-loosening |
| Compatible Wire | 24~28 AWG multi-strand shielded wire |
| Optional Accessories | Metal backshell, IP67 waterproof jacket, strain relief wire clip |
| Application | Industrial control, servo system, test & measurement, DAQ, medical, railway, 5G communication |
The high contact count is the main reason to choose this type of connector. A high density D-Sub connector helps save panel space while still leaving room for a larger number of circuits. PANDI pays close attention to the position of each contact and the fit between the plug and socket, so the finished connector can be assembled neatly into the customer's cable or equipment design.
Solder Cup Terminals for Direct Wire Assembly
The solder cup is where this connector stands out. Each contact provides a small soldering area for connecting individual wires directly, giving cable assemblers more freedom when assigning circuits. The DB62 solder cup connector works well when the wire arrangement is not fixed or when a customer needs a particular pin-to-wire configuration rather than a pre-made cable.
This type of termination is also handy during prototype work and small-batch cable assembly. Wires can be prepared and soldered according to the actual pinout, without having to change the whole connector design. As a manufacturer of d sub connector products, PANDI can also discuss wire size, pin assignment, cable length, and assembly requirements with customers before production.
Practical Choice for Custom Cable Assemblies
A 62-pin connector is often used in equipment where one interface has to handle many individual signals. The solder cup structure makes it easier to build a cable around the customer's own wiring diagram, whether the project involves control signals, instrumentation, communication lines, or equipment interfaces. The connector can be incorporated into custom cable assemblies where the pin layout needs to match the customer's PCB or control system.
PANDI handles connector manufacturing, precision metal component processing, and wire harness assembly in-house. This means customers can discuss the connector itself as well as the cable assembly that goes with it. If you need a d subminiature connector with a specific pinout, wire arrangement, or cable configuration, our engineering team can work from your drawings or samples and help confirm the right structure.
Why Choose PANDI
For the 62 Pin D Sub Solder Cup Connector, PANDI focuses on the details that matter when many individual wires need to be connected by hand: accurate contact positioning, clean solder cup construction, and a housing that keeps the 62 contacts properly arranged. These details make a difference when the connector is used in a custom cable assembly and every wire has its own assigned circuit.
PANDI also has the manufacturing capability to support the connector beyond the individual part. From metal component processing and connector assembly to cable wiring and testing, our team can follow the project through different production stages. If your application calls for a dsub connector with a special pin assignment or matching wire harness, we can review your requirements and arrange samples before moving to larger production.
If you are sourcing a DB62 solder cup connector for a new cable or equipment project, send us your pinout, drawing, or application details. PANDI can help check the connector structure, discuss the wiring method, and provide a suitable production option.
