Pneumatic hot foil stamping machine with slide-table //Usage and characters
Samples show
This hot foil stamping machine is equipped with a sliding worktable system based on a standard hot stamping structure. Driven by an independent pneumatic cylinder, the worktable automatically slides into the stamping position during operation and retracts once the stamping process is completed. This design effectively reduces operator exposure to the heated plate, significantly improving operational safety and ease of use.
The standard worktable size is 320 × 420 mm, while the hot stamping plate is available in multiple sizes, including 190 × 270 mm, 210 × 290 mm, and 300 × 250 mm. Customized dimensions are also available to meet specific production requirements.
Stamping pressure is primarily adjusted through support screws located beneath the worktable. The closer the hot plate is set to the worktable surface, the greater the stamping pressure generated. The hot plate lifting system is driven by a pneumatic cylinder and linkage mechanism, ensuring smooth and stable vertical movement during operation.
Both the hot plate and worktable are manufactured from high-strength forged steel, providing excellent rigidity, durability, and long-term stability for continuous industrial production.
Machine description
Pneumatic Slide table hot foil stamping Machines //Parameter |
|
|
H-TC1520N
|
H-TC1927N
|
|
H-TC2129N
|
H-TC3025N
|
Catalogue

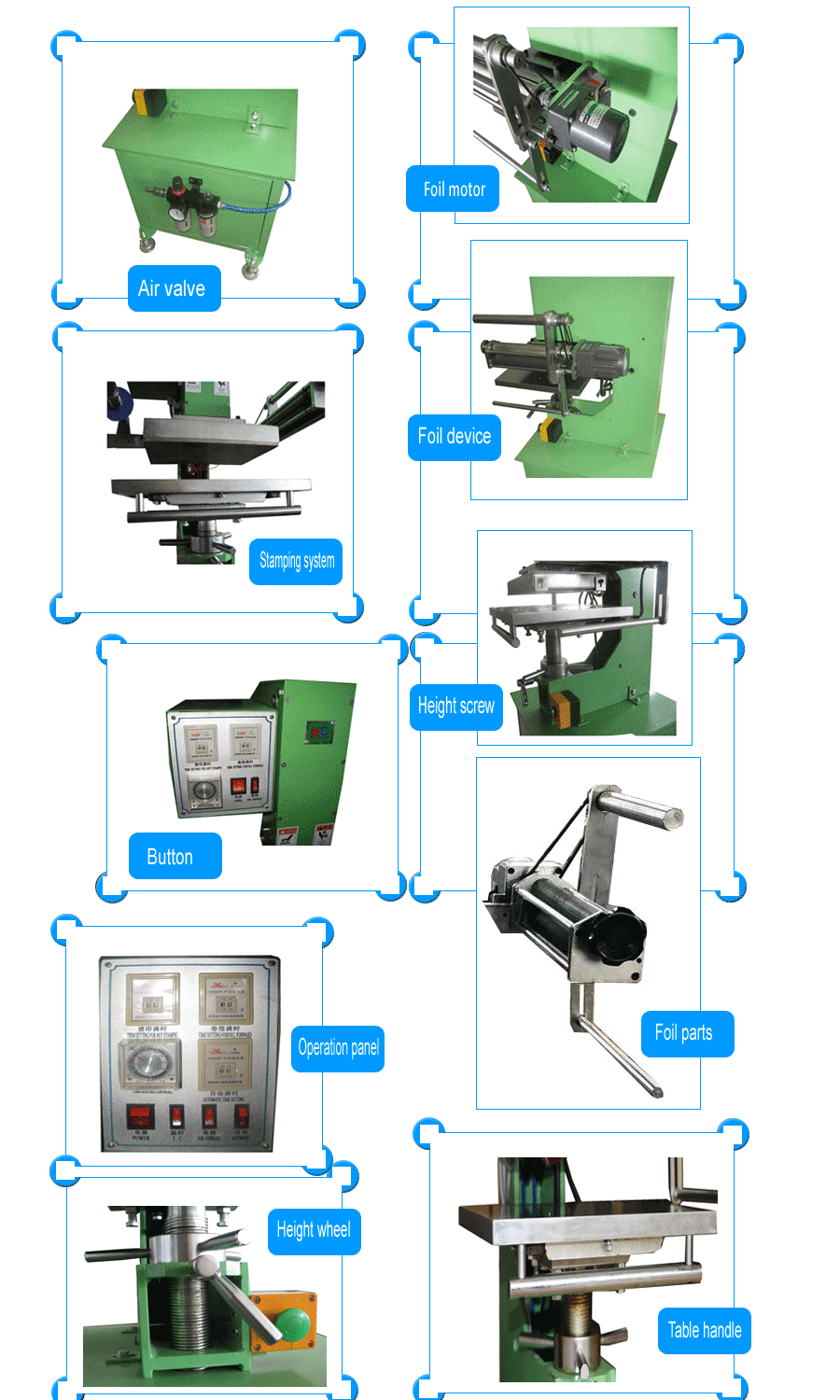

Details -Advantage
Key Features
- Pull-Out Working Table for Easy Loading and Unloading
- Multi-Directional Table Adjustment (Up/Down, Front/Back, Left/Right)
- Precision Fine-Tuning for Accurate Hot Stamping Positioning
- Screw-Driven Table Lifting System for Stable Adjustment
- Relay-Based Control System for Reliable Operation
- Advanced Digital Temperature Control System
- High-Precision Constant Temperature Regulation
- Adjustable Temperature, Pressure, Dwell Time, and Foil Feeding Speed
- Lever-Type Pneumatic Pressure System for Uniform Stamping Force
- Motor-Driven Foil Feeding System with Adjustable Length Control
- Suitable for Different Stamping Area Sizes
- High-Strength Steel Frame with Excellent Flatness
- Durable Hot Stamping Plate and Table Structure
- Stable Heating Tube System for Consistent Heat Supply
- Easy Maintenance and Component Replacement
- Flexible Parameter Adjustment for Various Hot Stamping Processes
Structure
Main Structure of Pneumatic Sliding Table Hot Foil Stamping Machine
1. Pneumatic Sliding Table System
- Pneumatic-driven sliding in/out table mechanism
- Automatically moves into stamping position and retracts after operation
- Improves operator safety by reducing contact with the hot plate
- Ensures consistent positioning and high repeatability
2. Heating System
- High-strength hot stamping plate (hot plate)
- Electric heating tube structure
- Constant temperature control system
- Adjustable temperature for different foil stamping materials
3. Pneumatic Pressing System
- Air cylinder pressing mechanism
- Lever-type or direct-pressure structure
- Uniform and adjustable stamping pressure
- Ensures consistent adhesion quality
4. Worktable System
- High-strength steel worktable surface
- Adjustable height structure (screw or support adjustment)
- Precision positioning design
- Suitable for different product sizes
5. Foil Feeding System
- Motor-driven foil feeding mechanism
- Adjustable foil feeding length and speed
- Automatic foil winding and unwinding
- Designed for material saving and stable operation
6. Control System
- PLC or microcomputer control system
- Touchscreen HMI operation interface
- Adjustable parameters: temperature, pressure, dwell time, stroke
- Supports automatic, semi-automatic, and manual modes
7. Machine Frame Structure
- Heavy-duty steel frame construction
- High rigidity and deformation resistance
- Stable support for all mechanical components
- Industrial-grade durability
