Product details

Hydraulic foil stamping machine for crates //Usage and characters

Plastic frames are used to transport goods, and many beverage and alcohol manufacturers use them to ship products. There is a large space inside the frame, and hot stamping on its surface can enhance the brand image. Both pneumatic hot stamping machines and hydraulic hot stamping machines can be used for hot stamping of plastic frames. Hydraulic hot stamping machines have greater pressure and higher stability.

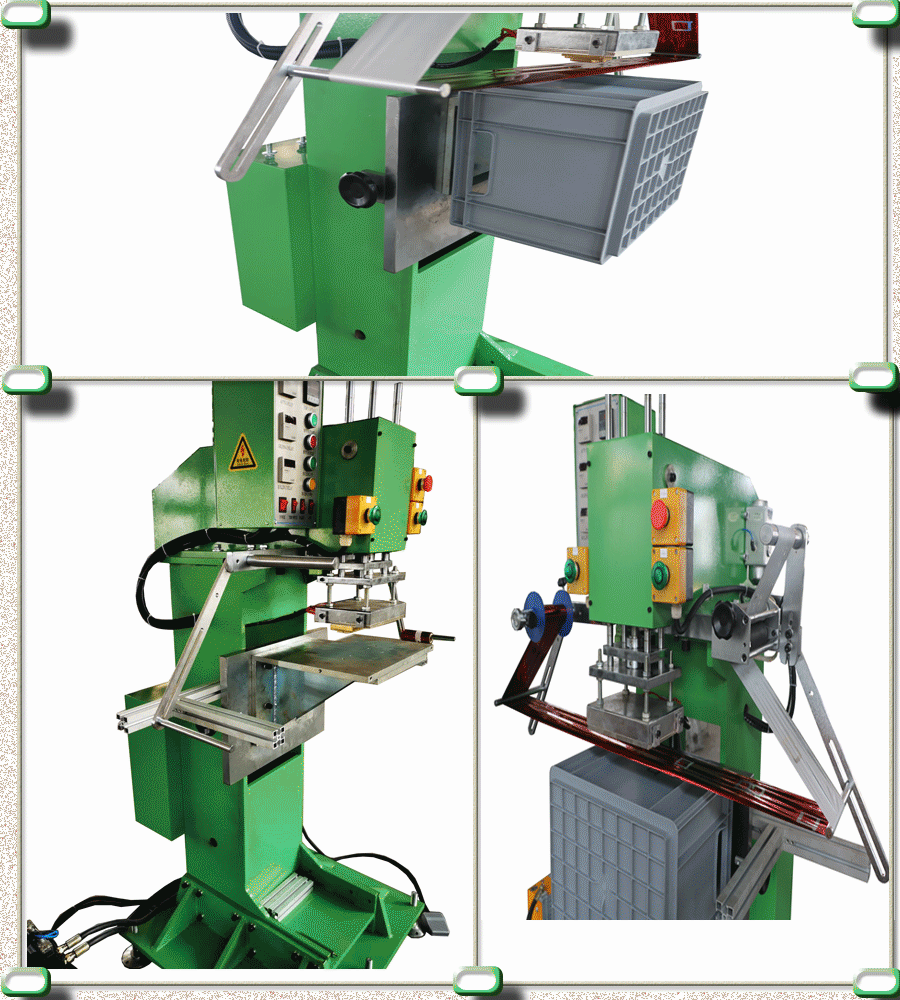

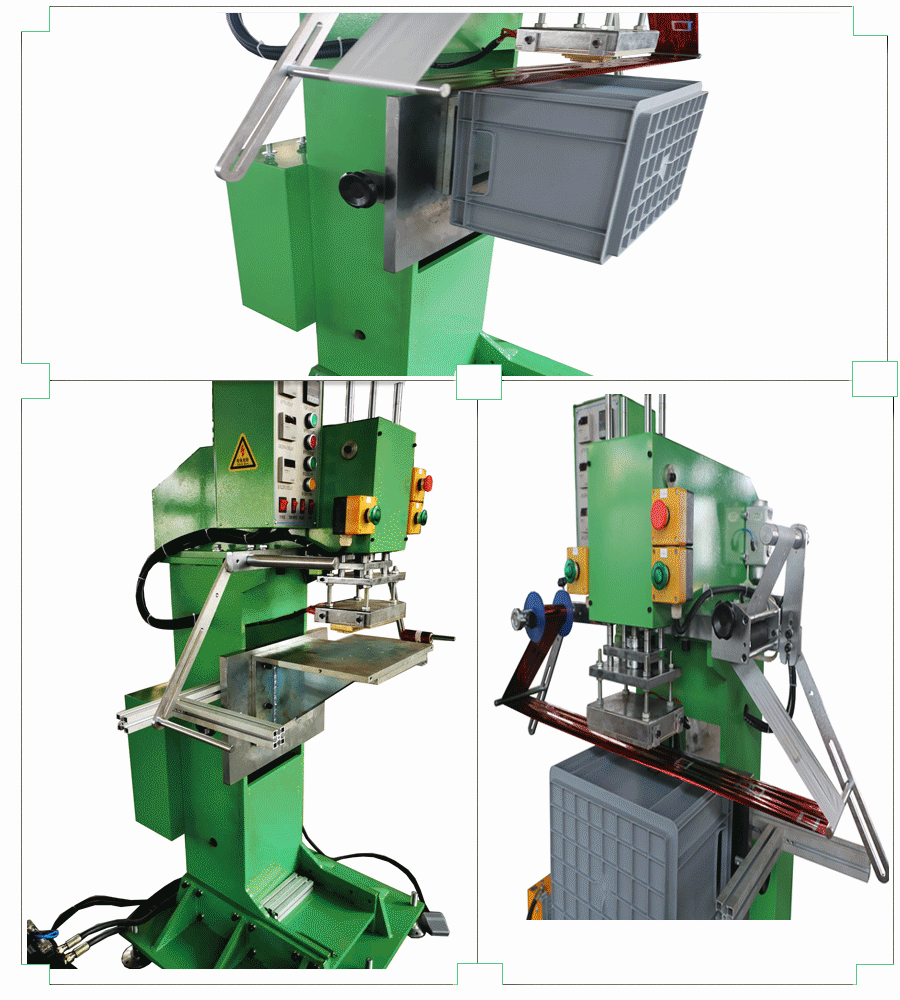

The main feature of the hot stamping machine for plastic frames is that it uses a cantilever workbench, that is, the workbench extends from the machine body, and the plastic frame is inserted into it, so that the hot stamping part can be closer to the hot stamping head. The height of the hot stamping machine does not need to be too high.

There are many sizes of plastic frames. In order for a hot stamping machine to be able to stamp more sizes, the workbench will be installed with a movable positioning mechanism to achieve the clamping of different frames.

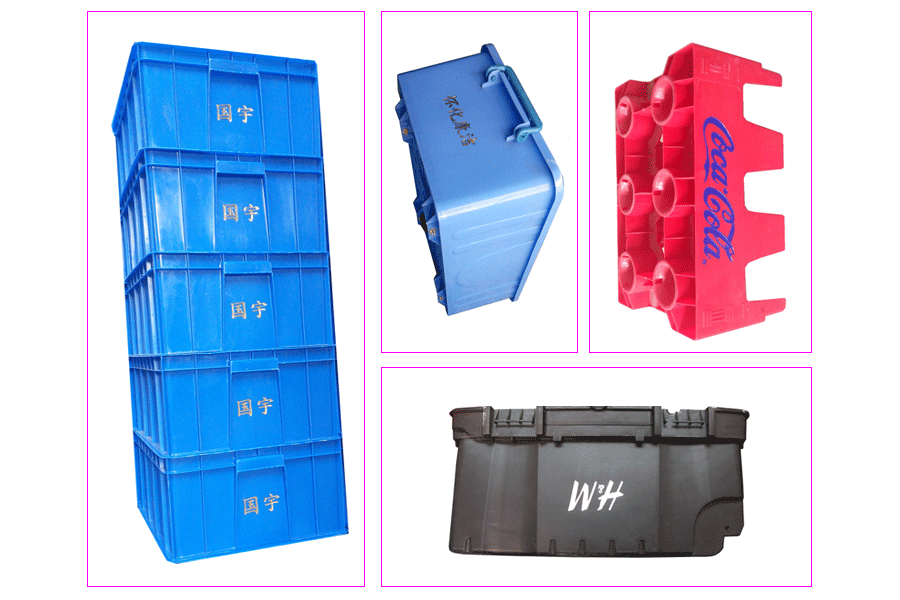

Stamping-Samples

128

Description

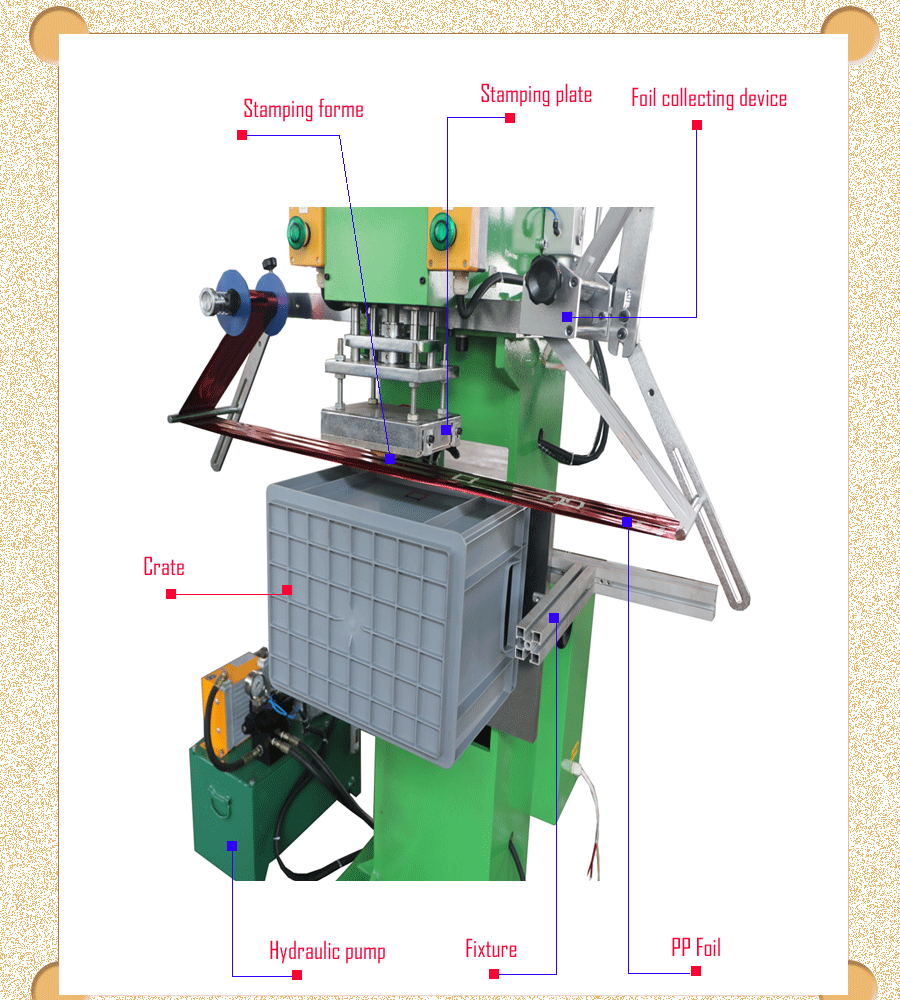

Hydraulic embossing stamping Machine //Structure
Working table	High strength Steel plate , size: 480*600mm.
Stamping Head drive	Hydraulic drive
Foil collecting method	Motor-drive , Collecting time adjustable
Press adjustment	Up-down of working table
Max Pressure	20T
Hydraulic embossing stamping Machine //Parameter
Technical parameters	HH-TC3040LPB	HH-TC4040LPB
	Hot plate area:300 ×400 mm Working table area:480 ×600mm Max printing pressure:20,000 Kg Up and down distance:100mm Heat wattage: 6×500W Foil in feed: Motor Drive Temperature adjustment:0-300oC	Hot plate area:400 × 400 mm Working table area:480 ×600mm Max printing pressure:20,000 Kg Up and down distance:100mm Heat wattage: 6×500W Foil in feed: Motor Drive Temperature adjustment:0-300oC 。
Works supply	110V-220VPower supply； 46# Hydraulic oil
Package list	Package size: 1.061.031.8m Gross weight: 650kg; CBM: 1.96524	Package size:0.750.550.83m Gross weight: 85kg; CBM: 0.342375
H.S.Code	8443198000
Certificate	CE

Test

The following are the commonly used printing machines for plastic beer baskets and plastic baskets:

Crates Screen printer

If the surface of the plastic frame presents a flat feature or has a large flat area such as: 200*300mm, a screen printer can be used for printing, and the printing area can ensure that the smallest screen frame can be close to the printing surface.

Crates Pad printer

If the plastic frame presents a flat feature and the printing area is not large, or the area divided by the reinforcing rib structure is small, a pad printer can be used for printing.

Crates Hot stamping machine

In principle, plastic frames that can be printed by a pad printer can also be hot stamped by a hot stamping machine.

Crates Heat transfer machine

Only plastic frames with surface features or a transfer area width greater than the width of the silicone roller can be hot transferred

In order to improve production efficiency, the workbench of the pad printer, screen printer, hot stamping machine, and heat transfer machine can be equipped with a fixture of an automatic flipping device to achieve the printing of the same image and text on different sides on the same machine.

For polyolefin materials, flame treatment or plasma treatment can be performed before printing.

Details -Advantage

Bench made of high strength cast steel forging, has a very high flatness and stability;
Thread rising institutions to adjust the table lift to facilitate the opening and closing of space according to the height adjustment of the product tipping machine;
Relay control program is running, easy operation, easy maintenance;
Pairs of buttons control the stamping head up and down, security is greatly enhanced;
Hydraulic drive instead of the pneumatic drive, stamping pressure significantly improve the stability is greatly enhanced;
Heating pipe heating, rapid heating, replacement is simple and convenient;
Heating plate can be removed to facilitate installation and replacement gilt template;
Ironing board and table parallelism can be adjusted to facilitate the flexible adjustment depending on the size of the different regions of the pressure;
Automatic temperature control system can be set depending on the product temperature, automatic temperature control; temperature control accuracy of about 5 degrees;
Hot foil stamping degree of time and rolls of time can be set freely according to different technical requirements;
Foil paper automatic document feeder, conveyor length can be set according to the size of the stamping area of freedom.

Turnover boxes printing solution

Turnover boxes are plastic containers used to transfer various loose items such as tableware, wine bottles, and tools. They are mainly rectangular in shape. There are many ways to print plastic turnover boxes:

Turnover box pad printer

Turnover box fixed pad printer, turnover box rotary pad printer

Turnover box screen printer

Turnover box fixed screen printer, turnover box rotary screen printer

Turnover box hot stamping machine

Turnover box pneumatic hot stamping machine, turnover box hydraulic hot stamping machine

Turnover box heat transfer machine

Turnover box single-sided heat transfer machine, turnover box rotary multi-sided heat transfer machine
