Product details

Product Overviews

Laser cutting machines are usually used in conjunction with roller transfer machines. As they greatly reduce the production efficiency of garment processing plants and have precise cutting, they have developed rapidly in the field of garment printing in recent years. It uses the high-energy light source generated by lasers to cut fabrics, and the laser head is controlled by a computer for complex movements, so it can achieve the cutting of fabrics of complex shapes.

1. Precision hollow carving

Directly cut complex patterns or hollow patterns on fabrics (such as lace, mesh, leather), replacing traditional knife mold technology, with pattern accuracy up to millimeter level, suitable for customized designs such as high-end fashion and wedding dresses.

2. Fabric carving and burning

Use laser high temperature to burn the surface of the fabric to form a gradient, fading or carbonization effect (such as denim distressing, chiffon burning), achieving a three-dimensional and artistic sense that is difficult to achieve with traditional printing.

3. Personalized pattern cutting

Quickly cut customized graphics (such as letters, LOGO, artistic patterns), support small batch or single piece production, especially suitable for the flexible production needs of trendy brands and designer brands.

4. Composite processing of multi-layer fabrics

Cut multiple layers of stacked fabrics (such as clothing linings and decorative layers) at one time, and simultaneously complete pattern cutting and edge sealing (laser hot-melt locking to prevent burrs) to improve production efficiency.

Suitable for fabrics that are difficult to process with traditional processes, such as reflective materials, embroidered patches, composite fabrics, etc., through laser precise positioning cutting, retaining the original properties of the material (such as waterproof and elastic).High speed automatic textile laser cutting machine, using high-definition digital SLR to one time realization the high precision imaging, which is including the large-format and multi-pattern, and avoid the error of splicing the image and the decline in image quality.
The characteristics of more design are flexible point positioning, mutual recognition of disposable cutting multiple pattern, automatic find the border to correct the flexible and variability image, perfect solve the problem caused by material deformation and stretching.
This machine adopting high speed, high precision stepper motor, automatic feed, automatically capture the border and cutting speed is 2.5 times than of the traditional, which is the best choice of modern high-speed fully automatic large enterprise.

Technical Parameters of CNC laser cutting machine

Model	B1012	B1610	B1810	B1812	B1820
Laser types	Glass tube closed CO2 laser
Laser wattage	80W	100W	130W	180W	200W
Process size	100*120CM	160*100CM	180*100CM	180*120CM	180*200CM
Cutting speed	0-6400MM/MIN
Repeat accurate	+-0.05mm	+-0.05mm	+-0.05mm	+-0.05mm	+-0.05mm
Table	Metal belt 360 Rotating flatform
Action system	CNC	CNC	CNC	CNC	CNC
Cooling system	water	Water	water	water	water
Blowing system	Bump	bump	bump	bump	bump
Exhaust system	550w Fan	550W fan	750WFan	750W Fan	750W Fan
Power	AC-220+-10%, 50/60HZ. 10Amax
Total wattage	2350w	2350w	2350w	2350w	2350w
document format	DWD, DXF, JPEG,AI,TIFF, PLT, CDR, BMP, GIF
Net weight	450kg	525kg	600kg	750kg	1000kg

Machine advantage of laser cutting mahcine

Applying Canon HD SLR camera, can use for dealing with 1.8 m big pattern, and cut along the fabric or leather edge, which can solve the problem cause by fabric and leather deformation and stretching, thus ensuring the precision of machine cutting;
Imported Precision slider, High-speed and stable operation
Imported belts, there are 15 strips steel wires inside, have good flexibility and hard to be out of shape.
Lightweight laser head, move flexibly and fast
The device of automatic feeding and rolling materials, significantly increase productivity
Applying imported high-performance AC servo motor. The machine runs stably, precisely and fast.
Lightweight system, saves space and easy to operate.
Dedicated high-performance laser tube with the perfect optical system and stable laser power.
After machine painted, two gantry milling machine milling flat work surface to make precision reach±0.01mm, ensure that within 10 years of machine tool will not appear laser path deviation and make the machine more durable.
The camera on the top of machine will captures all patterns on the worktable one time, then with the help of applicable software, the patterns photo will be input into the computer, after DSP processing it, the machine will locate the pattern edge, thus the laser head will cut materials alone the edge of patterns.

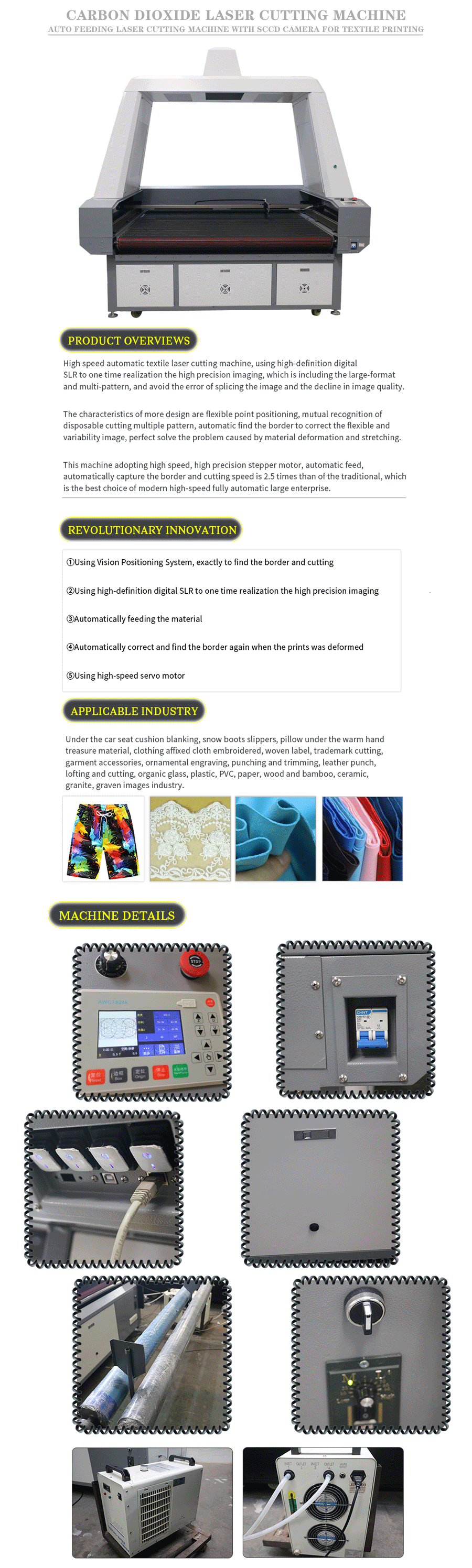

Machine details photo of laser cutting equipment

Laser cutting machines cut rolls of cloth into garment pieces according to the designer's requirements and then sew them into ready-made clothes, which is the most important technological innovation in the clothing industry.

• It can accurately cut various fabrics according to the design pattern, whether it is silk, cotton, denim or leather. For example, when making high-end custom clothing, expensive silk fabrics need to be accurately cut. Laser cutting machines can ensure neat cutting edges and avoid wear and drawing on the edges of the fabric.

• For clothing parts with complex patterns and shapes, such as curved skirts and irregular collars, laser cutting machines can quickly and accurately complete cutting tasks, greatly improving cutting efficiency.

• It can cut exquisite lace, lace and other decorative elements. Through laser cutting, fine patterns can be produced, and the edges are smooth without burrs, adding a sense of refinement to clothing.

• It is used to cut decorative parts such as applique embroidery and badges on clothing. It can accurately cut the designed pattern from the cloth or other materials, and then attach it to the clothing through heat transfer or sewing, etc., to enhance the beauty and personalization of the clothing.

• In the clothing proofing stage, the laser cutting machine can quickly make samples according to the design drawings. Due to its flexible operation and ability to quickly adjust the cutting parameters, it is convenient for designers to see the design effect in time and make modifications, shortening the development cycle of clothing. It can complete high-quality cutting tasks without relying on a large number of molds, reducing the cost of small-batch production.

How to choose a laser cutting machine for a garment processing factory:

Laser cutting machines combined with printers and roller transfer machines can multiply the production efficiency of garment processing factories, and have obvious advantages in meeting personalized needs and delivering urgent orders: Nowadays, laser cutting machine technology is mature, and users can buy suitable laser cutting machines as long as they find a suitable supplier:

1) Choose a single-head or double-head laser cutting machine based on efficiency;

2) Consider CCD positioning or ordinary positioning laser cutting machines based on the accuracy of garment cutting:

3) Understand the brands of the main accessories of the laser cutting machine, CCD, linear guides, motors, laser heads and laser tubes;

4) Understand the operating software of the laser cutting machine, can it be continuously upgraded?

5) Understand the after-sales service of the laser cutting machine!
