Machine description

The hot stamping of roll materials usually needs to carry out continuous hot stamping on the whole roll according to a certain pitch. This kind of hot stamping machine is much more complicated than the hot stamping machine conveyed by single paper. The most important thing to solve the hot stamping of roll materials is Conveying and positioning problems of roll material. For the roll material without any printing, the adjustment of the conveying length of the roll material, the axial and radial positioning, and the control of the surface tension are all problems that need to be solved. It has already been solved on the machine, and it is enough to transfer these technologies to the hot stamping machine. In addition, for the printed roll materials, it is very important to ensure that the hot stamping position and the printing position are relatively fixed. This is the photoelectric control technology, photoelectric The switch can identify the printing color, and control the servo motor to drive the package material to the designated position for bronzing.
The hot stamping machine for roll materials integrates various technologies such as automatic hot stamping technology, deviation correction technology, tension control technology, and infrared tracking technology. It represents the highest level of hot stamping technology and occupies an unattainable position in the field of plastic and paper packaging.

H-TC1000KTD Full automatically film hot stamping Machine //Structure
Feeding	Automatically
Initial position	Sensor control .
Working table	Transport working table
Transport controlling	Tension adustment device; automatically Position correcting set
Drawing identification	Sensor and service motor controlling
Press	Vertical press
Temperature control	Heating tube Heater, automatically controlling
Foil collecting	Automatically collecting
Blanking	Automatically
H-TC1000KTD Full automatically film hot stamping Machine //Parameter
Technical parameters	Maximum stamping width: 1000 MM; Maximum stamping area: 200 × 200MM; Table size: 900mm × 500mm; Maximum printing speed: 30-120pcs / min; Transfer time range: 0-99 seconds; Reeling foil time range: 0-99 seconds; Stamping head down stroke: 60mm; Maximum stamping pressure: 1000kg; Heat Wattage: 4 * 500w = 2000w; Power supply: 3 phase 380V; Drive motor power: 1000W.
Works supply	3Phase 380V Power supply； 5-7Bar Compress air；
Package list	Package size: 4750×1750×1600MM; Gross weight: 4263kg CBM: 13.715896
H.S.Code	8443198000
Certificate	CE

Machine structure

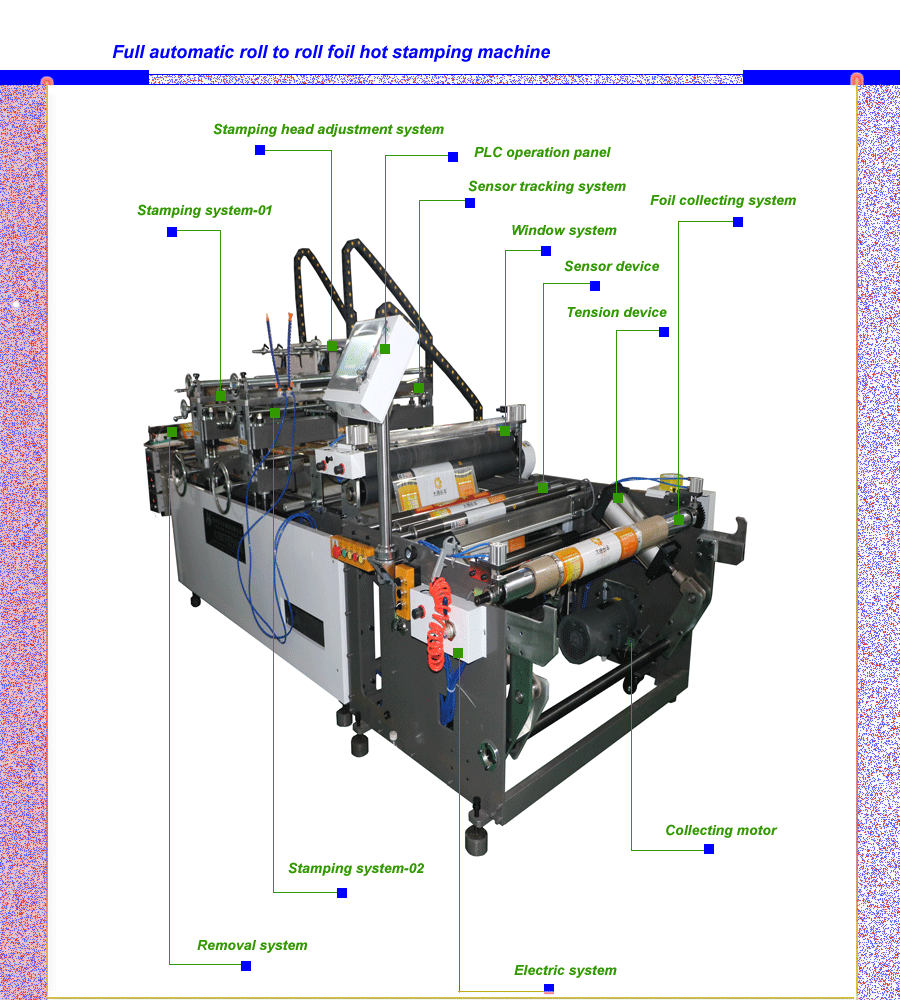

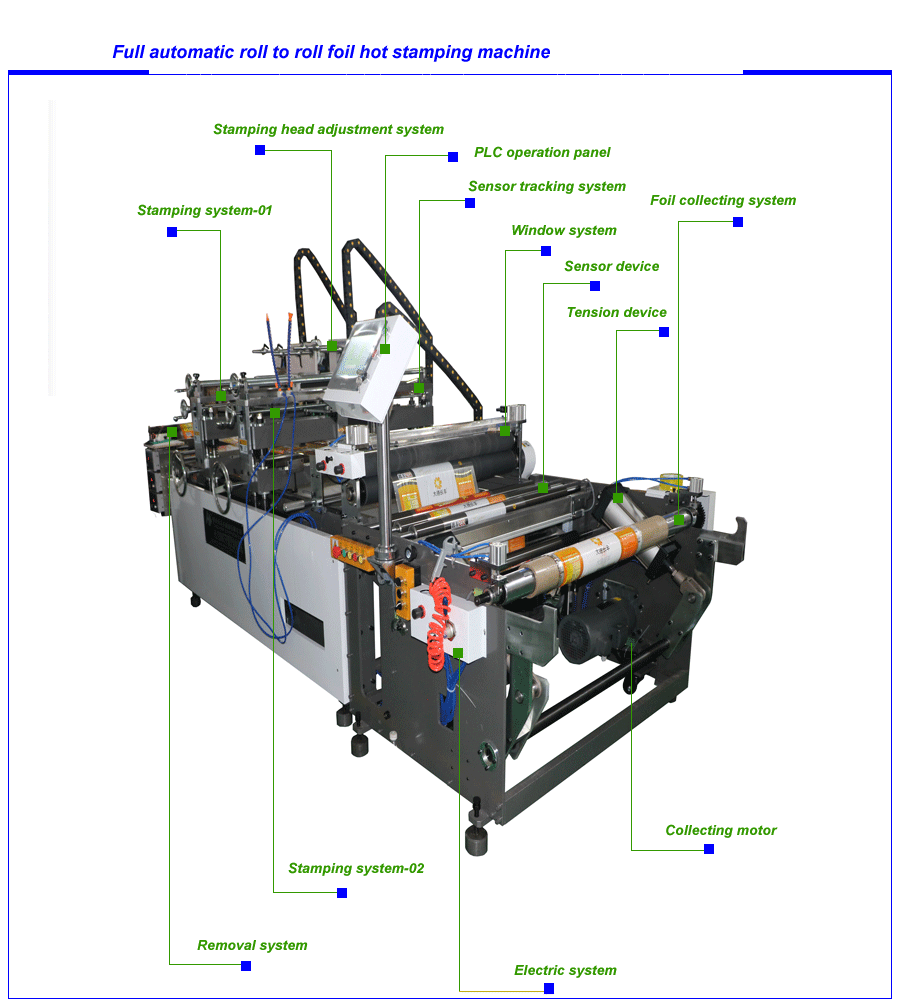

The structure of the roll-to-roll automatic hot stamping machine:

Unwinding mechanism

It is a device for placing the roll material to be hot stamped, which is composed of unwinding bracket, unwinding motor, tension control system, etc.

Hot stamping mechanism

It includes hot stamping plate, heating device, pressure applying device, etc. The hot stamping plate is engraved with the pattern or text to be hot stamped.

Rewinding mechanism

It is a device for collecting the hot stamped material, which is similar to the unwinding mechanism and is composed of rewinding bracket, rewinding motor, tension control system, etc.

Transmission mechanism

It is composed of motor, reducer, gear, chain or belt, etc. It transmits power to each component to ensure the coordinated and synchronous movement between the components.

Control system

Usually, control chips such as PLC (programmable logic controller) or single-chip microcomputer are used, in conjunction with touch screen or control panel, to achieve precise control of parameters such as temperature, pressure, speed, tension, etc. of the hot stamping machine, and can also monitor the operating status of the equipment and alarm for faults.

Tension control mechanism

It is composed of tension sensor, controller and actuator. The tension sensor detects the tension of the material strip in real time, transmits the signal to the controller, and controls the constant tension.

Correction mechanism

Common types include photoelectric correction and mechanical correction. The photoelectric correction mechanism detects the position of the edge or pattern of the material strip through a photoelectric sensor. When the material strip is offset, the controller drives the correction device to adjust the position of the material strip. Mechanical correction usually uses mechanical devices, such as guide rollers, screw nut mechanisms, etc., to adjust the position of the material strip to ensure that the material strip maintains the correct position during operation and avoids the deviation of the hot stamping position.

Hot stamping foil transmission mechanism

It includes an electroplated aluminum unwinding device, a guide roller, a tension adjustment device, and an electroplated aluminum winding device.

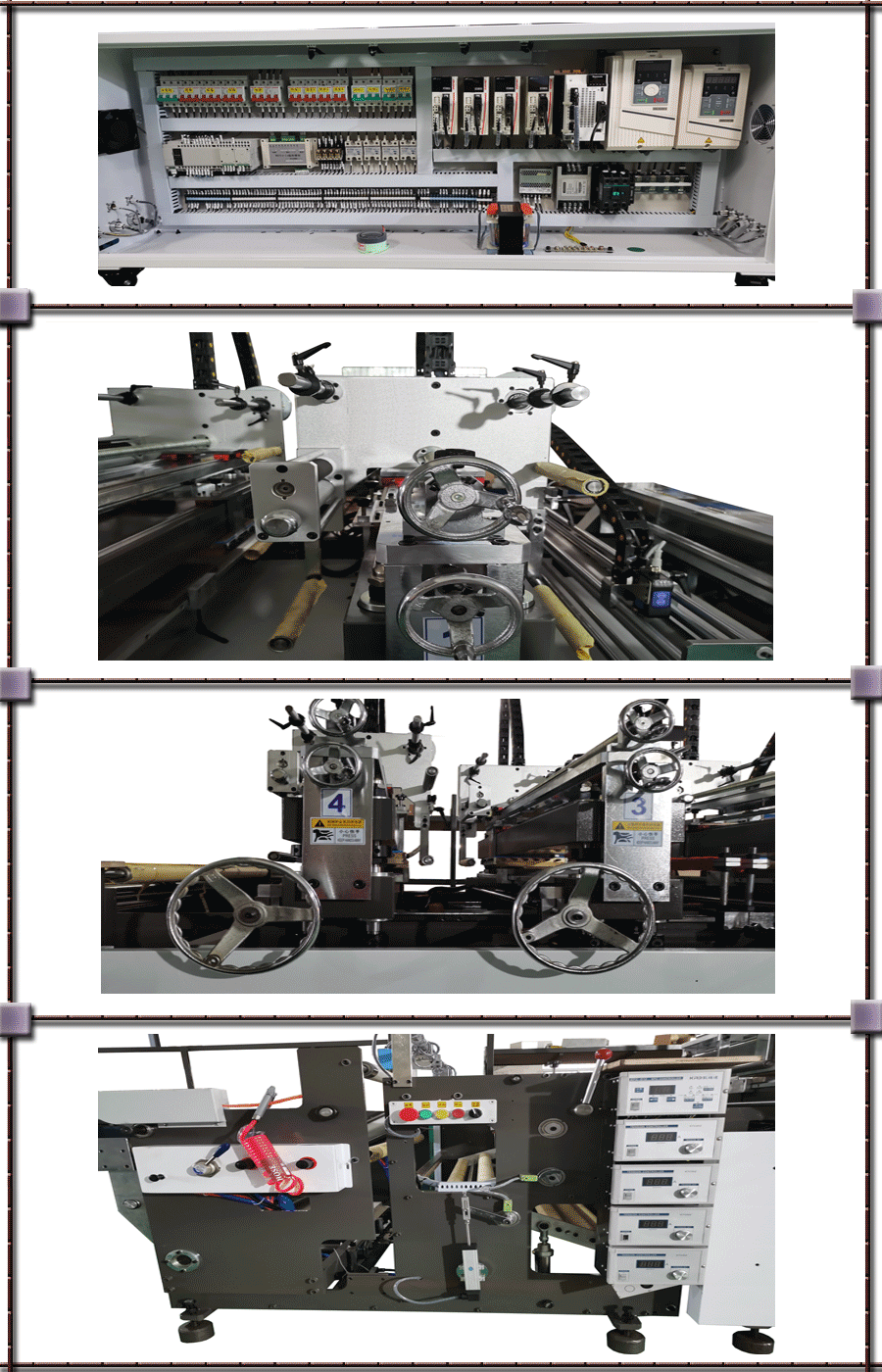

Machine details

- PLC-HMI control, touch screen operating system;
- High-precision tension control mechanism, film conveying smooth, uniform tension;
- Stamping head position can be flexibly adjusted to any position in the film stamping;
- Automatic temperature control system, precise and accurate temperature control;
- Transfer time, Collecting time, temperature control to adjust the settings have been several significant ways;
- High-precision electric Sensor control device, precise control of stamping pitch;
- Stepless speed adjustment, stable and reliable machine operation speed;
- Automatic alignment device, receives the paper part of the automatic collection;
- High-precision stainless steel coil roll, stable and lasting life;
- Rolls for products such as roll, roll film, the continuous self-adhesive label gilt.
