Ribbon hot stamping machine.mp4
5 year ago
Product details
H-TC20RRZ Zipper hot foil stamping machine//Usage and characters

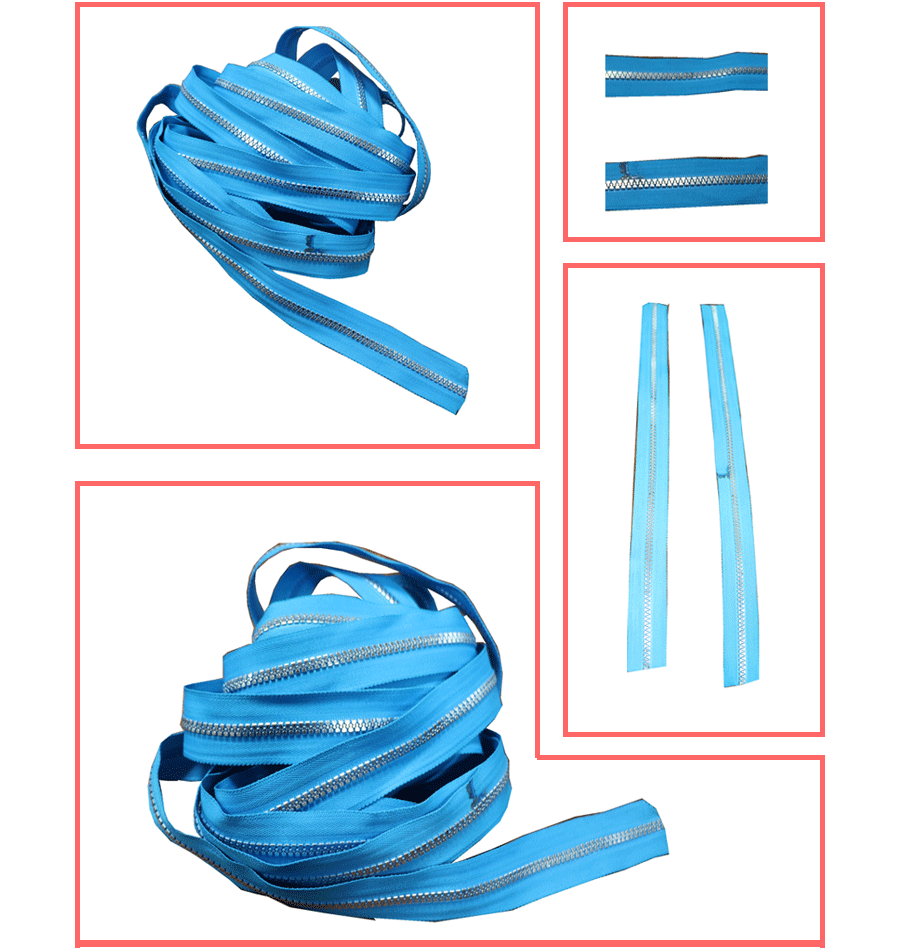

Samples
Machine description
| Machine introduce | |
|
|
H-TC20RRZ Ribbon foil hot stamping machine//Parameters |
|
|
|
Details-Advantage
- Table settings embossing roller, can be tightly foil paper or transfer film pressure in the ribbon surface;
- Rubber rollers rotating heat transfer uniformity, suitable for ribbon continuous stamping;
- Workbench can adjust the position of the front and rear direction, to ensure the best stamping position of the ribbon;
- The transfer pressure, temperature, speed can be based on different material for the flexible adjustment;
- The nose height adjustable stamping head movements can fine-tune, easy to adjust the height of the different products;
- Precise temperature control system, temperature error control in less than 3 degrees; silicone roll radiant heating, thermal efficiency of the utilization factor;
- Rubber roller embossing pressure control system, constant pressure of the transfer process, the transfer effect is more perfect.
The difference between zipper roll-to-roll hot stamping machine and ribbon roll-to-roll hot stamping machine
Both the zipper roll-to-roll hot stamping machine and the ribbon roll-to-roll hot stamping machine are hot stamping machines designed specifically for specific roll materials such as ribbons and zippers. They usually have two sets of winding mechanisms, one for placing ribbons and zippers, and one for placing hot stamping foil. The structure of the zipper hot stamping machine and the ribbon hot stamping machine is basically the same, but there are still some differences:
- Product differences
The ribbon roll-to-roll hot stamping machine is for uniform and soft ribbons such as nylon and polyester. The material form is single, the width is mostly 0.5-10cm, the surface is flat or only has fabric texture, and there is no obvious bulge. Zipper roll-to-roll hot stamping machine: It needs to process zippers with chain teeth. The chain teeth are made of metal/resin/nylon and are long and convex.
- Functional differences
The ribbon hot stamping machine can be fed continuously by tension control. The pitch control is controlled by photoelectric switches and servo motors, and the axial control generally relies on metal rings. The pulling distance of the flat ribbon hot stamping machine can be set, while the ribbon hot stamping machine with silicone roller depends on the diameter of the roller. The zipper roll-to-roll hot stamping machine needs to make a card slot on the workbench or roller, with a chain tooth avoidance/positioning mechanism to avoid the chain tooth jam during feeding, and at the same time, through photoelectric or mechanical alignment, ensure that the hot stamping position avoids the chain tooth.
- Speed difference:
The ribbon roll-to-roll hot stamping machine can run continuously at high speed, and the speed is faster. The zipper roll-to-roll hot stamping machine is relatively slow due to the interference of the chain teeth, and intermittent fine-tuning is required to ensure smooth feeding.
