Product details

The fully automatic gift box, greeting card and oblique arm hot stamping machine has the following features and advantages:

Structural design

• Oblique arm structure: The hot stamping head is installed on an adjustable angle oblique arm, which can flexibly adapt to gift boxes and greeting cards of different shapes and sizes. The hot stamping head position can be easily adjusted to ensure the accuracy and integrity of the hot stamping pattern.

• Work surface: Equipped with an adjustable work surface that can be opened and closed, it is convenient to place and fix gift boxes and greeting cards of different specifications, ensure the stability during the hot stamping process, and improve production efficiency.

Functional features

• High degree of automation: Using advanced control systems and sensors to realize automatic loading, positioning, hot stamping, unloading and other functions, reduce labor costs, improve production efficiency and product quality consistency.

• Accurate positioning: Through high-precision mechanical transmission devices and positioning systems, the hot stamping pattern is accurately positioned on the gift box and greeting card, and the deviation can be controlled within a very small range, which improves the beauty and grade of the product.

• Pressure and temperature control: Equipped with precise pressure regulating device and temperature control system, the hot stamping pressure and temperature can be flexibly adjusted according to different materials and hot stamping requirements to ensure the firmness and glossiness of the hot stamping effect.

Scope of application

• Gift boxes: Hot stamping can be performed on gift boxes of various materials, such as paper, plastic, wood, etc., which are commonly seen in cosmetic boxes, jewelry boxes, food boxes, etc., adding to the nobleness and attractiveness of gifts.

• Greeting cards: Suitable for different types of greeting cards, such as birthday cards, Christmas cards, wedding cards, etc., which can be hot stamped with text, patterns, patterns, etc., making the greeting cards more personalized and artistic.

Technical parameters

• Hot stamping speed: The speed of hot stamping machines varies, generally around 1000-1800 sheets/hour, which can be selected according to production needs.

• Hot stamping area: The size of the hot stamping head and the size of the work surface determine the hot stamping area. The common hot stamping area is between 150mm×200mm and 200mm×300mm, which can meet the hot stamping needs of most gift boxes and greeting cards.

• Total power: generally between 1.5-2 kilowatts, the actual power depends on the model and configuration of the hot stamping machine.

A4 paper fully automatic hot stamping machine //

Usage and characters

321

Technical data of fully Automatic hot stamping machine

Fully automatic paper hot stamping Machine //Structure
Feeding	Paper feeding robot
Initial position	Sensor control , Guide rail
Working table	Automatic lift paper table
Press	Slant press
Temperature control	IR Heater, automatic controlling
Foil collecting	Foil collecting Automatically
Downloading	Automatic Robot
	Stamping temperature Rnange:20∼300℃; stamping size : 150200mm Table size:240290mm Max stamping Speed:1500-2000pcs/h Outer dimension: 1200×780×1550mm; Net weight(kg) : 300; Motor wattage: 750W; Power supply: 1P220V; Heater wattage: 1200W IR.
Works supply	1 P 220vPower supply;
Package list	Package size: 1350×830×1720MM; Gross weight: 450kg CBM: 3.329
H.S.Code	8443198000
Certificate	CE

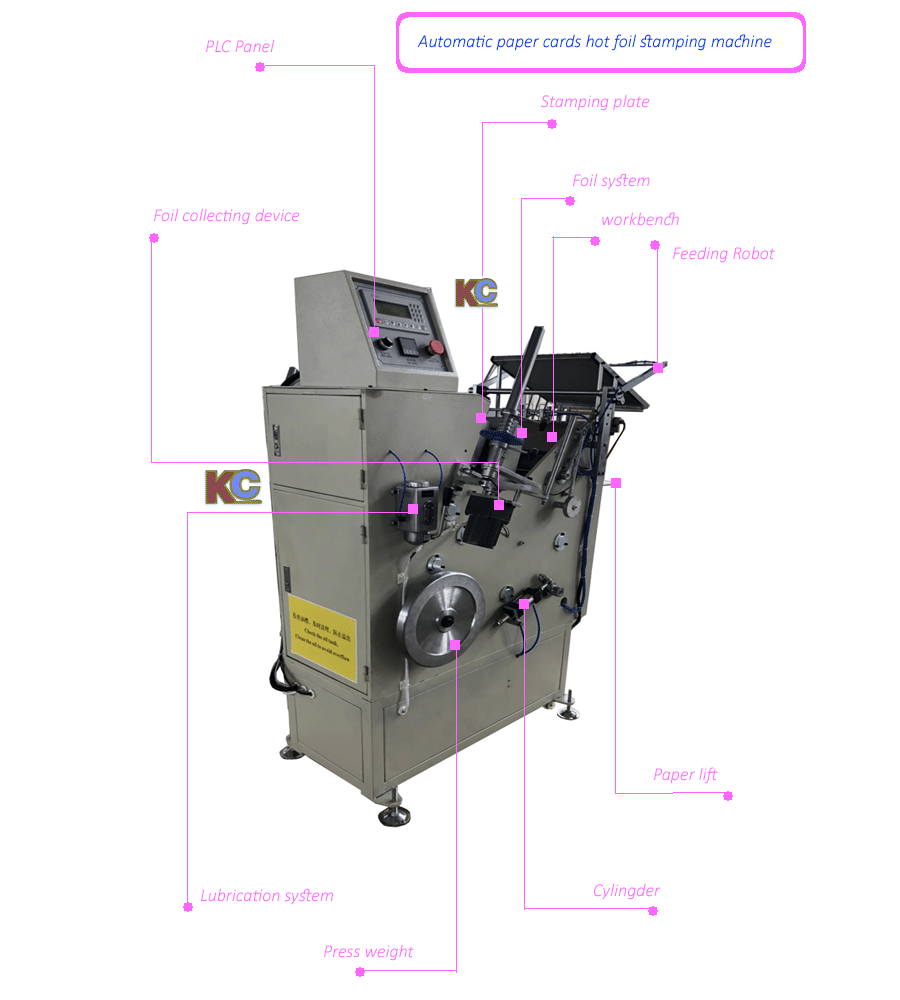

Structure-Function of automatic paper gold stamping machine

Opening and closing crank pressure mechanism design, strong pressure;
The hot stamping head can be rotated back and forth, left and right for easy and safe operation;
the automatic stacker feeding mechanism saves the preparation time and improves the hot stamping speed;
Hot stamping pressure, temperature, hot stamping time adjustable;
Automatic paper feeding, delivery, and adjustment;
The opening degree of the hot stamping head and the worktable can be adjusted by the hand wheel;
Automatic rule positioning to ensure uniformity of hot stamping position;
Automatic bronzing program;
The use of precision and durable high-quality linear rolling bearings ensures flexible and light machine operation and prolongs the service life of the machine;
IR heating method, high heating efficiency and stability, ensuring hot stamping quality.
Automatic downloading robot for paper taking off.
