Automatic garment belt screen printing machine

5 year ago

31 0 

9 year

Product details

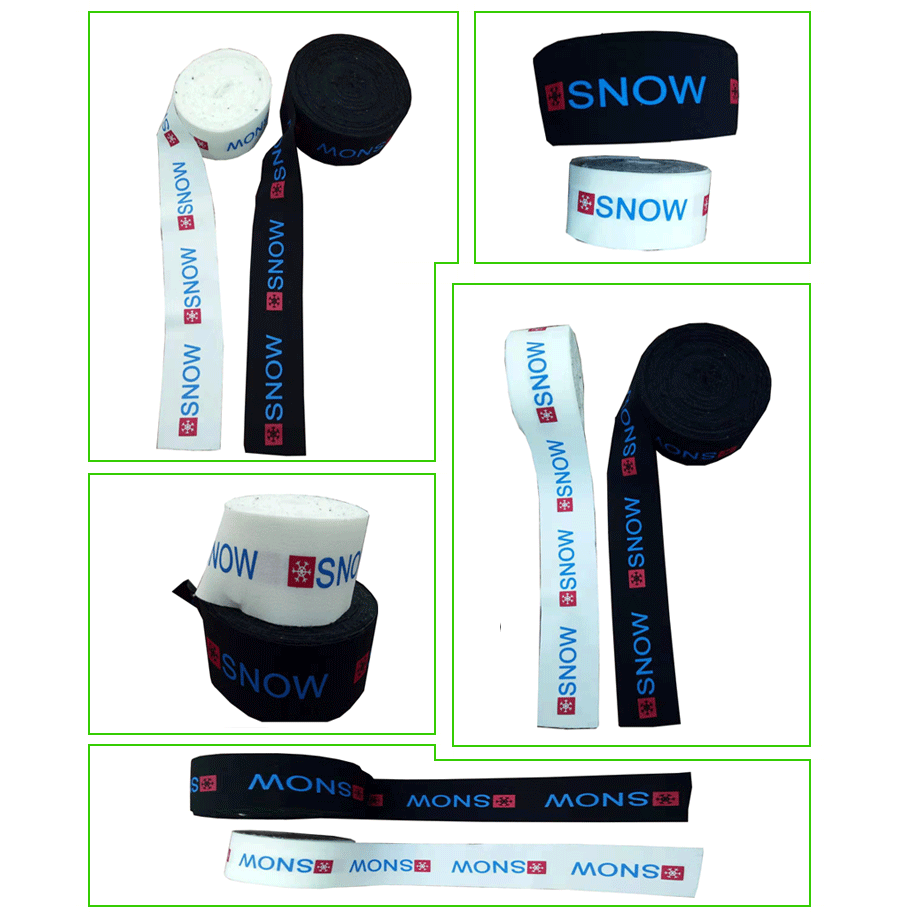

Samples

025

Ribbon is a narrow or tubular fabric made of various yarns, usually in the form of a roll of unlimited length. Yarn can be natural fibers such as cotton and linen, or chemical fibers such as polyester, nylon, polypropylene, and spandex. Some shoulder straps of underwear and decorative belts of home clothes use cotton webbing, and some handles of linen handbags are natural fibers. Chemical fibers include: high-strength and durable luggage straps, straps for outdoor equipment, etc.; shoelaces, climbing safety belts, team logo belts, billboard belts; swimsuit straps, medical straps, trouser belts, hat decorative belts and yoga clothing decorative belts. Ribbon involves clothing, footwear, luggage, security, household goods, sporting goods, electronic equipment, outdoor decoration and other fields. Ribbon can be decorated by screen printing machine, hot stamping machine, embossing machine, and chemical transfer machine.

Description

Monochrome screen is monochrome surfaces automatic screen printing machine for ribbon width 100mm or less, can be a single or a plurality of monochrome printing.

High printing speed, print quality and stability. Automatic package feeding mode, saving labor intensity, pitch servo control means for printing different pitches graphic.

Double drying tunnel drying design, greatly improving printing efficiency webbing.Ribbon generally elongated sub merchandise for indicating the specified position in product features an accessory. Using loose knit nylon, polyvinyl alcohol, polyester, polypropylene, spandex, rayon and other raw materials and weaving, braiding, knitting and other technology formation.

Various clothing trademark monochrome silk ribbon;Meetings, convention members listed in monochrome silk ribbon;With flexible features of various fabrics monochrome screen.

Technical data

Ribbon width: 10-200mm
Printing stroke: 600mm
Printing speed : 15M/Min
Power supply: 3 Phase 380V
Motor wattage: 1.5kw
Feeding Motor:375W;
IR Motor: 60W
Cool Motor: 5W.
Net weight: ≈1200kg
Max Frame dimension: 400×700mm.
IR wattage: 2KW(1)+2KW(2)
IR Length: 2000mm
Power: 3 phase 380V;
10M Length space for installation
Package dimension: 3.4*1.37*1.56m;-2pcs
Gross weight: 750kg.
CBM: 7.2

Advantage

That shut down for operating an ink rub net increase, which will help the color adjustment;
Block printing with vacuum suction function, ribbon positioning is more accurate and reliable;
High-speed printing, the normal per-minute speeds of up to 15M;
Which can print up to eight different types of ribbon;
Double blade design, printing, inking cleaner and reliable;
All-electric control, no compressed air;
Automatic feeding, winding tension control;
Smooth running smoothly, the printing stroke and speed adjustable;
Taiwan inverter control constant torque operation, to ensure consistent printing results;
Using IR infrared drying system, printing, drying synchronization is complete;

Catalogue

400

Details

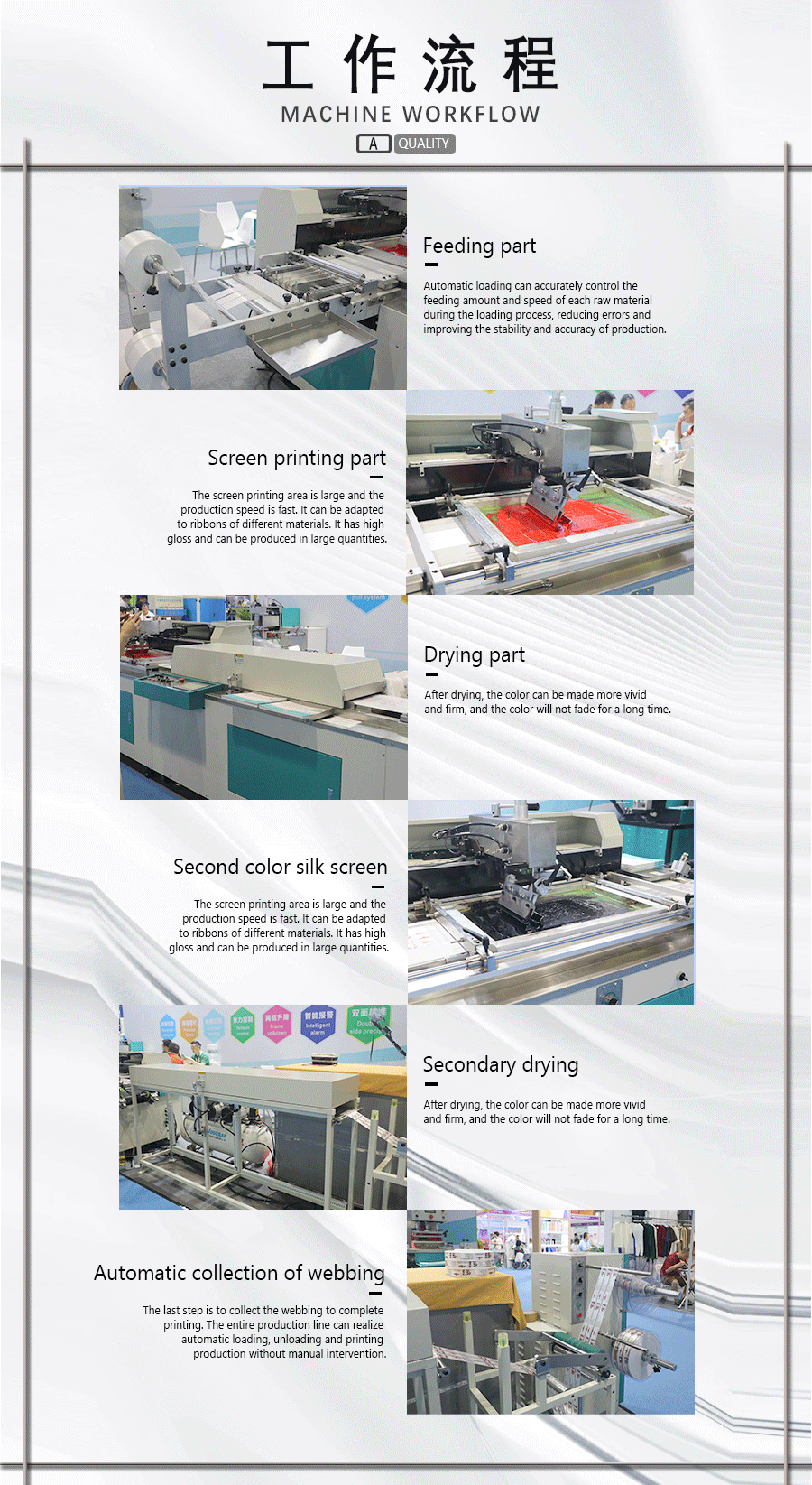

Fully automatic ribbon screen printer composition:

1. Feeding device: Generally equipped with a photoelectric control system, which is convenient for color identification and accurate overprinting in multi-color screen printing.

2. Printing device: The printing device mainly includes a screen lifting system and a scraper system. When the synchronous belt workbench drives the ribbon into the screen printing system and stops, the screen is pressed down to start screen printing. After the screen printing is completed, the synchronous belt moves forward according to the set stroke to print the next section. In order to control the printing accuracy of the screen printer, the ribbon screen printer can use a servo printing system with precision guide rails to control the printing action.

3. Drying device: Common circulating hot air drying systems have adjustable temperature. The fuselage is often equipped with a heat insulation layer to achieve low-temperature drying, ensure that the printed material does not shrink and deform, and is conducive to multi-color printing. Some drying devices also have a hot air pipe swing function, which can increase the drying area and improve the drying efficiency.

Multi-color ribbon screen printers will be equipped with multiple sets of screen printing systems and drying devices.

4. Rewinding device: It can automatically rewind the printed ribbon. The rewinding speed matches the printing speed. The rewinding diameter has certain specifications to ensure that the ribbon is rewound neatly and orderly.

5. Control system: It mostly adopts PLC touch screen programmable numerical control system, which can realize the segmentation and data setting of printing, ink return speed and distance, and can also automatically calculate the number of prints, set the number of prints and automatically stop the machine. It also has the functions of automatic detection of color mark and electric eye alignment, which can ensure the accuracy and automation of printing.
