Cloth roll heat sublimation machine

     Eating and dressing are the most basic consumer needs of human beings. They promote the continuous progress of human lifestyle. Human beings' high requirements for the quality of life have further brought technological progress at the social level into modernization and science and technology.

    For clothing, human beings have long abandoned natural bark, animal skin and other things, and replaced them with various new technologies and new materials of light textile fabrics. Human beings have long been not limited to a single color, but have decorated various fabrics in a colorful way.

    Fabric decoration has a long history. Some have been eliminated, some are still used today, and modern decoration methods are endless. Roller sublimation transfer technology is the most widely used, most stable technology, richest transfer color, and most environmentally friendly processing technology.

    The cloth roll heat sublimation machine is transfer machine mainly consists of a steel roller filled with oil and a blanket with a soft structure to form a pressure source. The fabric and the sublimation transfer machine are in close contact and enter the embossing gap. The roller can produce stable heat. Under the action of heat and pressure, the image and text on the sublimation transfer paper will be transferred to the fabric.

      The drum-type thermal sublimation transfer machine is a device commonly used in thermal transfer technology. First, the pattern to be transferred is printed on the thermal sublimation paper using thermal sublimation ink using a printer, and then the thermal sublimation paper with the pattern is fed into the drum-type thermal sublimation transfer machine together with the material to be transferred (such as cloth, cut pieces, etc.). The drum of the machine heats and pressurizes the ink on the thermal sublimation paper to sublimate into a gaseous state, and then penetrates into the material fiber. After cooling, the gaseous ink re-solidifies on the material, thereby realizing the transfer of the pattern.

Structural composition

• Drum heating system: Generally, electric heating tubes or heat transfer oil circulation heating methods are used to make the surface temperature of the drum uniform and can be accurately controlled within the set range.

• Transmission system: It is composed of a motor, a reducer, a transmission chain or a belt, etc., which drives the drum to rotate at a uniform speed to ensure that the material and the thermal sublimation paper are smoothly transmitted during the transfer process.

• Pressurization system: Usually a pneumatic or hydraulic device is used, and the pressure of the drum on the material can be adjusted according to the material and transfer requirements.

• Feeding and receiving system: including unwinding device, guide roller, tensioning device, rewinding device, etc., responsible for accurately feeding the sublimation paper and materials into the roller, and rewinding the transferred materials and waste paper.

• Control system: with PLC or single-chip microcomputer as the core, it can accurately set and monitor parameters such as temperature, pressure, speed, transfer time, etc. in real time.

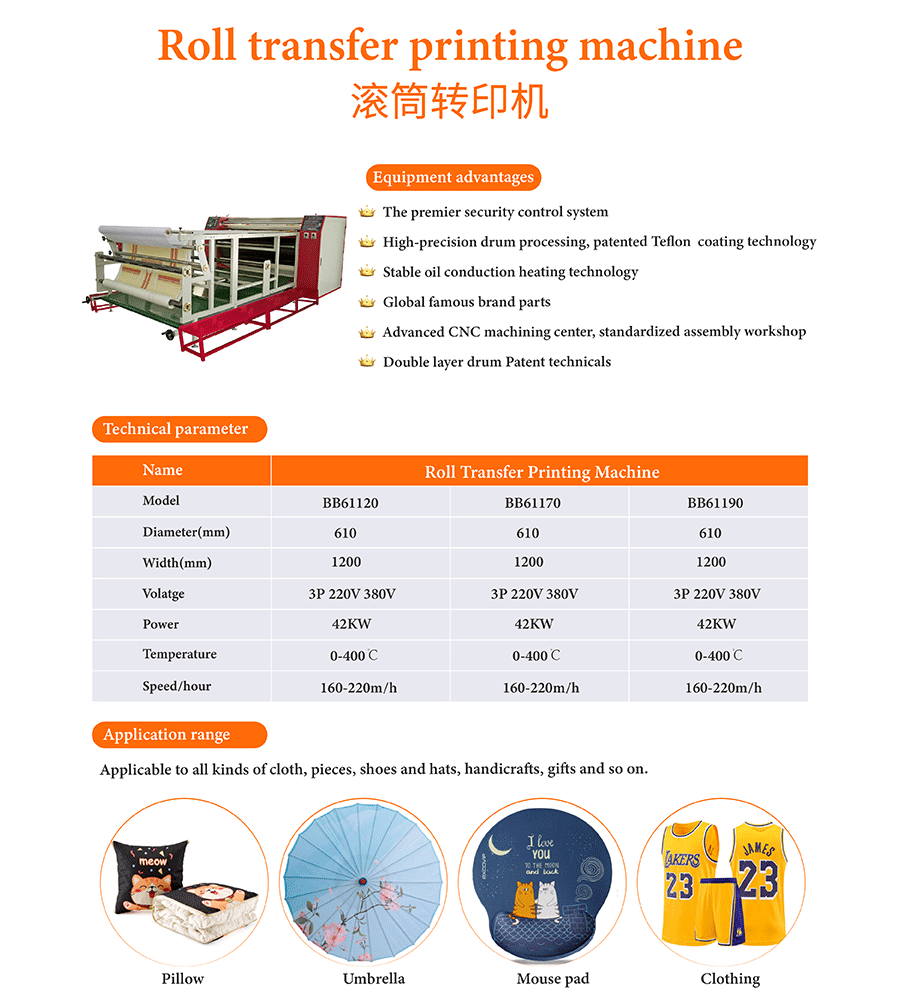

   Technical Parameters of double drum heat transfer machine

Detailed Images of roller sublimation printing machine

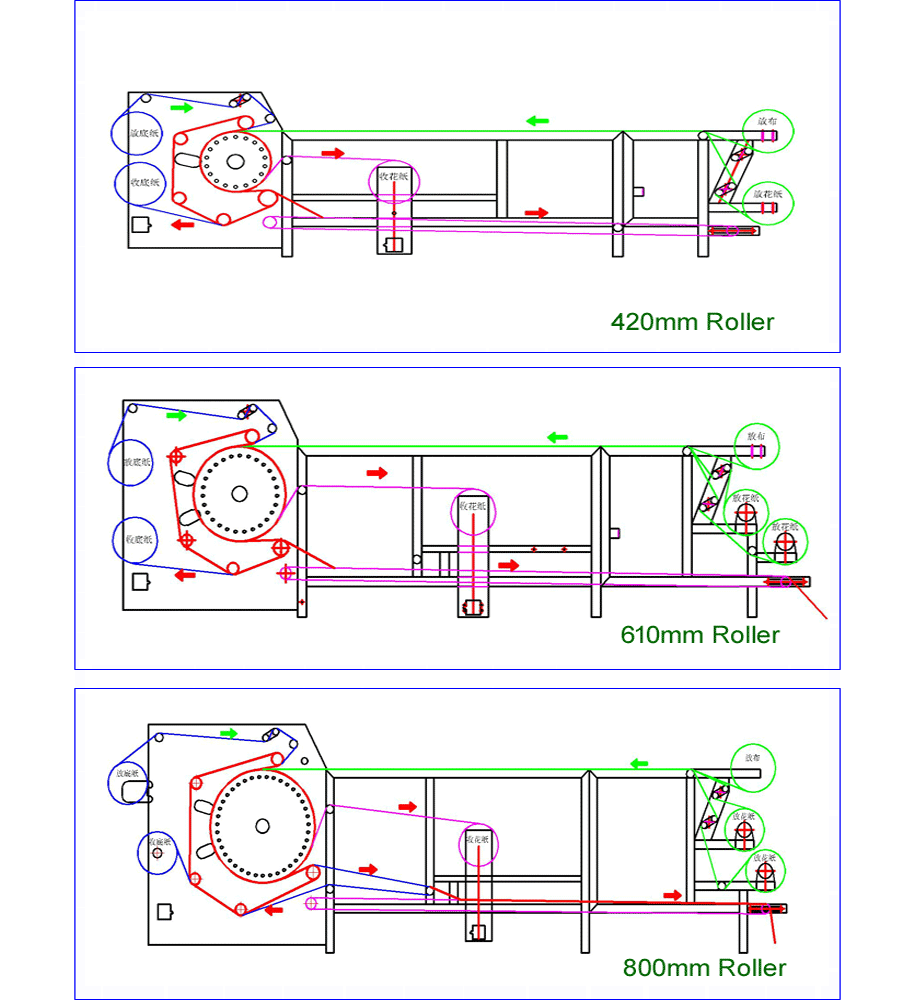

Structure of roll to roll heat sublimation press

Catalog of KC sublimation transfer printing Equipment

     Investing in a small garment processing factory usually requires the purchase of: Inkjet printer - mainly used to print design patterns on thermal transfer paper. Inkjet printers can improve production efficiency by increasing the number of nozzles; Roller transfer machine - roller transfer machine is used to transfer the image and text on sublimation transfer paper to the fabric. Roller transfer machine can increase the transfer speed by increasing the diameter of the transfer roller. Currently, roller transfer machines with a diameter of 1500mm have entered the market; Laser cutting machine - the rolled fabric must be cut into pieces required for ready-made garments. It is a tool for saving labor and realizing mass production.

     Garment printing factories not only need transfer technology, but also screen printing technology. Around the screen printing process, you may need a screen printer, plate making equipment, drying equipment, etc. The integration and competition of various decorative processes have contributed to the prosperity of garment processing factories and promoted technological progress.

     Cloth Heat Sublimation Machine, Garments Sublimation Printing Machine, and Roller Transfer Printing Machine for Cloth are advanced solutions designed to provide high-quality, durable, and vibrant printing on a wide range of fabric materials. These machines are ideal for businesses and individuals looking to create custom printed textiles with precision and efficiency. Whether you're producing t-shirts, sportswear, banners, or other fabric-based products, these sublimation systems offer a reliable and cost-effective way to bring your designs to life. The overall design of the Cloth Heat Sublimation Machine focuses on user-friendliness and performance. It is equipped with a digital temperature control system that ensures consistent heat distribution, allowing for optimal sublimation results. The Garments Sublimation Printing Machine is specifically engineered for use on apparel, making it a popular choice among fashion designers and small-scale manufacturers. Meanwhile, the Roller Transfer Printing Machine for Cloth provides a continuous and efficient method for transferring images onto large fabric rolls, making it perfect for industrial applications
