Product details

Automatic Two colors screen printing machine for balloon

010

The dual color automatic balloon screen printing machine is an automated mechanical equipment that uses screen printing technology to print dual color patterns or text on the surface of balloons. It uses a silk screen as a printing plate to transfer ink onto balloons through a scraper or roller, creating the desired printing effect. This device has the characteristics of high efficiency, precision, and high degree of automation, and is suitable for large-scale balloon printing production.

The automatic two-color turntable balloon screen printer is a kind of balloon screen printer equipped with two sets of screen printing systems on a 10-station turntable workbench, which can complete the single-sided two-color or double-sided single-color latex balloons:

Equipment features

• High degree of automation: It can automatically complete the balloon inflation, printing, deflation and other processes, greatly reducing manpower input and improving production efficiency.

• Two-color printing function: Through the rotation of the turntable, the balloon passes through two different printing stations in turn to achieve the printing of two-color patterns or texts, enriching the printing effect and design possibilities of the balloon

• High-precision printing: The use of advanced mechanical structure and control system, such as high-speed cam divider structure rotating table, Taiwan LSK linear guide guide, etc., ensures the positioning accuracy and printing quality of the balloon during the printing process, and the pattern is clear and the color is bright.

• Wide range of application: It can be used for printing various types of balloons such as latex balloons, vacuum balloons, advertising balloons, etc., and can also print other items of similar shapes and sizes by changing the work surface.

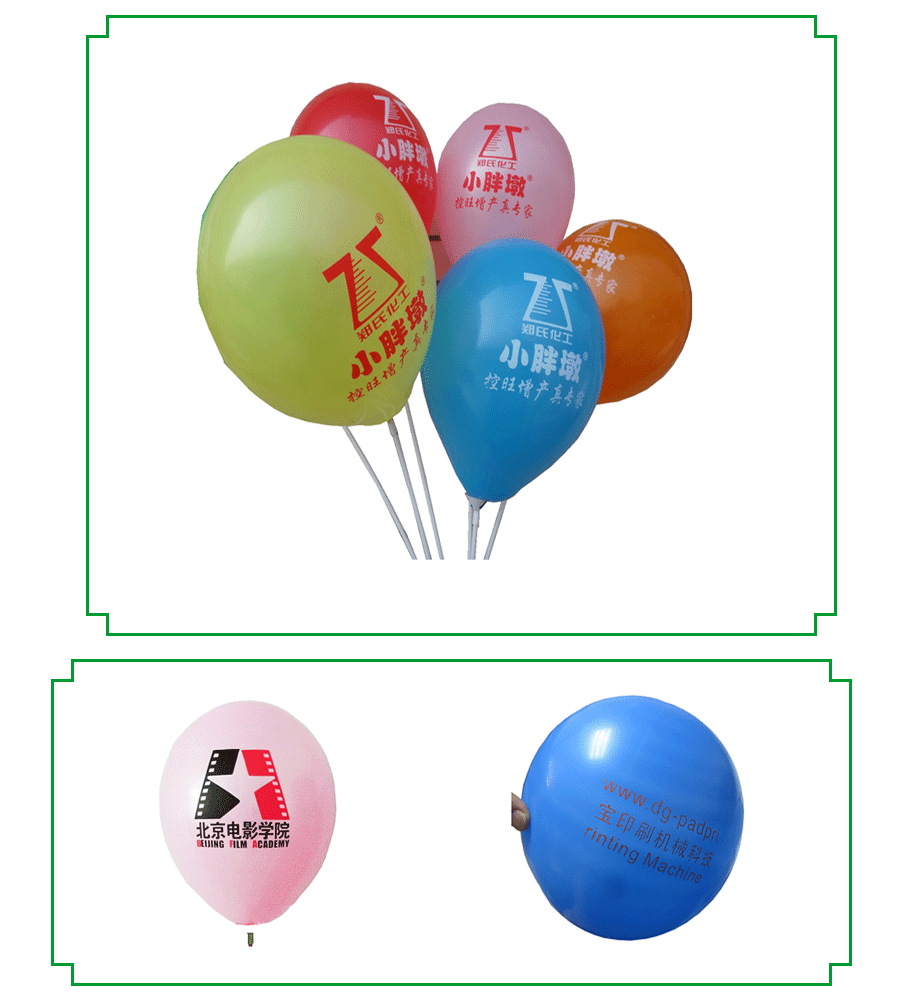

Printed samples

Operation process

• Preparation: Place the balloons on the loading station of the turntable, prepare the ink required for two-color printing, install and adjust the corresponding screen printing plate, and adjust the printing parameters such as printing pressure and scraper speed according to the material and size of the balloons.

• Printing process: After starting the machine, the turntable rotates automatically and transports the balloons to two printing stations in turn. At each station, the scraper scrapes the ink from the screen so that the pattern or text is printed on the surface of the balloon to complete the two-color printing.

• Unloading and inspection: After printing, the balloons are automatically unloaded to the designated position, and the operator checks the printing effect and removes defective balloons.

Application scenarios

• Advertising: Corporate logos, product information, etc. can be printed on balloons for on-site layout of various commercial activities, promotional activities, etc., to attract customers' attention and play a role in publicity and promotion.

• Event decoration: At birthday parties, weddings, holiday celebrations and other occasions, patterns and texts related to the theme, such as cartoon images, blessings, etc., can be printed to increase the atmosphere and fun of the event.

• Gift customization: According to the customer’s personalized needs, balloons with specific patterns or texts can be customized and given to others as gifts, which have unique commemorative significance.

Technical data

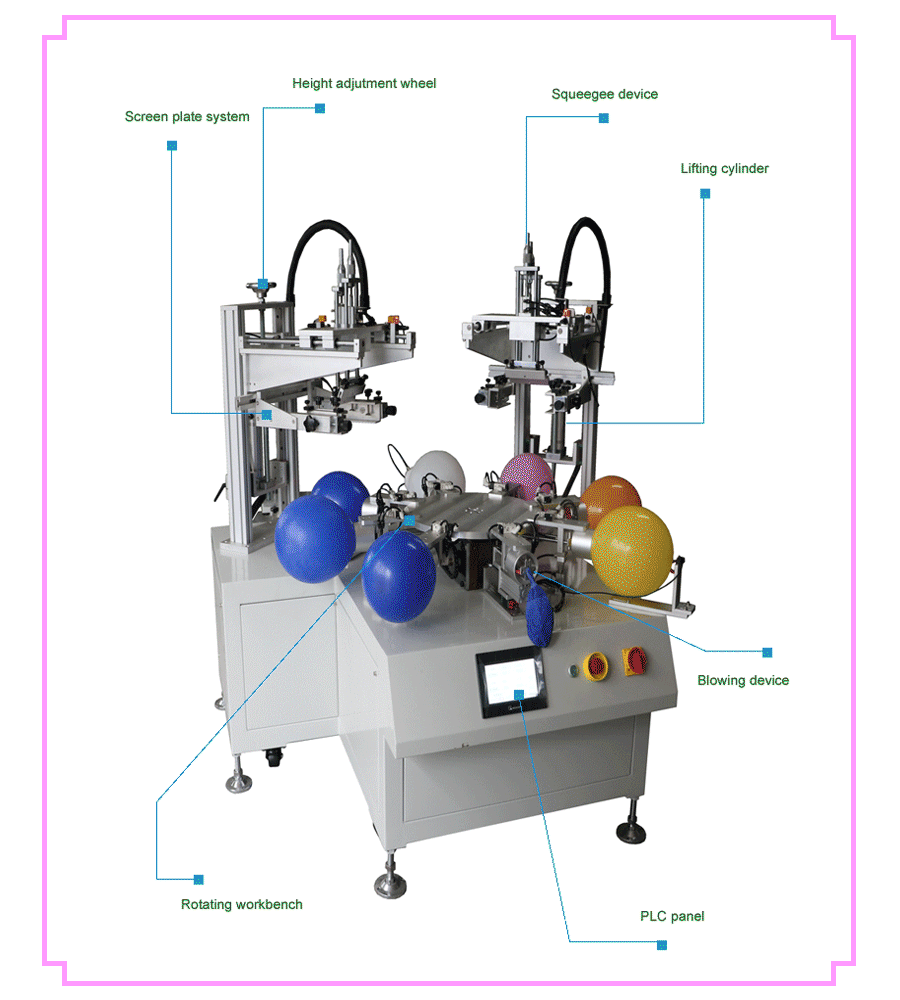

SA2-20BV8 Automatical Two colors Balloon screen printing machine//Structure
Working table	8-station Rotating workbench
To be printed	Variety of inflatable balloons
Squeegee and screen plate control	High precision guide shaft
SA2-20BV8 Automatical Two colors Balloon screen printing Machine //Parameters
Technical parameters	Max Printing speed：500Pcs/H; Max Printing area: 150150（mm; Thickness of substrate：200（mm） Table size：180180（mm） Max frame size：300*250（mm Power ：220V/50HZ
Works supply	110V-220V Power supply； 5-7Barcompress air；
Package parameters	Package dimension:3580mm×3530mm×1420mm Gross weight: 750kg CBM: 16.459
H.S.CODE	8443192190

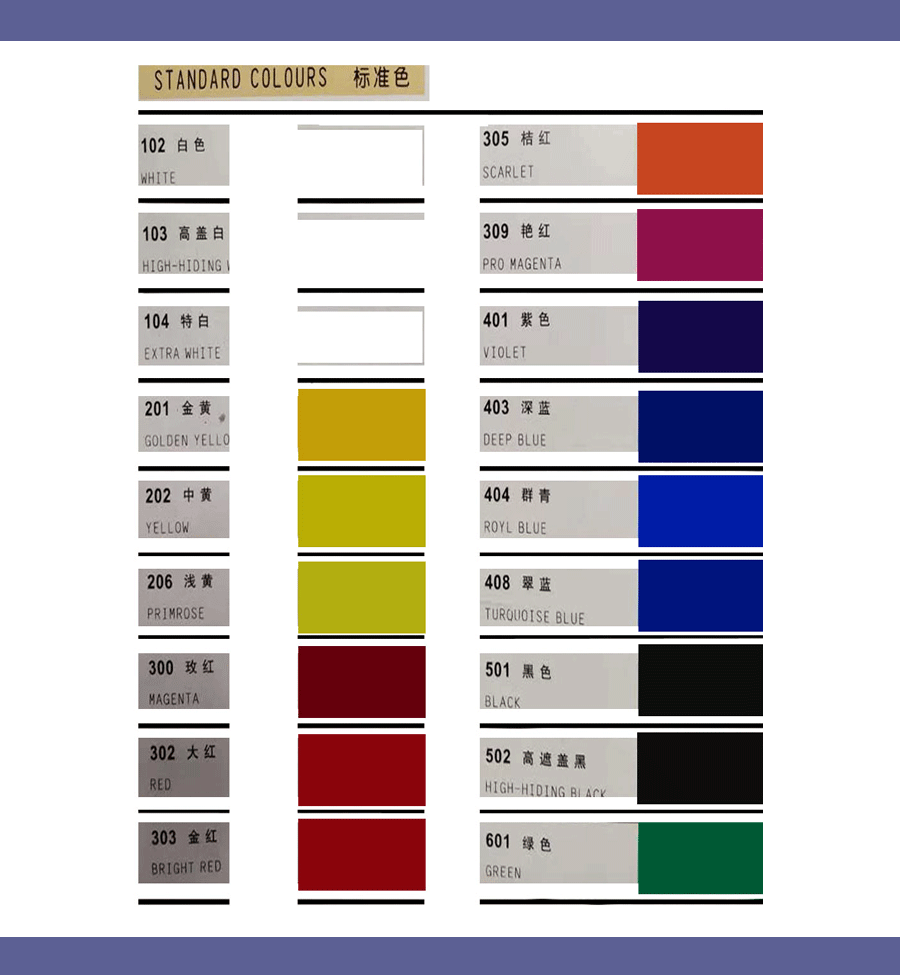

Balloon ink

011

Characteristics

Efficiency: The dual color automatic balloon screen printing machine adopts an automated control system, which can achieve high-speed and stable printing process, greatly improving production efficiency.

Accuracy: The device is equipped with a high-precision transmission mechanism and positioning system, which can ensure the accuracy and clarity of printed patterns and meet the requirements of high-quality printing.

Dual color printing: The device supports dual color printing function, which can simultaneously print two different colors of patterns or text, increasing the diversity and flexibility of printing.

Easy to operate: The device is easy and convenient to operate, just set the relevant parameters through the control panel to start printing. At the same time, the equipment is also equipped with a fault alarm system, which can detect and handle faults in a timely manner.

Good stability: The dual color automatic balloon screen printing machine adopts high-quality materials and advanced manufacturing processes. The equipment structure is stable, runs smoothly, and can work continuously for a long time without failure.

Types of balloon screen printers:

Manual turntable balloon screen printer

The workbench is a four-station turntable that can be rotated manually. The inflated balloon is placed on the workbench and clamped by a clip to enter the screen printing station. After the screen printing is completed, the turntable is turned to turn the balloon out, and then the balloon is removed.

Pneumatic turntable balloon screen printer

The workbench turntable is pneumatically controlled and can switch positions between different stations. The pneumatic turntable screen printer can print single and multi-color. When printing multi-color, it can print multiple colors at the same position on the side of the balloon.

Linear transmission multi-color balloon screen printer

Linear transmission multi-color screen printers can generally print multiple colors on one or more sides of the balloon. When the balloon is inflated, it presents a spherical shape. The printing position should avoid the blowing nozzle position. It is generally required to print pictures and texts on the top and around the balloon, so the balloon screen printer will be equipped with a flip mechanism.

The shape of the balloon is not fixed and is easy to deform, so it is not possible to design a pattern that is too precise to overprint.
