Automatic one color pad printer

5 year ago

41 0 

KC Printing Machine (Group) Limited

9 year

Product details

Printed Samples

Suitable for pad printing in a variety of diameters 100mm below plastic parts.
Large quantities of irregular small plastic accessories specially designed automatic pad printing machines, widely used in high-speed pad printing and beverage industry, cosmetics industry, electronics, stationery, jewelry, household appliances and other industries.
Using aluminum airframe manufacturing, running precise; solenoid valves and cylinders from Germany and Taiwan products, life is more durable
Closed ink supply, more convenient shaker automatic feeding device, smooth operation, overlay precision.
With a special flame treatment device, for use PP PE material cap, it can significantly improve the adhesion of the ink can be printed 3-6 with a mold specifications of plastic parts, printing efficiency is improved.
Standard configuration to use fast-drying solvent-based inks, modeled install IR ink curing device, high ink drying efficiency.

Machine description

Full automatic one colour pad printer for belt buckle/Structure
Feeding device	Vibrating plate, customized feeding system
Working table	Clamping type working table
Ink supply system	Closed cup device
Pad clean	Automatic pad clean device
Plate size:	100*500mm
Ink drying device	IR Dying system
Discharging	Conveyor

Application fields	Electronics, hardware, auto parts, toys, gifts, plastic products, household appliances, artwork, stationery, ornaments, cosmetics, daily necessities, sports equipment, lighting, wood products, office supplies, photographic equipment, kitchen utensils, hotel supplies, computers, mobile phone accessories, and other industrial fields.
Full automatic One color pad printing Machine//Parameter
Technical parameters	Max. plate size: 100×500 mm； Max. worktable area: 125x400mm； Max. printing area:85×400mm； Max. printing speed: 3000pcs/hr； Printable colour :1； closed up diameter: 90mm. IR Wattage: 2000W.
Works supply	Power： 3 phase 380V； 5-7Bar Compress air .
Package list	Package dimension: 2480×2230×1580mm Weight: 785kg CBM: 8.7381
H.S.Code	8443198000
Certificate	CE

Machine details

028

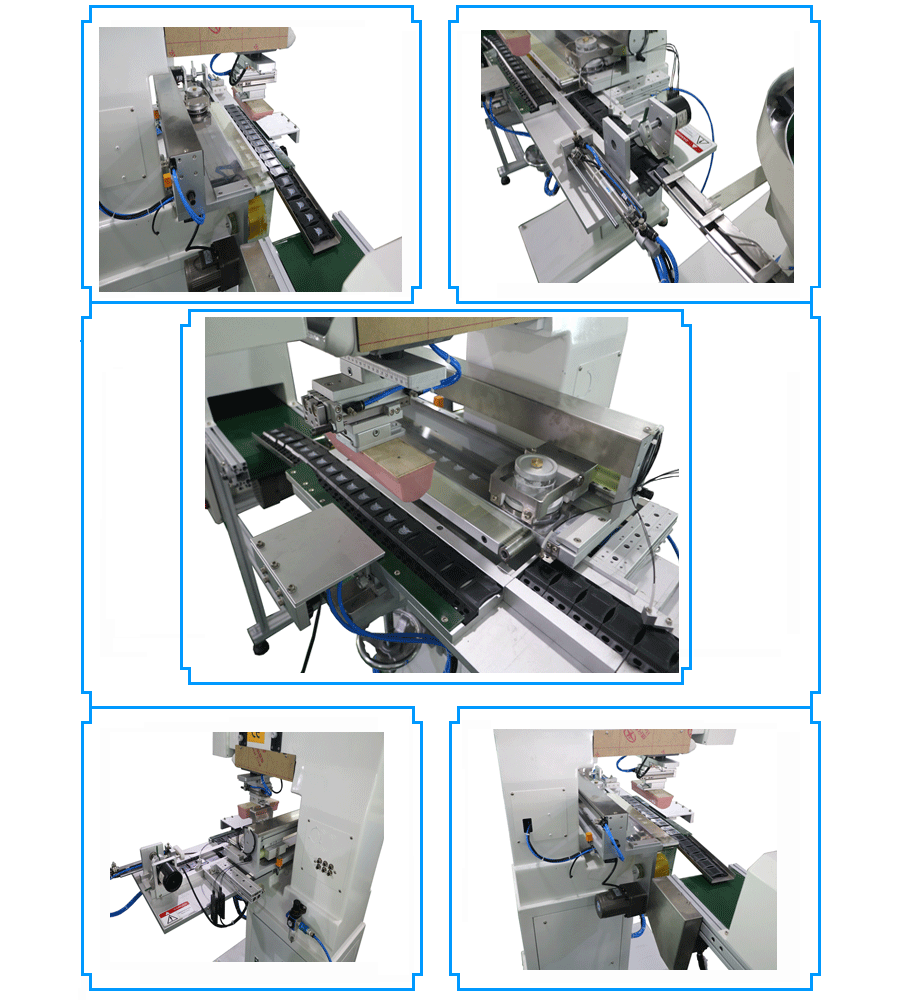

An automated pad printer refers to a pad printer that can automatically load and unload materials, reducing manual intervention. For single products and large quantities of products, the automatic pad printer can be customized according to customer needs. This is an automatic pad printer designed specifically for plastic belt buckles. It uses a vibration plate loading device. The vibration plate can arrange the belt buckles in an orderly manner and transport them to the conveyor belt in a certain direction. The belt buckles on the transmission belt are positioned, printed, unloaded, and dried respectively. This pad printer uses a touch screen operation panel, and the main action is controlled by pneumatic or servo motors. Prepress devices can also be installed according to the material itself. Considering the ink selection preference, the pad printer can be equipped with a UV drying device or an IR drying device.

Machine structure-Advantage

Customized according to user requirements on the shaker feeding system
LCD screen technique-pad printer operation panel
Built-digit auto counter -pad printer counting function
High-strength aluminum alloy fuselage structure.-pad printer stalibity
Environmental cup ink supply system to ensure environmental clean it- pad printer environmental friendly
Automatic transmission positioning device to ensure accurate printing of displacement;
Automtical rubber pad clean system enqure printing sharpness.
IR curing means instantaneous drying ink. Pad printer and IR drying tunnel
A multi-mode digital printing methods, improving productivity.
Brand pneumatic components, ensure that the printing machine can change and stability.

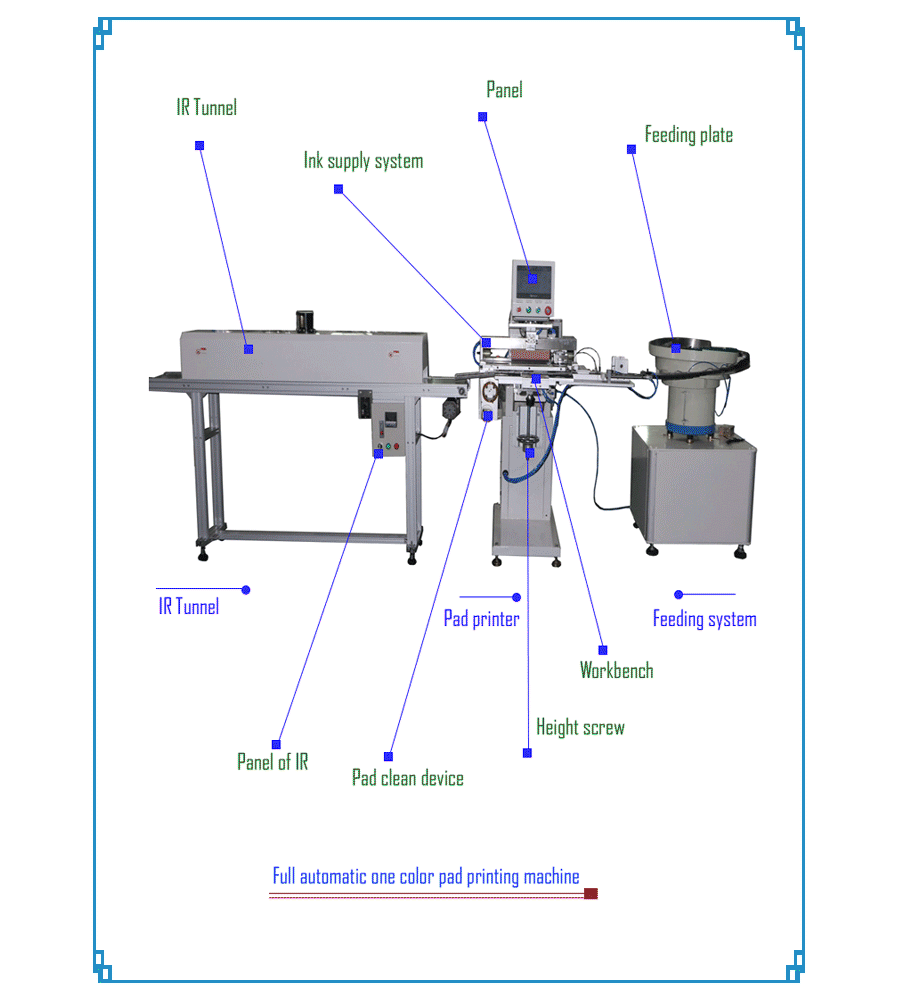

The main structure of the fully automatic pad printer

Linear automatic pad printer

Around the main structure of the pad printer, all the procedures from loading, positioning, pre-press processing, pad printing, ink drying, unloading, etc. are distributed on a straight line. If this type of automatic pad printer is multi-color, multiple pad printers are arranged side by side to complete the first color, the second color, and all printing processes in turn.

Rotary automatic pad printer

Around the main structure of the pad printer, all the procedures from loading, positioning, pre-press processing, pad printing, ink drying, unloading, etc. are distributed around a disc to become a rotary pad printer. If the rotary pad printer involves multiple colors, the multi-color pad printers are distributed above the turntable. The rotary pad printer has high printing accuracy and is easy to be equipped with a robot for loading and unloading.

Why do linear automatic pad printers mostly use a structure where the oil cup moves left and right?

Automatic pad printers are generally divided into two types according to the way the products are transported. One is a turntable automatic pad printer and the other is a linear automatic pad printer. The oil cup movement of the turntable automatic pad printer can be a structure that moves in the front and back direction or in the left and right direction, while the linear automatic pad printer has an obvious tendency to use a structure where the oil cup moves left and right. The reasons are as follows

1 Efficiency requirements

The oil cup moves left and right, and its stroke can usually reach 300mm or even larger. The printing area of the pad printer is also expanded accordingly, and the number of products transported through the workbench at the same time will also increase. For regular products, more products can be transported at a time. By optimizing the arrangement of the products, 8-10 products can be printed at a time, and the production efficiency is doubled.

2. Simplified structure:

For pad printers with the ink cup moving left and right, a longer space is usually reserved at the front end of the product conveying for positioning the product according to certain requirements. At the same time, a flame treatment or plasma treatment device can be installed to improve the adhesion of the ink. The machine is equipped with an automatic rubber head cleaning device, which will not increase the front and rear dimensions of the pad printer, so that the size of the pad printer is more reasonable and more convenient for placement.

3. Multi-color pad printing

Although the pad printer with the oil cup moving left and right is not as compact and flexible as the pad printer with the oil cup moving forward and backward when printing multiple colors, it is more accurate when multiple pad printers are connected for multi-color pad printing, because each color does not interfere with each other.
