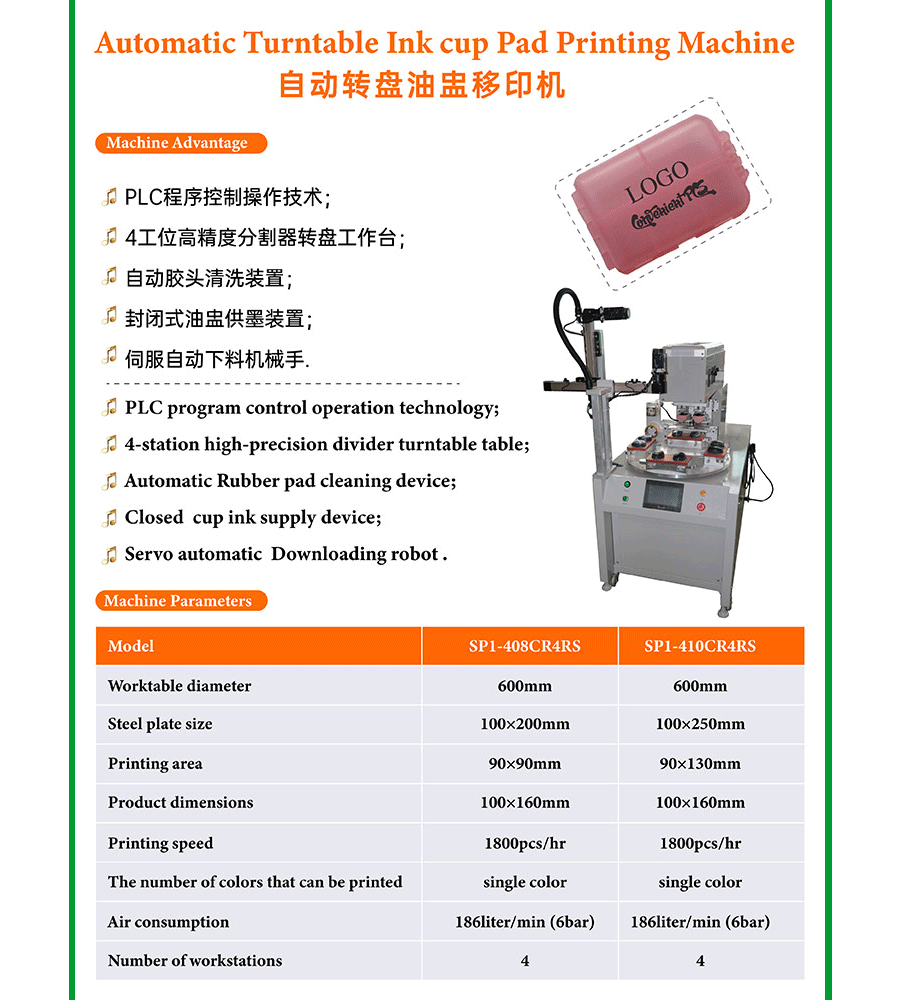

automatic pad printer with robot and rotating table

• Automatic rotating type pad printing machine;
• Using the dimensional modulating table can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
• Handpick and place workpiece, operating more handy;
• PLC and touch screen program control, the movement is more accurate and reliable;
• Structure using die-casting aluminum, lightweight and solid.
• Inkcup system, ink adjustment more convenient, more save ink;
• World-famous pneumatic components to ensure the long service life of machine;
• Rubber sliding shaft with hardened Line rail of high hardness, good abrasion resistance;
• 8 stations workbench controlled high precision Splitter;
• Automatic rubber pad cleaning device installed;
• Independent ink cup driven system;
• Automatic downloading robot;
• IR drying tunnel.

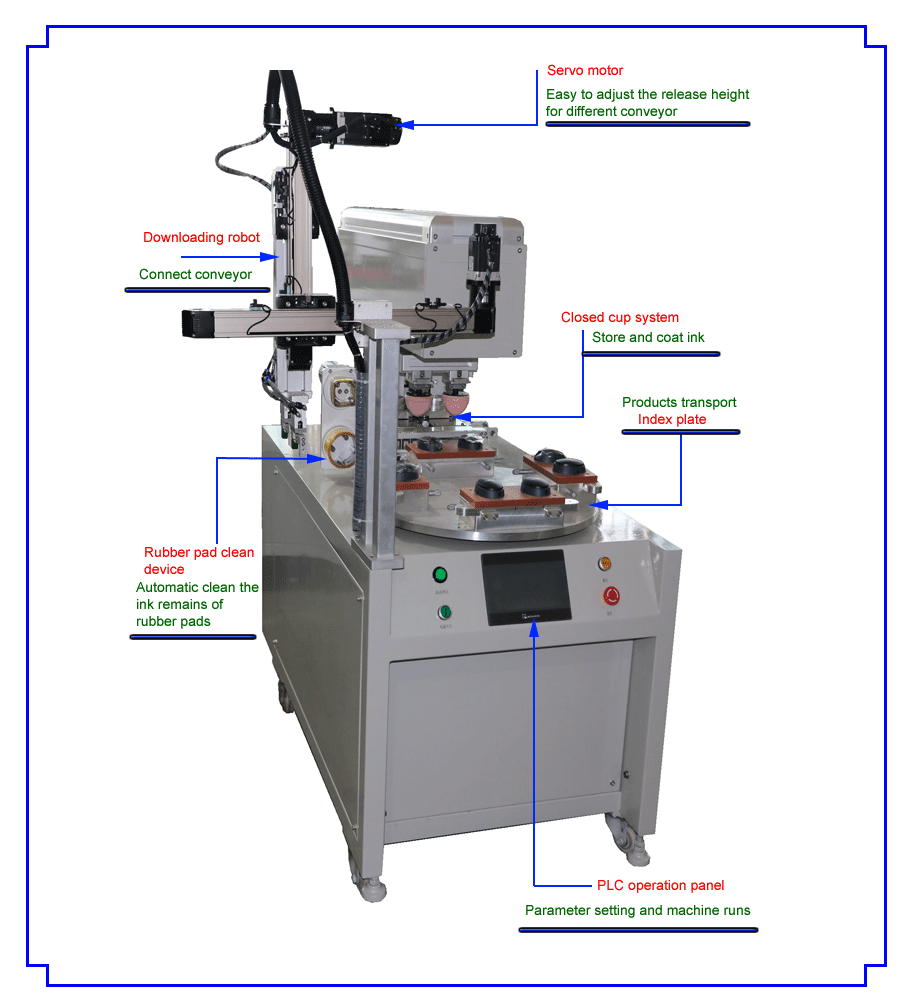

A rotary pad printer usually consists of the following parts:

1) Workbench: The workbench generally consists of 4-6-8-10 printing stations with an even number of positions. The entire rotary table rotates around the central axis. Each time a station is rotated, a pad print is performed. To improve efficiency, more than two products can be printed at a time. The workbench is generally controlled by a divider.

2) Operation panel. The rotary pad printer is more complex than the semi-automatic pad printer. There will be a PLC for action control and data setting. The printing requirements of different products have been achieved.

3) Pad cleaning device: In order to improve the printing quality, the rotary pad printer will be equipped with an automatic pad cleaning device. The ink remaining on the surface of the pad will be automatically removed.

4) Ink supply system: The ink supply system of the rotary pad printer can be an ink tray structure or an ink cup structure. The ink cup structure is more environmentally friendly.

5) Printing system: The printing system can be controlled pneumatically or by a servo motor. The servo motor control will greatly improve the stability and precision of the pad printer.

6) Unloading system: Automatically remove the product from the workbench, which is also one of the basic configurations of the turntable pad printer. The manipulator is designed according to the appearance characteristics of the product and can quickly and accurately remove the product.

7) Prepress treatment: Some products require dust removal, static electricity removal, and flame treatment. Prepress devices with different functions can be installed according to specific conditions.
