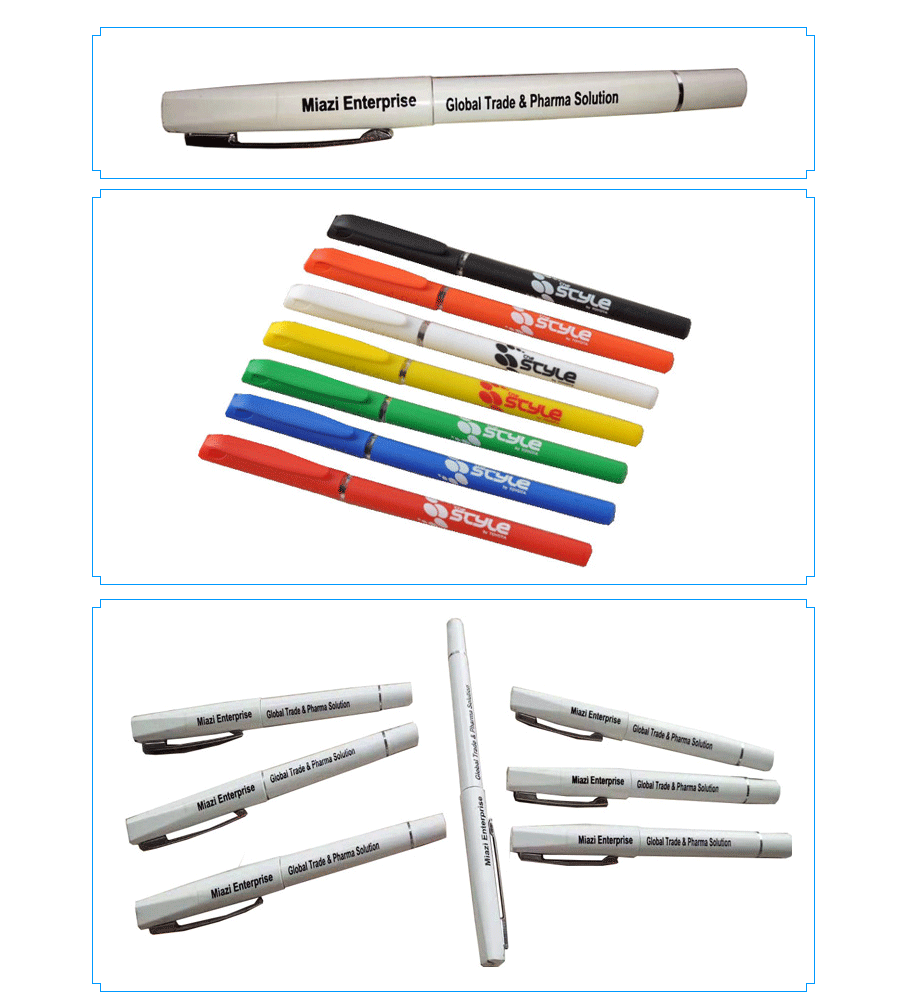

Samples
This fully automatic high-speed automatic screen printing machine is a high-precision automatic silk screen printer designed for circumferential single-color printing on small-diameter cylindrical products up to 20 mm. It is widely used in the stationery industry and is ideal for high-efficiency production on ballpoint pens, pencils, markers, whiteboard pens, gel pens, cosmetic tubes, medical syringes, bamboo chopsticks, and other cylindrical products. As a professional automatic screen printing machine / automatic silk screen printing equipment, this model delivers high-speed operation, stable performance, and consistent printing quality. The integrated automatic screen printing system ensures precise ink transfer and excellent print durability, making it suitable for industrial-scale production. The machine features an advanced automatic loading and unloading system for screen printing, which significantly reduces labor intensity and improves production efficiency. The smooth rocker-type transfer mechanism ensures stable motion control, accurate positioning, and continuous high-speed output. Designed as a dual-station automatic screen printing machine, this equipment integrates two screen printing units into one system, greatly improving productivity while saving factory space. It is an ideal solution for manufacturers seeking a compact yet powerful automatic cylindrical screen printer. In addition, this automatic silk screen printing machine is widely applied in various industries, including printing on birthday candles, round metal parts, precision cylindrical components, small plastic containers, chopsticks, drumsticks, and ceramic heating tubes. It ensures stable, high-precision results across different materials and shapes. As a cost-effective and versatile automatic screen printing solution, this equipment is perfect for businesses looking to upgrade to high-speed industrial automation.
Technical parameters
- Objects diameter:φ6~φ20 mm
- Objects length:55~160 mm
- Printing stroke: 20~80 mm
- Max printing speed: 7200 pcs/h
- Motor wattage: 4.5kw
- Feeding Motor: 25W;
- Mainly Motor: 375W;
- IR Motor: 60W
- Cool Motor: 5W.
- Net weight: ≈450kg
- Max Frame dimension: 300×200mm.
- IR wattage: 1KW(up)+1KW(Down)
- IR Length: 800mm
- Power: 1 phase 220V;
- 5-7Bar Compress air ;
- Liquefied petroleum Gas, Natural gas
- Package dimension: 3110*1270*1550mm; Gross weight: 750kg. 6.12204
Advantage
- Fully automatic feeding and printing system for continuous production
- High-speed screen printing performance for improved output efficiency
- Inline IR drying system for fast and stable curing
- Screen cleaning function during machine stop to maintain print quality
- Ink refill support without stopping production, improving uptime
- Optional vacuum adsorption system for precise product positioning
- Dual-product printing capability for higher productivity and flexibility
- Integrated surface cleaning device for improved ink adhesion
- Double-blade ink coating system ensuring uniform ink distribution
- Adjustable printing stroke for different product sizes and requirements
- Adjustable printing speed for flexible production control
- Taiwan frequency conversion system for stable and energy-efficient operation
- Low-noise electrical control system for improved working environment
- High-precision printing accuracy for consistent quality output
- Stable mechanical structure for long-term continuous operation
- Suitable for round, flat, and irregular industrial product printing
- Easy operation with intelligent control system and parameter adjustment
- Designed for high-volume industrial screen printing production lines
Catalogue

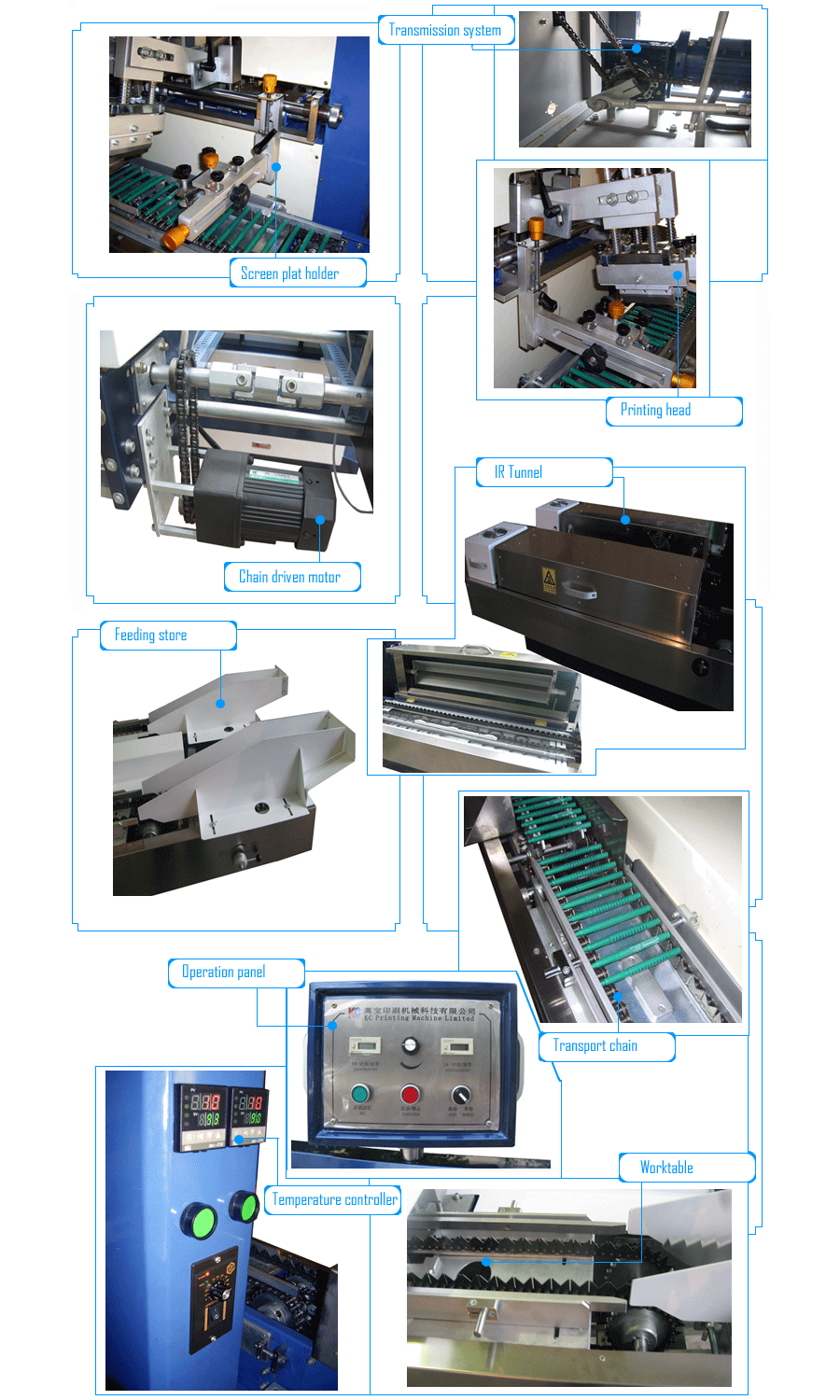

Details
- Chain-type linear pen holder screen printer
- Vertical turntable pen holder screen printer
- Flat turntable pen holder screen printer
