Slant-arm silk screen printing machine

         The Oblique Arm Flat Screen Printing Machine is a high-efficiency screen printing equipment designed for stable and continuous printing applications in various industrial fields. As a professional screen printer, this printing machine adopts an oblique arm screen lifting structure, where the screen frame opens and closes at a fixed angle and accurately contacts the printing table to complete the screen printing process. The screen clamping system is installed on a cam-driven rotating shaft, allowing smooth and repeated screen separation and contact movements, which significantly improves printing speed, production efficiency, and overall machine reliability.

       Compared with traditional vertical lift screen printing machines, the oblique arm design provides faster operating cycles and better suitability for mass production applications. Although the registration accuracy is slightly lower than precision vertical lift models, this industrial screen printer offers excellent productivity for applications requiring high output and consistent printing quality. The squeegee and flood bar move in a front-to-back direction, ensuring stable ink transfer, uniform printing pressure, and reliable print results on different substrates.

      This flat screen printing machine is widely used as an efficient screen printing solution for large-volume, single-design printing applications with medium precision requirements, including sublimation transfer paper, partial UV coating, carton packaging, heat transfer films, promotional products, and industrial materials. With its simple structure, fast printing speed, and reliable performance, the oblique arm screen printer is an ideal choice for manufacturers looking for cost-effective screen printing equipment, screen printers, and automatic screen printing machine solutions for high-productivity production environments.

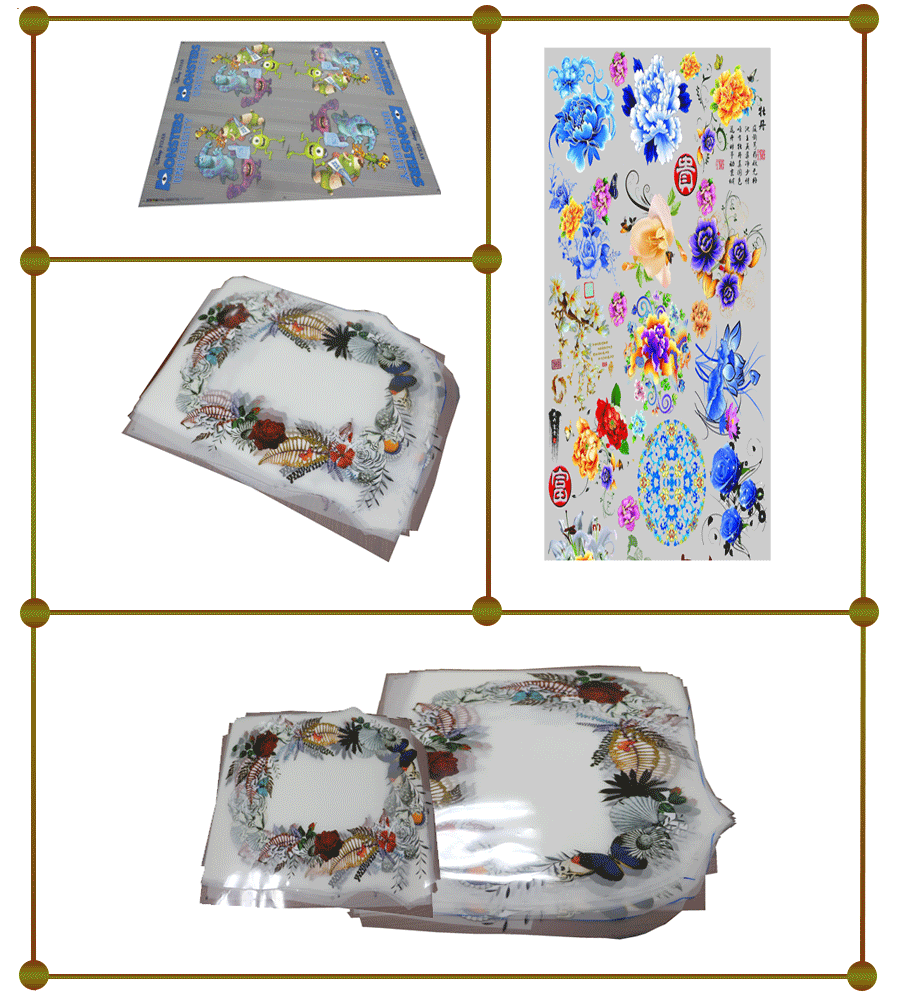

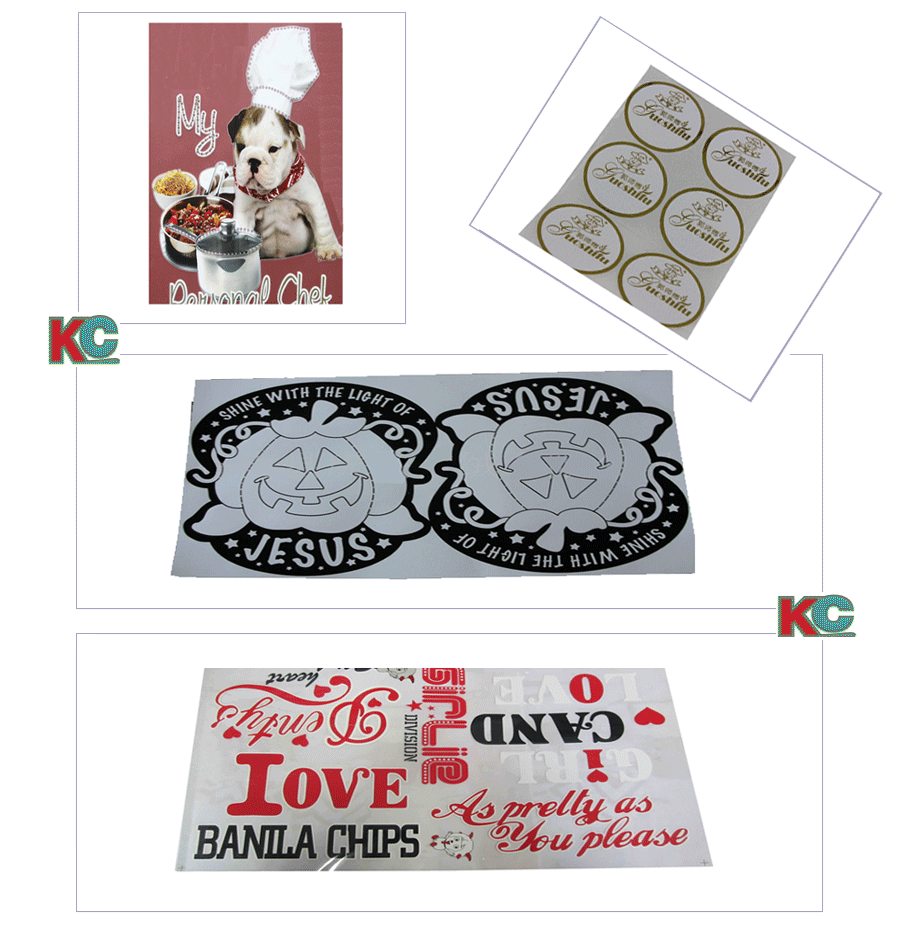

Samples

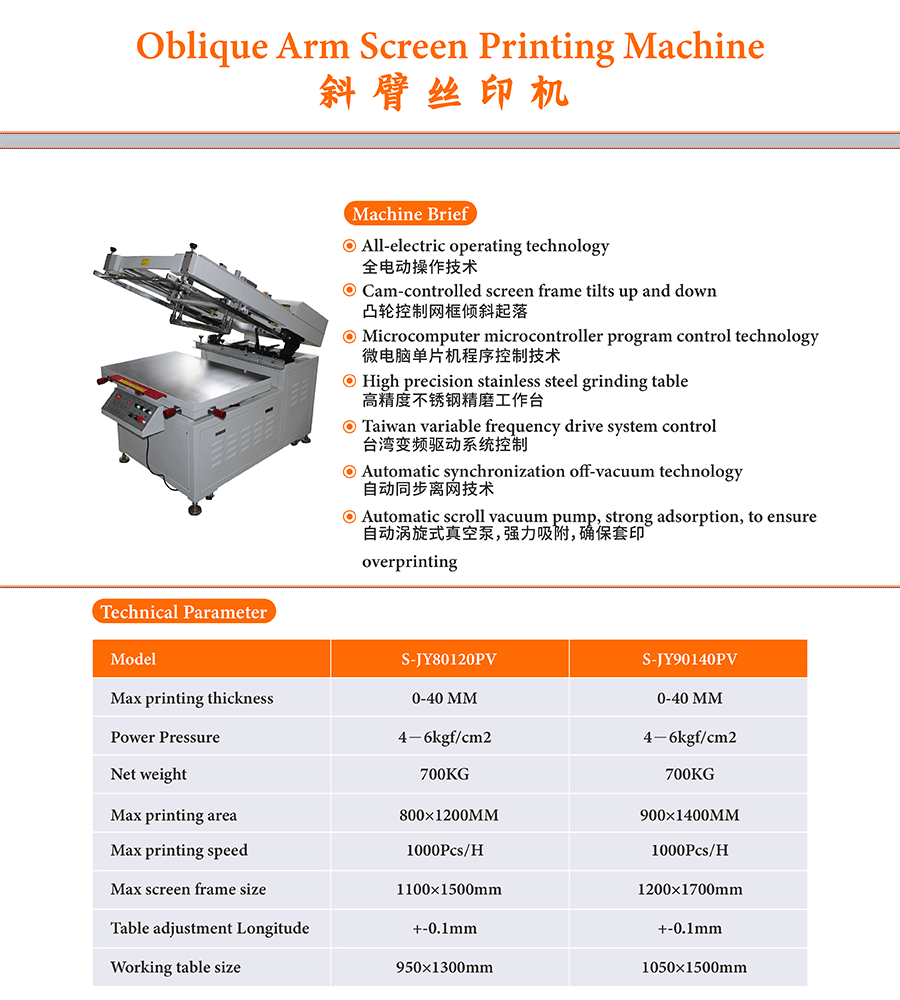

Slant-arm silk screen printing machine//Parameters

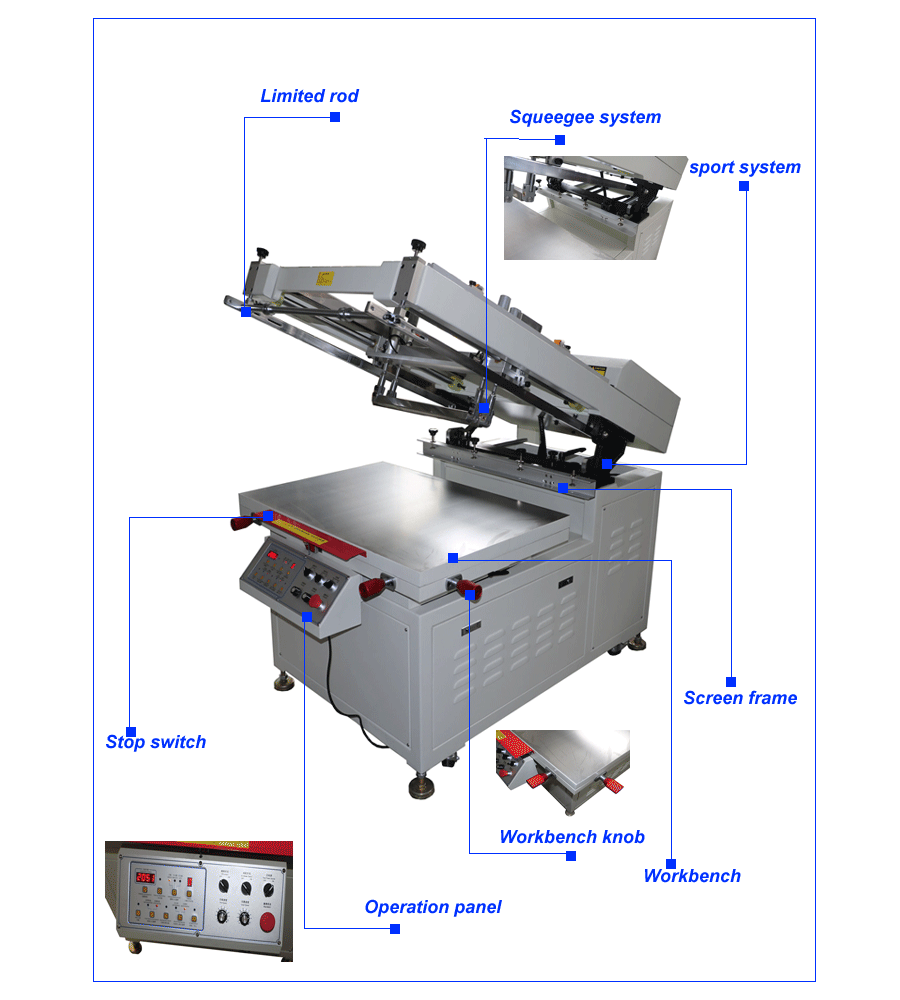

Structure

  Catalogue

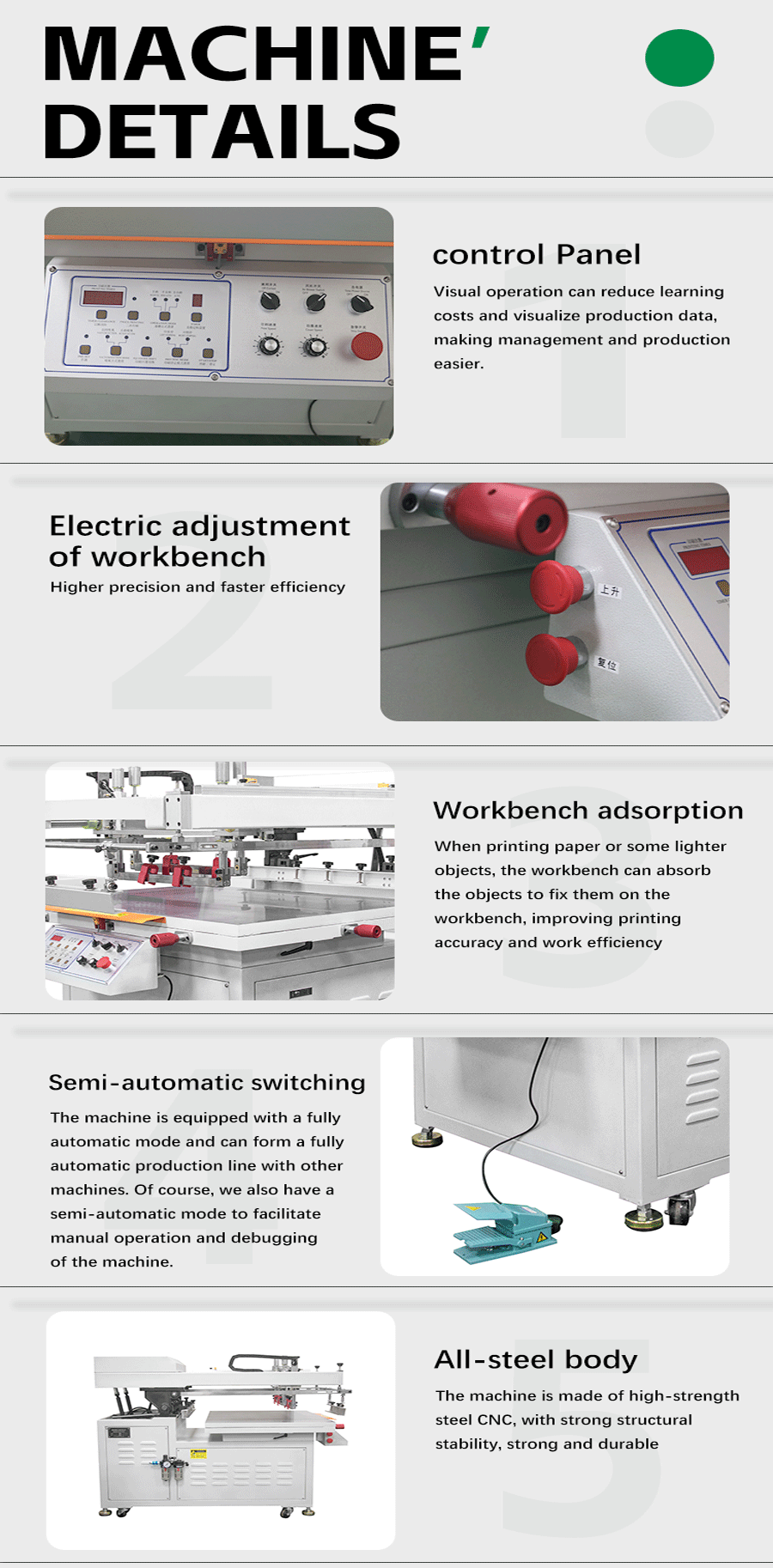

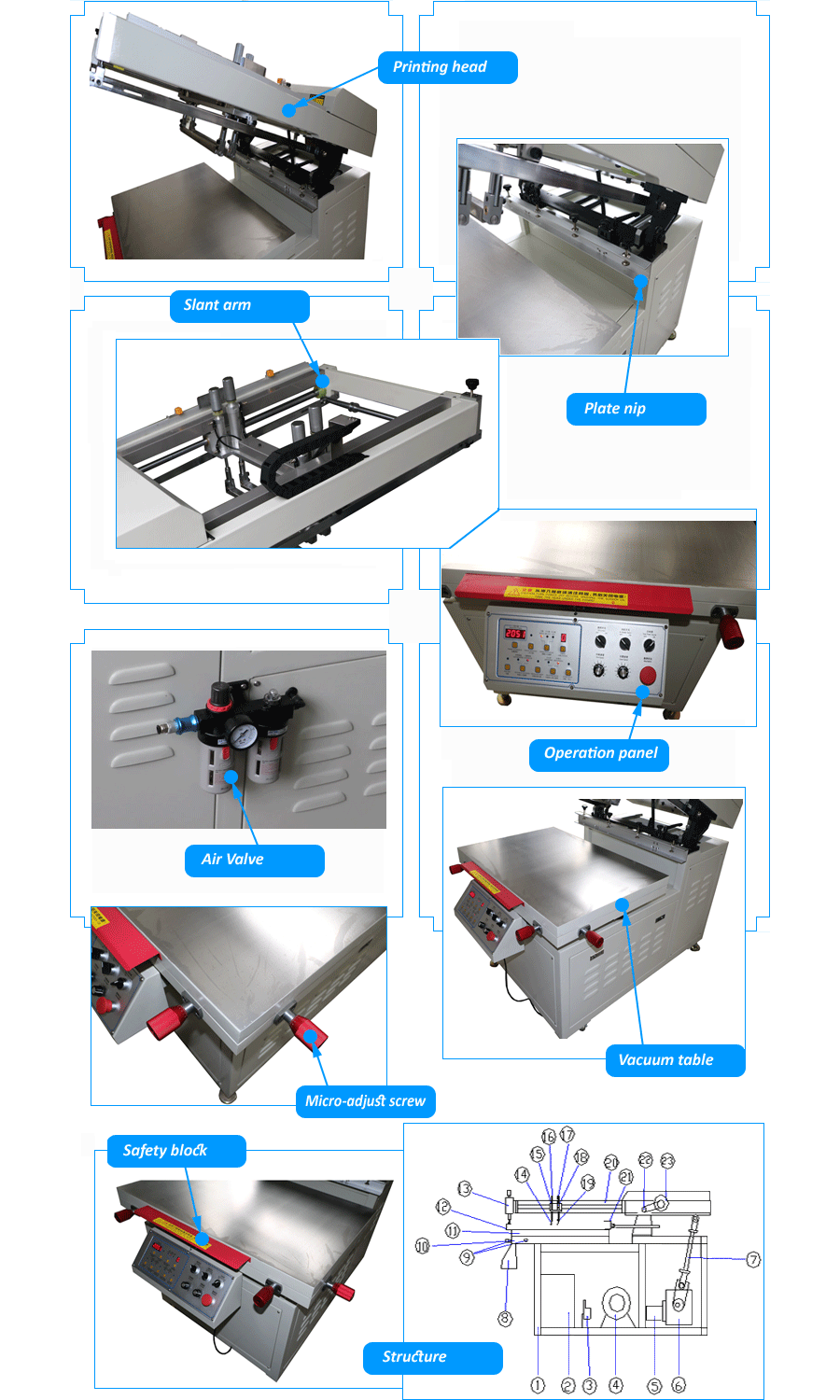

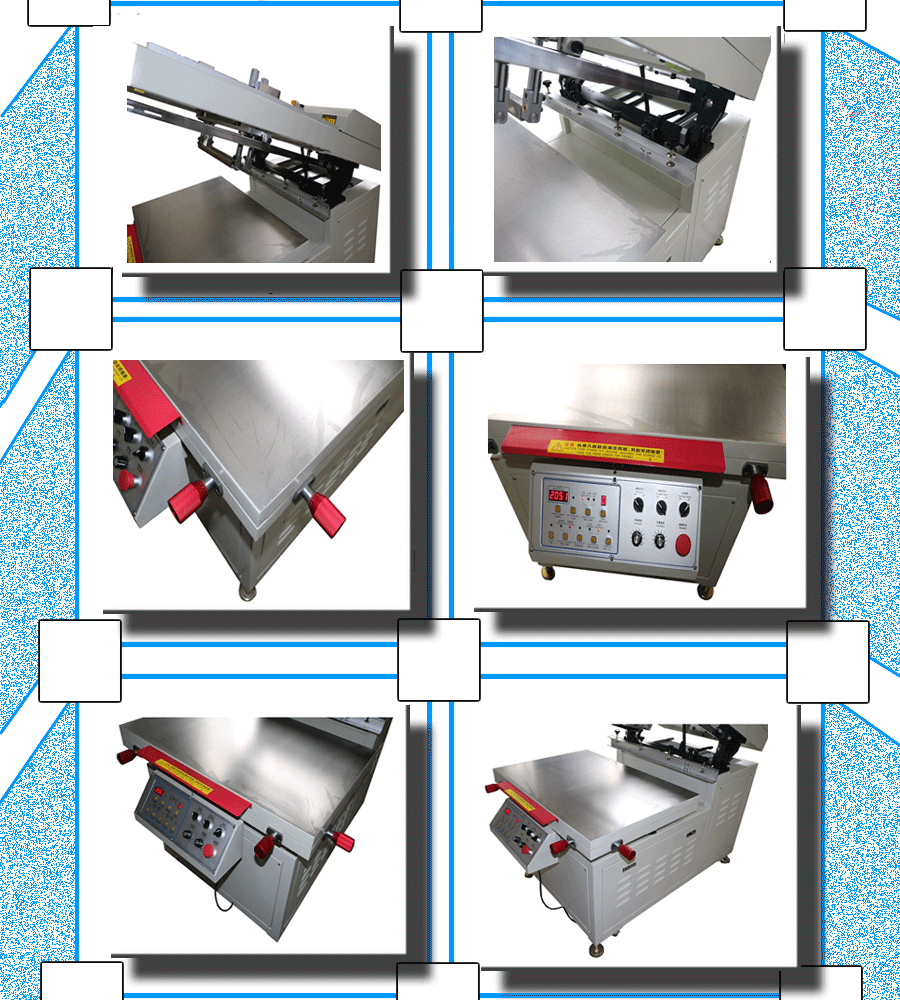

Details photo

•  The inclined-arm screen printing machine features a modular and stable design, ensuring precise and efficient printing operations.
• Equipped with a microcontroller (MCU) control panel, providing intuitive digital operation and reliable control over printing parameters, improving production efficiency and consistency.
• The vacuum working table securely holds substrates in place during printing, preventing material displacement and ensuring accurate registration.
• The core drive utilizes a cam transmission mechanism, offering smooth and synchronized movement between squeegee and ink return, which enhances printing stability and repeatability.
• Additionally, the machine includes a screen frame lifting mechanism, allowing smooth and controlled elevation of the screen, minimizing substrate scratches and improving overall print quality.
• This compact and well-structured machine is suitable for high-precision applications such as paper, plastic sheets, and electronic panels.



• Hybrid power-driven and pneumatic system for stable and efficient operation
• Imported variable automatic control system for synchronized printing and lifting transmission
• Cast aluminum alloy printing plate with 2 mm stainless steel surface for high flatness and anti-deformation
• Precision coordinate adjustment device with automatic air-intake function for accurate screen alignment
• German linear guide rail system for wear-free, high-precision movement
• Imported timing belt transmission for smooth operation and adjustable speed control
• Independent squeegee and flood bar pressure adjustment with up to 45° angle setting
• Safety bounce-back protection system for enhanced operational safety
• Automatic synchronous off-contact system to prevent ink smearing and improve print quality
• Premium branded electrical components with electronic touch-key control panel
• Electrostatic powder-coated frame with solvent resistance and durable industrial finish
