Tabletop tampon printer
3 year ago

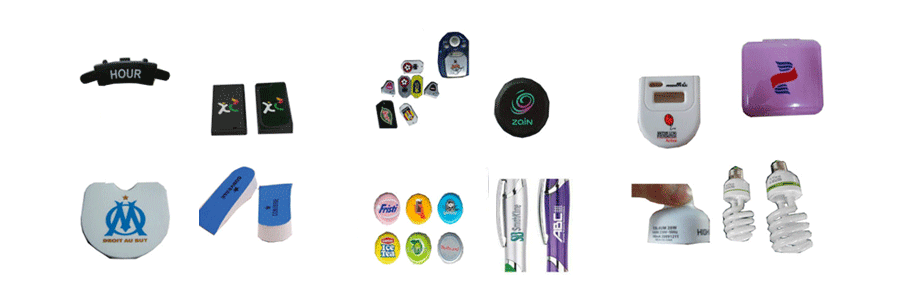

Samples show
Samples
This is type of tabletop pad printing machine .It is popular in electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lights, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field. Ink-tray pad printer is widely used in industrial field. It could be used to printing on caps, ceramic bowl, plastic products and so on. It's easy to add the ink and additive.
Technical Parameter
|
Single color open ink tray pad printer |
Parameters |
| Item | TP1 |
| Plate Area(mm) | 100×100 |
| Table Area(mm) | 200×125 |
| Max. Printing Speed(PCS/H) | 1500 |
| Color Number | 1 |
| Max. Printing area(mm) | 85×85 |
| Work Supply | 110 V /220 V, 5-7 Bar Compress air |
| Out Dimension(mm) | 320×580×620 |
| Package Size(mm) | 710×460×790 |
| N.W.(KG) | 39 |
| G.W.(KG) | 56 |
Tabletop open pad printer//Guide
|

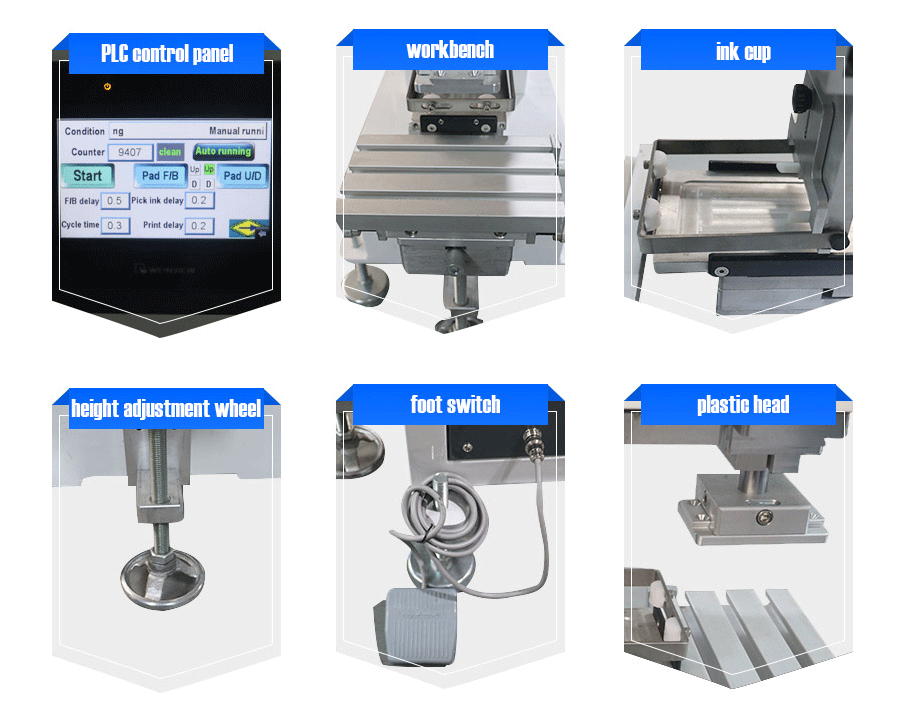

Product Details-Advantage
- Tabletop type pad printing machine;
- Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
- T-slot structure, easy installation of fixtures and products;
- Hand pick and place workpiece, operating more handy;
- Microcomputer program control, the movement is more accurate and reliable;
- Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
- Equipped with four counters, can effectively measure the number of products;
- Structure using die-casting aluminum, lightweight and solid.
- Independent Rubber pad up and down stroke and speed adjustment function;
- Open inkwell ink system, ink adjustment more convenient, more suitable for striking observation;
- Temporary shutdown can prevent the ink to dry within the inkwell with INK function;
- World famous pneumatic components to ensure the long service life of machine;
- Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance;
- Auto balanced doctor blade ensures that ink can be scraped cleanly and completely.
