S-380S screen printing machine

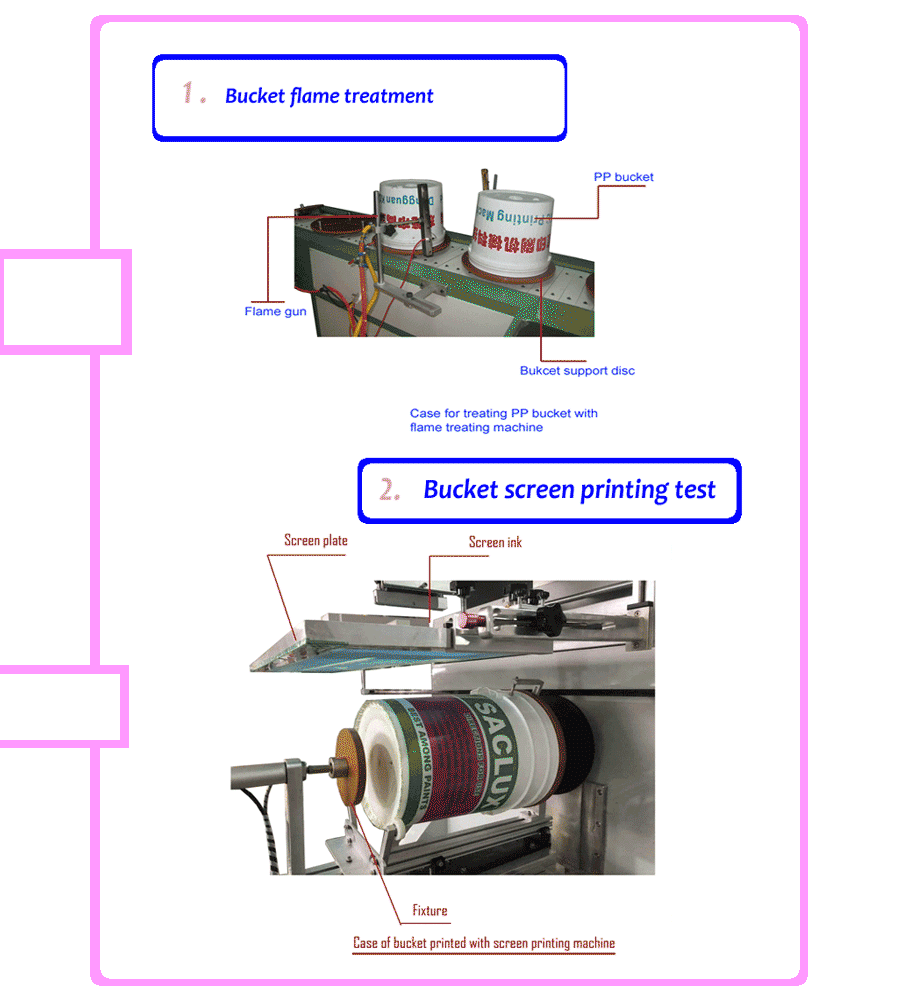

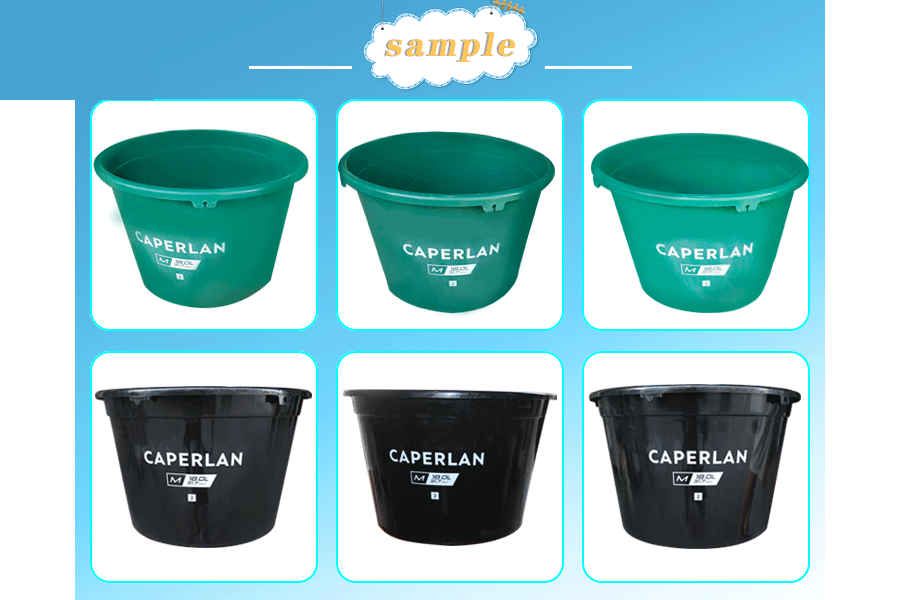

Application-printed Samples

Data

    The principle of screen printing of cylinders with a diameter greater than 300mm is the same as that of a small-diameter product screen printing machine, but there are higher requirements for the stability of the screen printing machine. Since the stroke of the scraper is as long as one meter, the error of its movement is maintained. It is very critical. In general, the sliding shaft of the plastic barrel screen printing machine adopts linear guide rails. The plastic barrel and the clamp are heavy, and the structure of the worktable will also be strengthened to a certain extent.

S-380S Multi-function screen printing machine//Usage and characters

• 380mm in diameter, suitable for printing less, hollow plastic bottles, hose, there is a slight taper of the hard and soft surface material color screen.
• Used in baby bottles, cosmetic bottles, medicine bottles, filters, ignition and other hollow containers monochrome screen printing;
• With surface UV curing machine M-1030UVS can be UV screen printing of plastic containers;
• Solvent ink for screen printing, UV screen printing inks, screen printing ink printing a variety of functions;
• Upper and lower part of table type surface screen printing machine, take place after the table automatically lifting the work piece;
• You can use the foot switch for automatic operation, the safety factor greatly increased;
• Multi-type screen printing machine, Both printing round objects and printing taper and flat objects, hardware replacement only way a simple gas conversion, will be able to achieve a multifunctional , and reduce costs.

Process

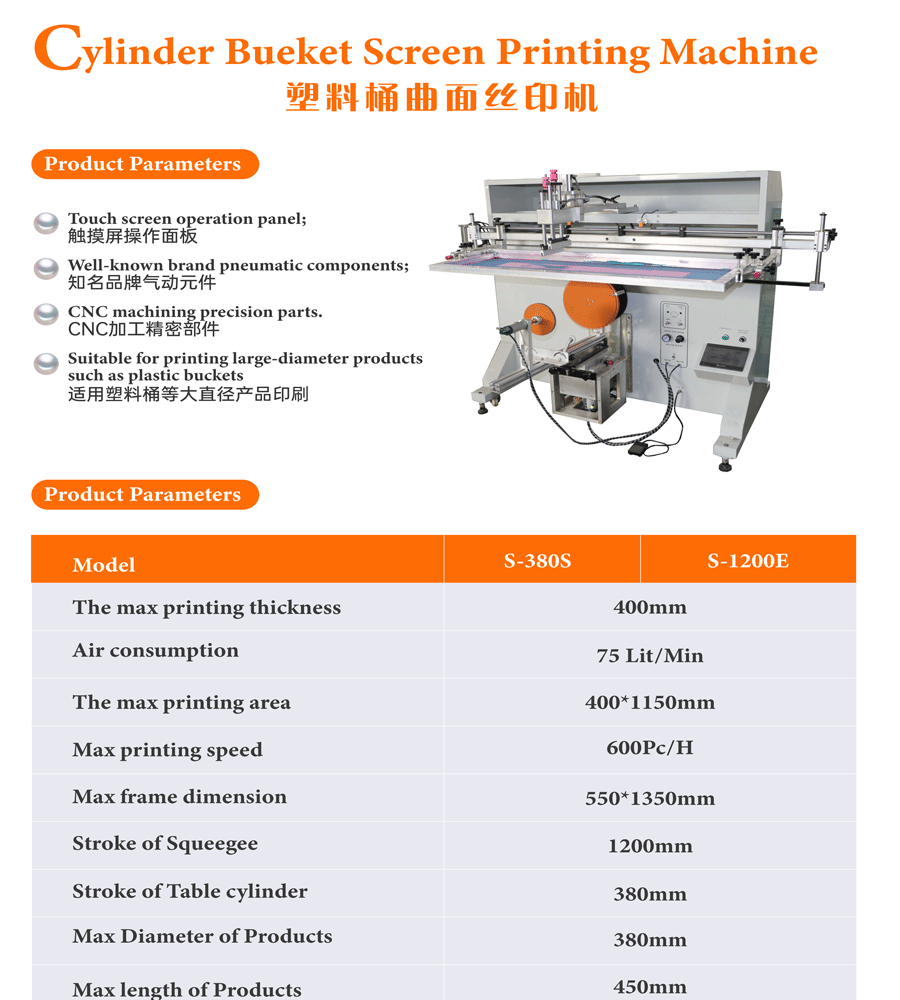

S-380S Multi-function screen printing Machine //Parameters

  Catalogue-Advantage
