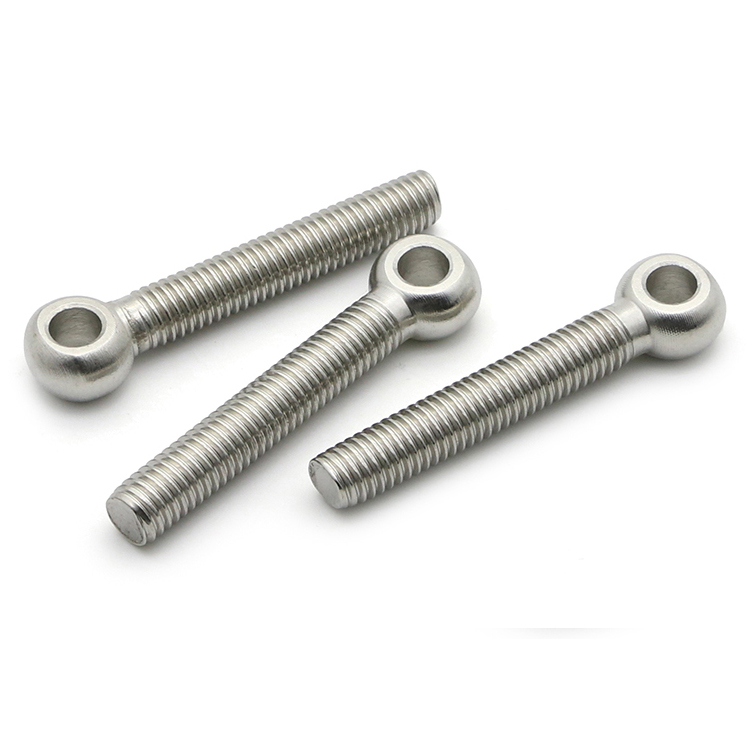

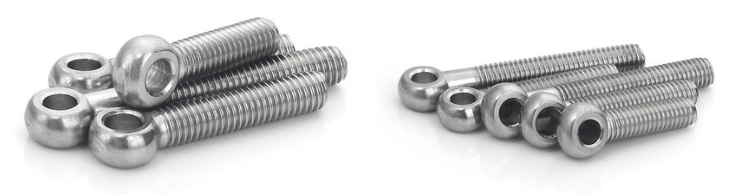

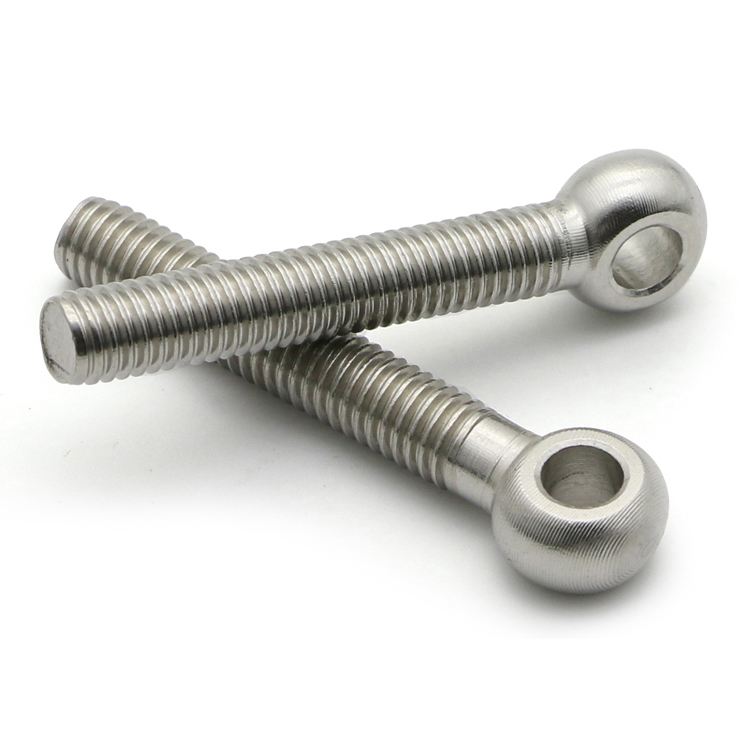

eye bolts

4 year ago
100 0
Product details
Product Description

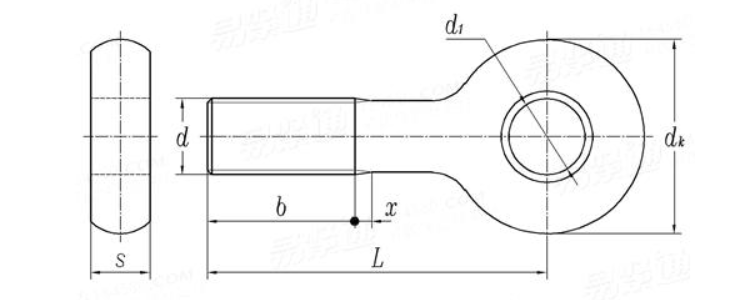

DIMENSION OF DIN444 EYE BOLT
D M5 M6 M8 M10 M12 M16 M20 M24 M27 M30 M33 M36 M39
P 0.8 1 1.25 1.5 1.75 2 2.5 3 3 3.5 3.5 4 4
S Type A max 8 9 11 14 17 19 24 28 30 34 38 41 46
min 7.52 8.52 10.3 13.3 16.3 18.16 23.16 27.2 29.16 33 37 40 45
Type B and C max 6 7 9 12 14 17 22 25 27 30 34 38 41
min 5.88 6.85 8.85 11.82 13.82 16.82 21.79 24.8 26.79 29.8 33.75 37.75 40.75
L≤125 16 18 22 26 30 38 46 54 60 66 / / /
125<L≤200 / / 28 32 36 44 52 50 66 72 78 84 90
L>200 / / / / 49 57 65 73 79 85 91 97 103
d1           H9 5 6 8 10 12 16 18 22 24/25 27/28 30 32/33 35/36
dk Type A max 12 14 18 20 25 32 40 45 50 55 60 65 70
min 10.9 12.9 16.9 18.7 23.7 30.4 38.4 43.4 48.4 53.1 58.1 63.1 68.1
Type B and C max 12 14 18 20 25 32 40 45 50 55 60 65 70
min 11.57 13.6 17.57 19.48 24.48 31.38 39.38 44.4 49.38 54.3 59.26 64.26 69.26

Main Products

Certifications


Testing Laboratory

We have Magnetic Powder Detector, Material Testing Machine, Metallographic Microscope, such testing instruments, guarantee product high quality and beautiful appearance.The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing.

Production Process

First, we have our own High-precision Digital Machining center for mould making in special Mould Workshop, excellent mould make product beautiful appearance and its size accurately.

The second, we adopt blasting procession, removing Oxidation surface, make the surface to be bright and clean and uniform and beautiful.
