Pneumatic movement-table hot stamping machine //Usage and characters

Samples

     The hot stamping machine can generate huge pressure and high temperature, which are potential risks for the operator. In order to improve the safety of the hot stamping machine, the high temperature area is effectively isolated, and the workbench can be designed as a sliding structure, which can avoid the operator from contacting the hot stamping mechanism to the greatest extent. The sliding mechanism will install a separate cylinder at the bottom of the workbench. When the workbench slides out, the product can be placed, and it can be gilded after sliding in.

      The fundamental improvement of the safety of the hot stamping machine should be that all the moving parts of the machine should be surrounded by safety doors. Only when all the safety doors are closed can the machine be started. The sliding hot stamping machine has made the necessary balance between cost and safety.

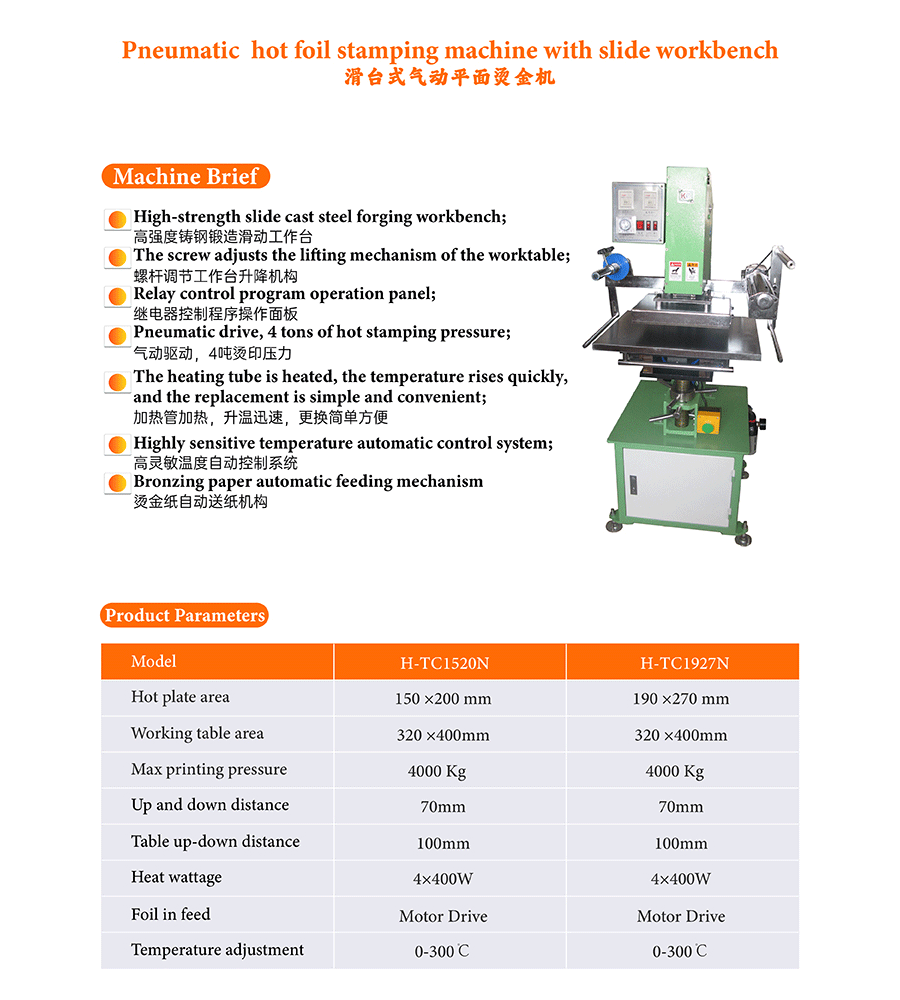

Pneumatic movement-table hot stamping Machine //Parameter

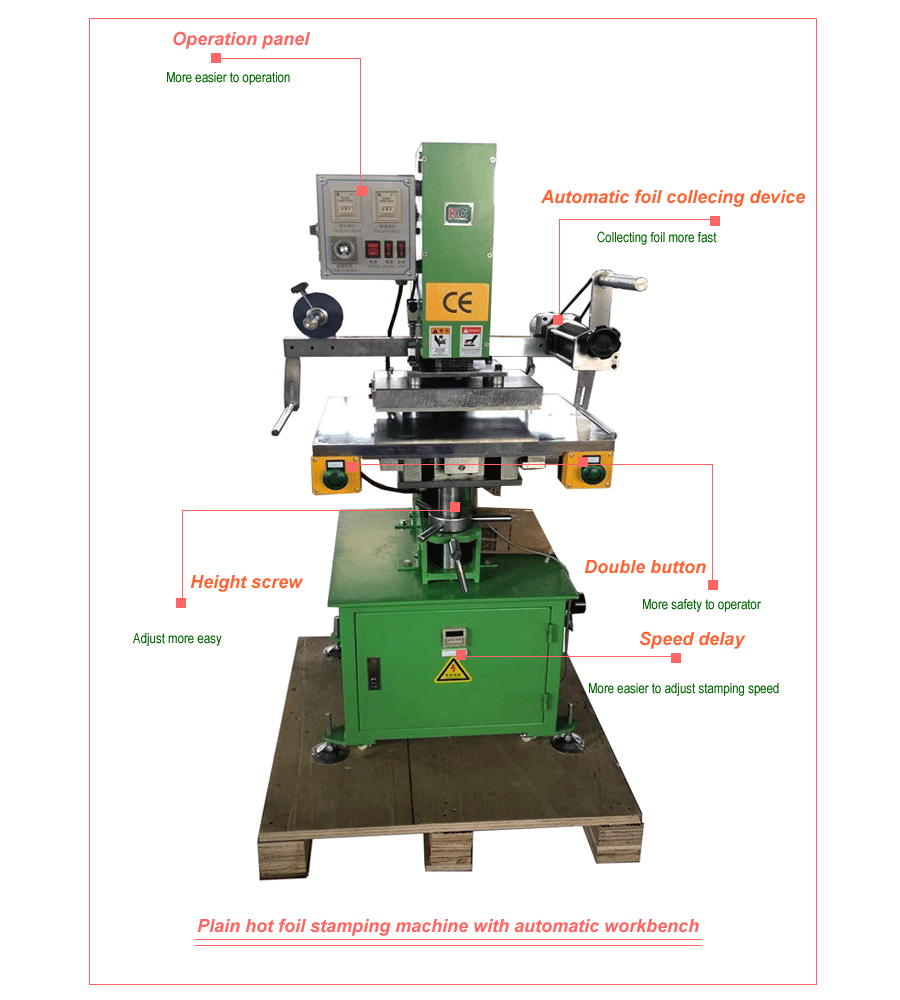

Pneumatic movement-table hot stamping machine //Advantage

Catalogue

The technical specifications of a hot stamping machine

There are numerous types of hot stamping machines, including manual hot stamping machine , pneumatic hot stamping machine , hydraulic hot stamping machine, servo hot stamping machine, and fully automatic machines with a variety of control methods. Users primarily choose a hot stamping machine based on their needs, and they often research the machine's technical specifications to make a judgment.

1. Maximum stamping area: This determines the maximum workpiece size the machine can handle.

2. Hot stamping speed: Production efficiency is a key factor for many customers.

3. Temperature control accuracy: Precise temperature control is crucial for ensuring excellent hot stamping results.

4. Pressure adjustment range: The appropriate hot stamping pressure ensures clear images and rich colors.

5. Automation: With technological advancements, more and more hot stamping machines are now equipped with automatic feeding and discharging functions,

In summary, understanding and evaluating these technical parameters based on your specific needs can help customers make more informed choices.

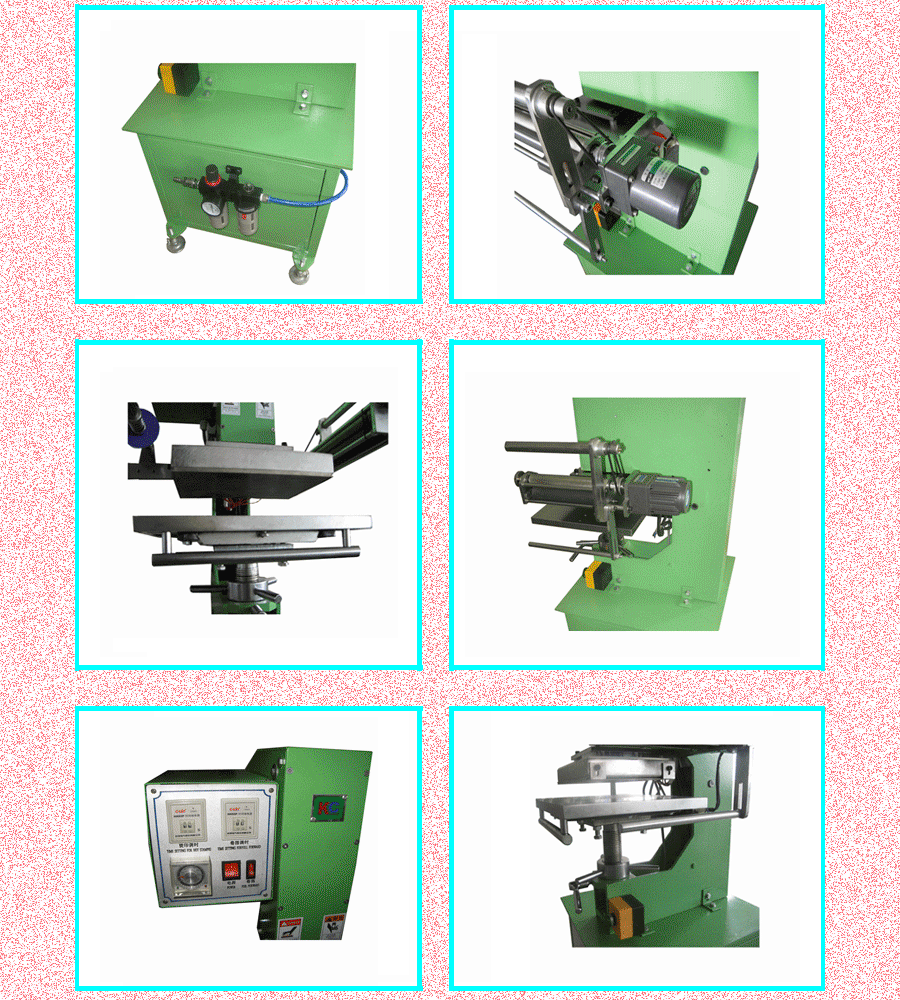

Details

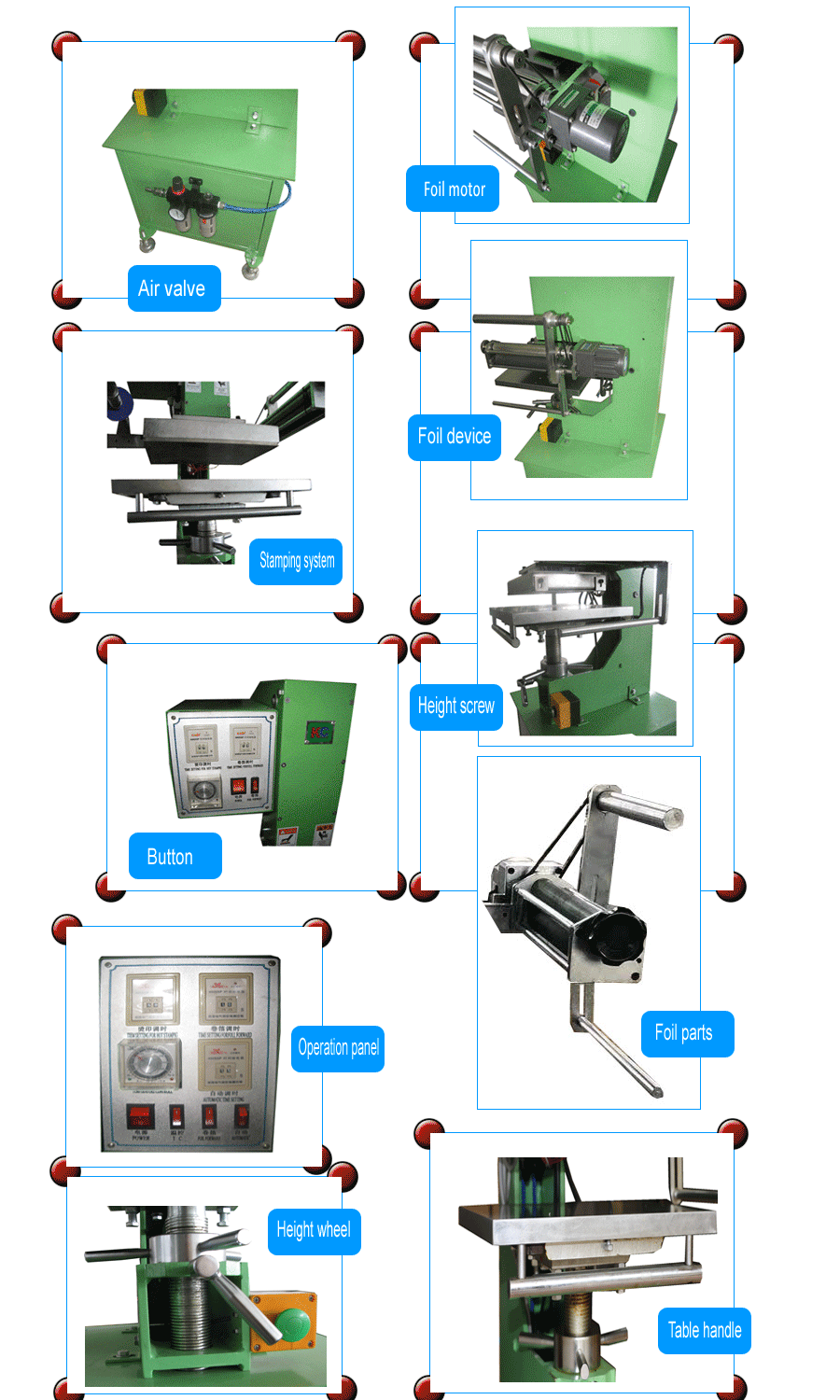

Structure

1. Workbench:

It is the place where the fixture and product are placed. It is usually forged and processed from high-strength steel.

2. Pneumatic system:

It is usually composed of air source, solenoid valve, cylinder and related pneumatic components. According to the process requirements, the cylinder is controlled by the solenoid valve to perform the up and down of the hot plate and the in and out of the workbench.

3. Hot stamping system:

It is composed of a hot stamping head and a heating system. The hot stamping head is made of high-strength heat-resistant steel plate, and a heating plate or heating tube is installed inside. The temperature control system generally includes temperature sensors, temperature controllers, etc., which can monitor and adjust the temperature of the hot stamping head in real time.

4. Conveying device:

It includes the unwinding mechanism and rewinding mechanism of electroplated aluminum. The unwinding mechanism is usually composed of an unwinding shaft, a support seat and an adjusting device, etc., which is used to place and collect the hot stamping film and the thermal transfer film. The rewinding mechanism is generally composed of a rewinding shaft, a motor and a transmission device. The motor drives the rewinding shaft to rotate through the transmission device to realize the rewinding of the hot stamping material.

5. Control system:

It includes a control panel and a control circuit: The control panel is used to control the start, stop, temperature adjustment, pressure adjustment, speed adjustment and other operations of the machine. The control circuit is responsible for receiving the instructions of the control panel and converting them into control signals for the pneumatic system, heating device, conveying device and other components to achieve precise control of the entire hot stamping process. The control circuit generally uses PLC (programmable logic controller) or other microcontrollers as core control elements.
