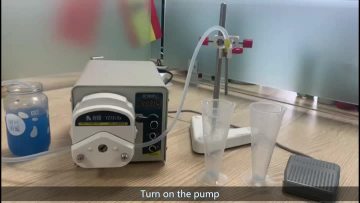

BG600-S transfer water 5seconds 1000ml
4 year agoLithium Mining Laboratory Testing Peristaltic Pump

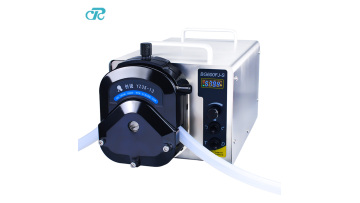

High volume Peristaltic Liquid Pump BG600-S is a digital Peristaltic Tube Pump with a max flowrate of 12000ml/min, this High Flow Peristaltic Pump usually used with YZ35 and YZ35-13 Peristaltic Pump Head, as a large Industrial Peristaltic Pump, can transmit viscous liquids, it’s the first choice for industrial production.
Four-digit LED displays the current speed or flow rate, with higher flow accuracy, long life, knob control, and simple operation.
This pump is widely used for sewage treatment, gem grinding, mining flotation, distillation extraction, etc.
0.1Speed
|
0.1-600rpm
|
Speed resolution
|
0.1rpm
|
Max Flow rate
|
12000ml/min
|
Digital Speed Transmission Pump Display
|
4-LED display
|
Speed control model
|
Rotary encoded switch control speed
|
Power supply
|
AC220V±10%(standard) or AC110V±10%(optional)
|
External control
|
Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )
|
Features:
1, Easy operate only need to power on, then you can use it

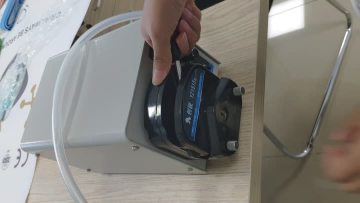

2, Easy load pump head, you can install and change the tube fast.
3, If you want to change the flow, only need to rotate the control knob on the panel.
4, Easy to control the direction by the switch on the panel
5, 4-Led display the current speed and work status
6, Support Multiple channels work, Which can meet your application to transfer several liquids at the same time.
