Product details

Five colors glass bottles screen printer machine

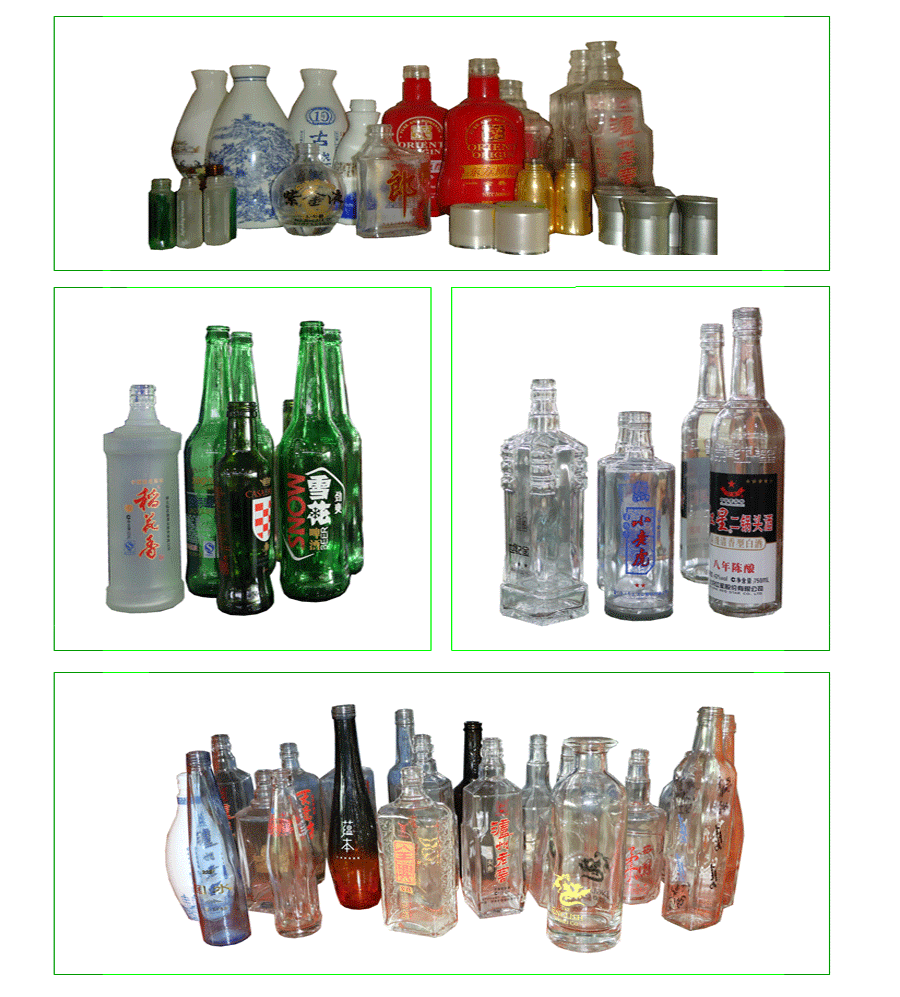

For multi-color screen printing on cylindrical substrates, a more economical solution is to use a set of clamping fixtures to hold the bottles and transfer them between the printing stations in sequence. Since the products remain on the same fixtures throughout the printing process, fixture-based transfer minimizes positioning changes between printing stages and helps maintain multi-color registration. This shuttle automatic screen printing machine for glass bottles is suitable for multi-color printing on wine bottles, beer bottles, and other cylindrical glass containers without dedicated registration marks. The reciprocating fixture-transfer design has a relatively simple structure and is particularly suitable for small- to medium-batch bottle printing. Compared with a rotary servo screen printing machine, this configuration provides a cost-effective automatic bottle screen printing solution with lower equipment complexity and investment requirements. The SZD-1045 is designed for screen printing on beer bottles, drinking bottles, glass containers, and similar cylindrical substrates. It uses a fixture-based shuttle structure to maintain the product position during multi-color printing. For applications using high-temperature glass ink, the printed bottles are transferred to a high-temperature curing oven, where the ink is fired and fused with the glass surface to form a durable printed layer. The machine can also be configured with a photoelectric tracking and positioning system to control the printing position. Its compact configuration and relatively simple printing process make it suitable for applications requiring a UV LED automatic glass bottle screen printing machine or conventional high-temperature glass ink process, depending on the ink and curing requirements.

Three colors glass bottles screen printer//Parameter

- Round-object Max printing stroke: 300 mm;
- Oval-object Max Printing stroke: 120 mm;
- Round-object Max Printing speed: 4000 pc/h;
- Oval-object Max Printing speed: 4500 pc/h;
- Work piece size(Round): Diameter:25-100 mm;Length:60-300 mm;
- Work piece size( Oval): Width:25-260 mm, Length:60-300 mm;
- Power supply: AC 380 V,3 Phase ,45 A/(1-3 Colour),100 A/(4-5 Colour);
- UV Lamp wattage: 4 KW/pc;
- UV Exhaust fan wattage: 0.2 KW;

Exhaust rate: 11.6 m3/min;
Motor Wattage: 0.75 KW;
Reduction gearbox : 1:7.5;
Feeding motor wattage : 0.75 KW;
Fixture motor wattage : 0.5 KW;
Vacuum Pressure : 500 mm/Ag;
Flame gas: Liquefied Petroleum gas( LPG);
Air : 6 Bar;
Air rate of flow : 1500 Lit/M.

Three colors glass bottles screen printer//Advantage

Designed for circular and elliptical to describe the device's screen printing and design, simple structure, convenient debugging, stable and dependable.
The Feeding conveyor belt synchronous motor drive, speed, step-less adjustment, the width of the feed can be easily adjusted;
By the double-suction nozzle, bottles can be automatically transferred to the screen printing conveyor system; the design of the automatic bottle identification system, according to a unified direction in bottles to the transmission system;
By flame treatment plant to improve ink adhesion of PP PE materials; flame pressure can be flexibly adjusted;
Automatically pre-bit system, multi-color overprint crucial in bottles word, overprint precision up to 0.08mm;
Replace the flat bottle fixture, the machine can be easily printed oval bottle to achieve the function of a machine;
The location of the screen and scraper can be achieved three-dimensional precision and angle adjustment, to ensure that the printing position to meet the user requirements;
Mechanical transmission with pneumatic combination of Japanese inverter for process control, running smoothly;
Touch screen operations, easily communicate with the machine to make operation even easier;
Online UV curing systems, import UV device, excellent curing speed and quality, greatly improve the efficiency of printing; printing speed 3600 pcs/h.
Electronic sensors to achieve "no printing", the pressure is too low, automatic monitoring of the alarm and other functions.
Machine electrical components and control systems using components of Germany and Japan to ensure stable printing quality.

Three colors glass bottles screen printer//Configuration

Mainly Motor: SITI (Italy)
Feeding Motor :Panasonic(Japan)
PLC: Omron(Japan)
Rotary Encoder: Omron(Japan)
Sensor: Optec(Japan)
Touch Screen: Proface( Japan)

Switch: Schneider( France)
Contractor : Schneider (France)
Relay: Idec (Japan)
Inverter: Omron(Japan)
UV Curing System: Primarc ( England)
Pneumatic part: Festo (Germany

Machine details description

Operation panel of automatic shuttle screen printing machine

Screen printing on glass bottles is a typical application where accurate color registration is essential. Because cylindrical glass bottles have limited natural positioning references, a reliable bottle positioning system is critical for maintaining consistent multi-color registration and improving the quality and visual value of wine and beverage packaging.

There are two main positioning configurations for automatic glass bottle screen printing machines. The first is a servo rotary screen printing machine with a flat turntable structure. Glass bottles are mounted on individual fixtures and transferred around the rotary table, where mechanical positioning or photoelectric tracking systems establish the printing position at each station. This configuration provides high automation and production efficiency, but its multi-station structure and servo positioning system result in a higher equipment investment. The second is a shuttle automatic screen printing machine for glass bottles. In this configuration, the bottles remain secured on the same fixture throughout the multi-color printing process, while the fixture moves between the printing and curing stations. By eliminating repeated product repositioning, the system can maintain reliable color registration with a simpler mechanical structure and lower investment. Although its production capacity is generally lower than that of a rotary turntable machine, it is particularly suitable for small- and medium-volume wine, beer, and liquor bottle production.

From a printing process perspective, both shuttle and rotary configurations can be equipped with UV LED or conventional UV curing systems, depending on the ink and substrate requirements. With proper positioning, screen preparation, ink selection, and curing control, both machine configurations can achieve comparable printing quality. For manufacturers seeking a cost-effective automatic bottle screen printing machine without the investment required for a fully automatic rotary system, the shuttle configuration provides a practical solution for multi-color glass bottle decoration.

Details of automatic UVLED screen printing machine with shuttle
