HH-TC4060LPTM Hydraulic hot foil stamping machine

3 year ago

67 0 

KC Printing Machine (Group) Limited

10 year

Product details

Embossing Hydraulic hot stamping machine //

Usage and characters

Advantages of hydraulic hot stamping machine:

1. Efficient: Compared with pneumatic devices, the hydraulic system can quickly and accurately complete the up and down movements of the ironing plate with high efficiency.

2. Sensitivity: The fluid in the hydraulic system is basically incompressible, and there is no hysteresis effect. Once pneumatically operated, the ironing plate can rise and fall quickly, with high sensitivity.

3. Reliable: Hydraulic components have a simple and durable structure and can withstand high pressure and high-speed operation. They also have self-lubricating and self-cooling properties, allowing them to work stably for a long time.

4. Adaptation: Adapt to various working environments and working conditions, such as high temperature, low temperature, high altitude, humidity, corrosion, etc.

5. Safety: Various safety protection devices and control systems can be used to ensure the safety of the ironing board.

The hydraulic hot stamping machine is guaranteed to achieve stable and continuous high pressure, and is suitable for hot stamping and concave and convex embossing of large-size products.

126

Data

- - Gilding - paper, leather, wood, plastic,
  - Baked - wood products, baked painting, gift box packaging;
  - Embossing - paper, leather, cloth.
  - Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
  - Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
  - Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
  - Hydraulic drive, pressure more large.

Hydraulic hot foil stamping Machine //Parameter

HH-TC3040LP	HH-TC4040LP
Hot plate area:300 ×400 mm Working table area:480 ×600mm Max printing pressure:20,000 Kg Up and down distance:100mm Heat wattage: 6×500W Foil in feed: Motor Drive Temperature adjustment:0-300oC .	Hot plate area:400 × 400 mm Working table area:480 ×600mm Max printing pressure:20,000 Kg Up and down distance:100mm Heat wattage: 6×500W Foil in feed: Motor Drive Temperature adjustment:0-300oC

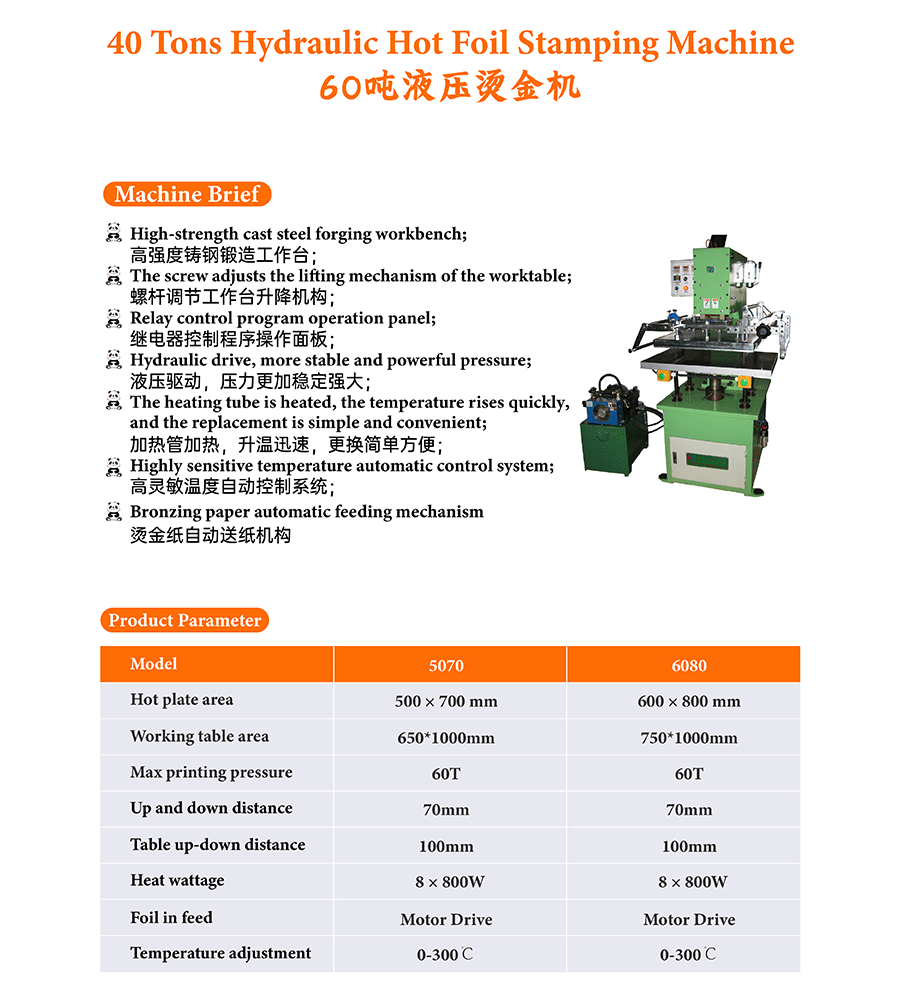

Machine details-Advantage

High-Strength Construction: Bench made of high-strength cast steel forging ensures exceptional flatness and stability.
Adjustable Table Lift: Threaded lifting mechanism allows precise table height adjustment for different product sizes.
Control System: Relay-based control program enables easy operation and maintenance.
Safety Operation: Dual-button control for the stamping head ensures safe up-and-down movement.
Hydraulic Drive: Replaces pneumatic systems, providing higher stamping pressure and improved stability.
Efficient Heating: Heating pipes provide rapid warm-up; removable heating plate allows easy installation and replacement of gilt templates.
Parallelism Adjustment: Ironing board and table parallelism can be adjusted to meet different stamping area requirements.
Automatic Temperature Control: Temperature can be set according to product needs, with ±5°C accuracy.
Customizable Parameters: Stamping time and foil roll speed can be freely adjusted to meet various technical requirements.
Automatic Foil Feeding: Foil paper is automatically fed; conveyor length adjustable according to stamping area.

Catalogue

The core principle of hydraulics is to utilize Pascal's law. Through hydraulic components such as hydraulic pumps, valves, and cylinders, the directional flow of a sealed liquid is controlled to drive the movement of the hot stamping head or worktable. Due to the lossless nature of liquid pressure, hydraulic hot stamping machines generate stable and powerful pressure. By transmitting pressure through two or more sealed cylinders or pistons of varying sizes, the hydraulic system can achieve high pressure with minimal effort. This is why hydraulic hot stamping machines can achieve higher pressures.

Hydraulic hot stamping machines are widely used in industries such as embossing, large-area hot foil stamping, wood pyrography, some hard plastic surfaces, and recycled products made from mixed materials. They can use powerful pressure to compensate for hot stamping difficulties caused by mismatched foil properties.
