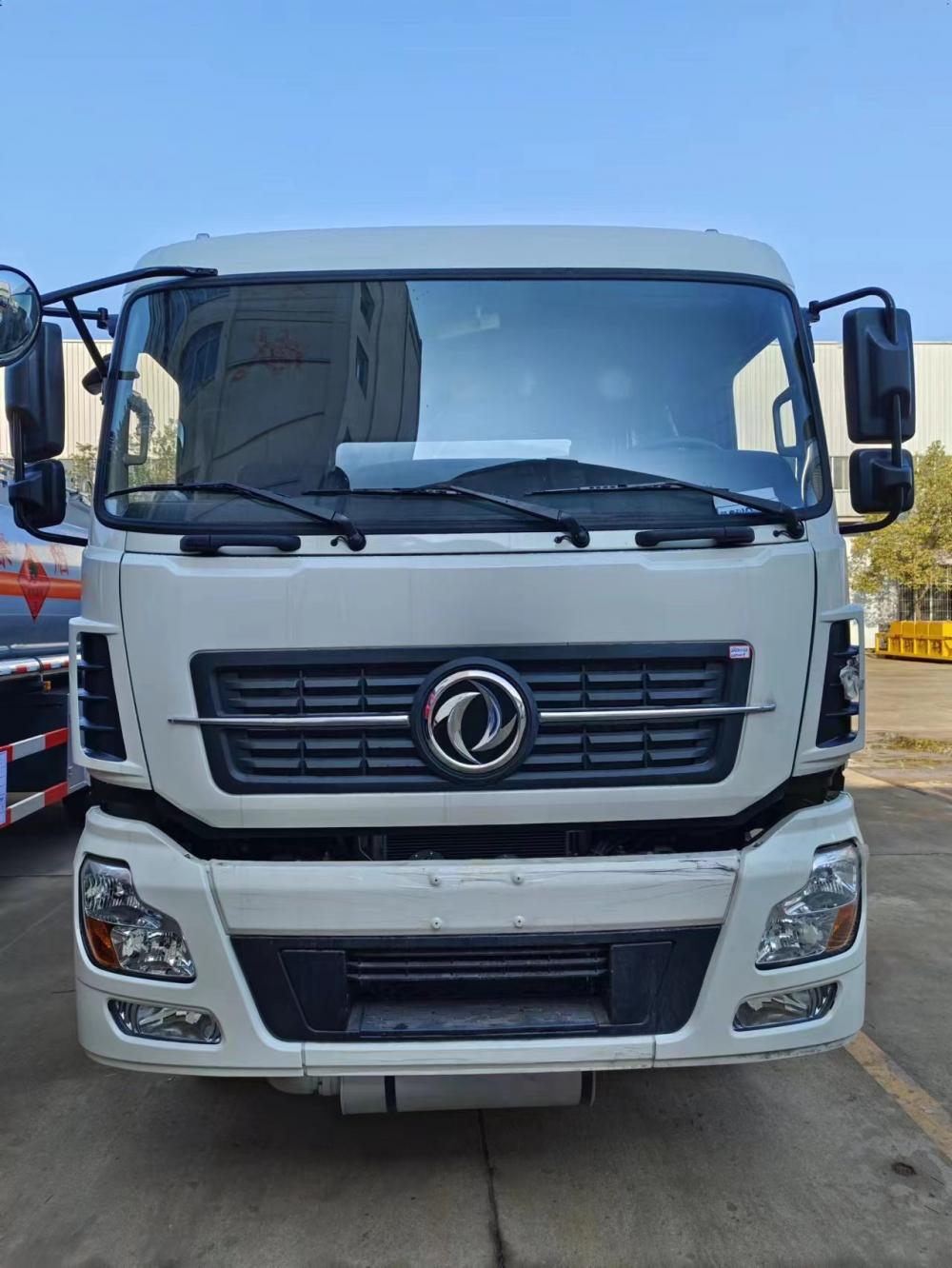

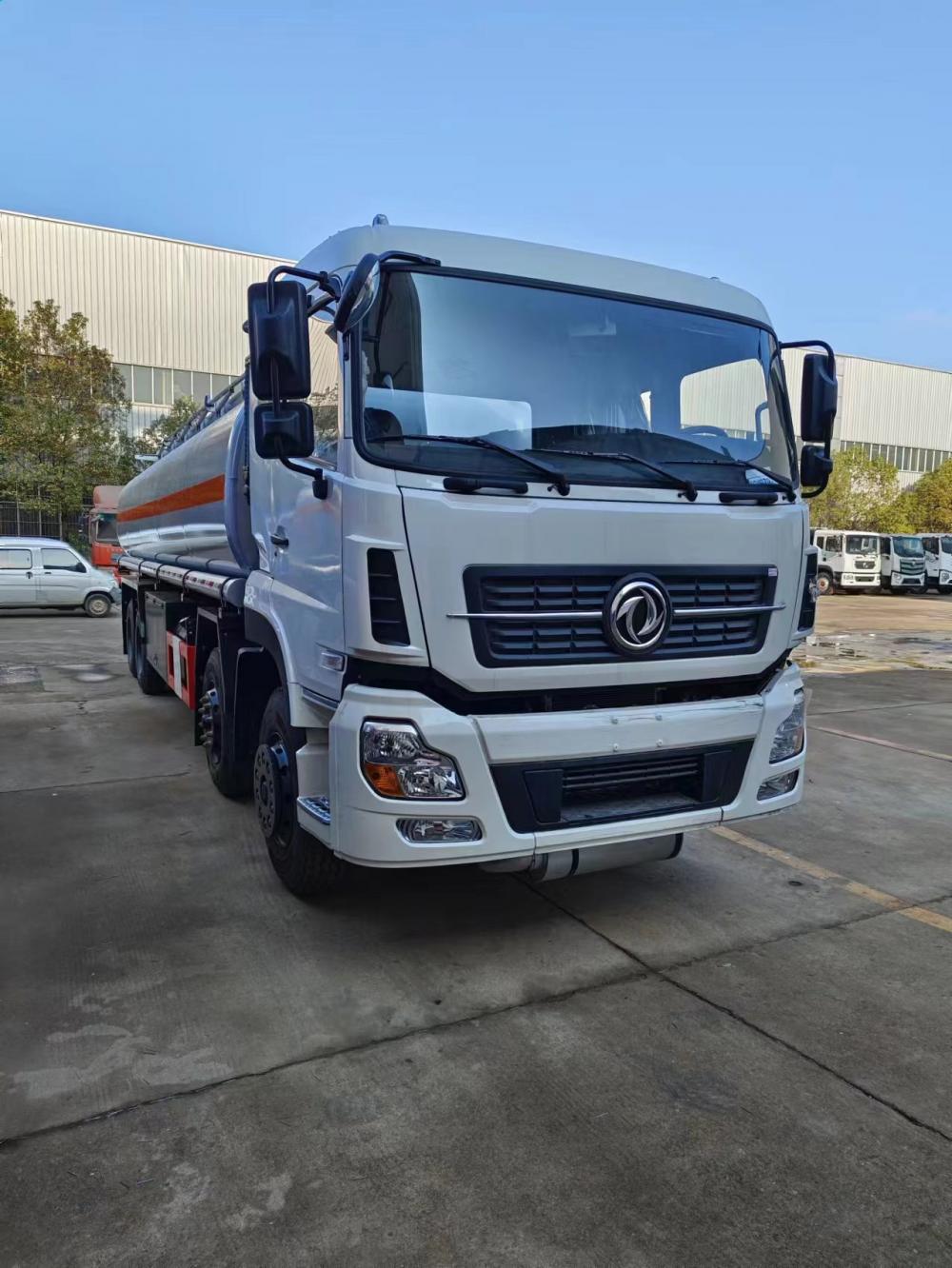

Dongfeng 8X4 Fuel Tanker Truck

2 year ago
26 0
Product details

Model NO. 518200 Power Diesel
Load Capacity 21-30t Emission Standard Euro 3
Tank Volume >30000L Drive Wheel 4×2
Seats ≤5 Horsepower 351-450hp
Engine Capacity 4-6L Storage Oil
Tire Certification ISO Tire Design Tubeless
Condition New Curb Weight(Kg) 15900
Tank Volume(M3) 29 Tank Thickness(mm) 5
Tank Body Material 304 Stainless Steel/Q235 Carbon Steel Emergency Shut-off Valve Yes
Oil Gas Recovery Unit Yes Fuel Loading Method Bottom Filling
Gear Oil Pump Flow(1 Cubic Meter/H) 60 Maximum Speed(Kw/H) 80
Engine Power(Kw) Weichai 280 Gearbox 10 Speed Manual Transmission
Brake Air Brake Number of Axles 4
Wheelbase (mm) 1800+4575+1400 Number of Tires 12
Transport Package Land/Sea Transport Specification 10300*2550*3550
Origin China Production Capacity 20 Unit/Units Per Month
Package Size 10300.00cm * 2550.00cm * 3550.00cm Package Gross Weight 15900.000kg






1704266735415

[Vehicle Technical Parameters]
Curb Weight(Kg) 17205
Boundary Dimension(mm) 10300×2550×3550
Tank Volume(m³) 25
Tank Thickness(mm) 5
Tank Body Material 304 Stainless Steel/Q235 Carbon Steel
anti wave plate yes
Operating Ambient Temperature(°C) -20~45
Mouth of tank European standard
Emergency shutoff valve yes
Oil gas recovery unit yes
Anti-overflow alarm device yes
Fuel loading method Bottom filling
Gear oil pump flow(m³/h)  60
Toolbox Customized to your needs
Maximum Speed(km/h) 80
[Chassis Technical Parameters]
Trade Name FAW
Type of fuel Diesel Oil
Engine Power(KW) 239KW
Front wheel braking Disc brake
Front Axle/Rear Axle(t) 7/18
Gearbox 10 Speed Manual
Brake Air brake
Front wheel braking Disc brake
Number of Axles 2
Wheelbase (mm) 1900+5100
Number of Tires 8
Tyre Specification 12R22.5 18PR

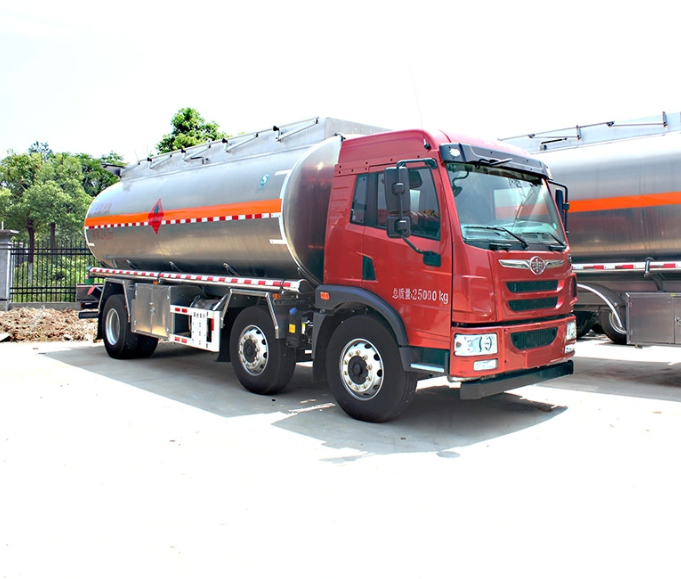

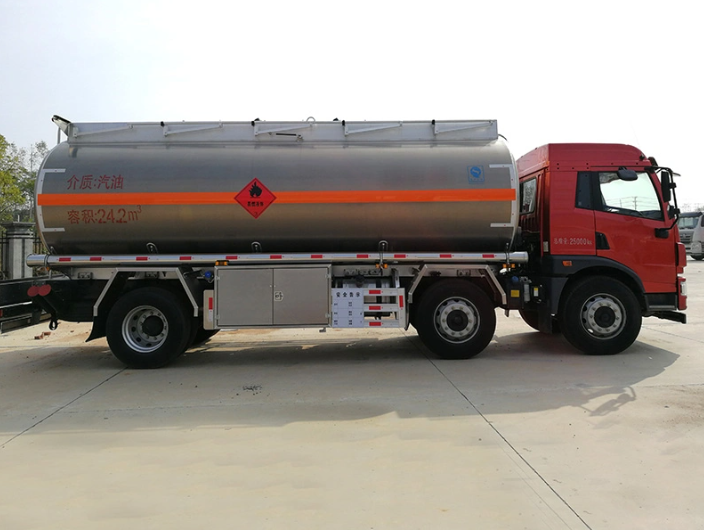

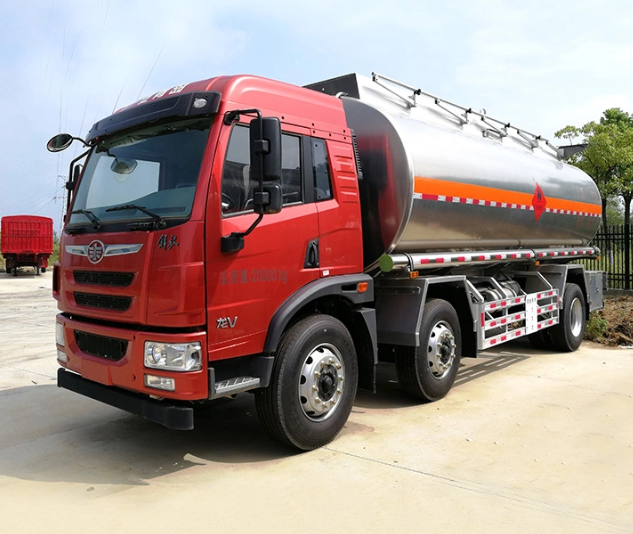

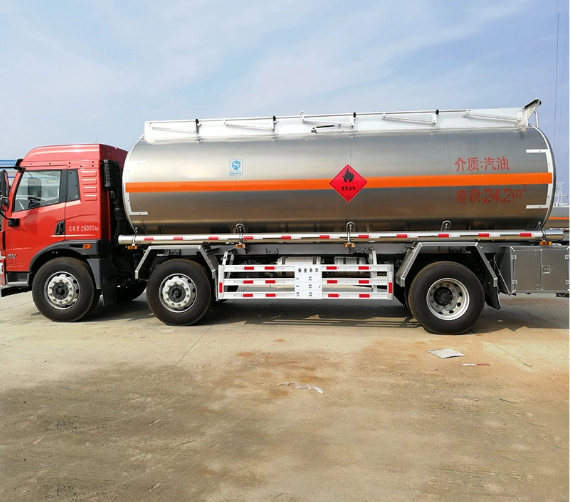

Powerful, Efficient, and Reliable – FAW 24000Litres Aluminum Alloy Fuel Tanker, Your Heavy-Duty Fuel Transport Solution



Industry Challenges & Our Solutions

In heavy-duty fuel transportation, customers often face the following challenges:

- Low Transport Efficiency: Traditional tankers have limited capacity, requiring multiple trips and increasing costs.

- High Safety Risks: Fuel is hazardous, and standard tankers lack specialized safety features, increasing leakage and accident risks.

- Strict Environmental Compliance: Older models fail to meet emission standards, leading to regulatory penalties.

- Poor Adaptability to Harsh Conditions: Extreme climates and long-distance transport demand superior stability and durability.



How FAW 24000Litres Aluminum Alloy Fuel Tanker Solves These Problems:

✅ High Capacity: Over 30,000-liter fuel tank, carrying 21-30 tons per trip, reducing transport frequency and costs.

✅ Top-Tier Safety: Emergency shut-off valve + oil-gas recovery system + 5mm-thick tank (304 stainless steel/Q235 carbon steel options), ensuring leak-proof compliance with international hazardous material standards.

✅ Eco-Friendly Power: Weichai 280kW engine + Euro 3 emissions, balancing performance and environmental regulations.

✅ All-Terrain Performance: 4x2 drive + 12x 12R22.5 18PR tires + anti-wave plate design, operating reliably from -20°C to 45°C, even on rough roads.



Applications – Where We Deliver Value

1. Petrochemical Logistics

   - Long-haul fuel transport from refineries to storage depots, maximizing load efficiency.

   - Competitive Edge: Completes in one trip what standard tankers need 2-3 trips for, cutting fuel costs by 15%.



2. Gas Station Distribution

   - Urban fuel delivery with precise metering, bottom-filling design minimizing evaporation loss.

   - Competitive Edge: Oil-gas recovery reduces waste by 3%, saving tens of thousands annually.



3. Cross-Border Energy Transport

   - Reliable operation in deserts or freezing regions, with superior cold-start performance.

   - Competitive Edge: Competitors struggle in low temperatures; our truck starts effortlessly.



4. Industrial Fuel Supply

   - Mines, power plants, and confined sites benefit from short wheelbase + agile steering for tight spaces.





 Reasons to Choose Us – Customer-Centric Advantages

1. "I Need Lower Operating Costs"

   - 60m³/h gearbox oil pump flow + 80 km/h top speed, ensuring industry-leading efficiency and 20% faster ROI.



2. "Safety is Non-Negotiable"

   - FAW chassis + front disc brakes + 4-axle braking system, reducing accident rates by 40% and lowering insurance costs.



3. "I Require Customization"

   - Toolbox, tank material (stainless/carbon steel), overflow alarms—all configurable to avoid unnecessary features.



4. "After-Sales Support is Critical"

   - Made in China + ISO-certified, backed by global supply chains, with 20 units/month production for urgent orders.



5. "Reputation Matters for Long-Term Partnerships"

   - Customer Feedback:

     > "Same 30-ton load, but 8% lower fuel consumption than competitors—saving $9,000/year." – Logistics Operations Director





Contact Us for a Tailored Transport Solution!

We don’t just sell trucks—we design cost-saving, high-efficiency, zero-risk fuel transport systems.
