Basic Info.
| Model NO. | 518200 | Certification | ISO9000, CCC, TS16949 |
| Volume | ＜3000L | Emission Standard | Euro 3 |
| Transmission Type | Manual | Payload | 2t |
| Fuel | Diesel | Drive Wheel | 4×2 |
| Horsepower | ＜150hp | Condition | New |
| Fire Pump Flow Rate | 30L/S | Fire Pump Pressure | Low Pressure 1.0MPa |
| Maximum Suction Head of Fire Pump(M) | 7 | Fire Pump Diversion Time | 35s |
| Range(M) | 45 | Water Tank Capacity (Kg) | 2800 |
| Fuel Type | Diesel | Front/Rear Axle(Ton) | 3.5/5 |
| Brakes | Air Brake | Engine Power(Kw) | 85 |
| Transmission | 6-Speed Transmission | Wheelbase(mm) | 3360 |
| Number of Axles | 2 | Number of Tires | 6 |
| Transport Package | Land/Sea Transport | Specification | 6040*1940*2550 |
| Origin | China | Production Capacity | 20 Unit/Units Per Month |
| Package Size | 6040.00cm * 1950.00cm * 2600.00cm | Package Gross Weight | 15000.000kg |
| Technical Parameters of the Entire Vehicle | |
| Fire Pump | CB10/20D Normal Pressure Fire Pump |
| Fire Pump Flow Rate | 30L/S |
| Fire Pump Pressure | Low Pressure 1.0MPa |
| Number of Passengers Allowed in the Cab (person) | 5 |
| Overall Dimensions (mm) | 6040x1940x2550 |
| Maximum Suction Head of Fire Pump(m) | 7 |
| Fire Pump Diversion Time | ≤35s |
| Range | ≥45m |
| Water Tank Capacity (kg) | 2800 |
| Chassis Technical Parameters | |
| Brand Name | JMC |
| Fuel Type | D-iesel oil |
| Front/Rear Axle(t) | 3.5t/5t |
| Number of Axles | 2 |
| Number of tires | 6 |
| Brakes | Air Brake |
| Engine Power(KW) | 85 |
| Transmission | 6-Speed Transmission |
| Wheelbase(mm) | 3360 |
| Tire Size | 7.00R16LT |

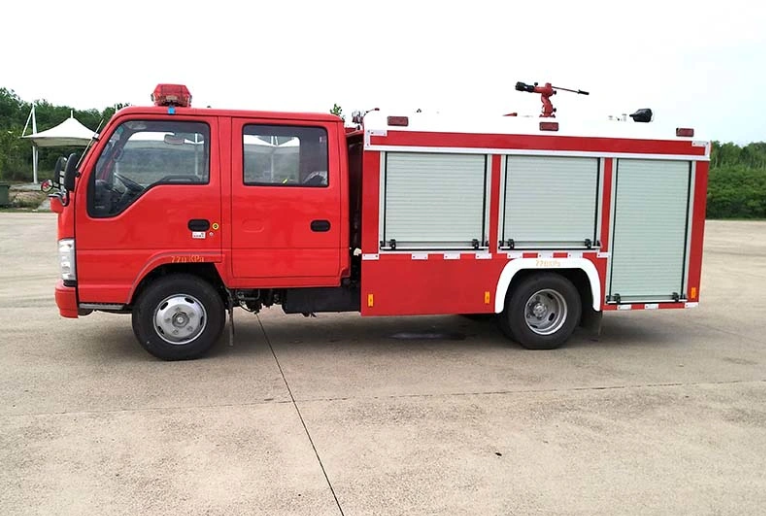

Efficient and Agile, Mission Ready—Mini Water Tank Fire Fighting Truck Model NO. 518200
Solution: Rapid Response, Precision Firefighting
In fire emergencies, every second counts. The Mini Water Tank Fire Fighting Truck Model NO. 518200 delivers fast, reliable fire suppression with its compact design, powerful performance, and high-efficiency firefighting system.
- Large Water Tank Capacity: 2,800 kg water storage for sustained firefighting.
- High-Pressure Fire Pump: 30 L/s flow rate, 1.0 MPa pressure, 7m suction head, and 35-second startup for quick fire control.
- Strong Power: 85 kW diesel engine (<150 HP), 6-speed manual transmission for tough terrains.
- Stable Chassis: JMC 4x2 drive, 3.5-ton front axle / 5-ton rear axle, 7.00R16LT tires for safe operation.
- Compact & Maneuverable: 6040×1940×2550 mm dimensions, easily navigates narrow streets with a 45-meter firefighting range.
Applications & Advantages
1. Urban & Community Firefighting
Scenario: Narrow roads, dense populations, requiring quick access and fire control.
Advantages:
- Compact size for easy access where large trucks cannot go.
- 30 L/s high-pressure pump for rapid suppression in residential and commercial fires.
2. Industrial Zones & Warehouses
Scenario: High-risk areas with flammable materials, demanding efficient fire suppression.
Advantages:
- Large water tank + high-pressure pump combo for oil and electrical fires.
- Robust chassis supports 2-ton equipment, compatible with foam systems.
3. Rural & Remote Areas
Scenario: Limited infrastructure, scarce firefighting resources.
Advantages:
- Diesel engine adapts to rough terrain; 7m suction allows water intake from ponds/rivers.
- 5-person cabin for quick small-team deployment.
4. Airports, Ports & Special Zones
Scenario: Open spaces requiring long-range water projection.
Advantages:
- 45-meter coverage with adjustable nozzles to control fire spread.
- Compliant with ISO9000, CCC, and TS16949 certifications for safety.
Why Choose Us?
✅ Internationally Certified: Meets ISO, CCC, and TS16949 standards.
✅ Efficiency & Cost-Effectiveness: Compact yet powerful, low maintenance, budget-friendly.
✅ Fast Delivery: 20 units/month production capacity, quick order fulfillment.
✅ Versatile for All Scenarios: From cities to remote areas, prevention to emergencies—multi-functional.
Safety First, Always Ready!
The Mini Water Tank Fire Fighting Truck Model NO. 518200—your professional partner in firefighting missions.
Contact us now to customize your firefighting solution!
