| Model NO. | 5182GSSZZ6 | Certification | ISO9000, CCC, TS16949 |
| Emission Standard | Euro 3 | Sprinkling Area | 28m |
| Transmission Type | Manual | Payload | 14t |
| Fuel | Diesel | Drive Wheel | 4×2 |
| Engine Capacity | 4 - 6L | Condition | New |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Ves | Kerb Weight (Kg) | 7000 |
| Maximum Speed (Km/H) | 101 | Operating Mode | Automatic+Manual |
| Tank Volume(M3) | 14 | Tank Thickness(mm) | 5 |
| Engine Power(Kw) | 162 | Front Axle/Rear Axle (T) | 5/10 |
| Wheelbase (mm) | 4500 | Brake | Air Brake/Oil Brake |
| Gearbox Model | 8-Speed Manual | Number of Axles | 2 |
| Vertical Suction(M) | 7 | Rear Sprinkler Area(M2) | 20 |
| Pump Flow(M3/H) | 60 | Transport Package | Land/Sea Transport |
| Specification | 8300*2500*3200 | Origin | Hubei, China |
| Production Capacity | 20 Unit/Units Per Month | ||
| Package Size | 8300.00cm * 2500.00cm * 3200.00cm | Package Gross Weight | 16000.000kg |
| [Vehicle Technical Parameters] | |
| Curb Weight(Kg) | 7000 |
| Boundary Dimension(mm) | 8300×2500×3200 |
| Tank Volume(m³) | 14 |
| Tank Thickness(mm) | 5 |
| Tank Body Material | 304 Stainless Steel/Q235 Carbon Steel |
| Operating Ambient Temperature(°C) | -20~45 |
| Pump Flow(m³/h) | 60 |
| Vertical Suction(m) | 7 |
| Front Sprinkler Spray Distance(m) | 14 |
| Side Sprinkler Spray Distance(m) | 8 |
| Rear Sprinkler Sprinkler Area(m2) | 20 |
| Water Cannon Range(m) | 28 |
| Number of Passengers in the Cab(People) | 3 |
| Maximum Speed(km/h) | 101 |
| [Chassis Technical Parameters] | |
| Trade Name | Howo |
| Brake | Automatically Air-Cut Brake |
| Type of fuel | Diesel Oil |
| Engine Power(KW) | Weichai 162KW |
| Front Axle/Rear Axle(t) | 4.3/9 |
| Gearbox | 8 Speed Manual Transmission |
| Number of Axes | 2 |
| Wheelbase (mm) | 4500 |
| Number of Tires | 6 |
| Tyre Specification | 10.00R20 |

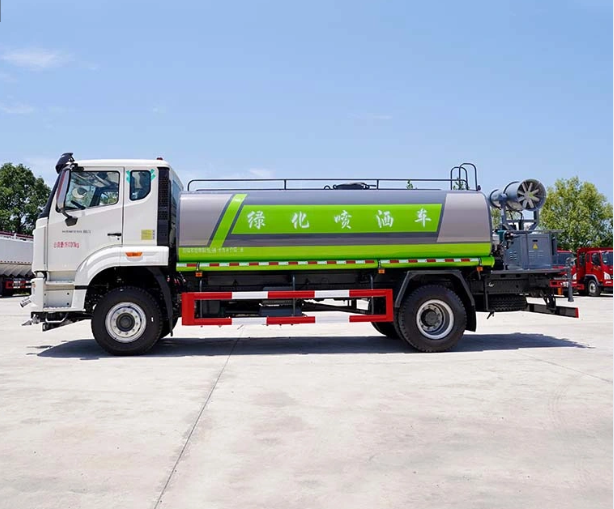

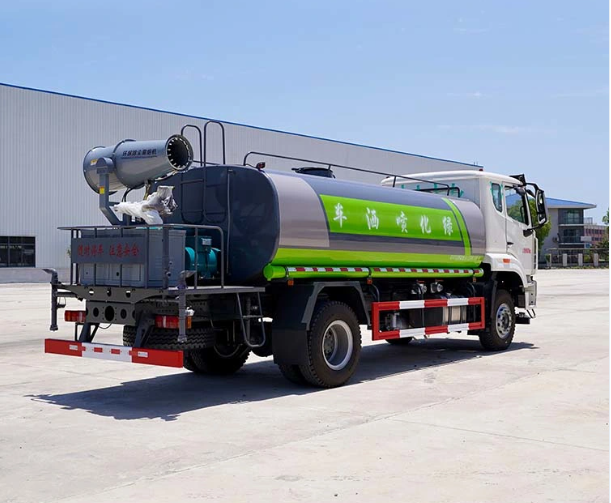

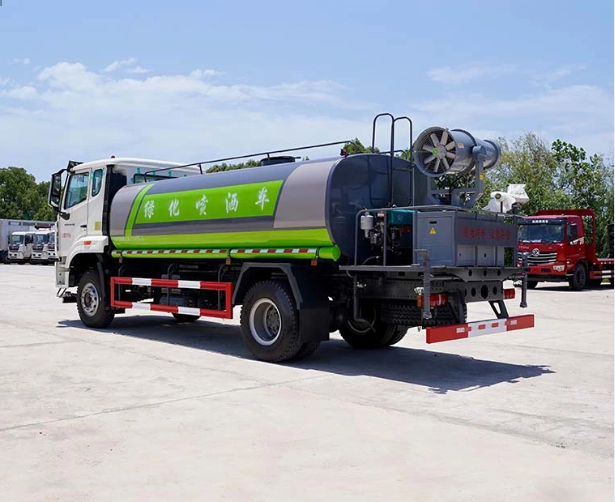

SINOTRUK HOWO truck water tank truck 14000 Liters – The Ultimate Partner for Modern Infrastructure and Environmental Operations
Professional Design · Superior Performance · Globally Certified
Designed to meet the stringent demands of modern infrastructure maintenance and management, the SINOTRUK HOWO truck water tank truck 14000 Liters combines cutting-edge engineering with premium components, delivering unmatched reliability and efficiency across diverse terrains and climates.
Key Features
✅ Powerful Performance
- Equipped with a Weichai 162kW engine for robust power and high-intensity operation.
- 8-speed manual transmission +4×2 drive, ensuring precise control on roads, construction sites, and more.
✅ High Capacity & Durability
- 14m³ stainless steel/carbon steel tank (5mm reinforced walls) for corrosion resistance and long service life.
- 60m³/h high-flow water pump, paired with a 28m long-range water cannon + 20m² rear sprinkler coverage, ideal for irrigation, dust suppression, and firefighting support.
✅ Safety & Stability
- HOWO heavy-duty chassis, 4500mm wheelbase, 4.3/9-ton front/rear axle capacity, 6 tires, and dual air/hydraulic brakes for enhanced load stability and braking safety.
- Operates in extreme temperatures from -20°C to 45°C, ensuring year-round performance.
✅ Smart & Efficient Operation
- 7m vertical suction height for flexible water sourcing; max speed of 101km/h for quick deployment.
- Automatic & manual mode switching for versatile operation.
Applications
Municipal Services: Road cleaning, green space irrigation, dust control
Firefighting Support: Emergency water supply, fire suppression assistance
Agricultural Irrigation: Efficient watering for farms and orchards
Construction Sites: Dust suppression, mine road maintenance
Engineered for Professional Performance, Built for Sustainable Operations!
Choose the SINOTRUK HOWO truck water tank truck 14000 Liters and maximize the value of every drop!
Note: Custom configurations available. Contact us for details.
