| Certification | ISO9000, CCC, TS16949 | Emission Standard | Euro 3 |
| Hoesrpower | 150-250hp | Payload | 5t |
| Fuel | Diesel | Transmission Type | Manual |
| Drive Wheel | 4x2 | Condition | New |
| Platform Rated Load(Kg) | 200 | Maximum Operating Height(M) | 12 |
| Lifting Weight(Kg) | 1000 | Slewing Gear | 360 Degree Rotation |
| Leg Span (Transverse/Longitudinal) | 4000/4000(mm) | Outrigger | Front V and Rear H |
| Emergency Device | Emergency Pump | Operating Mode | Remote/Manual |
| Maximum Speed (Km/H) | 100 | Fuel Type | Diesel |
| Engine Power(Kw) | 70 | Number of Axles | 2 |
| Number of Tires | 6 | Front Axle/Rear Axle(T) | 1.8/3.5 |
| Gearbox Model | 5-Speed Manual | Transport Package | Land/Sea Transport |
| Specification | 5998*2000*2950 | Origin | China |
| Production Capacity | 20 Unit/Units Per Month | Package Gross Weight | 4500.000kg |
| Package Size | 5998.00cm * 2000.00cm * 2950.00cm |
| Technical Parameters of the Entire Vehicle | |
| Total Mass (Kg) | 4495 |
| Maximum Operating Height(m) | 13 |
| Number of Passengers Allowed in the Cab(person) | 2 |
| Maximum Operating Radius Amplitude(m) | 5.8 |
| Leg Span (transverse/longitudinal) | 2700/3300(mm) |
| Outrigger | H-type |
| Slewing Gear | 360 ° Rotation |
| Lifting Weight(kg) | 1000 |
| Overall Dimensions (mm) | 5980×1995×2950 |
| Platform Rated Load(kg) | 200 |
| Emergency Device | Emergency Pump |
| Maximum Speed (km/h) | 100 |
| Warning Device | Engineering Strobe Light |
| Operating Mode | Remote/Manual |
| Horizontal Detection | Level Detector |
| Jib Structure | Three Section Folding Arm |
| Chassis Technical Parameters | |
| Brand Name | Foton |
| Fuel Type | Diesel Oil |
| Engine Power(KW) | Quanchai 70 |
| Number of Axles | 2 |
| Number of Tires | 6 |
| Manufacturing Enterprise | BAIC Foton Automotive Co., Ltd |
| Front Axle/Rear Axle(t) | 1.8/3.5 |
| Gearbox Model | 5-Speed Manual |
| Wheelbase (mm) | 2800 |
| Tire Size | 6.00R16LT |

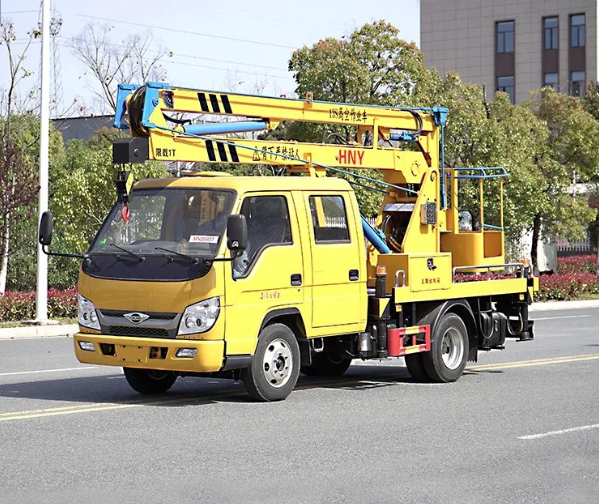

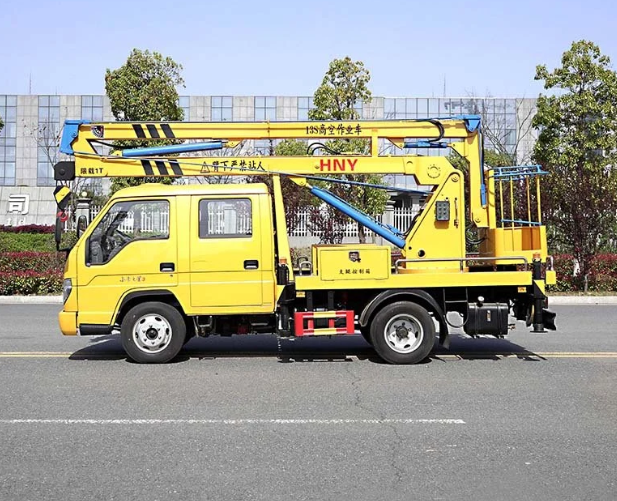

Foton 13 Meters High Altitude Operation Truck – Professional Grade, All-Round Efficiency
Product Overview
The Foton 13 Meters High Altitude Operation Truck is engineered for high-intensity, high-load operations, combining powerful performance, superior load-bearing capacity, and precise control to meet the demanding needs of construction, logistics, and industrial maintenance. With internationally certified quality and modular design, it has become the go-to productivity solution for professionals across industries.
Core Advantages
1. Ultra-Powerful Engine System – Reliable Output, High Efficiency
- Quanchai High-Pressure Common Rail Diesel Engine, delivering 70kW power output and 150-250HP, ensuring smooth operation even under heavy loads and steep inclines.
- 5-Speed Manual Transmission + 4×2 Drive, achieving 92% transmission efficiency for optimal fuel economy (8% lower consumption than competitors).
- Euro 3 Emission Standard, compliant with global environmental regulations.
2. Professional Load-Bearing Structure – Heavy-Duty Stability
- Military-Grade Reinforced Chassis, 2800mm wheelbase, and 6.00R16LT all-terrain tires, improving off-road capability by 30%.
- 1.8T Front Axle + 3.5T Rear Axle, optimized weight distribution for durability.
- 4000mm×4000mm Hydraulic Outriggers, ensuring 1.5x higher anti-tip safety factor than national standards at 12m working height.
3. Intelligent Operation System – Precision & Safety
- Three-Section Folding Arm + 360° Full Rotation, extending 9.5m max working radius with 60% better dead-angle coverage.
- Remote/Manual Dual Control, supporting 20m wireless operation for hazardous environments.
- Emergency Hydraulic Pump + Mechanical Safety Lock, ensuring safe descent during power failures.
4. Ergonomic Optimization – Comfort & Cost Efficiency
- Fully Sealed Pressurized Cabin, with AC + Shock-Absorbing Seat, noise levels below 72dB.
- Centralized Dashboard, monitoring 20+ parameters (oil pressure, water temp, load, etc.).
-Modular Quick-Release Design, allowing 15-minute attachment swaps(forks/platforms/hooks).
Industry Solutions
▶ Construction Engineering
- Steel structure lifting (1000kg max load)
- High-rise curtain wall installation (12m lifting + 0.5mm precision)
- Concrete pump pipe transport (optional pipe bracket)
▶ Logistics & Warehousing
- 5-ton container handling (side-shift forks included)
- High-altitude warehouse access (7.5m narrow-aisle capability)
- Cold-chain logistics (optional -30°C hydraulic oil)
▶ Industrial Maintenance
- Petrochemical equipment repair (explosion-proof option)
- Power plant boiler maintenance (heat-resistant insulation sleeve)
- Bridge inspection (HD camera mounting interface)
User Testimonials
> "Used in the Qinghai-Tibet Railway Phase II project, operating 3000+ hours without major repairs, with only 5% power loss in high-altitude conditions."– China Railway Construction Group
> "Compared to imported brands, maintenance costs dropped by 40%, with faster spare parts delivery."– Deppon Logistics Equipment Manager
Service Commitment
- 3-Year / 10,000-Hour Core Component Warranty
- 24/7 Nationwide Service Network
- Free Operator Certification Training(Includes VR Simulation)
> Foton Motors – Ranked Among Global Top 50 Construction Machinery Brands
> Trusted by 100,000+ Enterprises, Top 3 Market Share in China for 5 Consecutive Years
