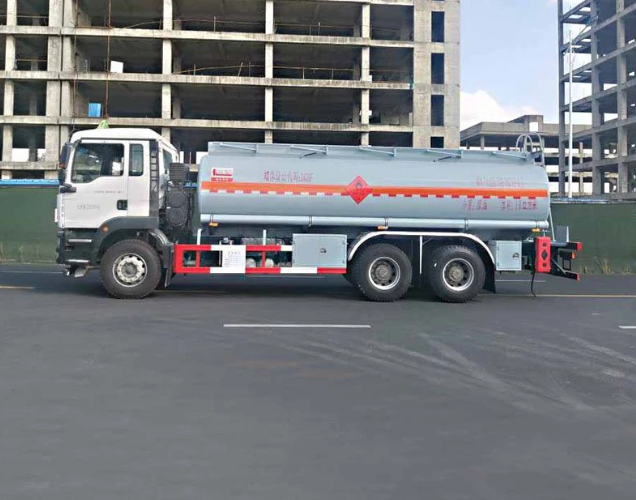

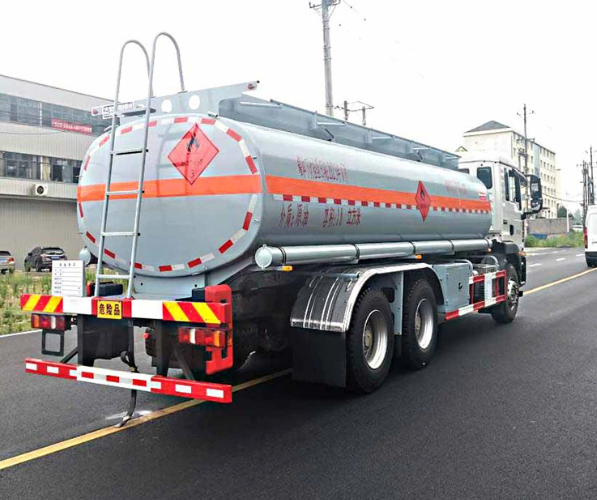

30000l diesel Gasoline Transport Oil Tank Truck
2 year ago
| [Vehicle Technical Parameters] | |
| Curb Weight(Kg) | 7440 |
| Boundary Dimension(mm) | 7900×2500×3400 |
| Tank Material | Q235 Carbon Steel |
| Tank Thickness(mm) | 5 |
| Tank Plastic Thickness(mm) | 16~20 |
| Tank Volume(m³) | 14 |

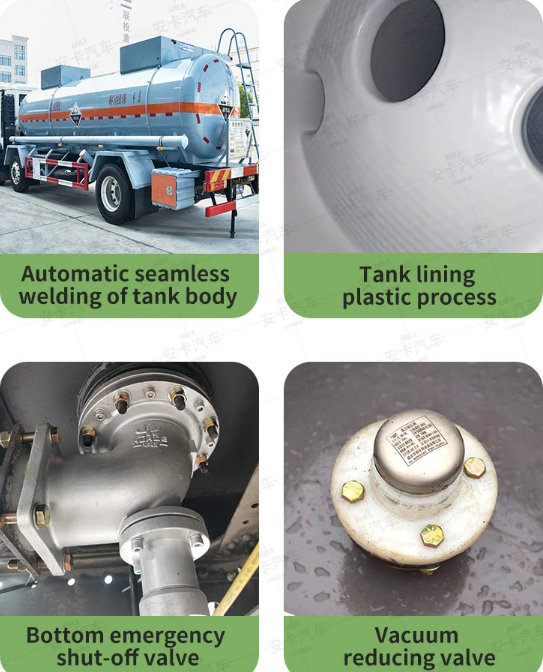

Safety Device |
Pneumatic Fluorine-Lined Emergency Shut-Off Valve |
| Voice Prompt Alarm | |
| Vacuum Pressure Reducing Valve | |
| Mouth of Tank | One/Tow |
| Discharge Opening | Lined With Four-Fluorine Ball Valve |
| Operating Ambient Temperature(°C) | -20~45 |
| Number of Passengers in the Cab | 3 |
| Maximum Speed(km/h) | 89 |
| [Chassis Technical Parameters] | |
| Trade Name | FAW |
| Brake | Automatically Air-Cut Brake |
| Type of fuel | Diesel Oil |
| Engine Power(KW) | Wei Chai 162 |
| Front Axle/Rear Axle(t) | 4.5/9 |
| Gearbox | 8 Speed Manual Transmission |
| Number of Axes | 2 |
| Wheelbase (mm) | 4500 |
| Number of Tires | 6 |
| Tyre Specification | 10.00R20 |
