| Model NO. | 518200 | Power | Diesel |
| Load Capacity | 1-10t | Emission Standard | Euro 3 |
| Tank Volume | 5001-10000L | Drive Wheel | 4×2 |
| Seats | ≤5 | Horsepower | 150-250hp |
| Engine Capacity | 4-6L | Storage | Chemical |
| Tire Certification | ISO | Tire Design | Radial |
| Condition | New | Curb Weight(Kg) | 7440 |
| Tank Material | Q235 Carbon Steel | Tank Thickness(mm) | 5 |
| Tank Plastic Thickness(mm) | 16-20 | Tank Volume(M3) | 14 |
| Mouth of Tank | One/Tow | Discharge Opening | Lined with Four-Fluorine Ball Valve |
| Maximum Speed(Kw/H) | 89 | Brake | Automatically Air-Cut Brake |
| Type of Fuel | Diesel | Engine Power(Kw) | 162 |
| Front Axle/Rear Axle(T) | 4.5/9 | Gearbox | 8-Speed Manual Transmission |
| Wheelbase(mm) | 4500 | Number of Axle | 2 |
| Transport Package | Land/Sea Transport | Specification | 7900*2500*3400 |
| Origin | China | Production Capacity | 20 Unit/Units Per Month |
| Package Size | 7900.00cm * 2500.00cm * 3400.00cm | Package Gross Weight | 16000.000kg |
| [Vehicle Technical Parameters] | |
| Curb Weight(Kg) | 12670 |
| Boundary Dimension(mm) | 11400×2550×3450 |
| Tank Material | Q235 Carbon Steel |
| Tank Thickness(mm) | 6 |
| Tank Plastic Thickness(mm) | 16~20 |
| Tank Volume(m³) | 18 |
Safety Device |
Pneumatic Fluorine-Lined Emergency Shut-Off Valve |
| Voice Prompt Alarm | |
| Vacuum Pressure Reducing Valve | |
| Mouth of Tank | One/Tow |
| Discharge Opening | Lined With Four-Fluorine Ball Valve |
| Operating Ambient Temperature(°C) | -20~45 |
| Number of Passengers in the Cab | 2 |
| Maximum Speed(km/h) | 80 |
| [Chassis Technical Parameters] | |
| Trade Name | Dong Feng |
| Brake | Automatically Air-Cut Brake |
| Type of fuel | Diesel Oil |
| Engine Power(KW) | Cummins 231 |
| Front Axle/Rear Axle(t) | 5.5/5.5/10/10 |
| Gearbox | 9 Speed Manual Transmission |
| Number of Axes | 4 |
| Wheelbase (mm) | 1995+4350+1350 |
| Number of Tires | 12 |
| Tyre Specification | 11.00R20 |

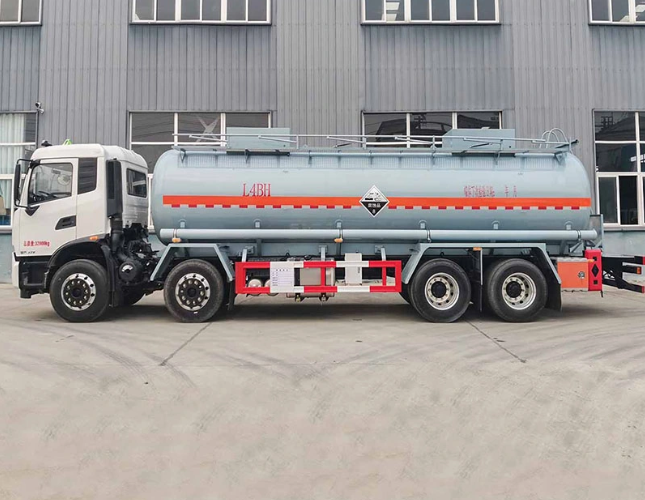

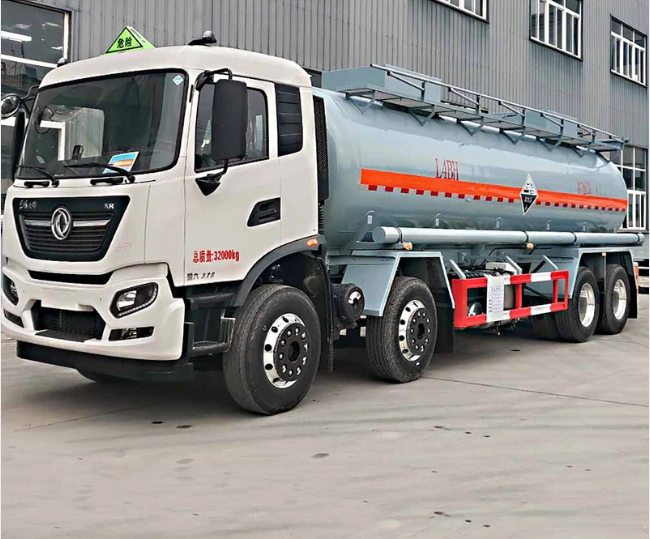

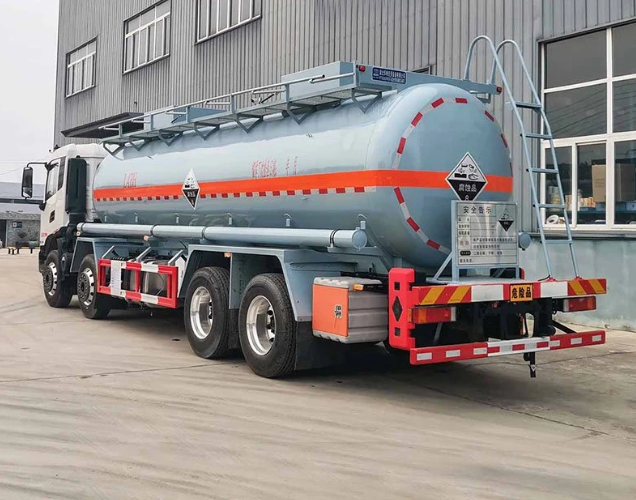

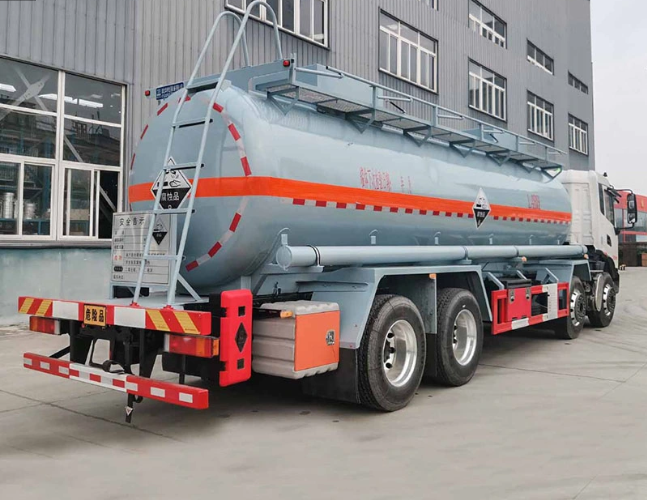

The Dongfeng 20 Tons Sulfuric Acid Hydrochloric Transport Truck is a heavy-duty industrial vehicle designed for demanding transport and storage applications, particularly in liquid logistics. Below is a concise breakdown of its key features and specifications:
Key Features & Specifications
1. Engine & Performance
-Engine Type: Cummins diesel engine
- Power Output: 162 kW
- Emission Standard: Euro 3 compliant
- Max Speed: 89 km/h
-Transmission: 8-speed or 9-speed manual (model-dependent)
- Drivetrain: 4-wheel drive
2. Load & Capacity
- Curb Weight: 7,440 kg
- Max Payload Capacity: 10 tons
- Tank Volume: 5,001–10,000 liters
- Tank Material:Q235 carbon steel (5 mm thickness)
- Tank Lining: 16–20 mm plastic thickness for corrosion resistance

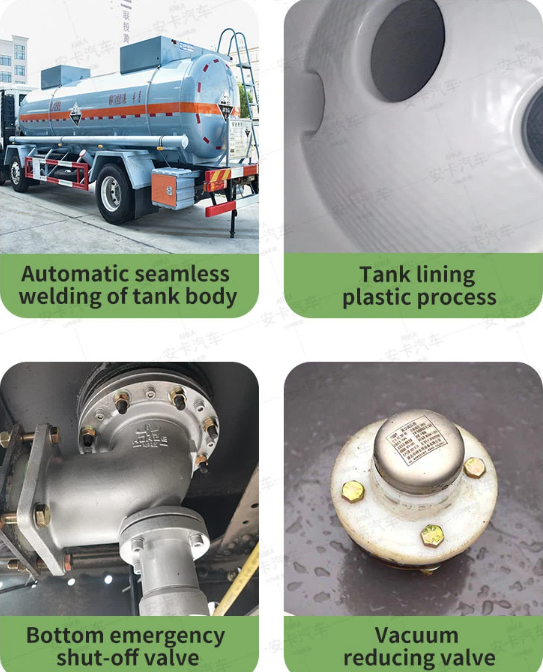

3. Safety & Operational Features
- Discharge System:Four-fluorine ball valve
- Emergency Shut-off: Pneumatic fluorine-lined valve
- Braking System: Automatic air-cut brakes
- Safety Devices:Vacuum pressure reducing valve, voice prompt alarm
4. Design & Dimensions
- Wheelbase: 4,500 mm
- Boundary Dimensions (L×W×H): 11,400 × 2,550 × 3,450 mm
- Cab Capacity: Seats for up to 5 passengers
5. Environmental & Operational Range
- Operating Temperature: -20°C to 45°C
- Suitable For:Chemical, petroleum, and agricultural liquid transport
User Feedback & Advantages
- Reliability: Strong performance under heavy loads.
- Fuel Efficiency: Good economy for a heavy-duty diesel truck.
- Durability:Robust construction with corrosion-resistant materials.
- Safety: Enhanced with emergency shut-off and alarm systems.
Ideal Applications
- Bulk liquid transport (chemicals, oils, fuels).
- Industrial and agricultural supply chains.
- Long-haul and regional logistics in varied terrains.
Maintenance & Support
- Regular servicing recommended (manufacturer-provided schedules).
- Common inquiries focus on maintenance intervals and part replacements.
The Dongfeng 20 Tons Sulfuric Acid Hydrochloric Transport Truck is a high-capacity, eco-compliant diesel truck built for efficiency and durability in liquid transport. Its combination of power, safety, and adaptability makes it a strong choice for industrial logistics.
Would you like additional details on pricing, regional availability, or comparative models?
