1.2mrad Camera Color Night Vision Monocular Telescope

In response to market demand for residential & monitored requirements at a low cost, we developed the new generation camera color night vision. This digital monocular telescope night vision has  the characteristics of 1.2mrad high-definition imaging, which already widely used in reservoir system, seaport management monitoring, oilfield & oil depot security monitoring, highways and railways monitoring, border and coastal defense etc. If you want to discuss more projects of laser rangefinder telescope, please contact us.

Technical Specifications:

Basic Parameter

 Full Color Night Vision Model: JRTCNV-2
1>. Video
 Video Resolution: 1888×1408
 Imaging Color: Color visible light
 Video Frame Rate: 25fps、20fps、10fps、5fps
 Priority Mode: Color priority, Resolution priority, Auto
 FOV: 28°
 HDMI1.4 Video: Real Time
 Min illumination: Resolution priority mode: 0.0060 lux；
 Color priority mode: 0.0080 lux；
 Resolution: 1.2 mrad
2>. Interface
 Power: DC5521
 interface: RJ45 10M/100M Adaptive Ethernet port；
 Reset: Yes

3>. Electrical characteristics
 Voltage: DC12V±3V
 Average Power Consumption: 2.4W
4>. Physical Data
 Weight: 1330g

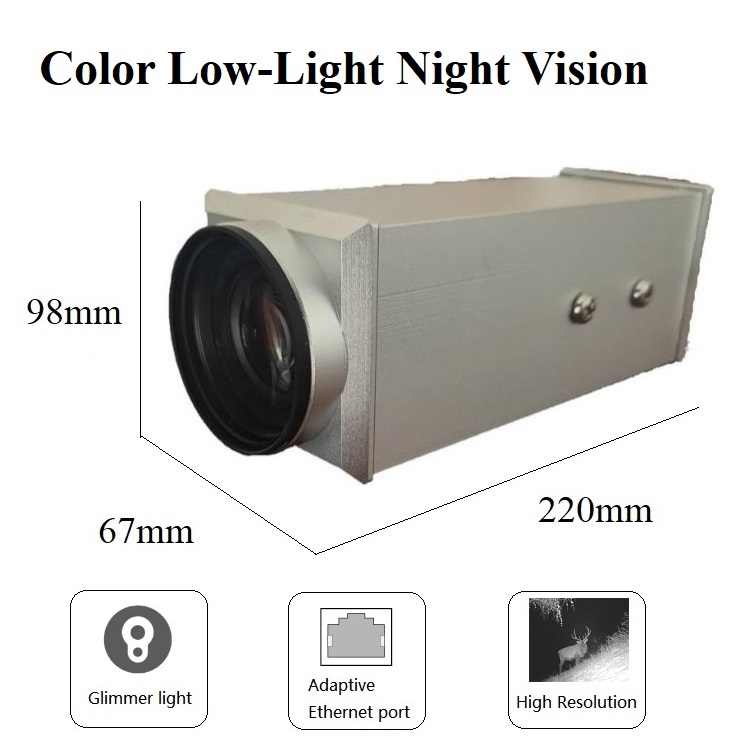

 Size: 220mm×98mm×67mm
 IP Grade: IP66
 Housing material: Aluminum alloy
 Operating Temperature Range: -25℃~65℃，humidity< 95%
 Storage Temperature Range: -45℃~65℃，humidity< 95%
 Factory reset: Support RESET and client to restore factory settings through software;
 Firmware upgrades: Yes

How to choose a Full Color Camera Night Vision for your project?
