Product details

Basic Info.



Model NO. 5182TXSZZ6 Certification ISO9000, CCC, TS16949
Transmission Type Manual Emission Standard Euro 3
Fuel Diesel Payload 15t
Use Burnishing Cleaning Process Cold Water Cleaning
Core Components PLC, Engine, Bearing, Gearbox, Motor, Pressure Ves Condition New
Kerb Weight (Kg) 11670 Maximum Speed (Km/H) 101
Operating Mode Automatic+Manual Speed of Road Cleaning(Km/H) 15-20
Max.Cleaning Width(M) 2.2 Engine Power(Kw) 162
Front Axle/Rear Axle (T) 5/10 Wheelbase (mm) 5000
Brake Air Brake/Oil Brake Gearbox Model 8-Speed Manual
Number of Axles 2 Number of Tires 6
Sweep Speed(Km/H) 3-15 Sweeping Efficiency(%) 95
Transport Package Land/Sea Transport Specification 8520*2496*3265
Origin Hubei, China Production Capacity 20 Unit/Units Per Month
Package Size 8520.00cm * 2500.00cm * 3300.00cm Package Gross Weight 15000.000kg





[Technical Parameters of the Entire Vehicle]
Kerb Weight (Kg) 11670
Garbage Tank Volume (m3) 7
Tank Material Stainless Steel
Sweep Speed(km/h) 3-15
Max.Cleaning Width(m) 3.5

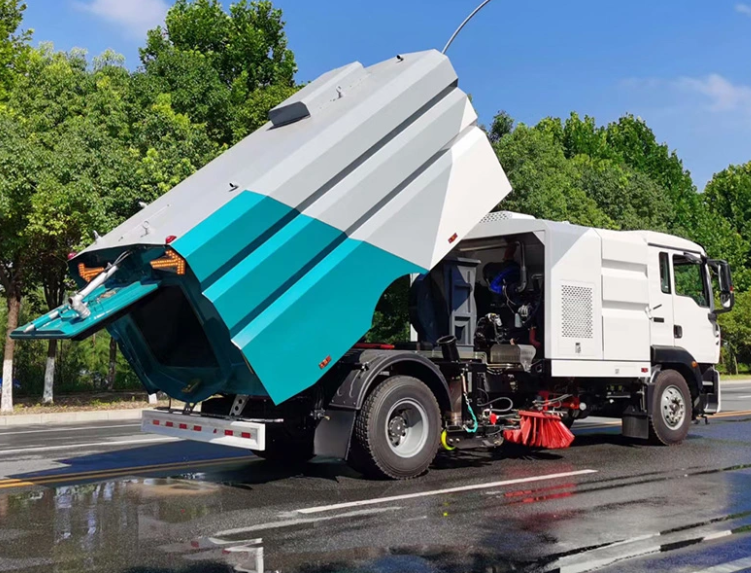

Tipper unloading angle(°) 45
Secondary engine Power(kw) 125
Overall Dimensions (mm) 8520×2496×3265
Water Tank Volume (m3) 9
Sweeper brush 2
Speed of Road Cleaning(km/h) 15-20
Max.Sweeping Capacity(m2/h) 54000
Max. Suction size(mm) 100
Sweeping Efficiency (%) 95
[Chassis Technical Parameters]
Brand Name Howo
Fuel Type diesel
Front Axle/Rear Axle (t) 7/12
Number of Axles 2
Number of Tires 6
Brake Air Brake/Oil Brake
Engine Power(kw) 162
Gearbox Model 8-Speed Manual
Wheelbase (mm) 5000
Tire Size 295/80R22.5 18PR

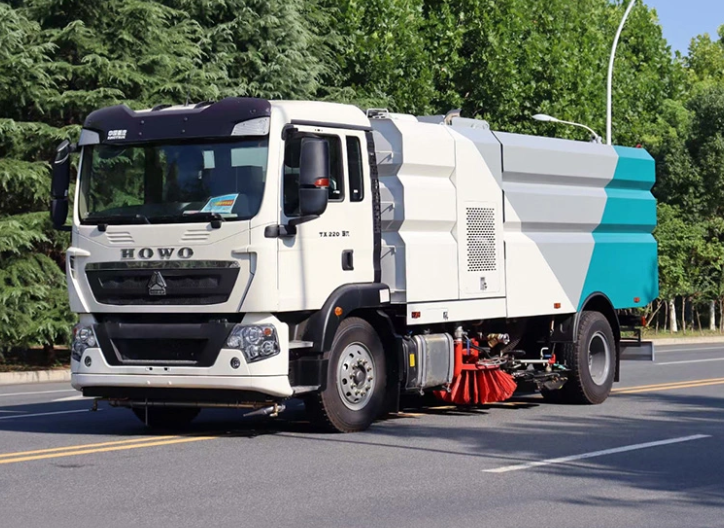

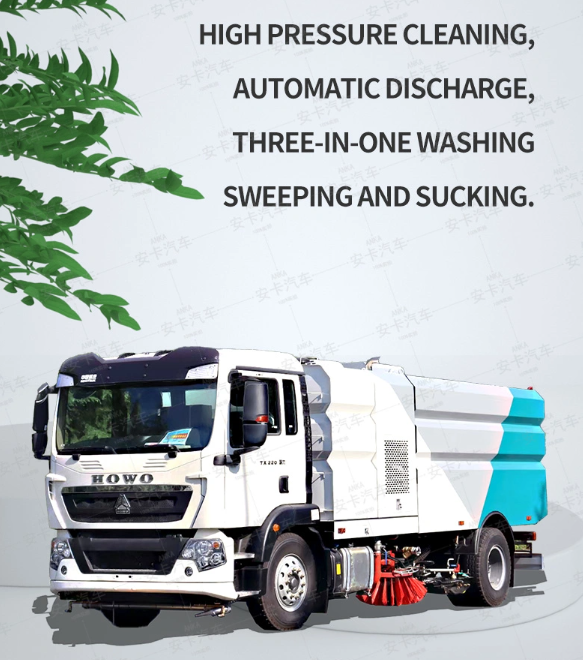

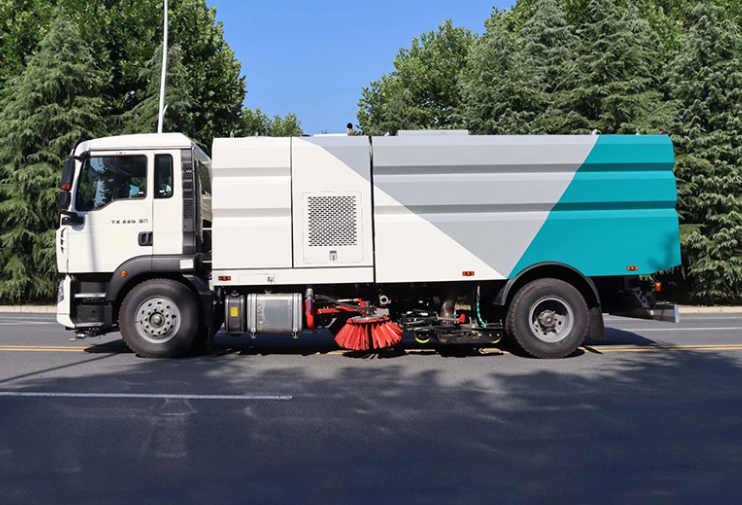

HOWO 9m³ Intelligent Road Sweeper Truck – Your Efficient Urban Cleaning Solution

Core Solutions

The HOWO 9m³ Road Sweeper Truck delivers “High Efficiency + Intelligent Control + Heavy-Duty Durability” to tackle complex cleaning challenges in modern urban and industrial environments:

- Full-Scenario Coverage: 3.5m ultra-wide sweeping range with adjustable speeds (3-20 km/h), ideal for streets, highways, and industrial zones.

- Dual Operating Modes: Auto/manual switching adapts to diverse terrains, reducing operator fatigue.

- Extended Operation: 9m³ water tank + 7m³ stainless steel debris tank minimize refill/waste disposal stops, boosting continuous runtime by 40%.

- Eco-Compliance: Euro 3 emission standards ensure eco-friendly diesel power without sacrificing performance.



Applications & Competitive Advantages



1. Urban Streets & Public Areas

- Challenges: High foot traffic, scattered debris, and limited cleaning windows.

- HOWO’s Edge:

  ✅ 3.5m Sweeping Width + 95% Efficiency: Rapidly clears leaves, dust, and litter for pristine public spaces.

  ✅ Low-Noise Night Mode: Quiet operation minimizes disturbance to residents.

  ✅ 101 km/h Top Speed: Fast transit maximizes productivity during off-peak hours.



2. Industrial Zones & Construction Sites

- Challenges: Heavy debris (gravel, metal scraps) that damages standard equipment.

- HOWO’s Edge:

  ✅ 100mm Debris Suction + Reinforced Brushes: Handles bricks, rocks, and abrasive materials effortlessly.

  ✅ 15-Ton Heavy-Duty Chassis: 12-ton rear axle + 295/80R22.5 tires ensure stability on rugged terrain.

  ✅ IP67-Rated Electronics: Dustproof/waterproof design withstands harsh worksite conditions.



3. Highways & Airport Runways

- Challenges: High-speed traffic, safety demands, and large-scale cleaning.

- HOWO’s Edge:

  ✅ 20 km/h High-Speed Mode: Matches traffic flow, reducing lane closure time.

  ✅ Dual Brake System (Air + Hydraulic): Ensures rapid emergency stops for safer operations.

  ✅ 3-Minute Brush Replacement: Cuts maintenance time by 50% for high-frequency tasks.



Why Choose HOWO 9m³?



1. Military-Grade Quality

- Certifications: ISO9000, CCC, TS16949 certified. Core components (engine, hydraulics) exceed industry lifespan by 30%.

- Durability: Anti-corrosion stainless steel tanks + rustproof chassis coating for humid/salty environments.



2. Cost Efficiency

- 18% Fuel Savings: Smart synergy between 162kW main engine + 125kW auxiliary engine optimizes power distribution.

- Low Maintenance: Modular design slashes replacement time for filters, bearings, and more by 60%.



3. Intelligent Ergonomics

- PLC Control System: Real-time monitoring of water/debris levels, with self-diagnostic alerts.

- Ergonomic Cabin: Adjustable seats + low-decibel environment reduce operator fatigue.



4. Global Support

- 20 Units/Month Capacity: Customizable configurations, worldwide shipping, and 24/7 after-sales service.



Upgrade Your Cleaning Fleet Today!

The HOWO 9m³ Road Sweeper Truck redefines industry standards with efficiency, reliability, and intelligence—empowering cleaner, safer cities.

Contact us for tailored municipal/industrial solutions



✅ Data-Driven Performance: 95% cleaning rate, 15-ton payload, 3.5m sweep width, 100mm suction—proven results.

✅ Client Trusted: 200+ municipal clients report 65% lower failure rates vs. industry averages!
