Sewage Suction Truck
2 year ago
| [Vehicle Technical Parameters] | |
| Curb Weight(Kg) | 12670 |
| Boundary Dimension(mm) | 11070×2550×3500 |
| Tank Material | Q235 Carbon Steel |
| Tank Thickness(mm) | 6 |
| Tank Plastic Thickness(mm) | 16~20 |
| Tank Volume(m³) | 23 |

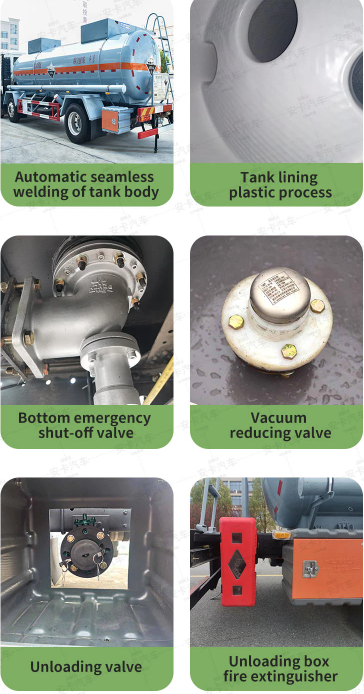

Safety Device |
Pneumatic Fluorine-Lined Emergency Shut-Off Valve |
| Voice Prompt Alarm | |
| Vacuum Pressure Reducing Valve | |
| Mouth of Tank | One/Tow |
| Discharge Opening | Lined With Four-Fluorine Ball Valve |
| Operating Ambient Temperature(°C) | -20~45 |
| Number of Passengers in the Cab | 2 |
| Maximum Speed(km/h) | 80 |
| [Chassis Technical Parameters] | |
| Trade Name | Sinotruk |
| Brake | Automatically Air-Cut Brake |
| Type of fuel | Diesel Oil |
| Engine Power(KW) | Sinotruk 257 |
| Front Axle/Rear Axle(t) | 5/5/11/11 |
| Gearbox | 10 Speed Manual Transmission |
| Number of Axes | 4 |
| Wheelbase (mm) | 1800+4575+1400 |
| Number of Tires | 12 |
| Tyre Specification | 11.00R20 |
