Automatic screen and stamping line

2 year ago

34 0 

10 year

Product details

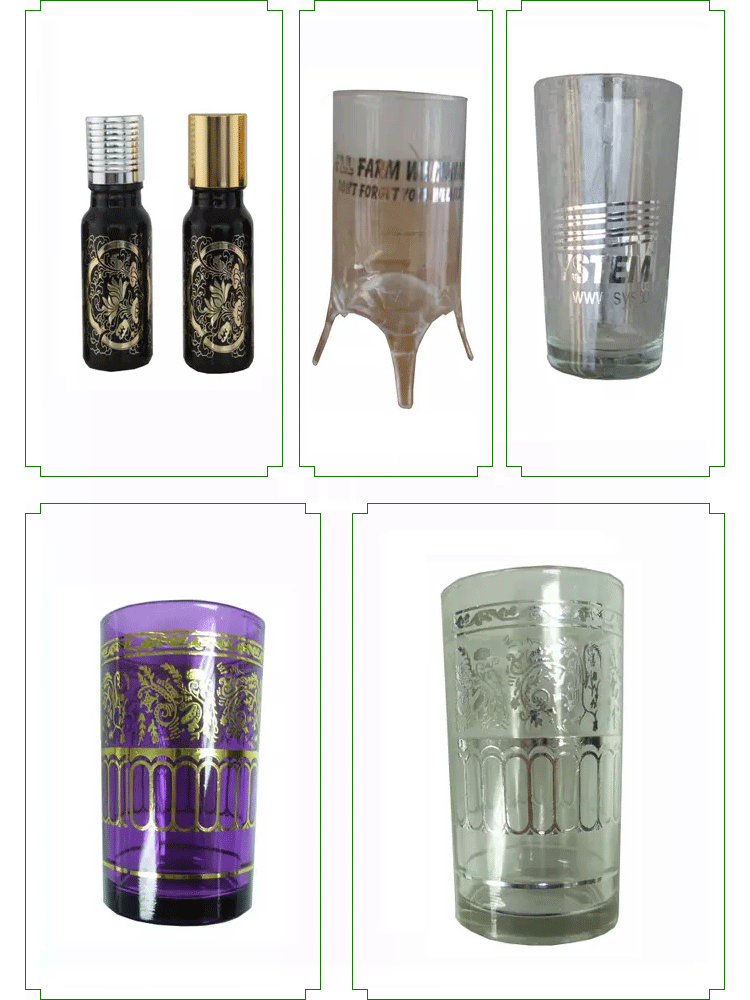

Samples

Non -absorbing materials such as glass, ceramics, and metals cannot be directly scalded. Generally, it will be printed with a layer of varnish and then bronzed. This is the cold hot scalding process. The cold -hot -coating process is suitable for flat products and is suitable for round products. It can be used for semi -automatic screen printing machine or automatic screen printing machine. The automatic machine is the automated printing equipment that integrates silk printing, UV solidification and UVLED , save labor costs.

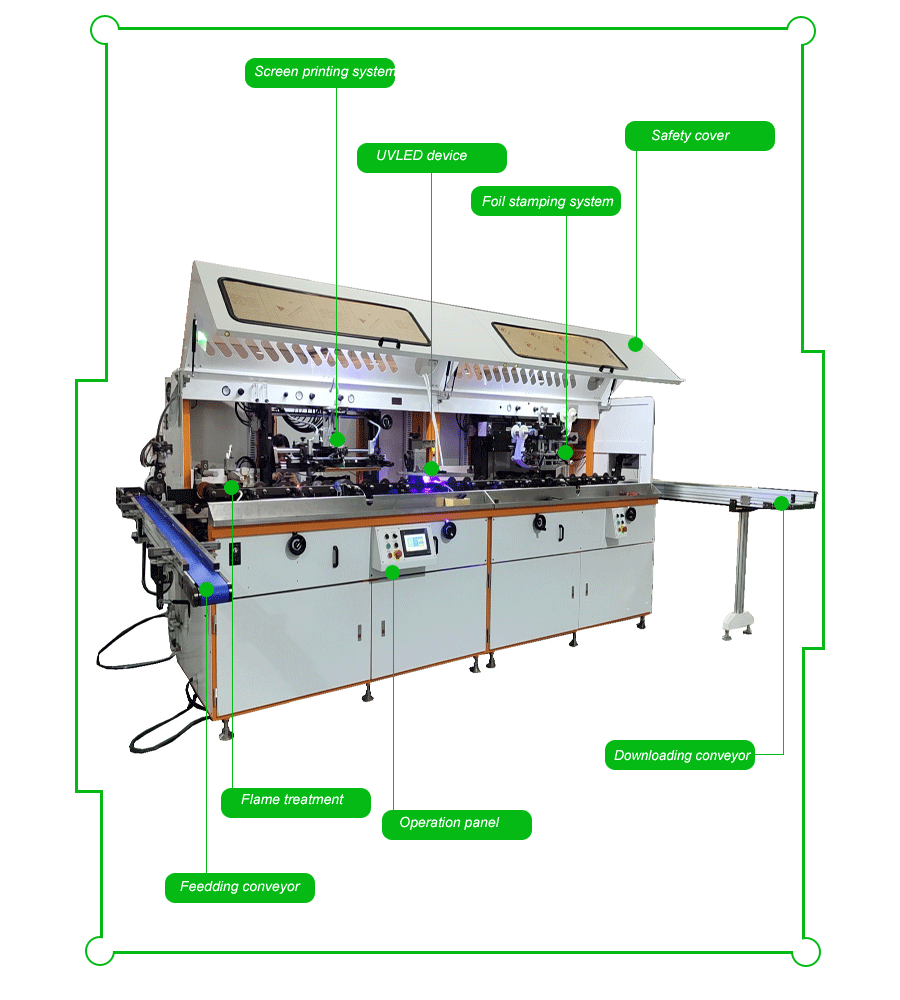

Production lines generally include automatic feed conveyor belt, flame treatment, silk printing system, UV curing unit, foil stamping system and automatic feeding conveyor belt. In order to achieve different functions, structural adjustments can also be performed according to process requirements. It is the cosmetics industry, the pharmaceutical industry and The weapon of the food packaging industry.

Catalogue

Structure

The automatic glass cup screen printing and hot stamping combination production line integrates three major systems: screen printing, drying, and hot foil stamping, which can complete the entire hot stamping process of glass cups.

Screen printing: screen printing a layer of glass varnish or glass ink on the surface of a glass cup or bottle, which is to establish a coating on the glass surface that can be bonded with the hot stamping foil.

Drying: After screen printing, the ink needs to be dried and cured, such as a UV curing device or an IR curing device to cure the UV ink on the surface of the glass cup.

Hot stamping: The hot stamping device is installed with a flat hot stamping plate or a silicone roller, which can transfer the hot stamping foil to the coated area on the glass surface, and the uncoated area will not retain the hot stamping foil.

The automatic glass cup hot stamping printing production line automates the entire process from cup loading, screen printing, drying, hot stamping to unloading, reducing manual operation time, high printing accuracy, clear patterns, and uniform colors; the hot stamping equipment is accurately positioned, the hot stamping is firm, and the glossiness is good. The exquisite screen printing and hot stamping effects can enhance the beauty and grade of the glass cup and increase the added value of the product.

Details

The automated glass bottle screen printing and hot stamping production line ensures stable quality in indirect hot stamping processes. It adapts to the characteristics of glass bottles, forming a complete closed-loop production line of "pre-treatment-screen printing-curing-hot stamping," representing an advanced solution for glass hot stamping. Glass bottles have smooth surfaces and are mostly inorganic materials, making direct adhesion of hot stamping foil difficult. However, by first printing a layer of UV-cured glass varnish or ink, the hot stamping foil can form a strong adhesion to the glass. After UV curing, the varnish or ink maintains a stable surface state (temperature, viscosity), precisely matching the hot pressing process of the hot stamping machine to achieve precision hot stamping.

1) Feeding Conveyor Belt - Used to place glass bottles ready for hot stamping;

2) Feeding Robot - The robot uses suction cups or clamps to place the glass bottles onto the oscillating conveyor plate of the printing equipment;

3) Surface Treatment - Used for dust removal and surface treatment of the product;

4) Screen Printing Unit - The main actions are the rotation of the product and the movement of the screen, generally controlled by a servo motor;

5) UV LED Curing - Instantly cures the ink;

6) Hot Stamping Unit - Can be a flat hot stamping unit or a silicone roller hot stamping unit.
