Automatic screen printing machine

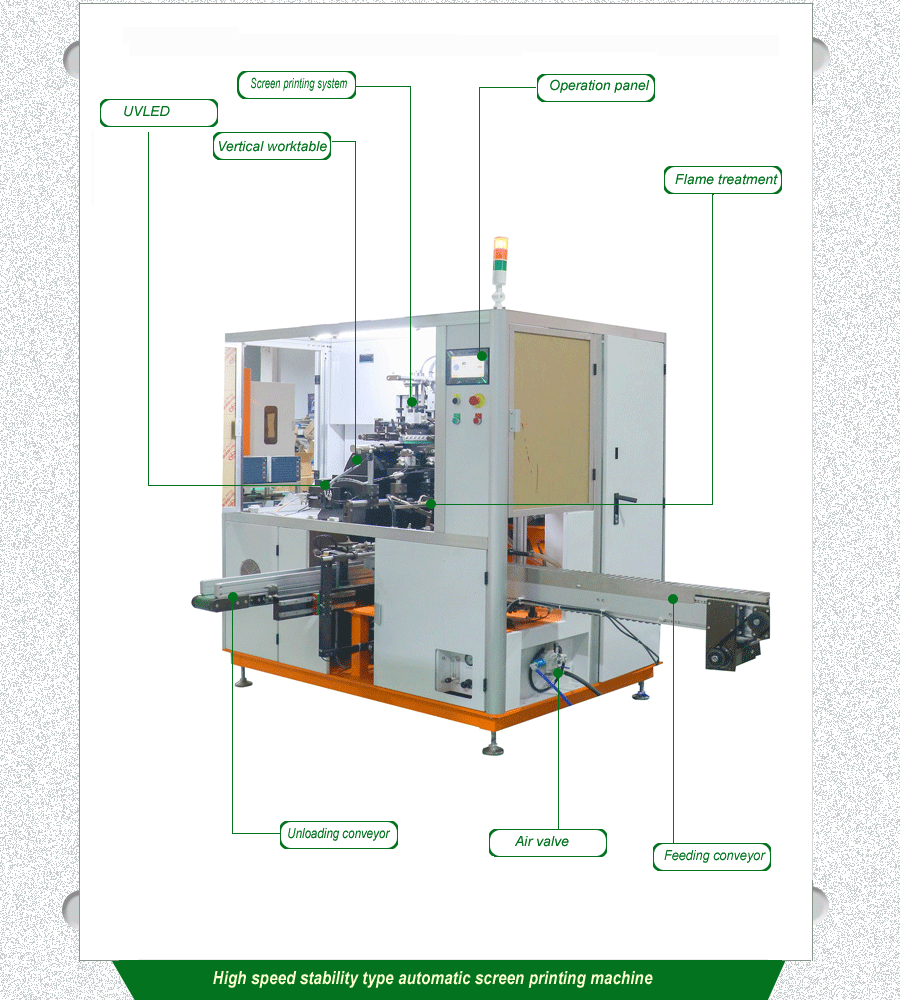

        The vertical rotary turntable is the core working platform of a fully automatic printing system, enabling continuous product indexing, precise positioning, and efficient multi-stage processing. This configuration is widely applied in screen printing, hot stamping, and heat transfer applications for cosmetics, stationery, medical products, chemical containers, and other industrial products.  Our best-selling automatic single-color screen printing machine is specifically engineered for high-speed printing on cylindrical products such as lipstick tubes, cosmetic containers, plastic bottles, and similar components. As a versatile vertical rotary automatic screen printing machine, it integrates precision product fixtures, automatic feeding and unloading mechanisms, screen printing units, and intelligent control functions into one streamlined production system. The vertical rotary design enables stable and repeatable product positioning, while the automatic indexing process supports efficient continuous operation.  Designed as an automatic single-color screen printing machine for cylindrical products, this equipment delivers consistent print registration, uniform ink transfer, and reliable production performance. Its flexible configuration makes it an ideal solution for manufacturers seeking a high-efficiency automatic cylinder screen printing machine for large-volume production and professional product decoration.

Configuration︰ Mainly Motor:SITI (Italy) Feeding Motor :Panasonic(Japan) PLC: Omron(Japan) Rotary Encoder: Omron(Japan) Sensor: Optec(Japan) Touch Screen: Proface( Japan)

Switch: Schneider( France) Contactor: Schneider (France) Relay: Idec (Japan) Inverter: Omron(Japan) UV Curing System: Primarc ( England) Pneumatic part: Festo (Germany





Round-object Max printing stroke: 300mm; Oval-object Max Printing stroke: 120mm; Round-object Max Printing speed: 4000pc/h; Oval-object Max Printing speed: 4500pc/h; Work piece size(Round): Diameter:25-100mm;Length:60-300mm; Work piece size( Oval): Width:25-260mm, Length:60-300mm; Power supply: AC380V,3Phase ,45A/(1-3Colour),100A/(4-5Colour); UV Lamp wattage: 4KW/pc; UV Exhaust fan wattage: 0.2KW;

Exhaust rate: 11.6 m3/min; Motor Wattage: 0.75KW; Reduction gearbox : 1:7.5; Feeding motor wattage : 0.75KW; Fixture motor wattage : 0.5KW; Vacuum Pressure : 500 mm/Ag; Flame gas: Liquefied Petroleum gas( LPG); Air : 6 Bar; Air rate of flow : 1500Lit/M.

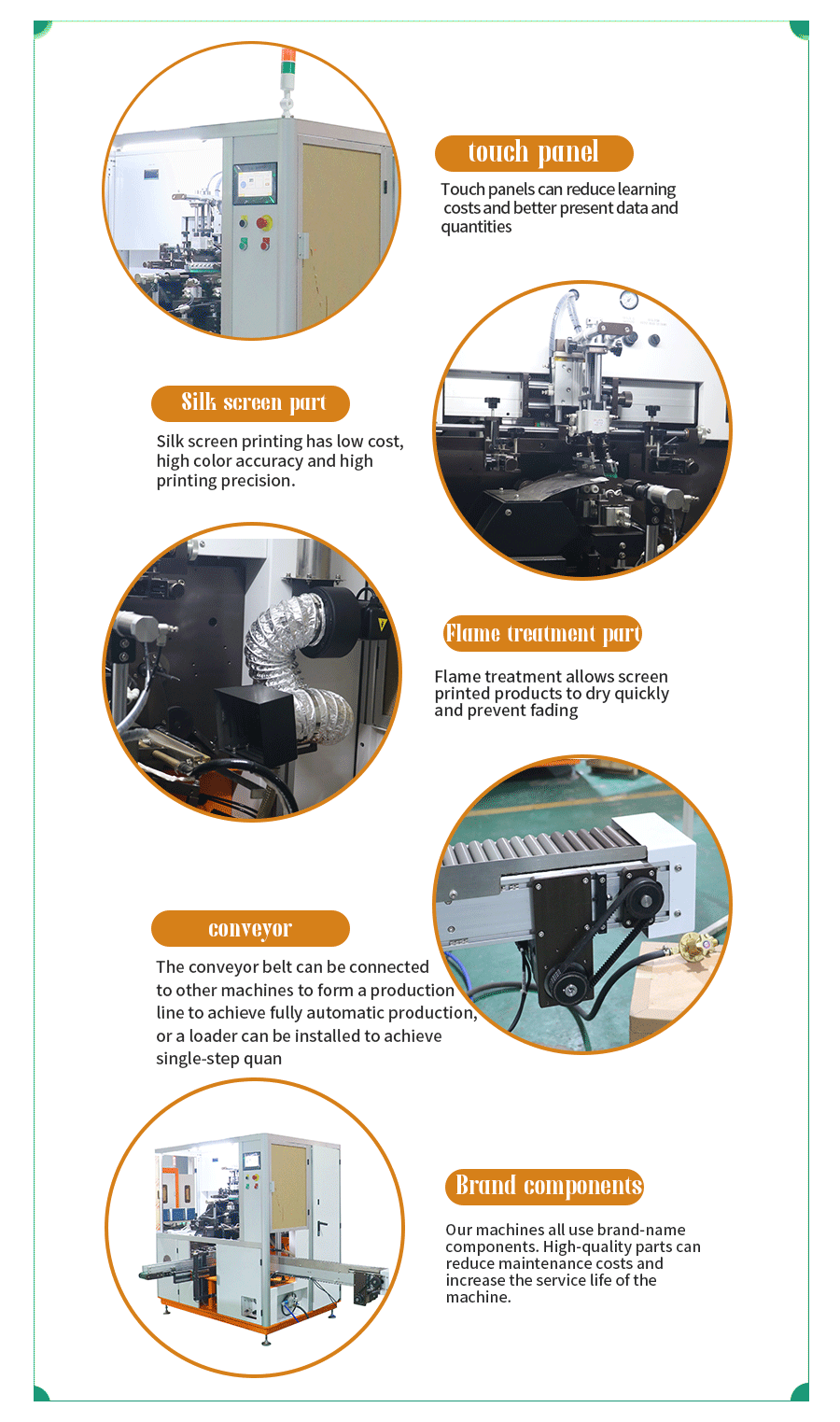

Structure-Advantage

• Flexible Feeding System: The synchronized feeding device is fully adjustable to accommodate different hose sizes, with stepless speed control for perfect coordination between transport and printing.
• Surface Treatment: Equipped with an online flame treatment device to increase the surface tension of PE and PP materials, enhancing ink adhesion.
• Patented Hose Disc Transmission: Ensures smooth operation and high positioning accuracy.
• Customizable Fixtures: The printing fixtures can be adjusted according to hose size, with electronic sensors for precise printing and automatic error prevention.
• High-Performance UV Curing: Uses a top-quality UK UV curing system for instantaneous ink drying. Lamps are easily replaceable via the pull-out design.
• User-Friendly Operation: Full mechanical drive with touch screen interface for simple human-machine interaction.
• Precision Engineering: Eight main parts are CNC-machined for high accuracy and stable high-speed operation, achieving printing speeds up to 4,000 pcs/hour.
• Safety & Monitoring: Includes automatic low-air-pressure alarm function.
• Reliable Components: Electrical and control systems use high-quality components from Germany and Japan, ensuring consistent printing quality.
