Helmet pad printer

2 year ago

20 0 

9 year

Product details

Samples of pad printer

A product can be pad printed at different positions. Multiple monochrome pad printers can be used to print by changing the form of fixtures and steel plates, or a multi-color shuttle pad printer can be used to install a multi-dimensional adjustable fixture on the workbench for printing.

For some products, the printing positions are distributed in different parts of the product, but they are relatively fixed, such as the opposite side, front end and back end of the product. At this time, you can consider using a pad printer with a multi-color rubber head that can rotate to complete it at one time.

After dipping the ink, the rubber head moves forward to the vicinity of the product, and the pad printing is performed by rotating different rubber heads according to the printing position, so that the printing of a product can be completed at one time. It is equivalent to combining multiple monochrome pad printers. Polyhedron products such as helmets, gift boxes, and speakers are very suitable.

Technical parameters

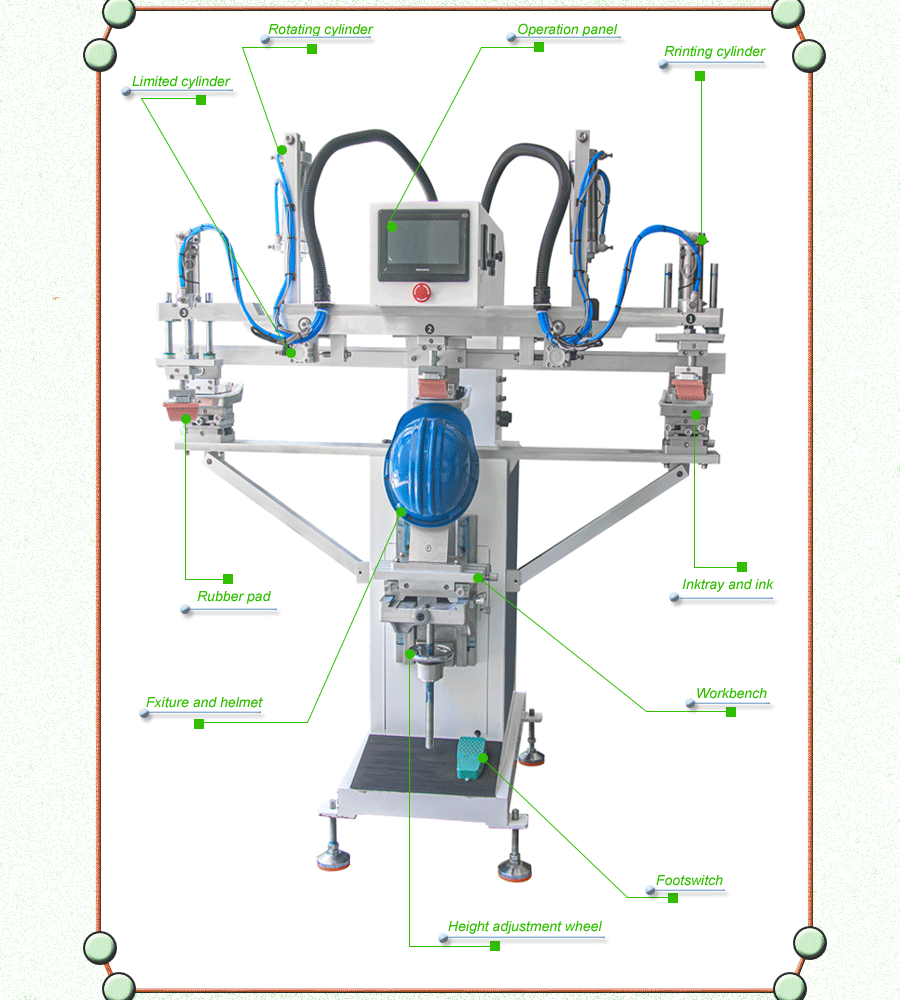

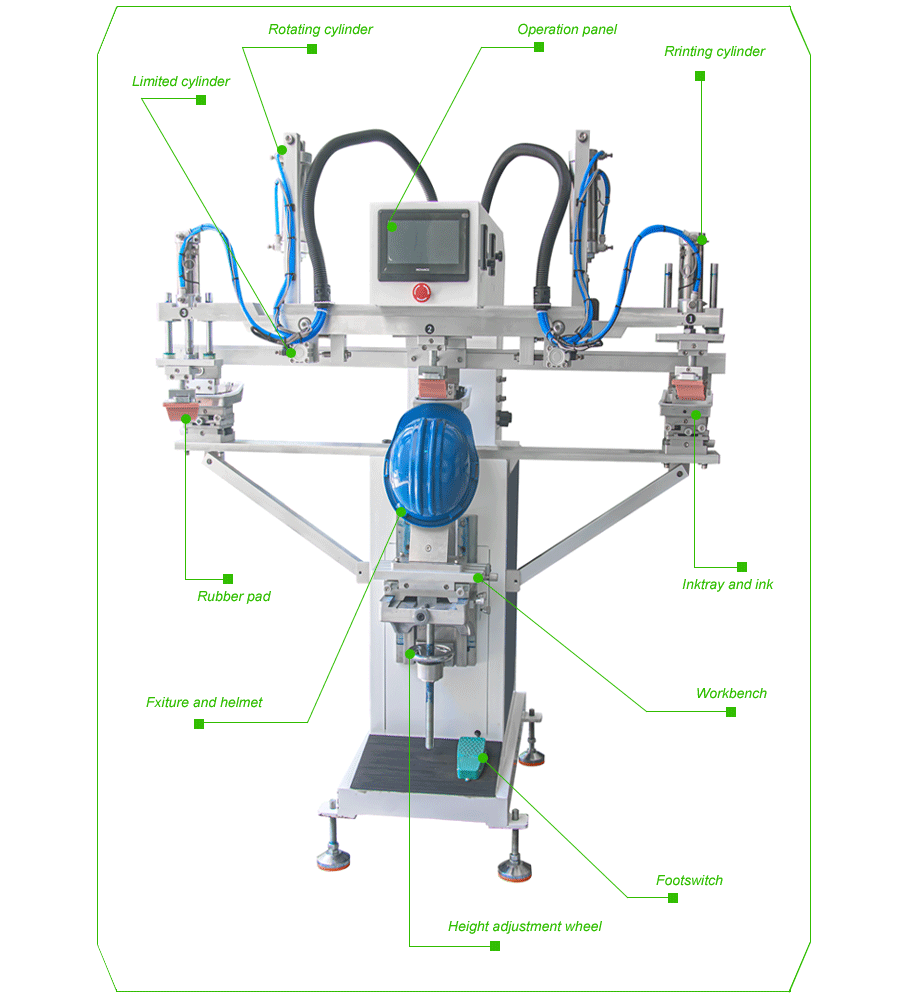

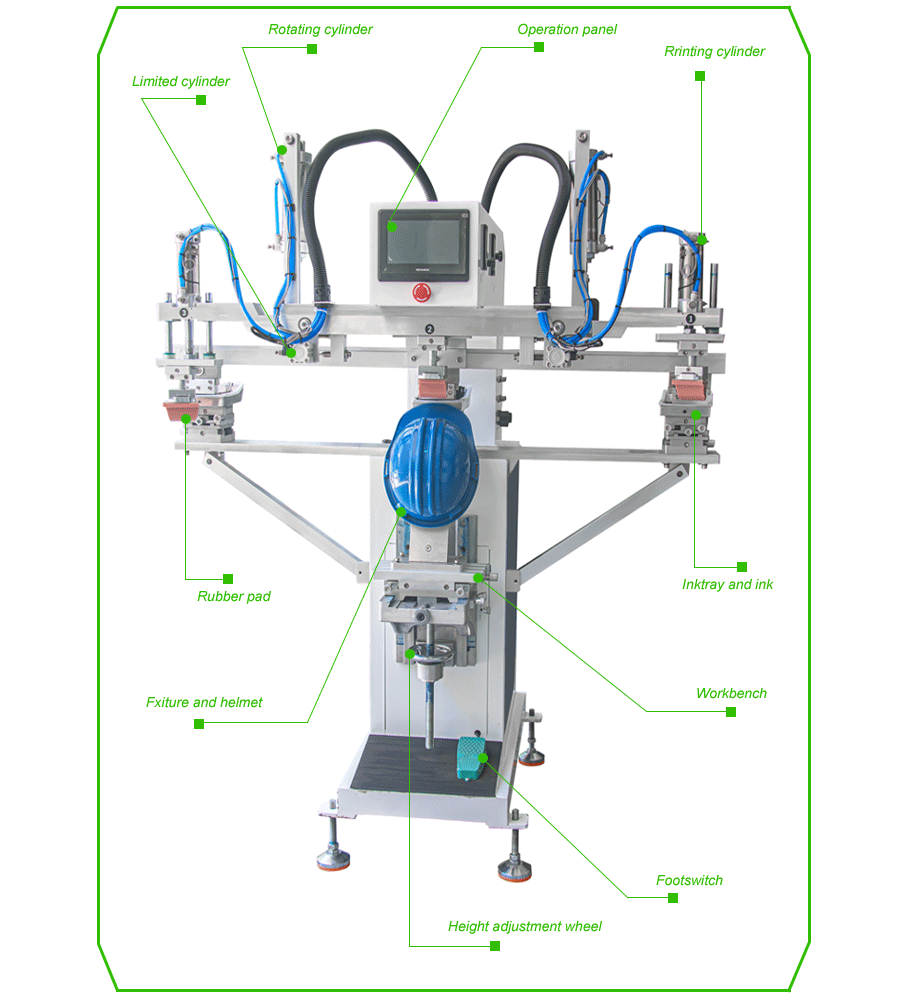

Rubber pad rotating helmet 3 colors pad printer //Structure
Working table	3-dimension adjustable working table
Ink supply system	Open inkwell ink supply system
Plate type	10mm steel plates/ plate
Pad dropping control	Simple-cylinder , Automatic rotating
Ink drying	Heat air
3 colors rubber-pad rotating pad printer with shuttle//Parameter
Technical parameters	P3-406PR	SP3-406PRS
	Max. plate size: 100×150mm; Max. worktable area: 170×200mm; Max. printing area: 85×130mm; Max. printing speed: 850pcs/h; Printable color:3.	Max. plate size: 100×150mm; Max. worktable area: 170×200mm; Max. printing area: 85×130mm; Max. printing speed: 950pcs/h; Printable color:3.
Works supply	110V-220VPower supply； 5-7Bar Compress air；
Package list	Package dimension:1.410×0.850×1.800m; Gross weight: 225kg; CBM: 2.15914
H.S.Code	8443198000
Certicate	CE

Machine details of pad printer-Advantage

- - The pad can rotate, suitable for printing multiple parts of a product.
  - PLC program control operation technology;
  - All-cast aluminum structure body, grass green paint spraying;
  - Flexibly adjustable workbench;
  - Independently adjusted pad ink dipping and stamping stroke control;
  - Oil pan ink supply method, ink saving and environmental protection;
  - Idle line ink distribution function to avoid ink drying during machine debugging.

Structure of pad printer

Pad printer rubber head movement mode

The pad printer faces more and more complex product shapes. In order to adapt to various printing positions and printing angles, on the one hand, a multi-axis servo fixture can be installed to control the movement of the product in the front, back, left, right, up and down, angle and other directions to achieve this. On the other hand, the rubber head can also be controlled to extend the movement such as rotation, elongation, and swing.

The pad printer rubber head mainly has the following movement forms

1. Vertical up and down movement

The rubber head moves up and down along the vertical direction (Z axis) to complete the cycle of "dipping ink → moving to the top of the workpiece → pressing down to print → rising back". The ink-dipping stroke of the rubber head is generally fixed, but facing the top of some containers, the rubber head may need a larger stroke to press down. At this time, it is necessary to increase the vertical movement distance of the rubber head to achieve this. For some spheres, it is also applicable.

2. Horizontal swing

Some products need to be printed on the side, and the fixture cannot turn the printed surface upward. This can be done by adding a horizontal swing to the action of the rubber head, that is, when the rubber head moves to the workbench, it turns forward 90 degrees or any other angle. The horizontal swing of the pad head is suitable for multi-sided pad printing of a product, such as the three sides of a gift box and the three sides of a helmet.

3. Three-dimensional linkage (X/Y/Z axis)

The pad printing machine sometimes requires the pad head to be moved to the top of the workbench after being dipped in ink like a CNC machine to move in any direction such as front, back, left, right, and angle. The pad head can be installed on the three-dimensional beam to execute complex programs.
