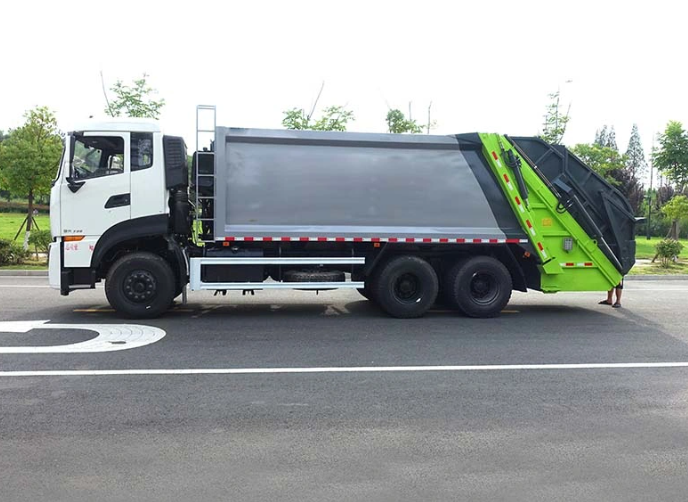

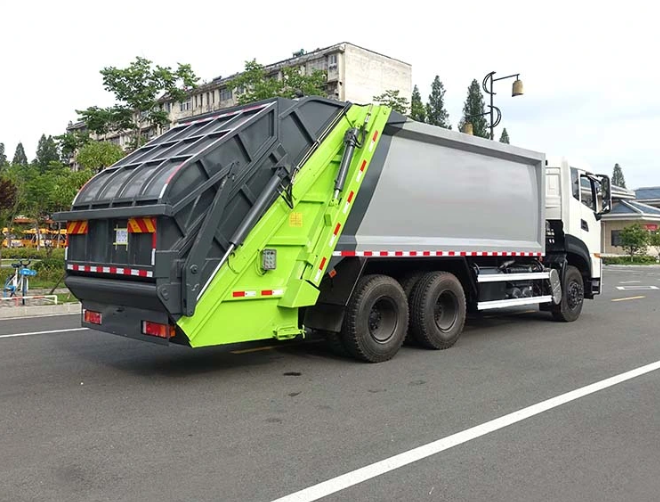

Compacting Garbage Truck
2 year ago
Basic Info.
Packaging & Delivery
Product Description

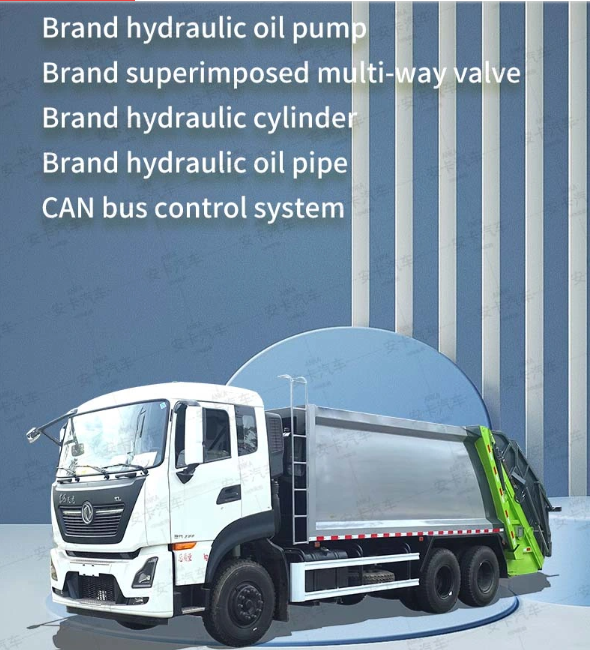

Brand hydraulic oil pump
Brand superimposed multi-way valve
Brand hydraulic cylinder
Brand hydraulic oil pipe

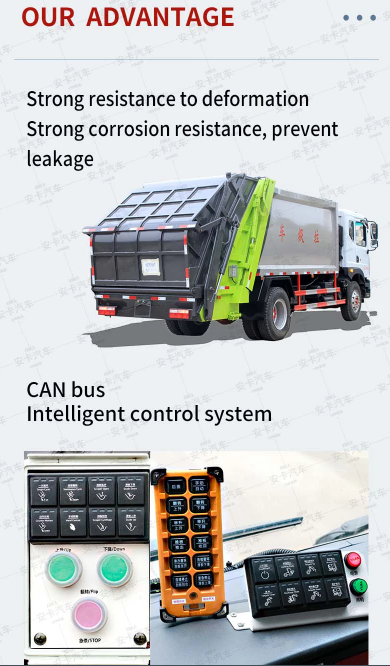

CAN bus control system
| [Technical Parameters of the Entire Vehicle] | |
| Kerb Weight (Kg) | 14780 |
| Overall Dimensions (mm) | 10500×2520×3300 |
| Box Volume (m3) | 20 |
| Box Thickness (mm) | Side 4 Bottom 5 |
| Box Body Material Quality | T355 Manganese Steel |
| Compression Density (t/m ³) | 0.6-0.8 |
| Working Environment Temperature (ºC) | -20~45 |
| Sewage Tank Capacity (L) | 1600 |
| Filling Cycle Time (S) | ≤35 |
| Compression Cycle Time (S) | ≤15 |
| Unloading Cycle Time (S) | ≤60 |
| Operating Mode | Automatic+Manual |
| Number of Passengers Allowed in the cab (Person) | 2/3 |
| Maximum Speed (km/h) | 88 |
| [Chassis Technical Parameters] | |
| Brand Name | Dongfeng |
| Brake | Air Brake/Oil Brake |
| Fuel Type | Diesel |
| Engine Power(kw) | 213 |
| Front Axle/Rear Axle (t) | 5.5/Double 10 |
| Gearbox Model | 9-Speed Manual |
| Number of Axles | 3 |
| Wheelbase (mm) | 4350+1350 |
| Number of Tires | 10 |
| Tire Size | 11.00R20 |
