H-TC1520ARS automatic greeting cards hot stamping machine

A4 paper Full automatic hot foil stamping machine //

Usage and characters

       For products with a relatively fixed shape, it is almost an inevitable trend to use a fully automatic hot stamping machine. For example, paper, film, leather, etc. can be cut into fixed-size products. This fully automatic hot stamping machine uses a stacker to feed materials. The materials that need to be stamped will be neatly stacked on the stacker, and will be fed one by one by the feeding manipulator. The product is sent to the hot stamping position. The hot stamping device is generally composed of a servo-controlled plane hot stamping machine, which can be adjusted accurately from left to right, front to back, and up and down. After the bronzing is completed, the unloading manipulator will suck and transfer the product to the unloading workbench. The whole process is mechanized to avoid human intervention. Not only is the speed fast, but the safety is also greatly improved.
    At present, such automatic hot stamping machines are widely used in hot stamping processing of gift boxes, jewelry boxes, paper packaging, shoe materials and other products.

Technical data of paper automatic hot foil stamping machine

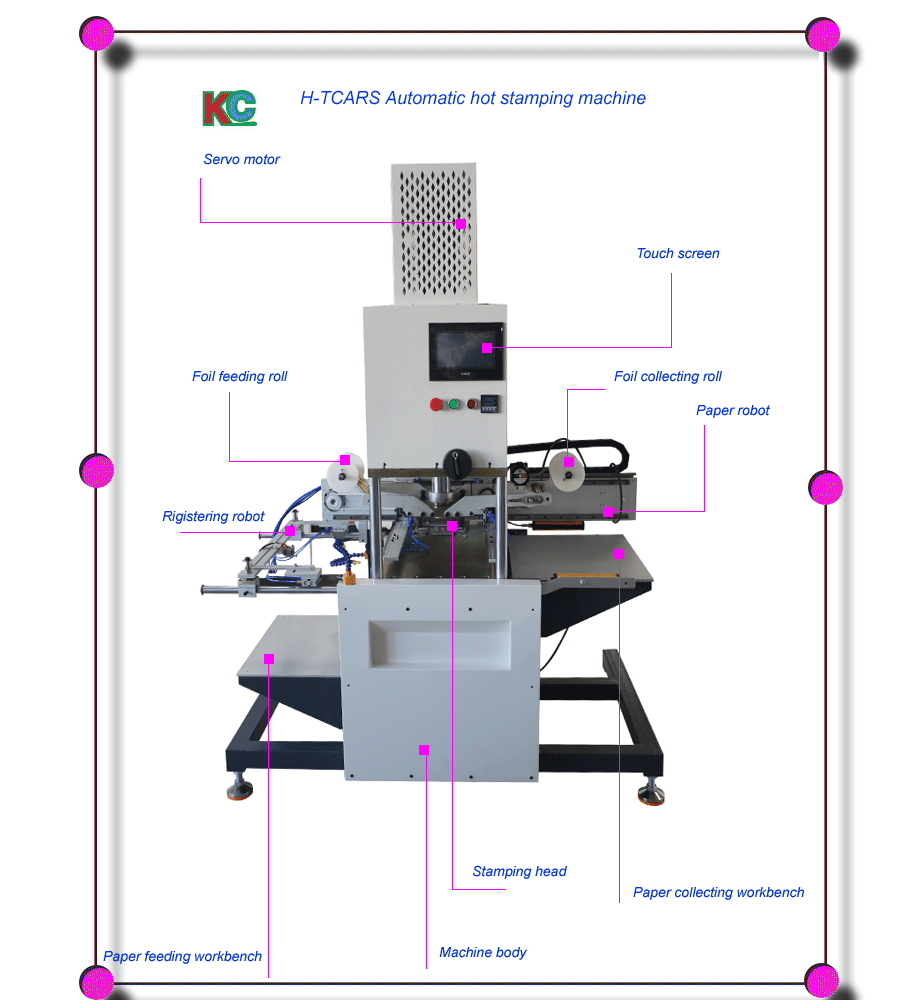

Advantage-Structure of paper automatic hot foil stamping machine

• Automatic hot stamping of paper, PVC, PU and other materials used in the printing and packaging industry. It includes automatic paper feeding, automatic length walking hot stamping paper, automatic paper collection, automatic rewinding of hot stamping paper and other functions.
• Automatic paper feeding and automatic paper collection are controlled by servo motors, the paper is accurate, and the error can be controlled within 0.1mm. Both the paper feed table and the paper collection table can be automatically adjusted according to the height of the paper, ensuring the precise positioning of the paper collection and paper feeding.
• The automatic bronzing spindle is controlled by a 1500W servo motor with brakes + planetary reducer, which can easily achieve a pressure adjustment range of 0-1.5 tons.
• The bronzing temperature control system uses high-precision temperature control switches, thermocouples, and 400W heating plates, and the temperature difference range can be controlled within 2-3 °C, which is extremely effective for temperature-sensitive aluminum hot stamping film.
• The automatic paper walking of aluminum galvanized aluminum and bronzing paper is controlled by stepper motor + high-precision pulley, and the fixed length of hot stamping paper is within 0.2mm.
• The whole machine is programmable logic controller + touch screen man-machine interface + high-precision servo motor + cylinder control operation, reasonable design, high precision, small appearance and space-saving, especially suitable for jewelry box packaging, wallet watch box packaging, small leather shell, red packet bag, display box PVC and other products surface gilding.

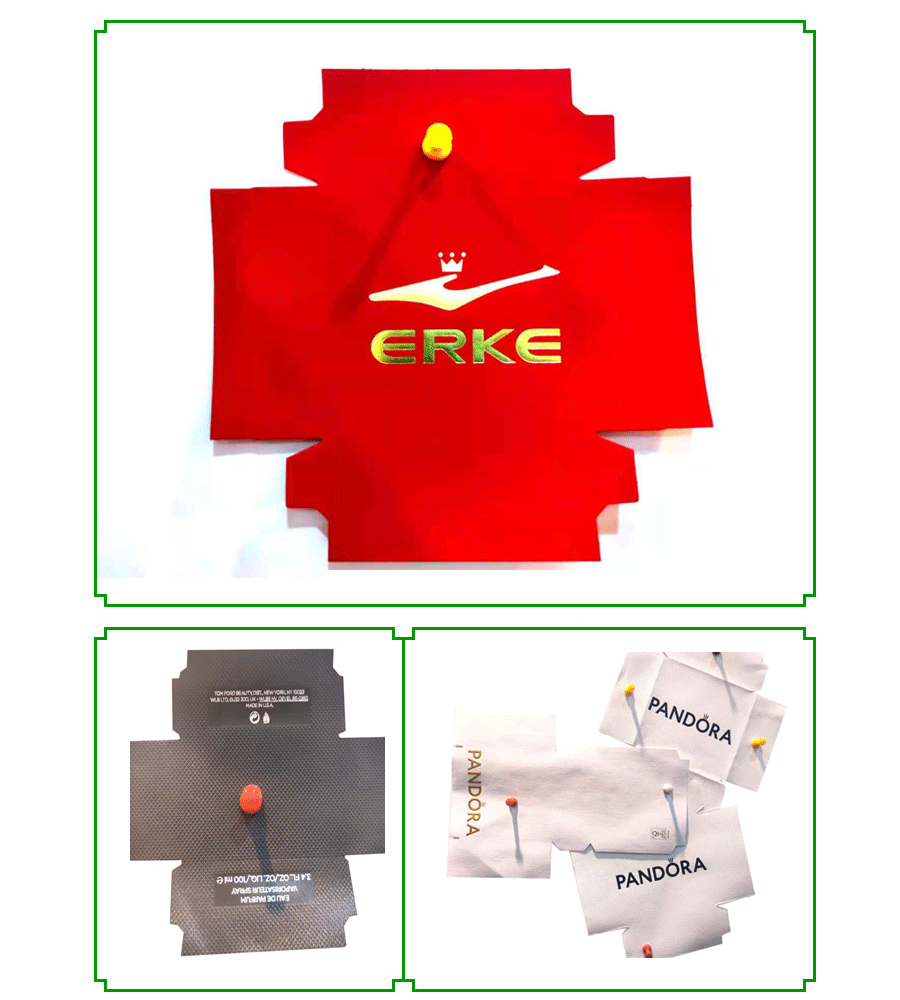

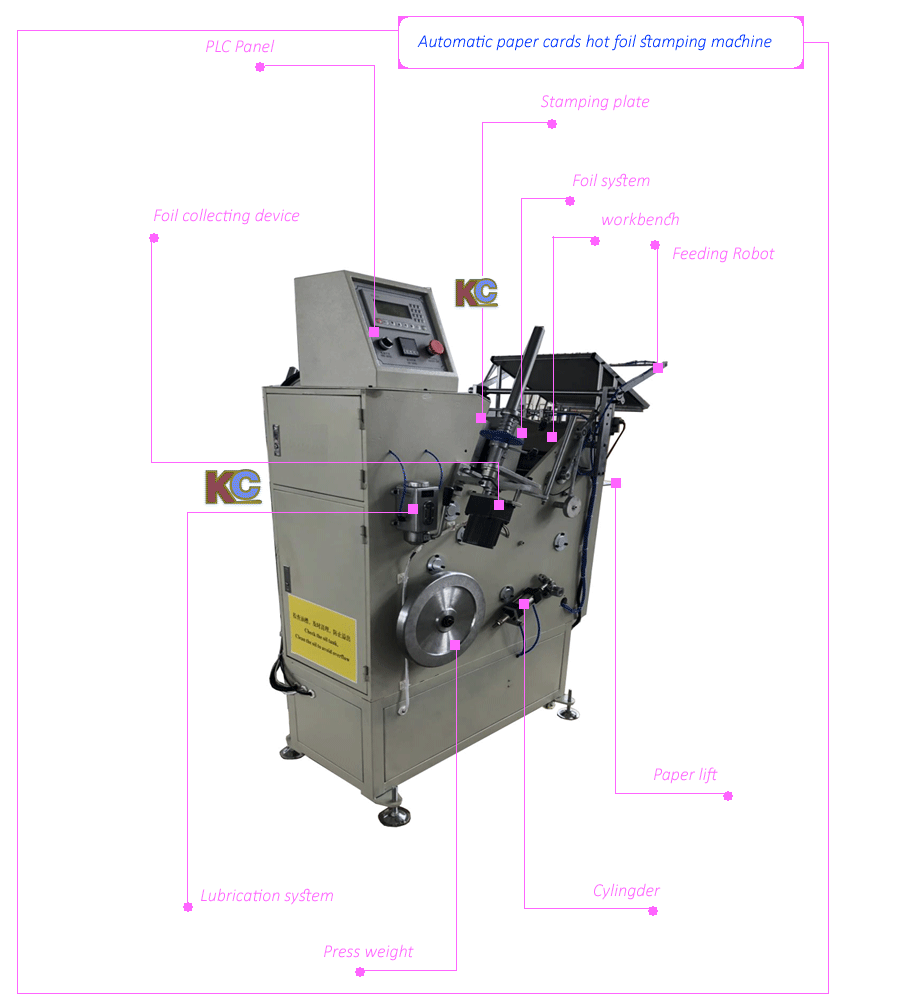

Details of paper automatic hot foil stamping machine

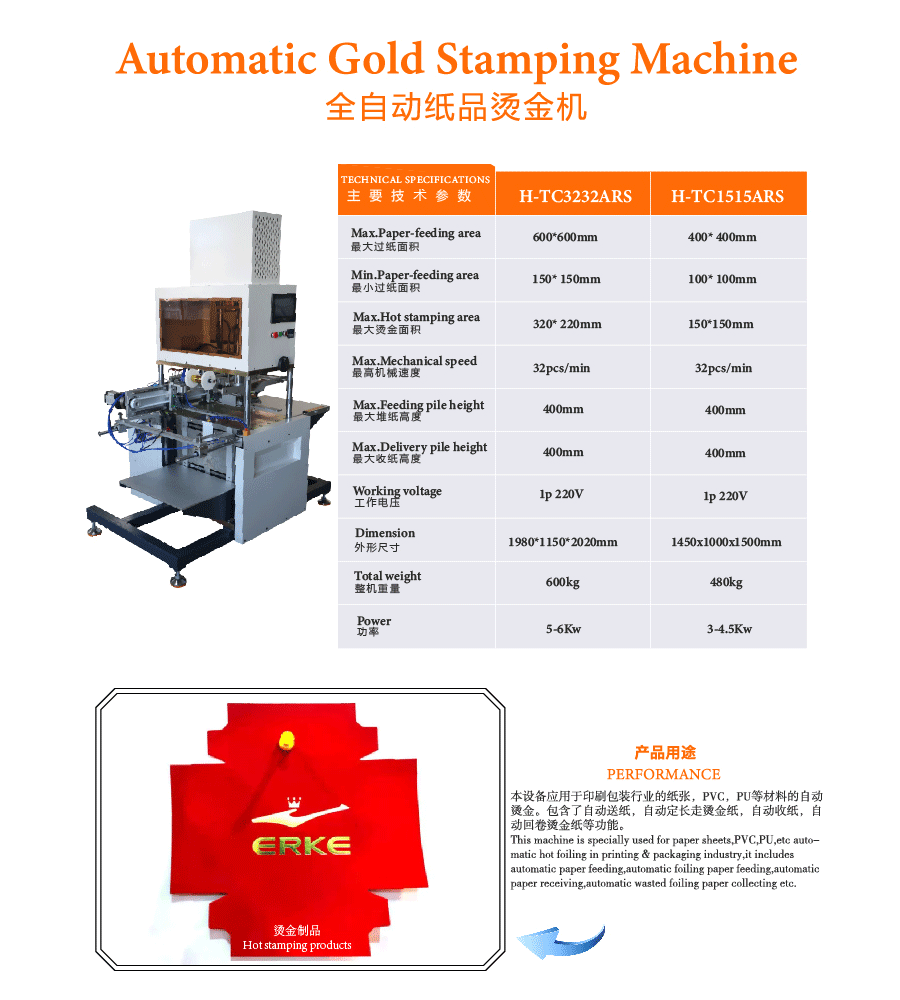

Catalog of paper automatic hot stamping machine
