H-200M Pneumatic heat transfer machine //

Usage and characters

      Thermal transfer printing on plastic materials is a special printing process, which is divided into two steps. First, the pattern to be transferred is printed on the PET film or BOPP film with a gravure printing machine, because the gravure printing machine is very easy. Multi-color printing with high aesthetics is achieved, and the pattern colors on the film are very rich and bright. Second, use a thermal transfer machine to transfer the pattern on the PET or BOPP film to the surface of the plastic product. Since the thermal transfer machine only needs a lower temperature and less pressure to achieve the transfer, the level loss of the graphic and text is very small. few.
     Heat transfer film is usually outsourced to a specialized gravure printing machine factory, while the heat transfer process is completed by a special heat transfer machine. The thermal transfer machine uses the principle of heat and pressure, uses a silicone roller or a flat silicone plate as a source of pressure and heat, presses the thermal transfer film tightly on the surface of the product and keeps it in contact for a period of time, the thermal transfer film is The pattern is completely transferred to the product.     The thermal transfer printing process is widely used in the printing of plastic containers, especially hoses, cups and barrels. In terms of color expression, the thermal transfer printing machine leaves a very deep impression on people.

H-200M Hydraulic heat transfer Machine //Parameter

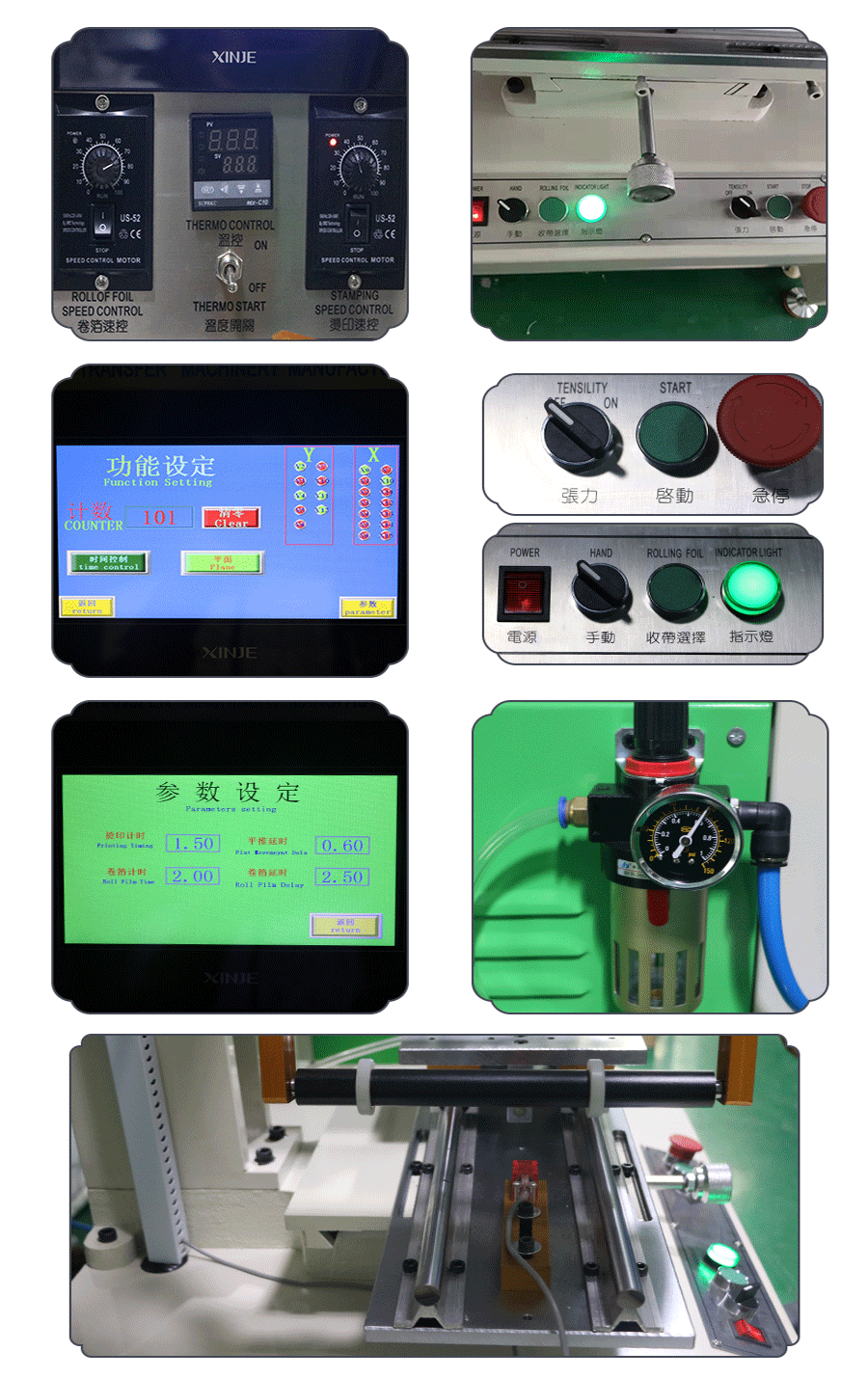

Machine details-advantage

• The program controller, easy to operate;Uniform heat transfer, plastic roller rotation;
• Suitable for large-area stamping; plane or cylinder heat transfer can be achieved by installing a different fixture;
• High-precision photoelectric cell tracking control for easy positioning thermal transfer;
• Non-location requirements of stamping using a timed feeder by the length of the rolls can be flexibly adjusted;
• Adjustable worktable, easy to transfer the workpieces of different lengths;
• The transfer pressure, temperature, speed can be based on different material for the flexible adjustment;
• The nose height adjustable stamping head movements can fine-tune, easy to adjust the height of the different products;
• Precise temperature control system, temperature error control in less than 3 degrees; silicone roll radiant heating, thermal efficiency of the utilization factor;
• Rubber roller embossing pressure control system, constant pressure of the transfer process, the transfer effect is more perfect.

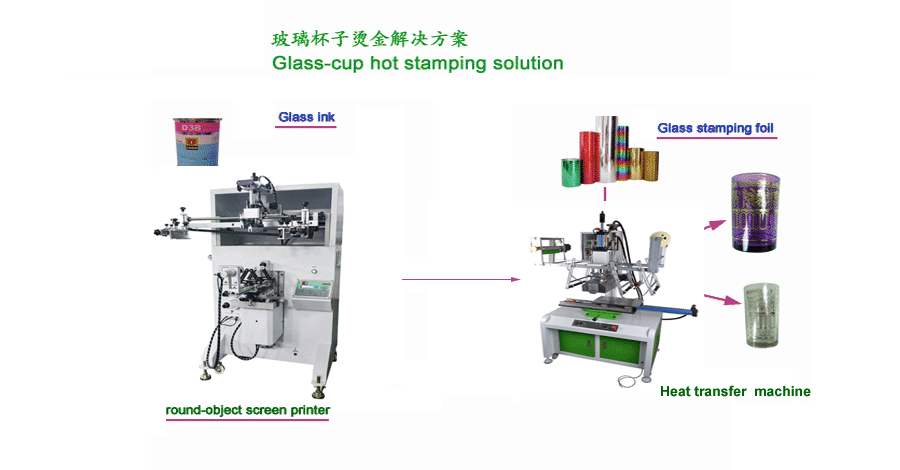

Glass bottle printing solution

Thermal transfer machine is a very important indirect method, that is, it can transfer the pattern printed on the plastic film to the surface of the third-party product.

1) For plastic products, the thermal transfer machine can be used to directly transfer the pattern to the product surface. Because the transfer process depends on the matching of the thermal transfer film and the product material, and the matching depends on the properties of the adhesive layer of the thermal transfer film. The current thermal transfer film has been very mature and adapted to the surface characteristics of most plastic materials such as polyolefins, polyesters, ABS, polyethers, and organic glass.

2) For non-absorbent materials such as glass, ceramics, and metals, it is currently difficult to produce matching thermal transfer films. If hot stamping or thermal transfer is required on their surface, a layer of glass varnish, ceramic varnish or metal varnish must be printed first, and then the transfer is performed. The indirect thermal transfer process uses the same hot stamping machine and thermal transfer machine.

Silk screen printing and thermal transfer can be completed on independent machines, or they can be completed by designing and manufacturing fully automatic printing production lines, such as silk screen hot stamping production lines and silk screen thermal transfer production lines.
